Serpentine belt routing diagram

2006 FORD FUSION
3.0L • V6 • 2WD • AUTOMATIC
Avatar
HOLMHOME
  • MEMBER
  • 1 POST
Can you please give me the serpentine belt routing diagram? Thank you
Apr 5, 2015 at 12:21 AM
Advertisement
Avatar
CARADIODOC
  • CERTIFIED EXPERT
  • 34,306 POSTS
Hello,

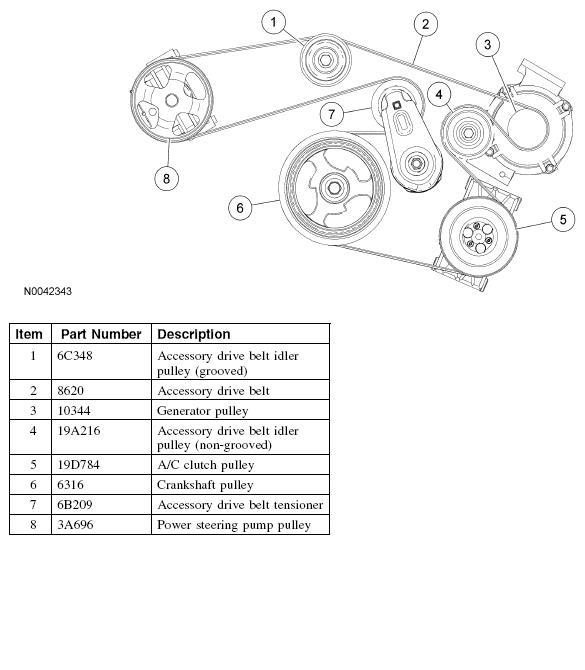

Here it the serpentine belt routing diagram below and a guide to help you change it out.

https://www.2carpros.com/articles/replace-serpentine-belt

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Image (Click to enlarge)
Attached Media
Apr 5, 2015 at 12:32 AM
Avatar
JES10907
  • MEMBER
  • 2 POSTS
I want to know how to change the serpentine belt on 05 zx4 fusion.
Oct 27, 2018 at 7:11 PM (Merged)
Advertisement
Avatar
DAVE H
  • CERTIFIED EXPERT
  • 13,384 POSTS
Accessory Drive Belt
Removal and Installation
With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING AND LIFTING .
Remove the accessory drive belt splash shield.
Remove the accessory drive belt.
Rotate the tensioner clockwise.
Remove the belt.
To install, reverse the removal procedure.
Oct 27, 2018 at 7:11 PM (Merged)
