2006 Ford Focus secondary air

2006 FORD FOCUS
98,000 MILES • 4 CYL • FWD • AUTOMATIC
Avatar
LUIES01
  • MEMBER
  • 17 POSTS
This ford is a zx3...It started throwing codes for secondary air intake, mainly "low flow" to left port and for secondary air one way check valve. This leads me to think I need to replace the check valve but nowhere can I find anything to tell me where it is . Can you give me a location and will (for example) a universal one from auto zone work. I also read online that a couple people drilled a small hole in the bottom of the blower to avoid condensation from going into the engine? Supposedly no more trouble>
Feb 22, 2015 at 1:45 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
what engine and what is the code?
Feb 22, 2015 at 1:50 PM
Avatar
LUIES01
  • MEMBER
  • 17 POSTS
If I remember correctly p491 and 492, code reader saying "insufficient flow bank 1(left bank) and 492 "one way check valve". The car started having a problem starting this morning so I cleared the codes and started right up. Maybe coincidence.
Feb 22, 2015 at 2:00 PM
Advertisement
Avatar
LUIES01
  • MEMBER
  • 17 POSTS
Sorry, a zx3 ztech dohc engine I believe
Feb 22, 2015 at 2:01 PM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
one pic shows causes other pic shows location of pump which solenoid should be near it. solenoid is in another pic.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Feb 22, 2015 at 2:06 PM
Avatar
LUIES01
  • MEMBER
  • 17 POSTS

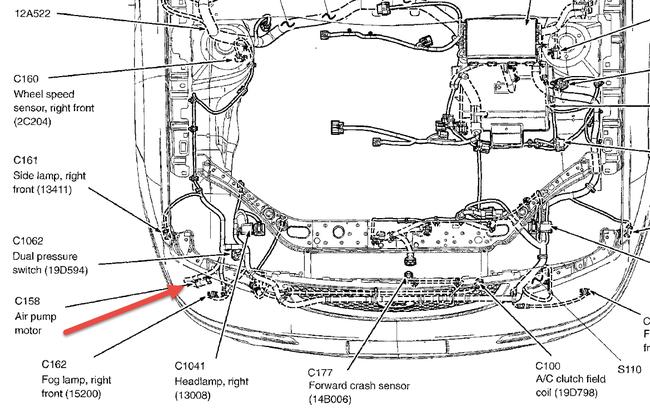

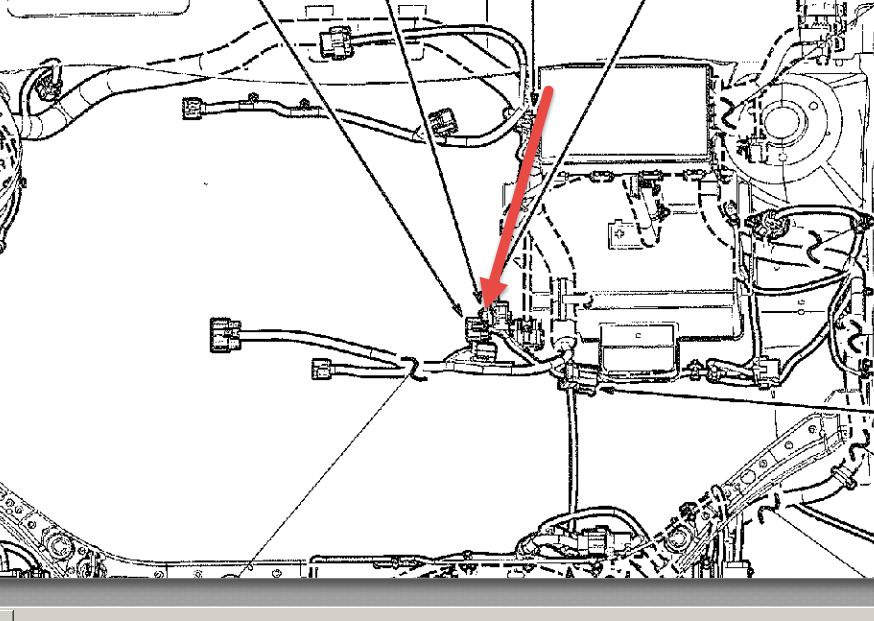

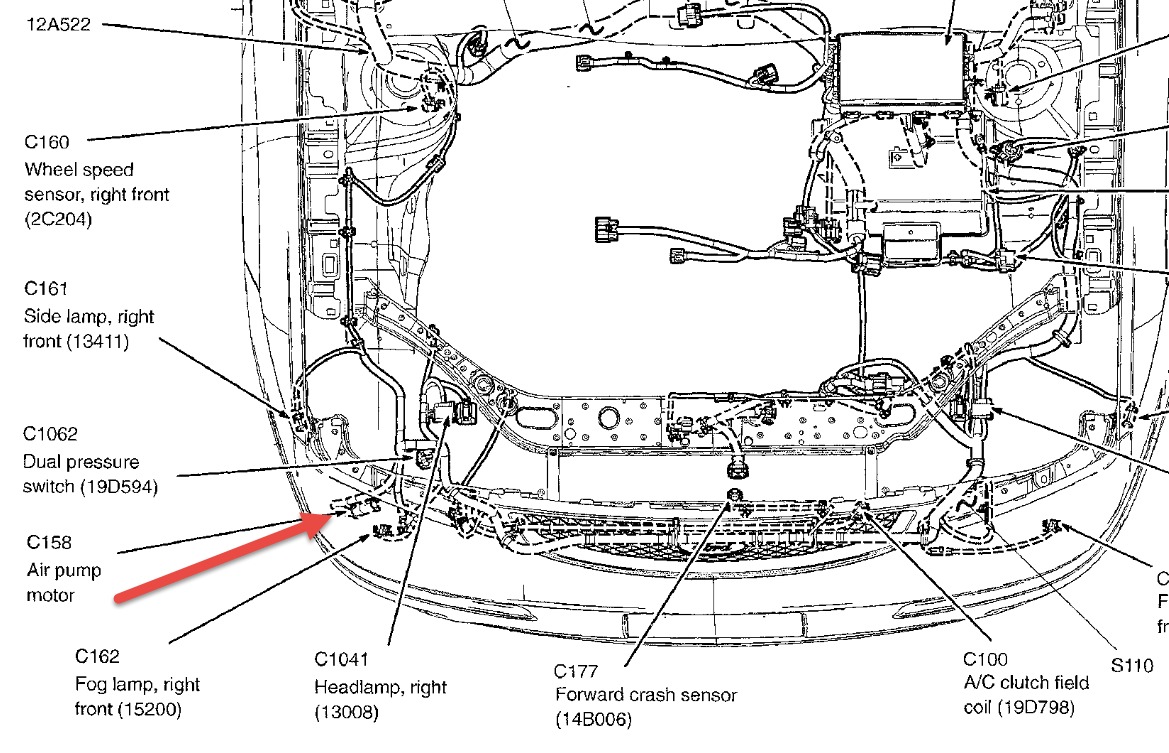

OK, tell me if I'm wrong.....picture 1 shows secondary air pump under front bumper/passenger side. Picture 2 shows secondary air one way check valve connected to engine on right side(red arrow)?? According to code reader just check valve may be the problem.
Feb 22, 2015 at 2:13 PM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

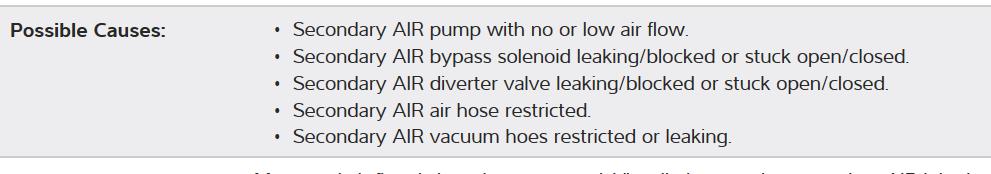

the solenoid may be the problem or not, could be no power to it as well so check for a fuse or relay under hood that may not be working. third pic shows why codes is set
Feb 22, 2015 at 3:26 PM
Avatar
LUIES01
  • MEMBER
  • 17 POSTS
Just checked, codes are p410 and 491 insufficient flow bank 1.
Feb 22, 2015 at 3:41 PM
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
follow what I've already replied to and make sure you give engine size on next question not 4 cyl dohc 2.0L or 2.3L
Feb 23, 2015 at 7:20 AM
