firing order?

Hello,

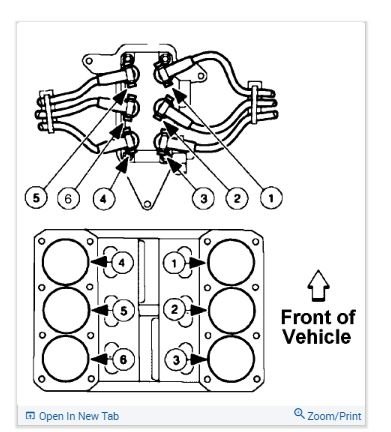

Here is the engine ignition firing order in the diagrams below. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Need to know spark plug wiring diagram.

There you go, let me know if its not the one. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Please let me know if you need anything else to get the problem fixed.

Best, Ken

2003 f150 4.2L

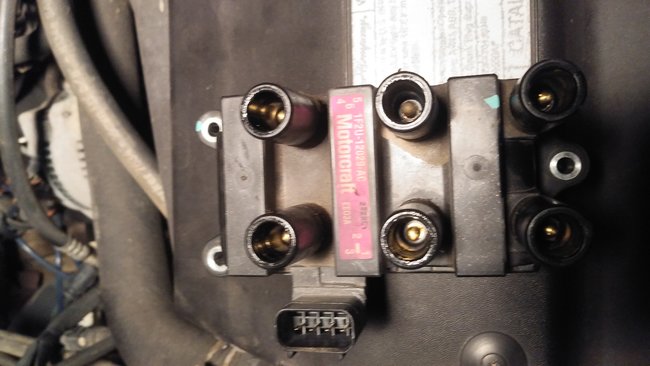

It is upside down but that is how I pulled it out. The plug goes on the passenger side.

Thanks for the addition to the site. I am sure that info will help others. Please let us know if there is something that we can assist you with in the future. You can start your own post here and we will jump in to assist with whatever you need. Thanks

https://www.2carpros.com/questions/new

I needa diagram of firing order of spark plug. Can u help me please

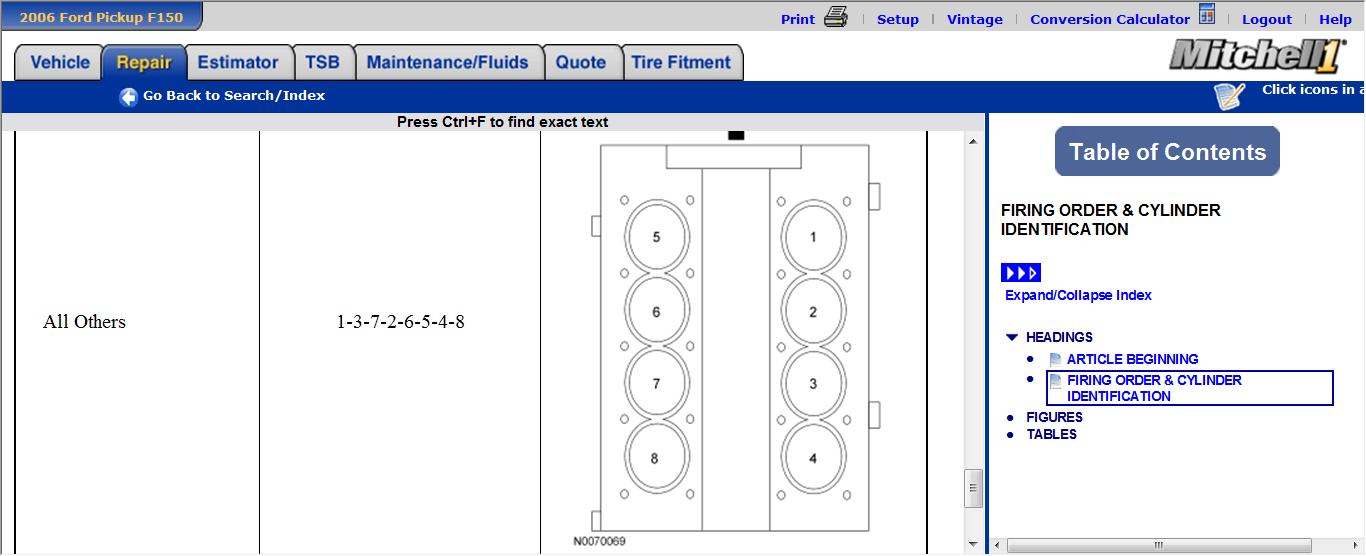

Firing order are the same on the 4.6l and the 5.4l v8 it is 1-3-7-2-6-5-4-8 and number one plug is on the front left as you face the engine

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Electrical problem
2003 Ford F150 6 cyl
----------------------------------------------------------------
Can you give me a firing diagram for my truck.

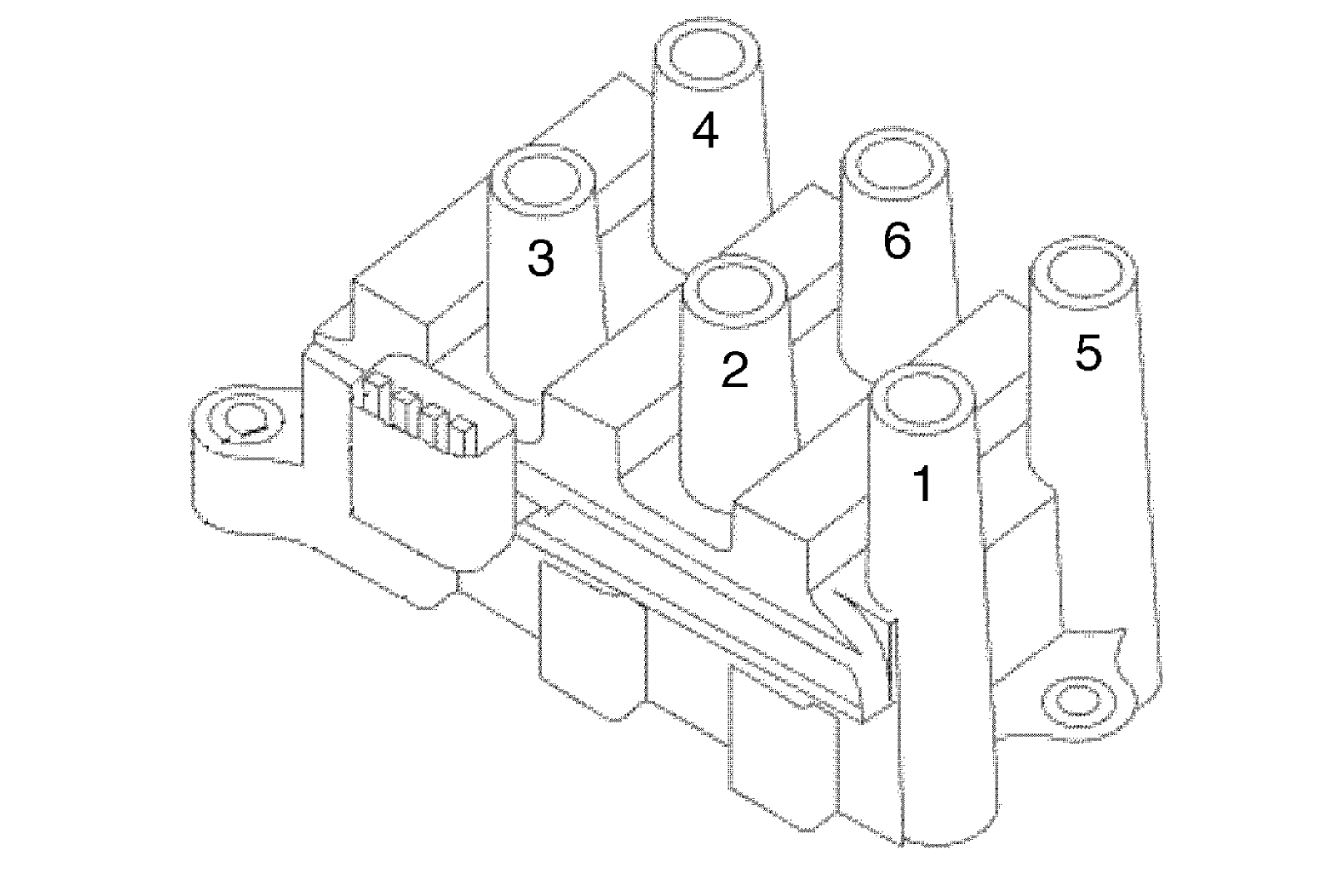

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

good luck

Engine Mechanical problem
2003 Ford F150 6 cyl Two Wheel Drive

what is the firing order of a f-150 6 cylinder engine

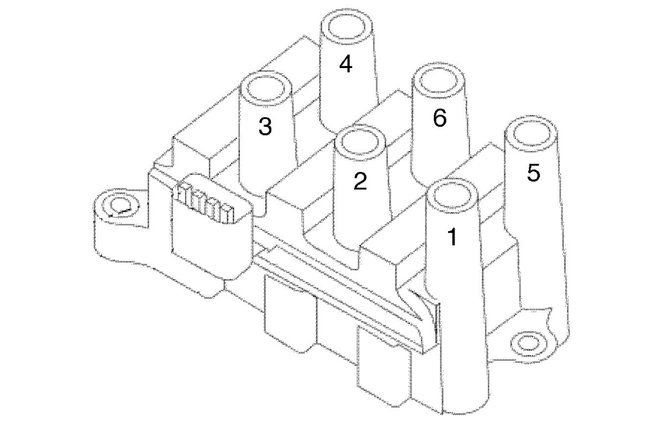

Hi Here is a picture and the firing order.

I hope this helps. If you have other questions, let me know. Joe

problem on 2004 ford f-150 stx, shift it on drive, my engine dies. diagnosed saying that misfiring on #1 cylinder, where is the #1 cylinder located at. do i need to replace the coil and plug.. appreciated your generous help on me...

Check out the diagrams (Below). Please let us know what happens.

my truck was badly missing and the auto zone tester said #6 cylinder is not firing. Where do I find the #6 cylinder to check it

Welcome to the forum, not sure of engine litre size? The picture is for 5.4L engine.
