fuse panels where are they?
2006 FORD EXPLORER
69,000 MILES
BOOGER1958
MEMBER
1 POST
FOLLOW
I need to replace the fuses in my car where are they?
Oct 18, 2011 at 8:36 PM
Advertisement
DANNY L
CERTIFIED EXPERT
5,648 POSTS
Hello, I'm Danny.
Here is the information you requested. Here are a few tutorials for you to view on how to check and replace fuses:
https://www.2carpros.com/articles/how-a-car-fuse-works
https://www.2carpros.com/articles/how-to-check-a-car-fuse

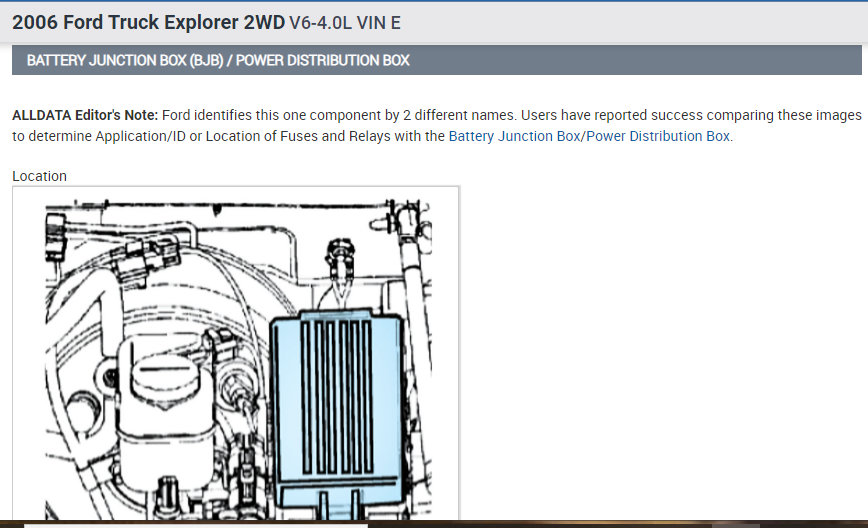

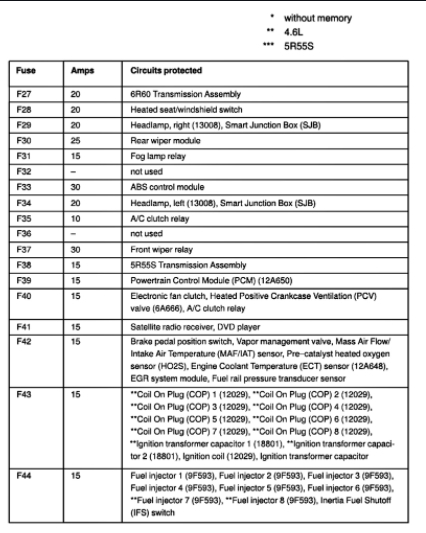

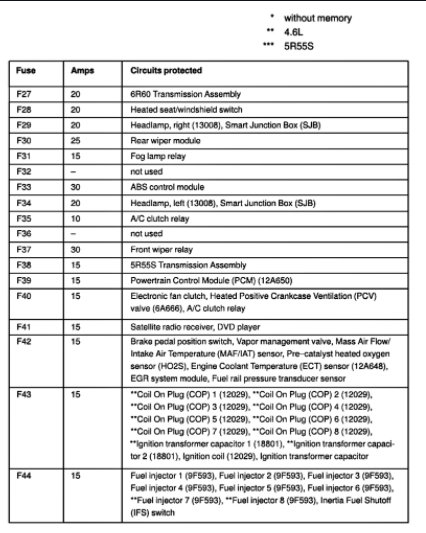

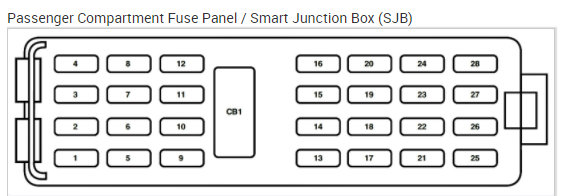

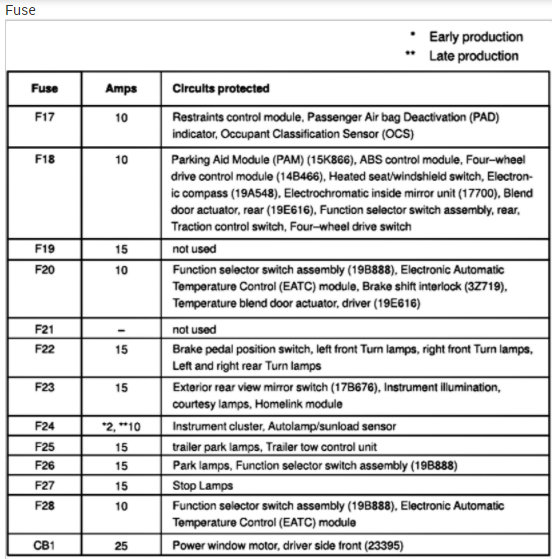

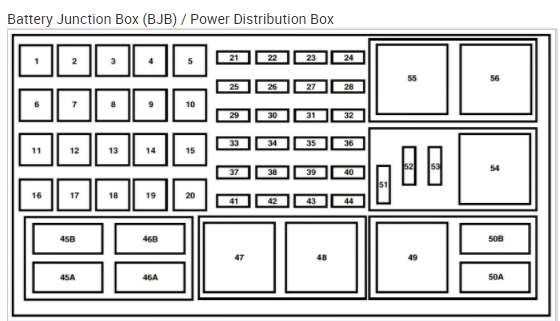

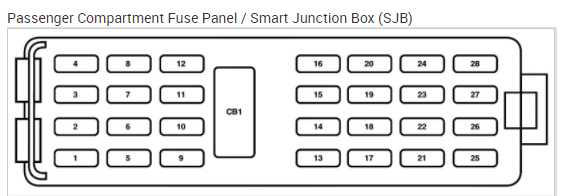

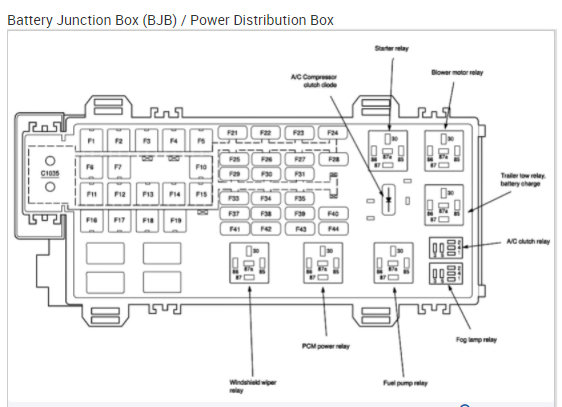

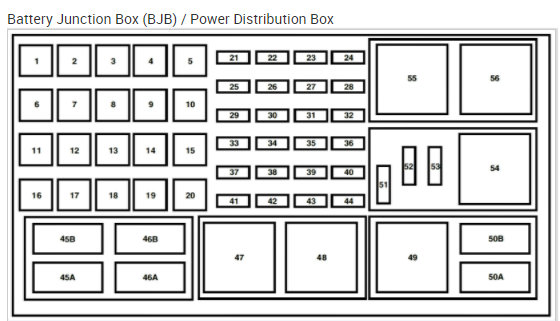

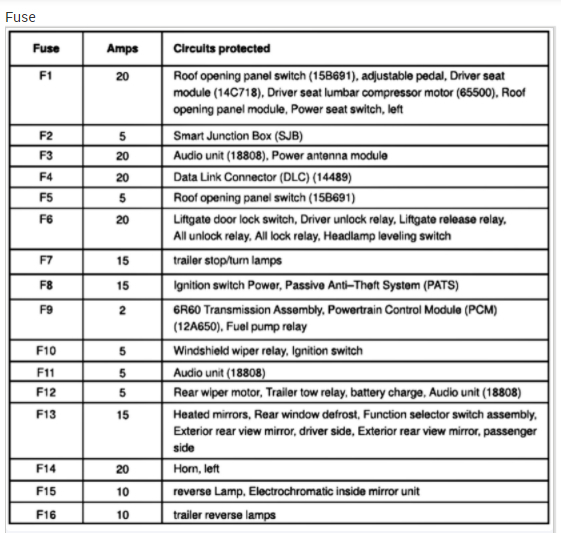

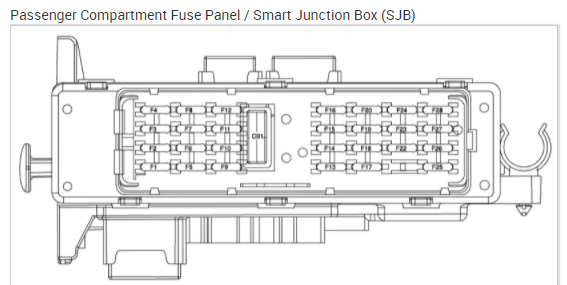

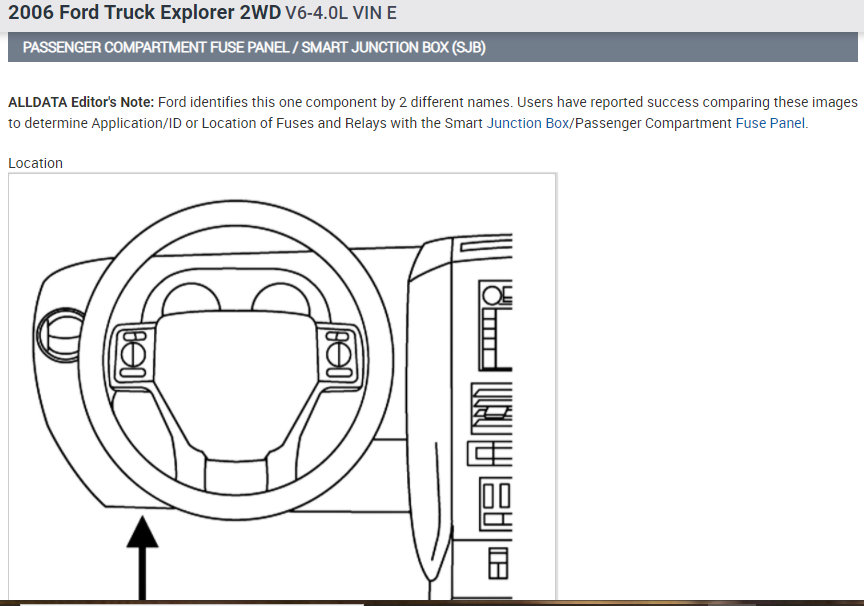

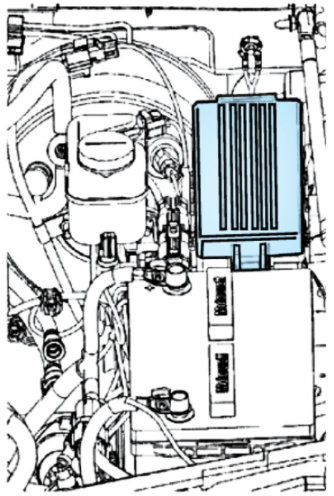

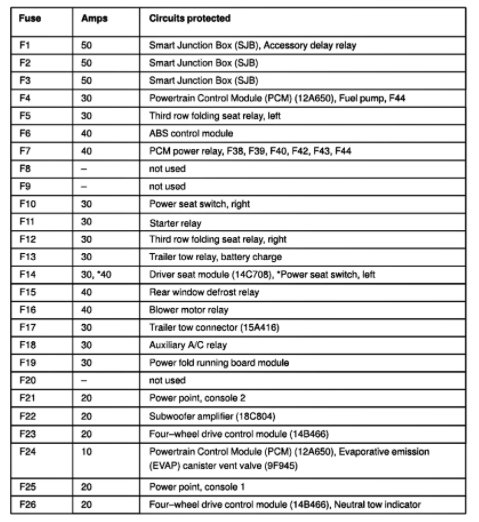

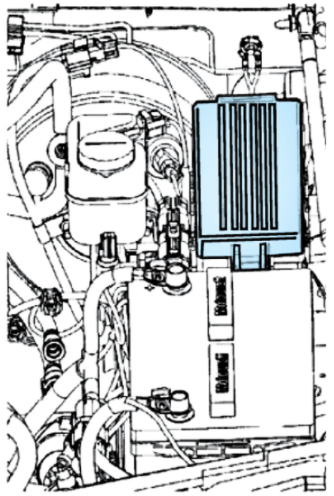

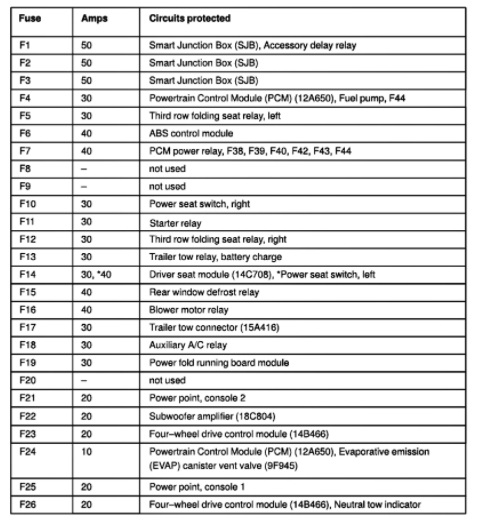

I've attached pictures below showing the fuse and relay locations on your vehicle. Hope this helps and thanks for using 2CarPros.
Images (Click to enlarge)
Jul 1, 2021 at 12:04 AM
