EGR Valve

2006 DODGE STRATUS
4 CYL • AUTOMATIC
Avatar
R2BOLIN
  • MEMBER
  • 1 POST
Where is the egr valve located on a 2006 Dodge Stratus SXT 4 cylinder? I haven't been able find one in a parts store for the 4 cylinder.
Dec 23, 2010 at 7:04 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS

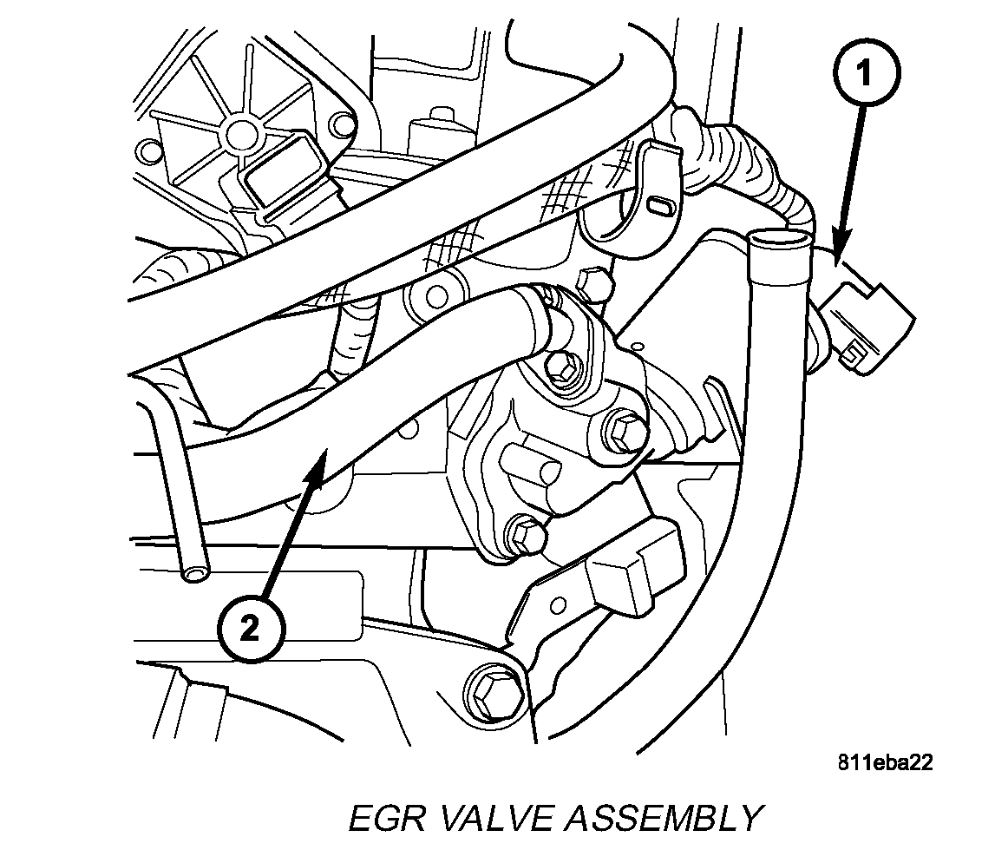

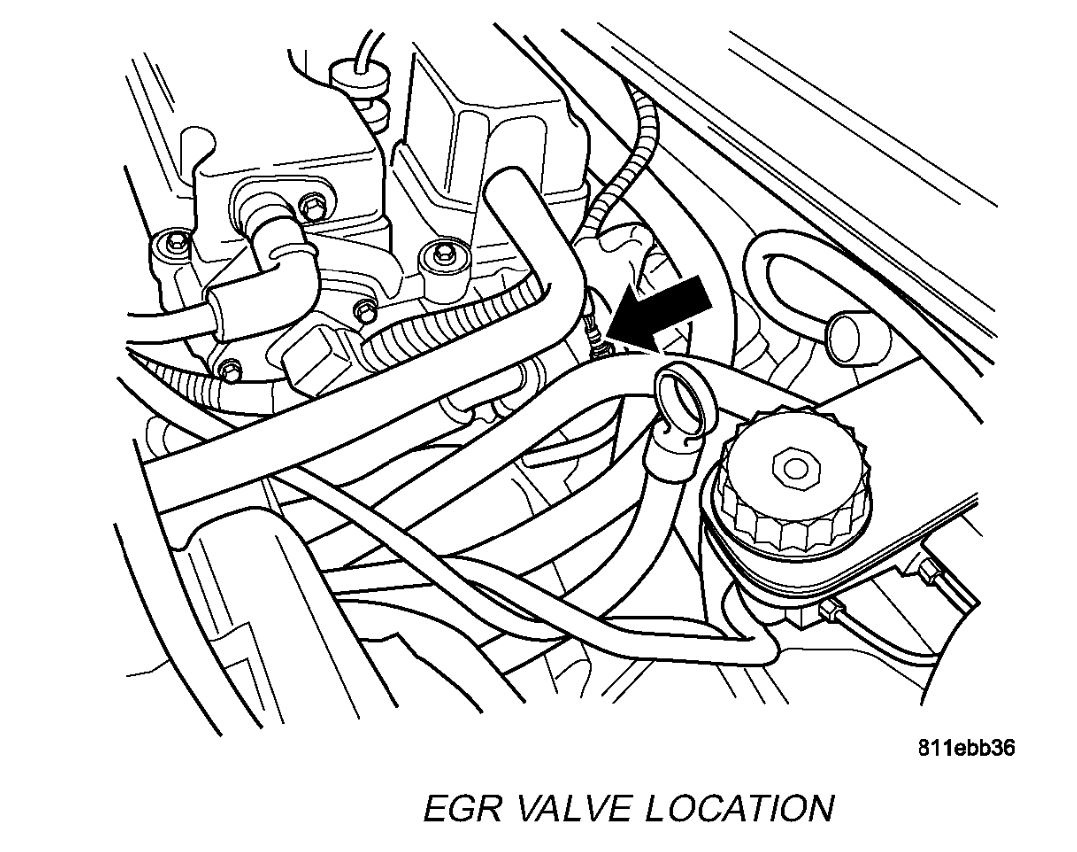

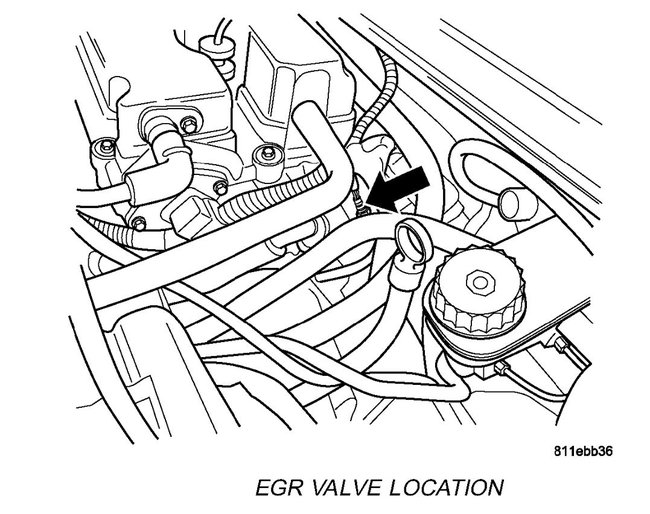

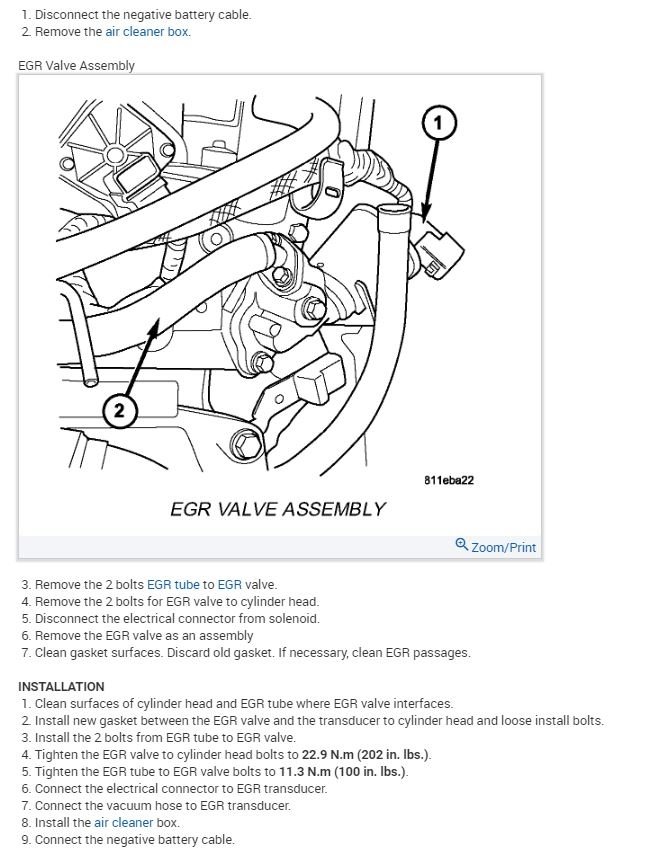

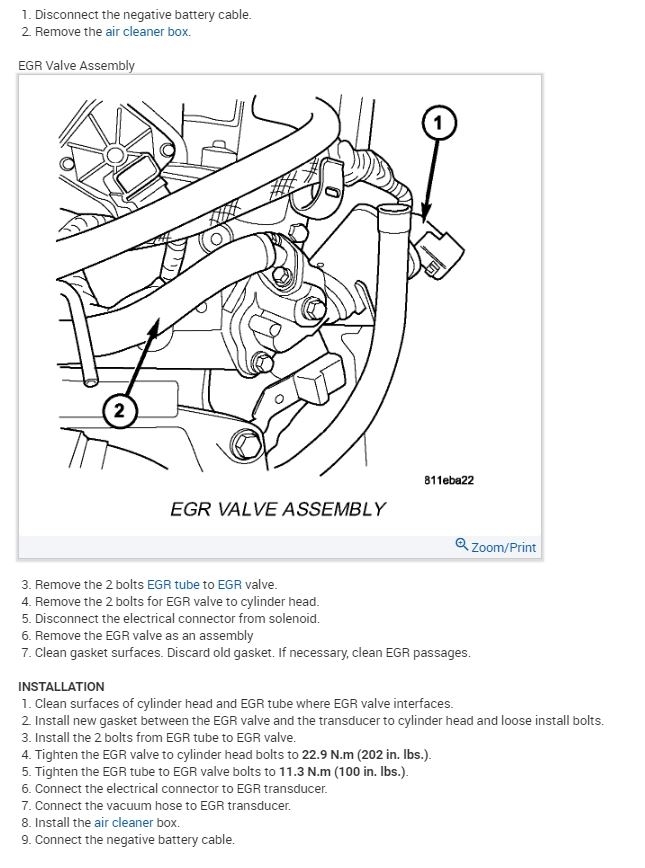

Please see the diagrams below for location and replacement of the EGR valve assembly.. It looks like you will have to remove the air box to gain access. As far as purchasing one, may I suggest an online search, you will come up with several choices

Check this diagram and let us know how it goes
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Dec 23, 2010 at 7:09 PM
