compressor engaged cooling fans not turning on

2006 CHEVROLET UPLANDER
45,000 MILES
Avatar
CAROLDEMATTEISRIECK
  • MEMBER
  • 1 POST
Ac not cold enough, compressor engaged cooling fans not turning on,fuses ok,no power to fans,swapped relays still no fan power. What' to check next?

No power to fans
Sep 6, 2012 at 3:10 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
check to see if the fuses are good, they are in the under hood fuse box it will be marked where they are. There are also 3 relays for the cooling fans in this vehicle.

See the guides below on relay and wiring testing

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

https://www.2carpros.com/articles/how-to-check-wiring

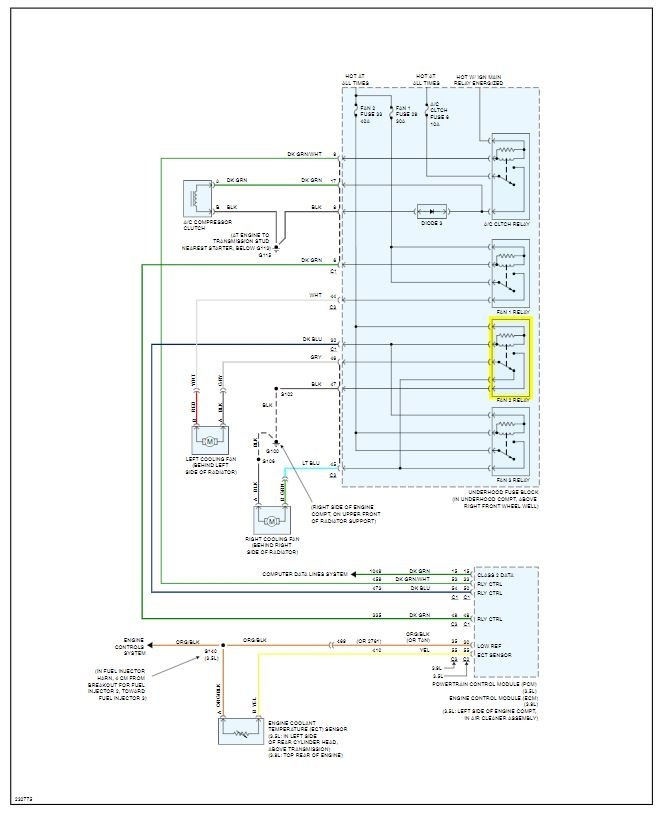

Attached below is the wiring diagram to help you test the system
let us know if you need anything else
Image (Click to enlarge)
Attached Media
Sep 6, 2012 at 3:23 PM
