I need to remove radio cover off due to loose items behind radio
Jan 13, 2012 at 1:12 PM
how do I get cover off of radio area
2006 CHEVROLET MALIBU
COWBOY6UP
- MEMBER
- 1 POST
- FOLLOW
Advertisement
TRIM PANEL REPLACEMENT INSTRUMENT PANEL (I/P) CENTER
Removal Procedure
1. Remove the instrument panel (I/P) left trim panels. Refer to INSTRUMENT PANEL (I/P) TRIM PANEL REPLACEMENT LEFT.
2. Remove the I/P right trim panels. Refer to INSTRUMENT PANEL (I/P) TRIM PANEL REPLACEMENT RIGHT.
3. Remove the I/P compartment. Refer to COMPARTMENT REPLACEMENT INSTRUMENT PANEL (I/P).
4. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT.

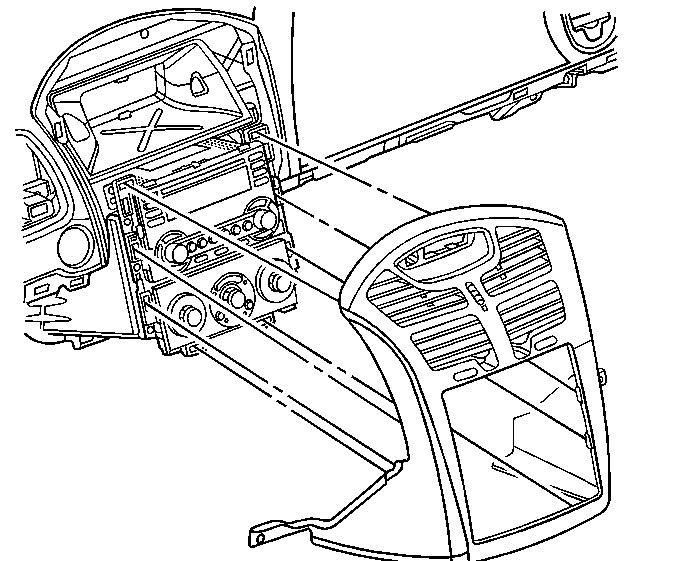

Fig. 31: View Of I/P Center Trim Bezel
Courtesy of GENERAL MOTORS CORP.
rh pic enclosed lh similar
Removal Procedure
1. Remove the instrument panel (I/P) left trim panels. Refer to INSTRUMENT PANEL (I/P) TRIM PANEL REPLACEMENT LEFT.
2. Remove the I/P right trim panels. Refer to INSTRUMENT PANEL (I/P) TRIM PANEL REPLACEMENT RIGHT.
3. Remove the I/P compartment. Refer to COMPARTMENT REPLACEMENT INSTRUMENT PANEL (I/P).
4. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT.
Fig. 31: View Of I/P Center Trim Bezel
Courtesy of GENERAL MOTORS CORP.
rh pic enclosed lh similar
Images (Click to enlarge)
Jan 13, 2012 at 3:44 PM
