Blower fan not working

2006 CHEVROLET IMPALA
135,900 MILES
Avatar
ELBO
  • MEMBER
  • 1 POST
The other day I turned the fan/air conditioner knob and the fan did not blow. I can hear the a/c engage, when I press the button, but the fan will not blow with or with out the a/c button pressed. I want to change the fuses to see if that is the problem, but I am not which fuses to change?
Jun 24, 2013 at 12:56 PM
Advertisement
Avatar
CADIEMAN
  • CERTIFIED EXPERT
  • 3,544 POSTS

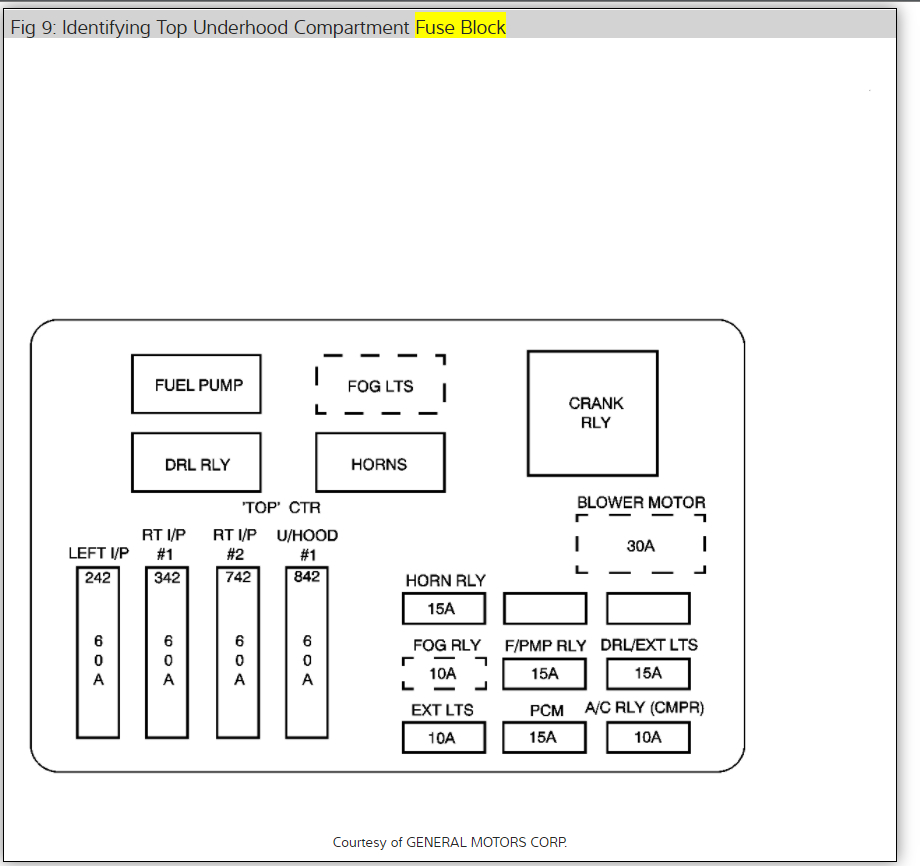

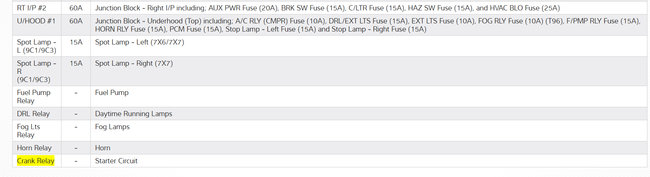

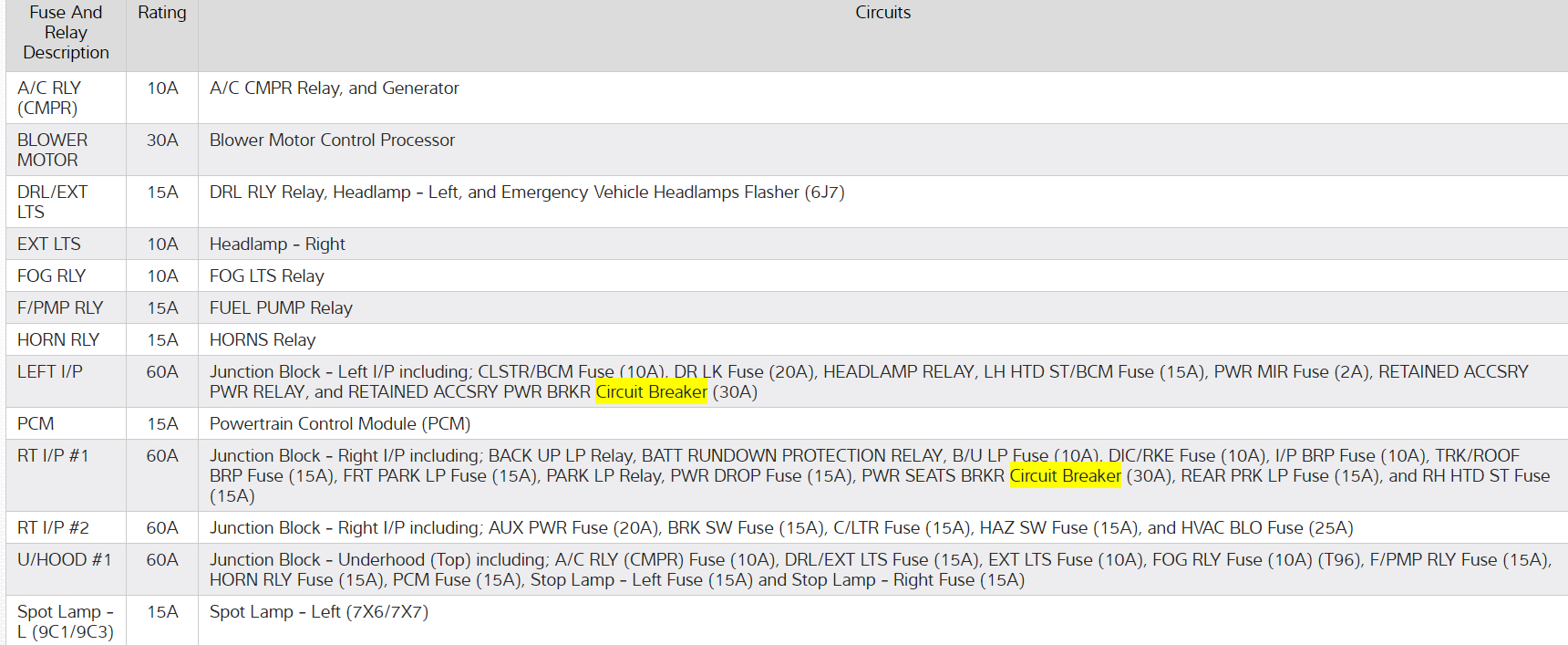

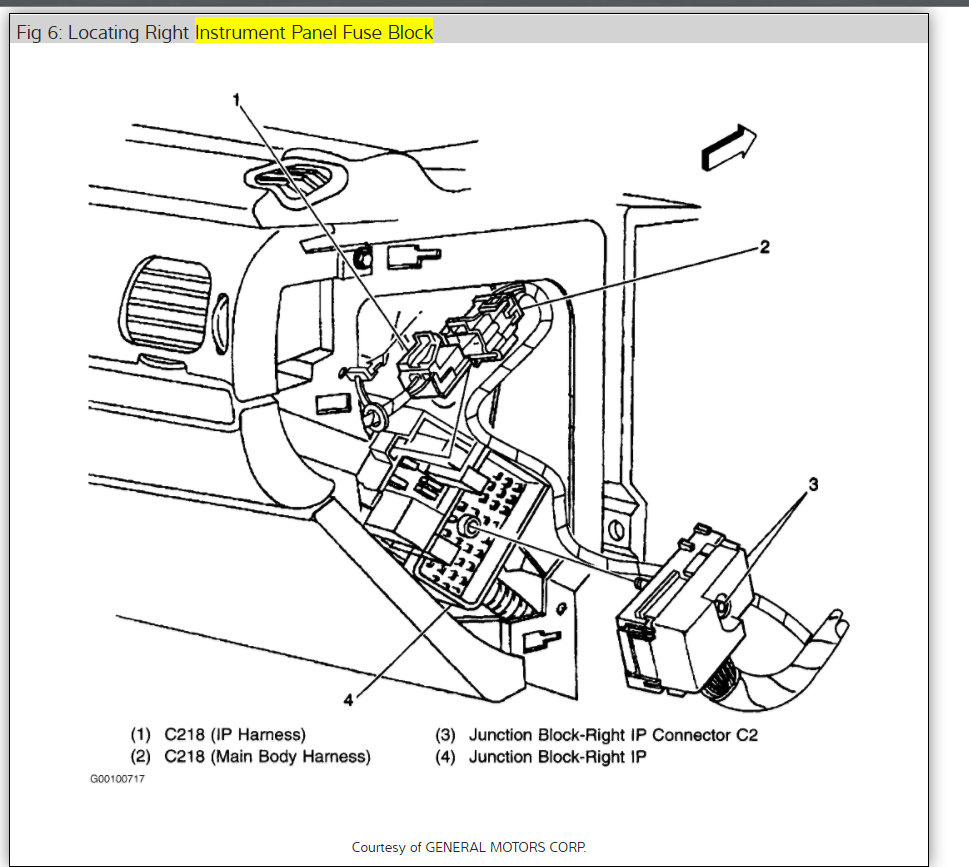

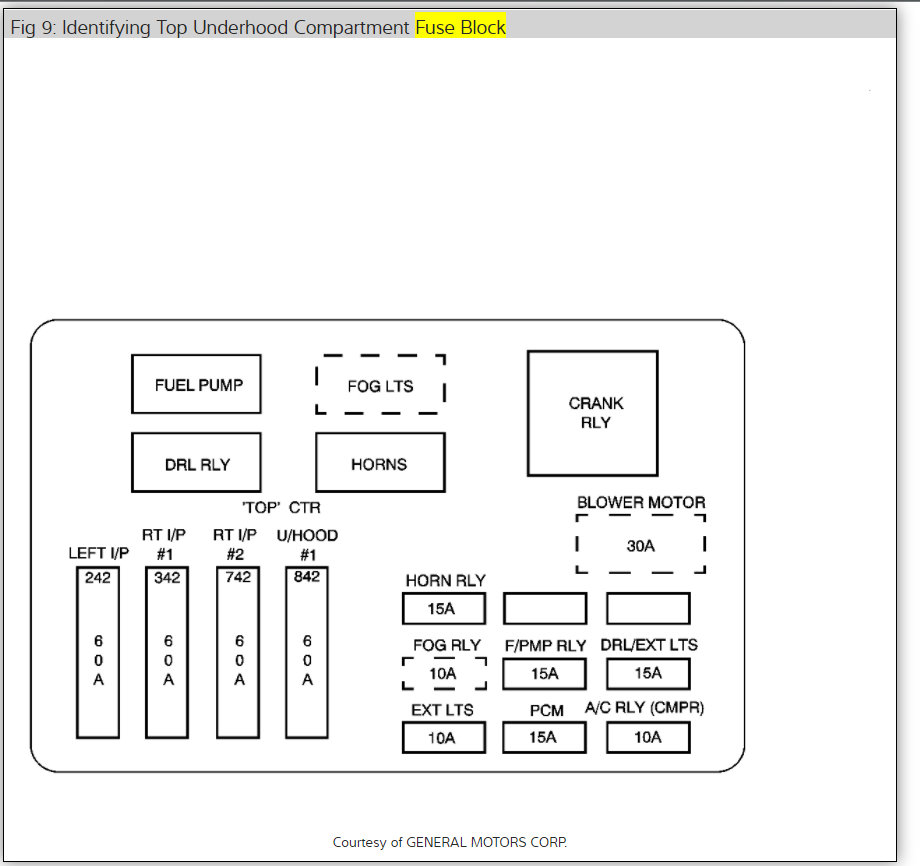

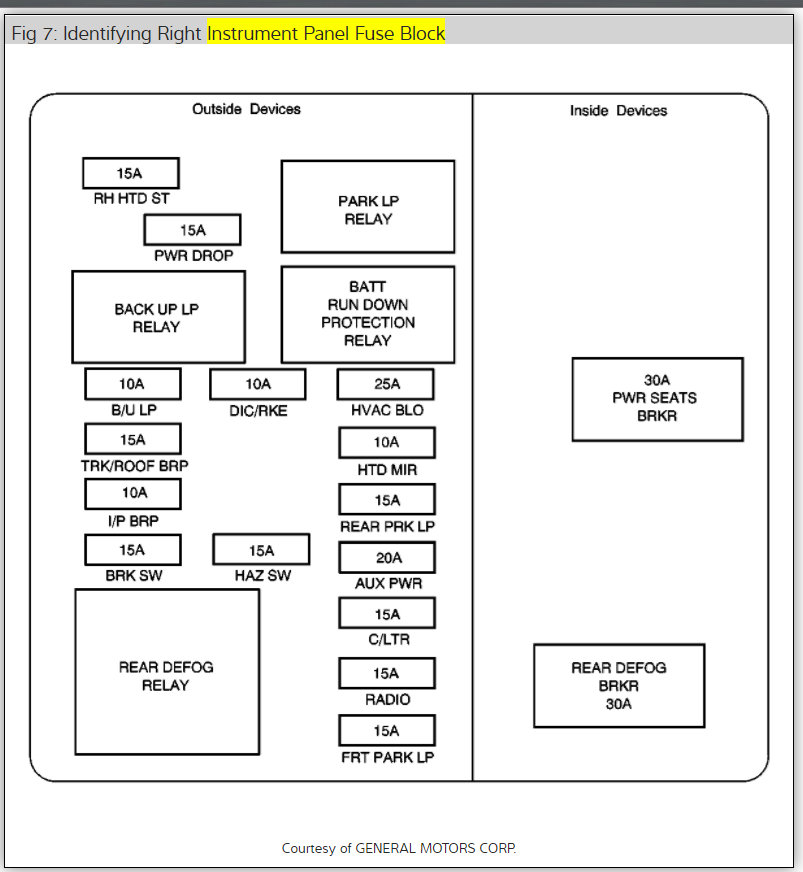

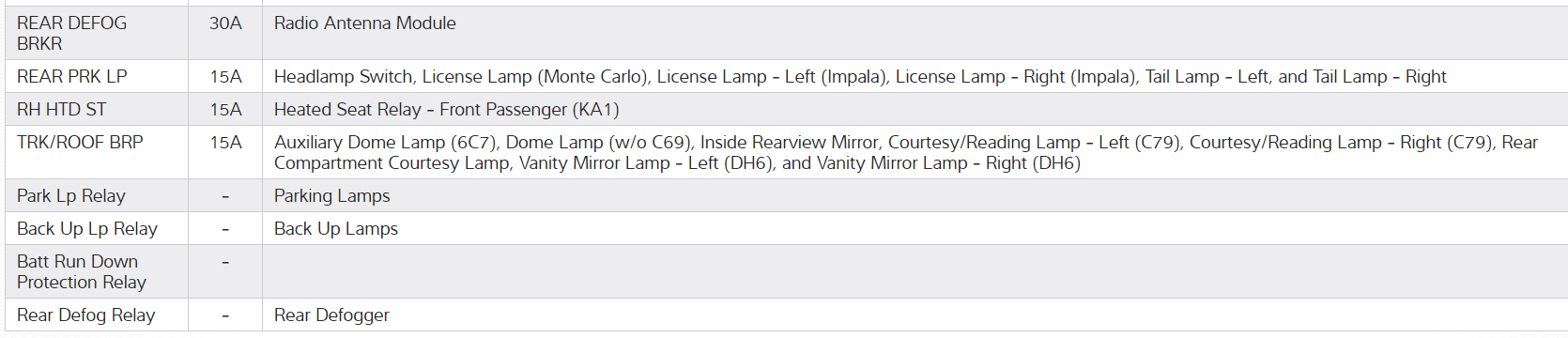

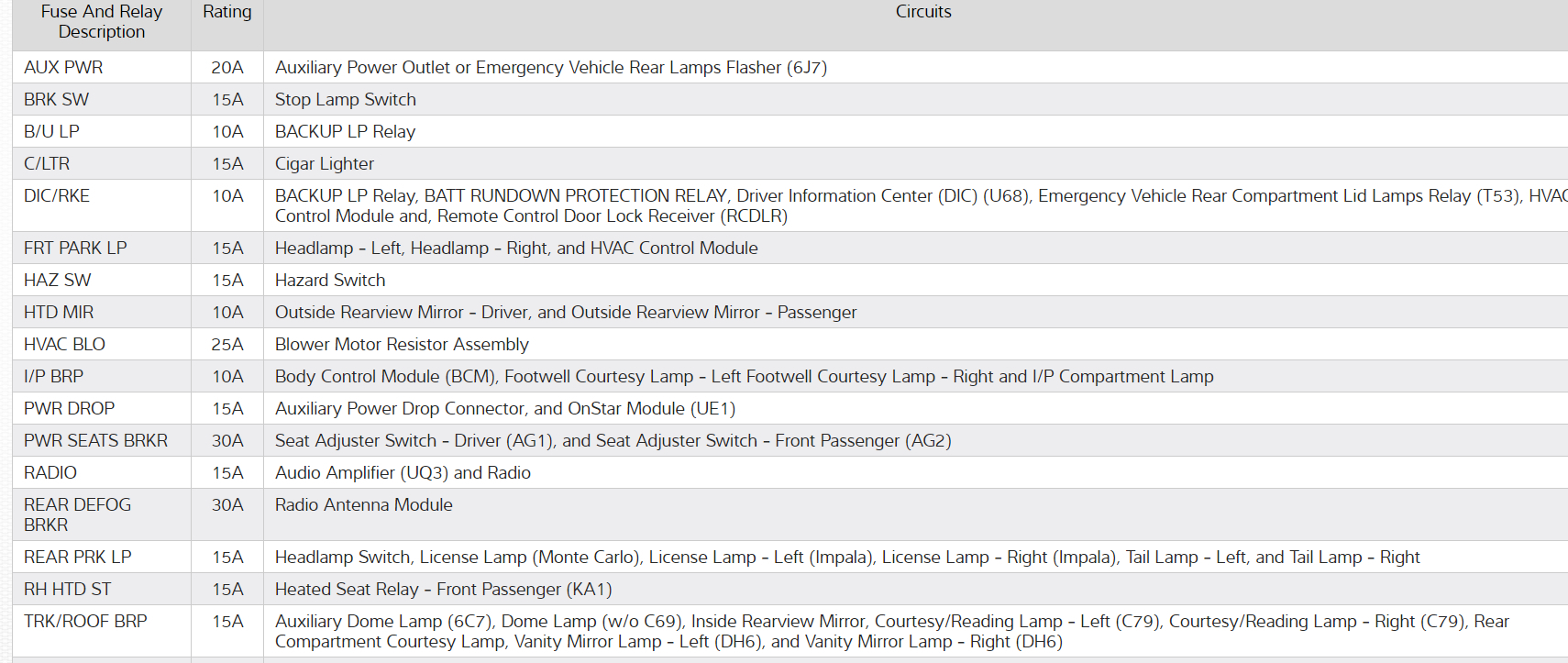

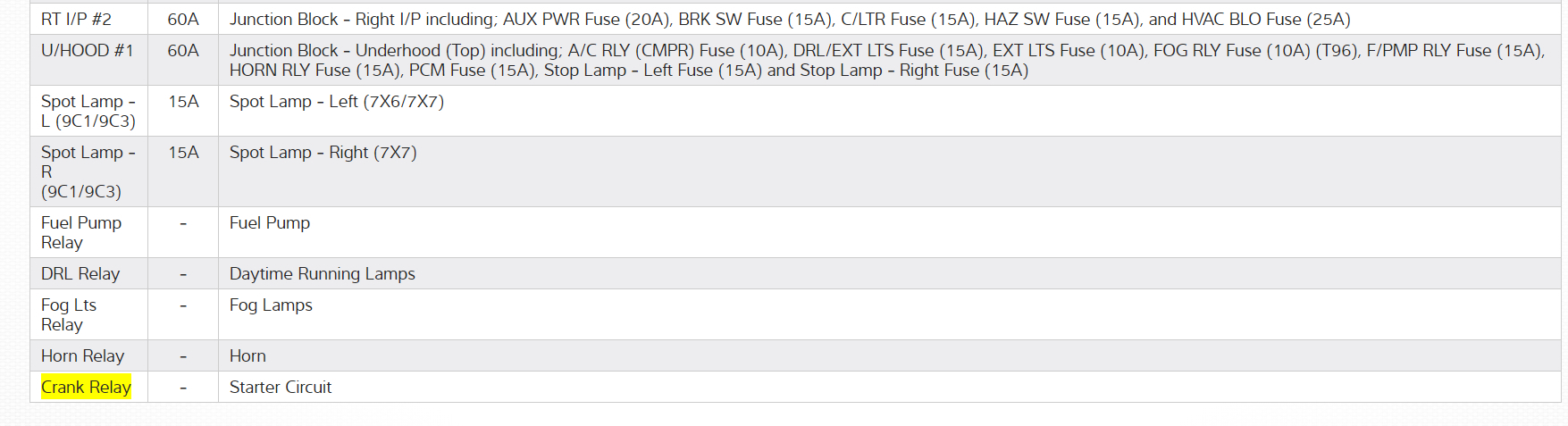

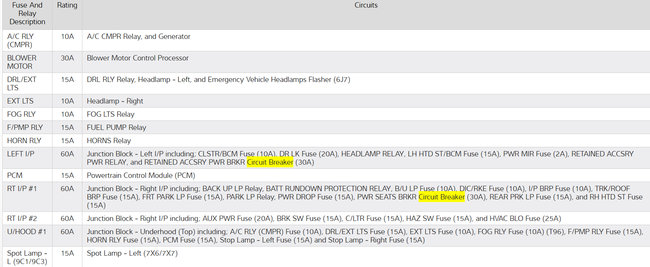

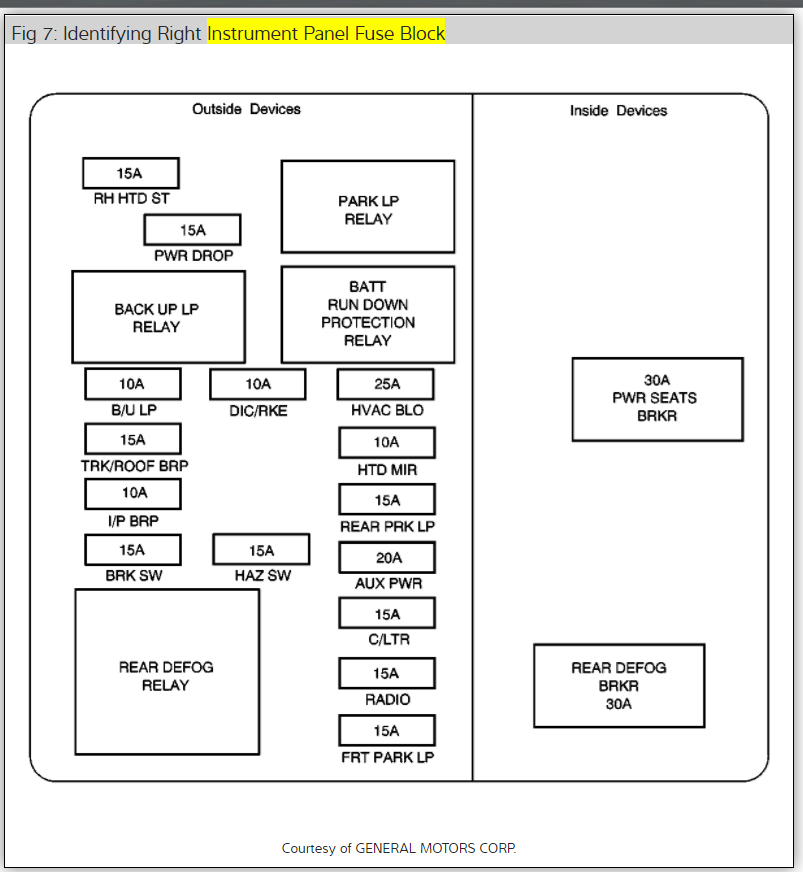

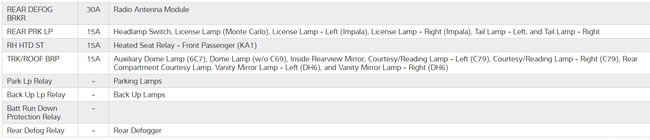

check for power as the blower motor under the hood. He used a test light or meter to do this. Here is a guide and the fuse location in the diagrams below.

https://www.2carpros.com/articles/blower-fan-motor-works-on-high-speed-only

and

https://www.2carpros.com/articles/how-to-check-a-car-fuse

Please let us know what happens.


Jun 25, 2013 at 1:27 AM
Avatar
TONYHILL
  • MEMBER
  • 1 POST
The fuse fixed it for me thank you
Dec 21, 2019 at 1:39 PM
Advertisement
Avatar
EDDIE35
  • MEMBER
  • 1 POST
heater not blowing hot air.
Dec 30, 2019 at 3:07 PM (Merged)
Avatar
LOUT5369
  • CERTIFIED EXPERT
  • 217 POSTS
Check the cooling system,you may be low on coolant.If you are fill the system and have the system pressure checked for leaks.Does the system blow air out the defroster and is it hot? If it blows out the defroster only you have a vacuum leak.
Dec 30, 2019 at 3:07 PM (Merged)
Avatar
RBSHAW
  • MEMBER
  • 1 POST
the blower motor doesn't work in my car.
the only time it does work is when i pull and check all the fuses. it seams as if something is being reset. the blower will only work once after restarting the car. once you turn engine off and restart the engine, the nblower quits working.
is there a wiring diagram that i can use to trace the problem down and replace the bad part?
Dec 30, 2019 at 3:07 PM (Merged)
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
Could be the HVAC control module and the blower motor control processor.

See the guide below on testing the wring

https://www.2carpros.com/articles/how-to-check-wiring

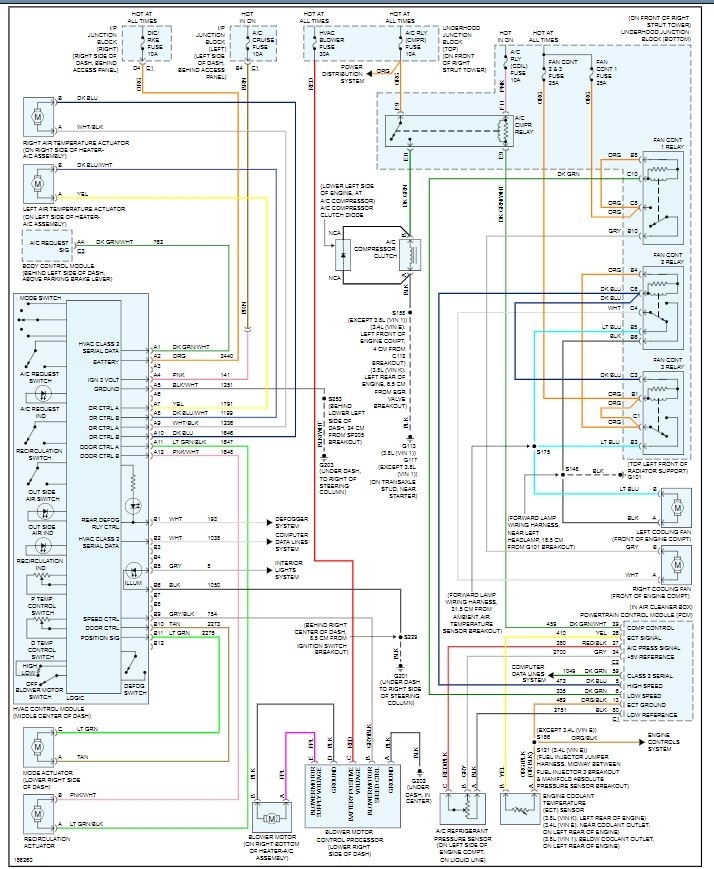

The wiring diagram is attached below
Dec 30, 2019 at 3:07 PM (Merged)
Avatar
JENELLE38
  • MEMBER
  • 1 POST
Heater problem
2005 Chevy Impala 6 cyl 60000 miles

about 2 days ago my heater blower was not not working but I hit a bump in the road and they start working. than I got in the car the next day and they where working all day and than I got in the car and they are not working again
Dec 30, 2019 at 3:08 PM (Merged)
Avatar
TOOOMANYTOYS
  • CERTIFIED EXPERT
  • 513 POSTS
There are a few things that can cause this issue. Somethings to check for would be. The wiring from the blower motor resisitor to the blower motor. Look for a melted connector at the resistor. If wiring and connectors look good it may be a possiability that the blower motor is starting to fail.
Dec 30, 2019 at 3:08 PM (Merged)
Avatar
BUSSIEBUZZIE
  • MEMBER
  • 1 POST
replaced motor blower still not working checked fuses there good
Dec 30, 2019 at 3:08 PM (Merged)
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS
Check and test the blower motor resistor/fan control module, blower motor relay and the blower switch
Dec 30, 2019 at 3:08 PM (Merged)
