I have no tail lights as well and the high beams I need to check the fuses where is the panel

2006 CHEVROLET EXPRESS
120,000 MILES
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
my headlights wont come on when turning switch on,low beams ..i have no tail lights as well and the high beams work only if i hold the dimmer in the on position, i need to check the fuses where is the panel and how do I check them?
Nov 3, 2012 at 3:12 PM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS
Hi,

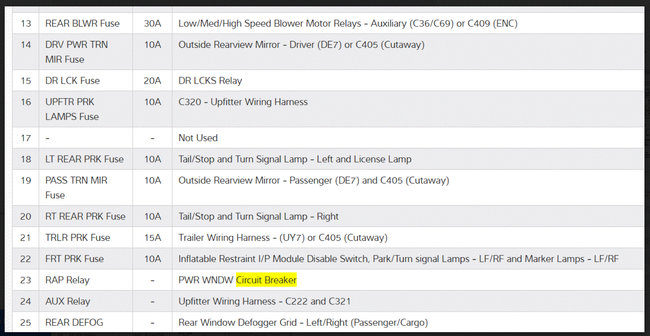

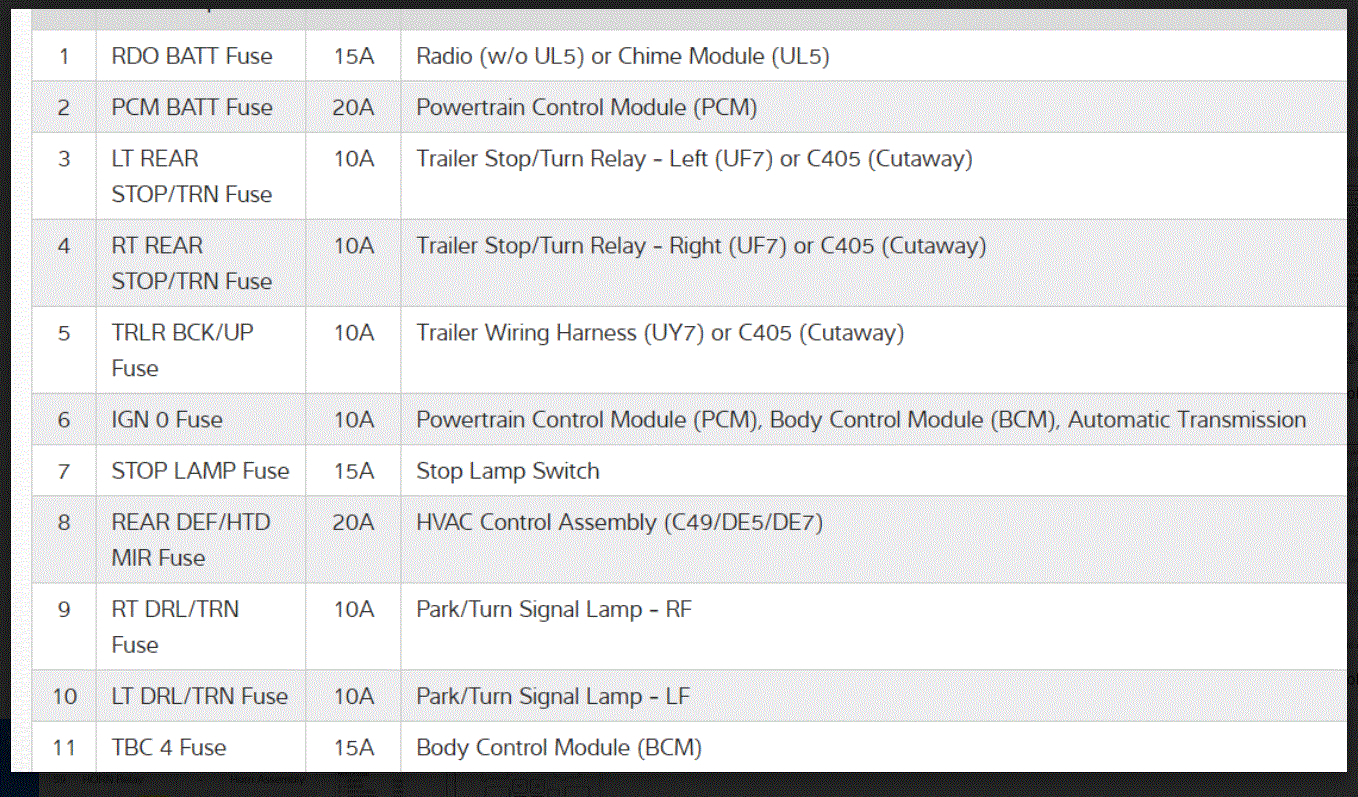

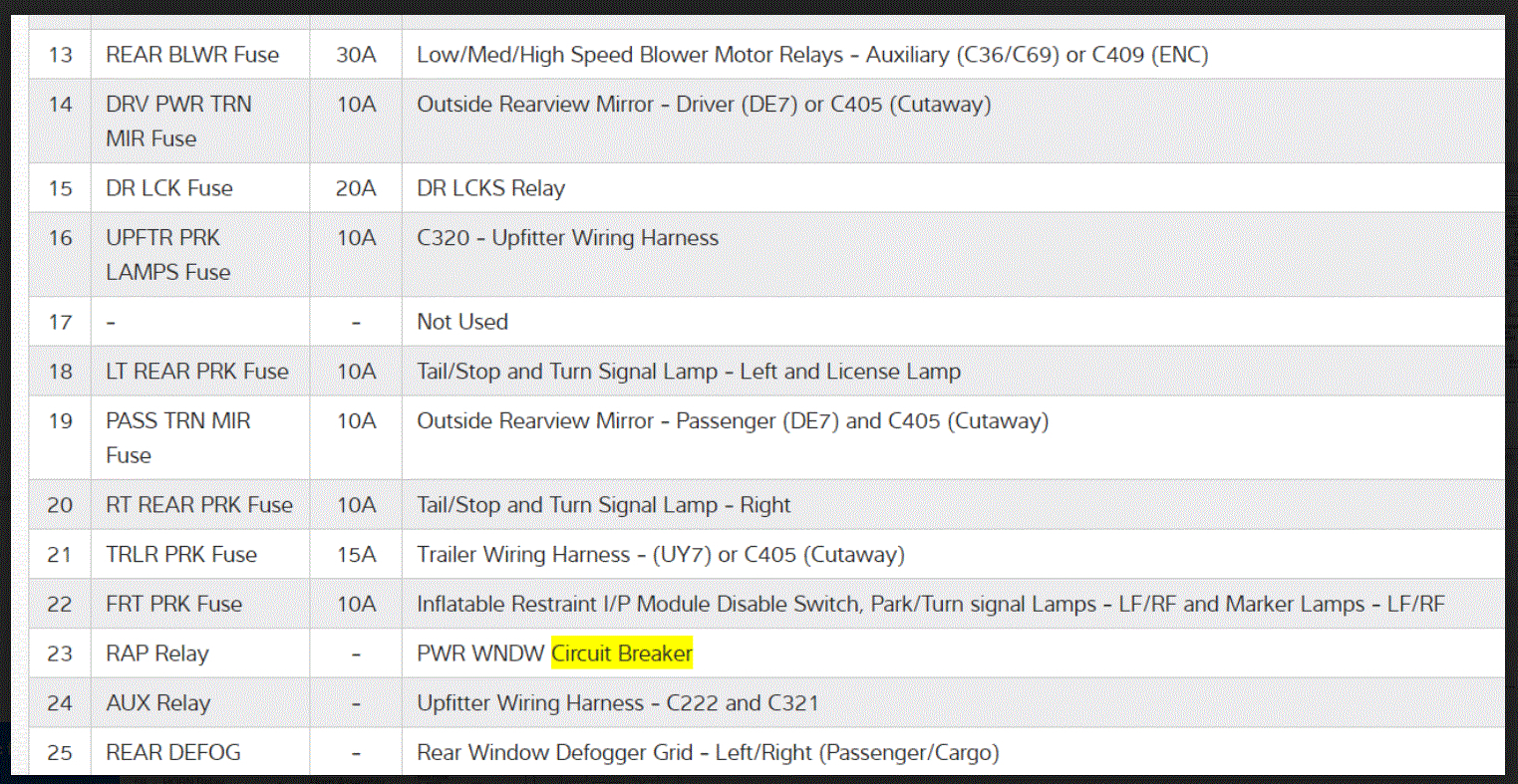

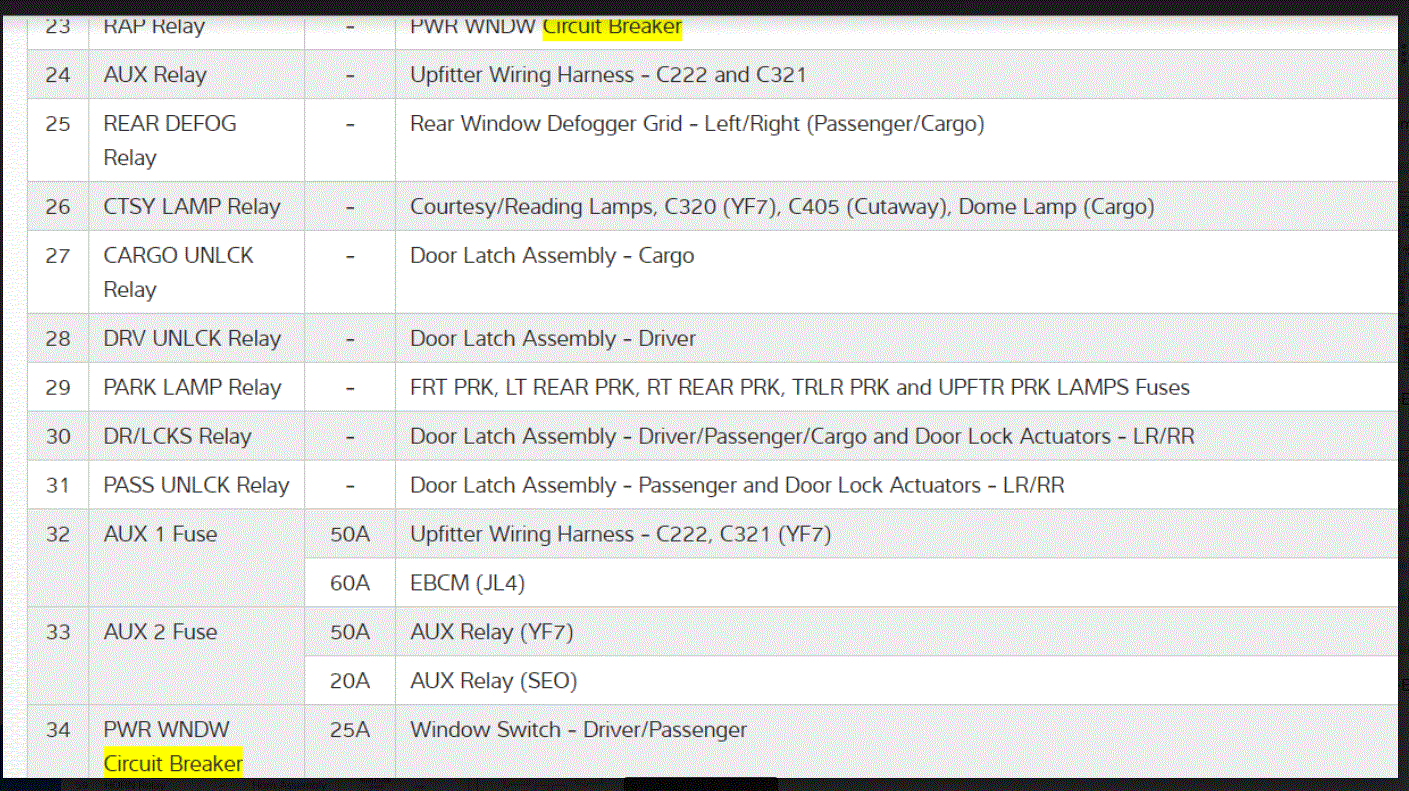

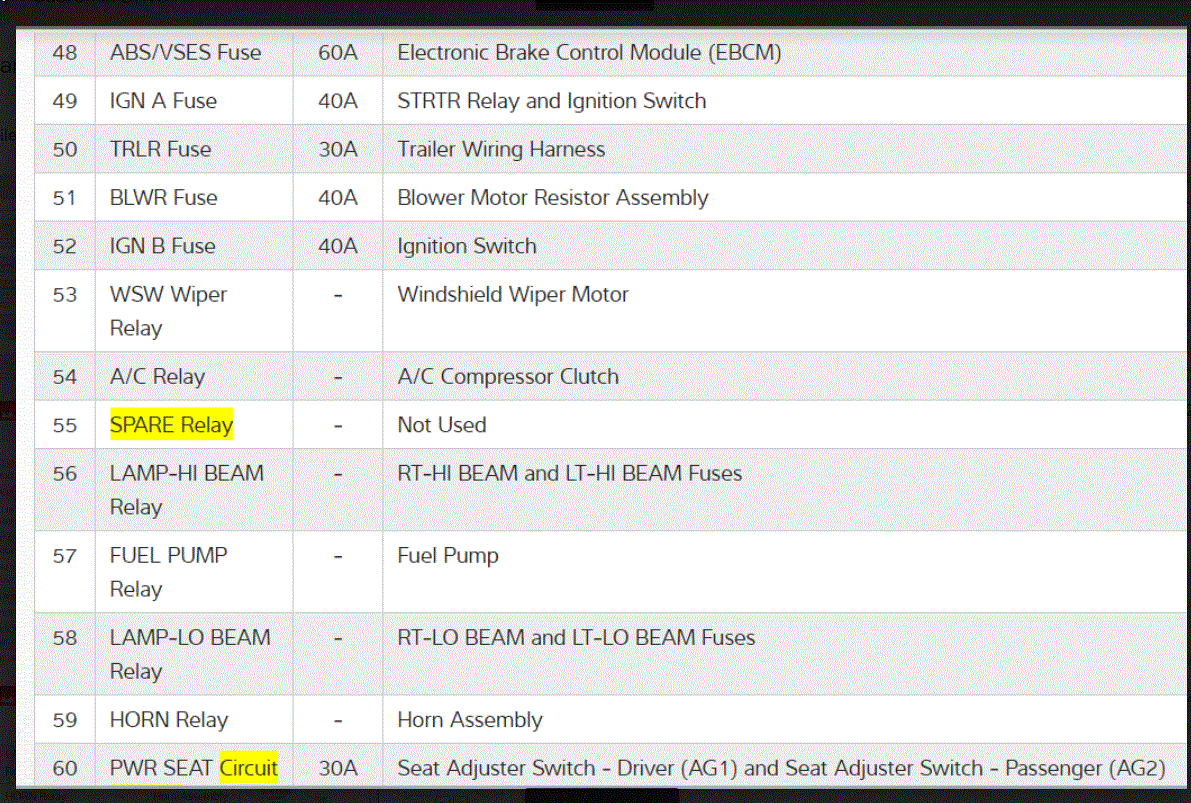

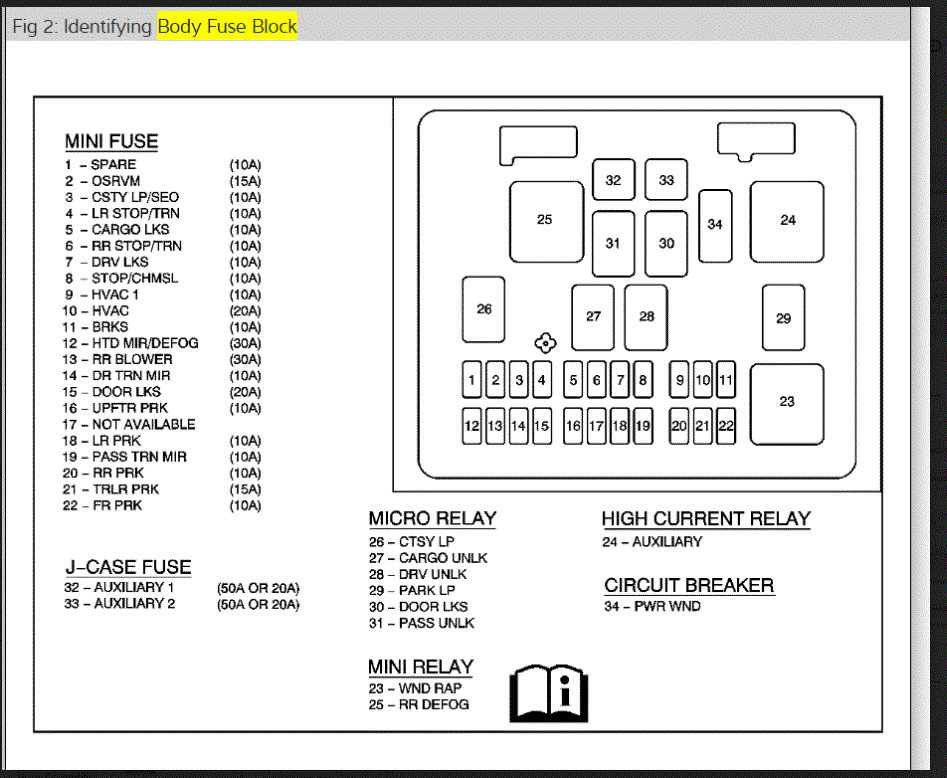

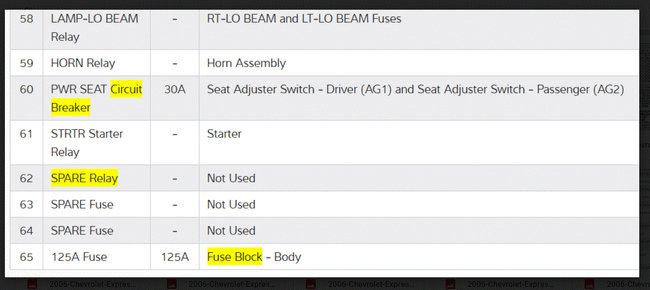

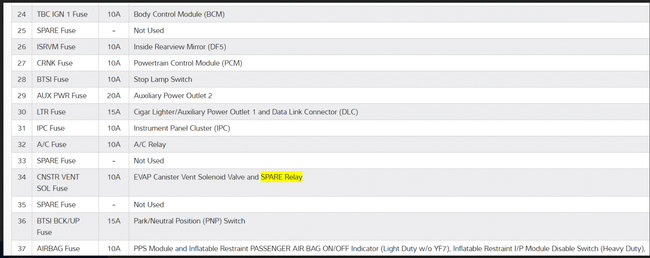

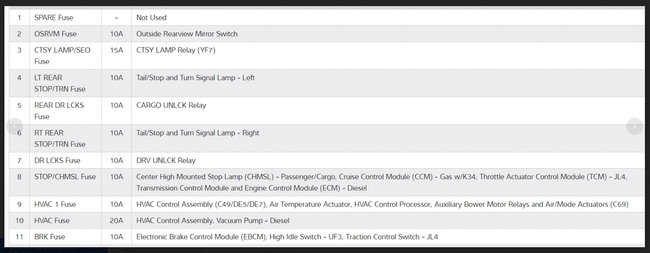

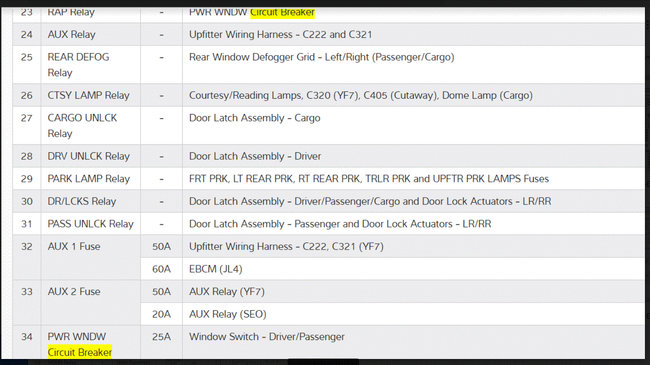

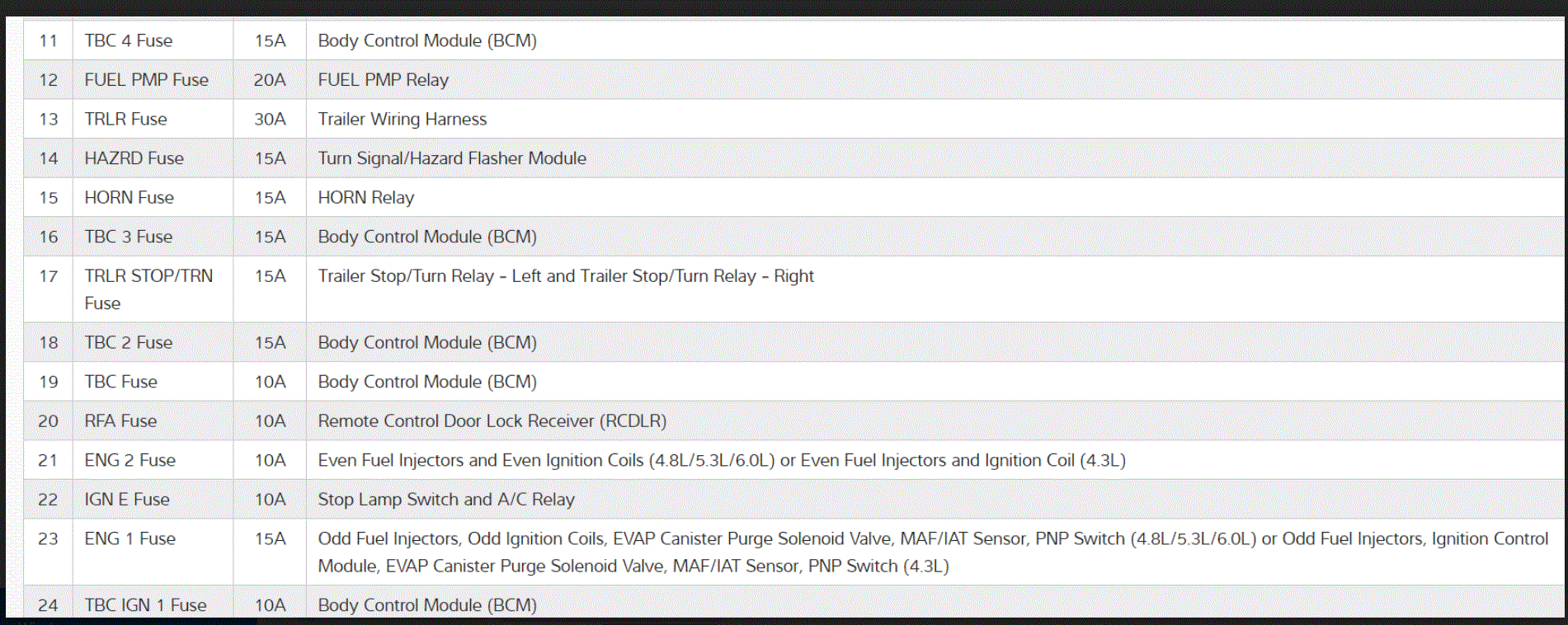

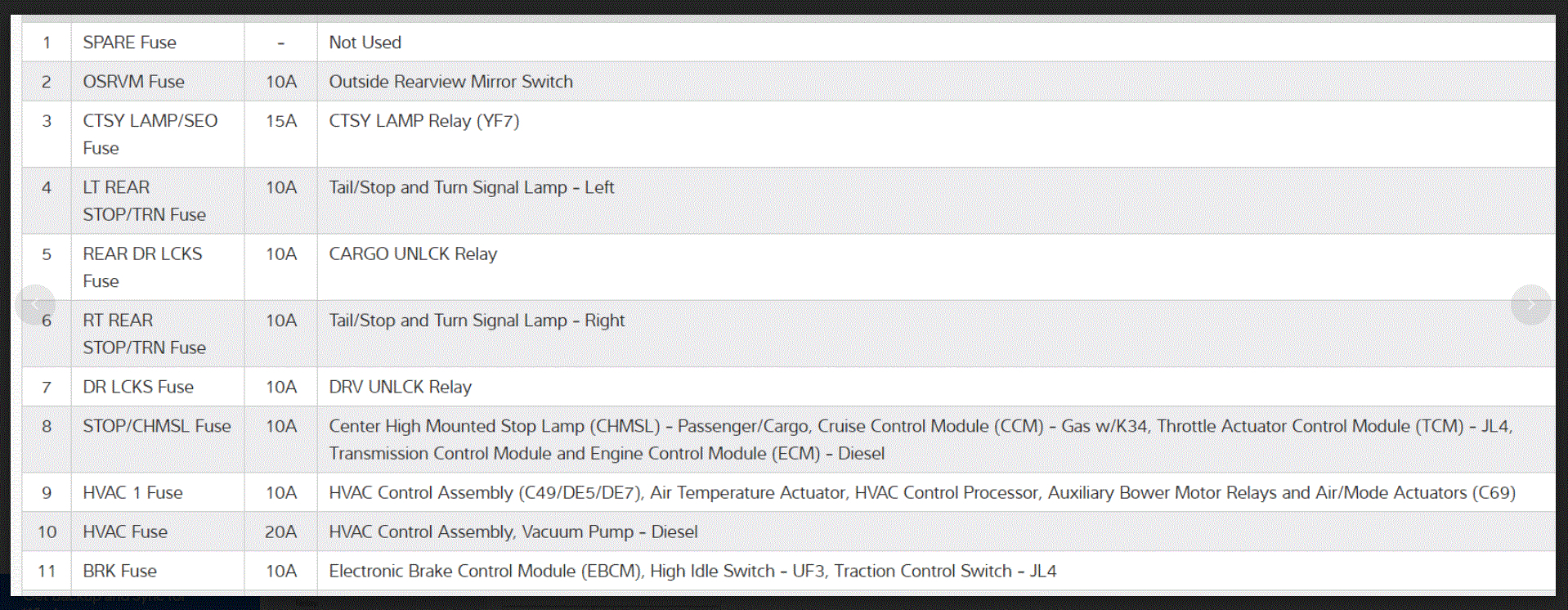

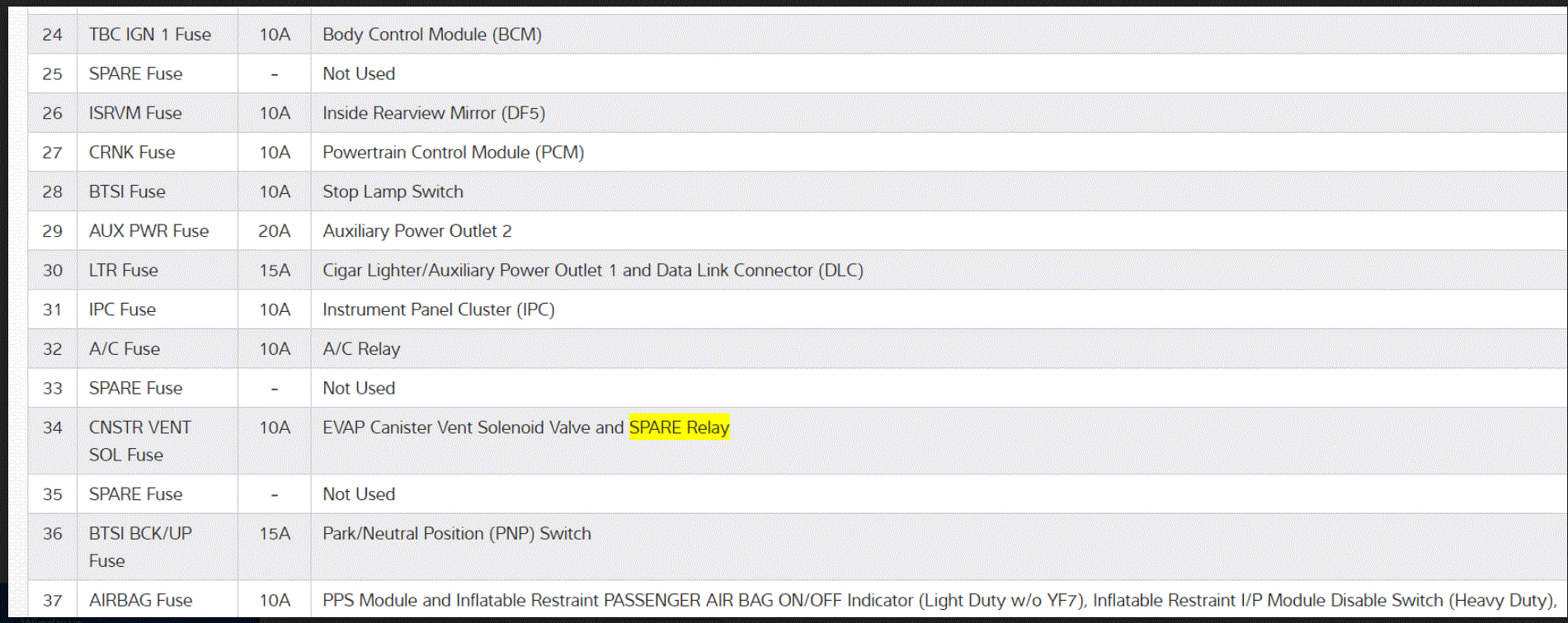

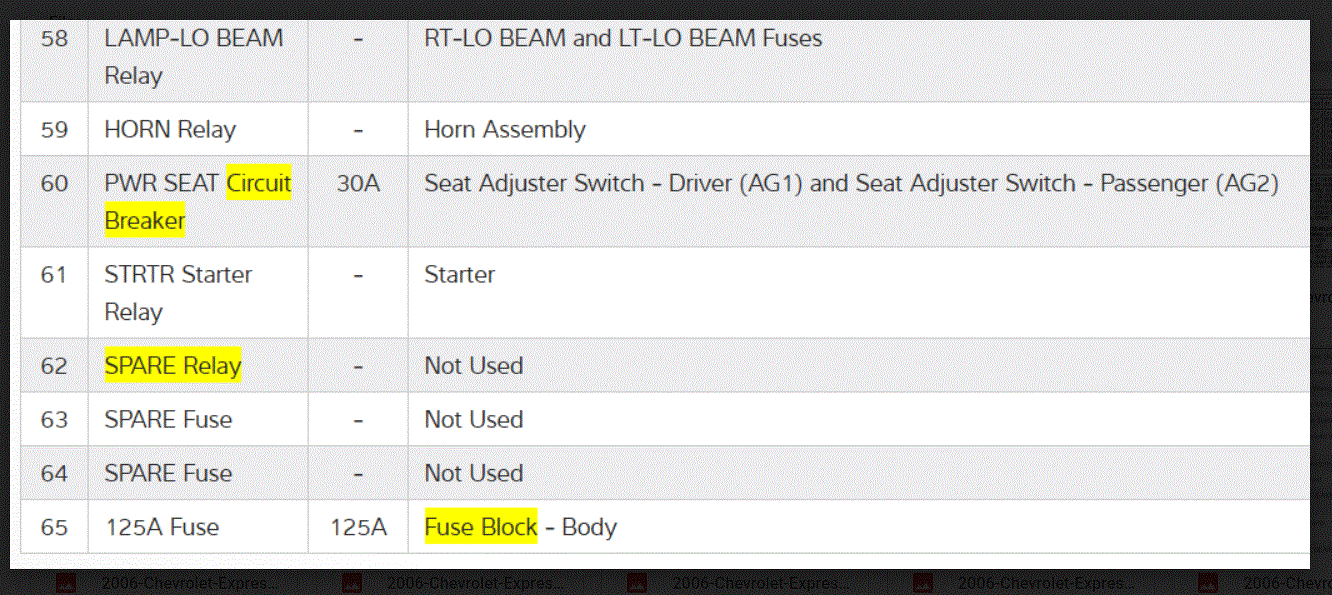

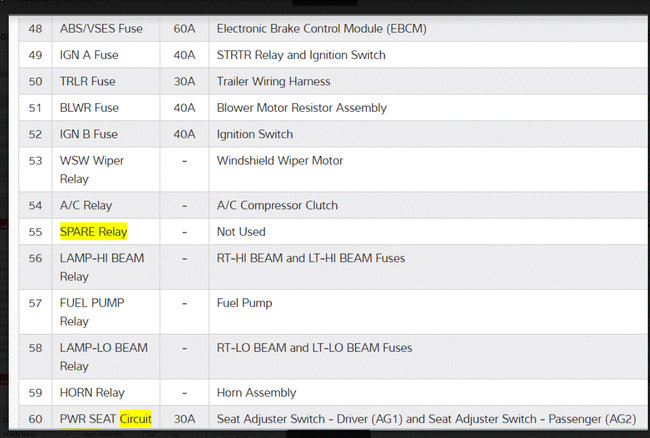

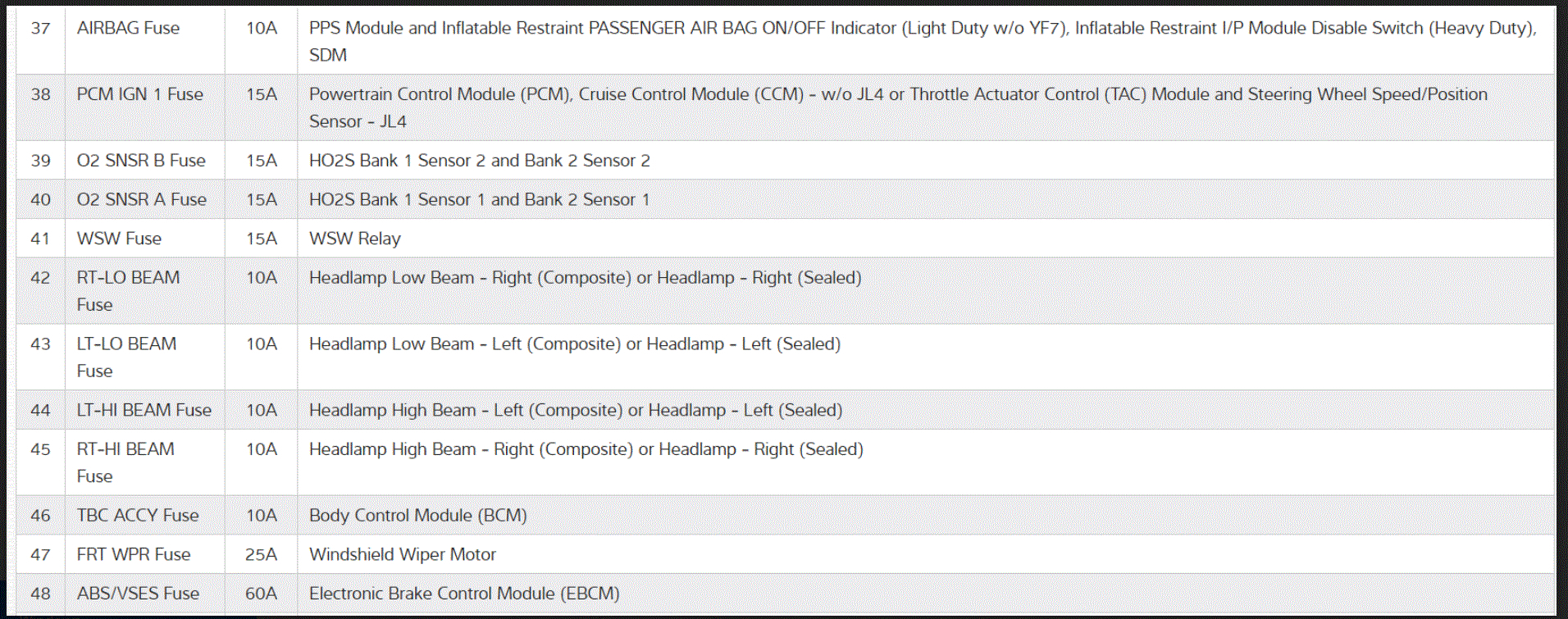

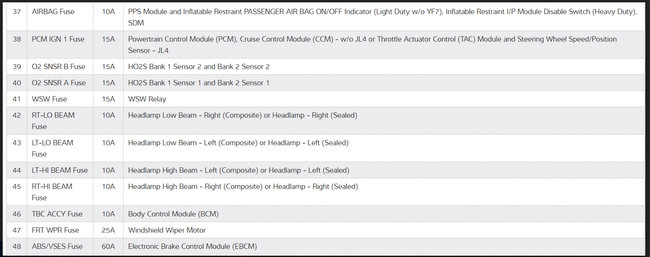

If you look at the attachments below, they provide the fuse box orientations and what each fuse is for.

In addition to just checking a fuse, make sure there is power to it. A fuse may be good and not be receiving power.

Here is a link that you may find helpful when testing:

https://www.2carpros.com/articles/how-to-check-a-car-fuse

I hope this helps. Let me know if you have additional questions.

Take care,

Joe

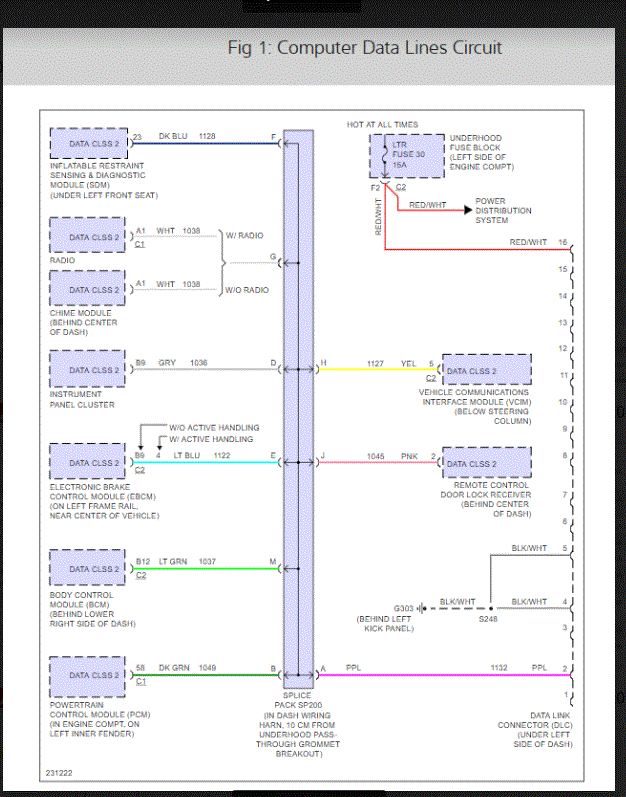

See pics below.
Jun 20, 2021 at 10:56 PM
