location of starter relay

2006 CADILLAC DEVILLE DTS

100,000 MILES • 4.6L • V8 • FWD • AUTOMATIC

CRAIG-123

MEMBER
6 POSTS
FOLLOW

I have a code that keeps popping up p0615 starter relay control circuit , do you know the location of this control circuit ? I already changed it, but still same problem I've put a new starter in with the relay the car started right up 5 times and now it doing the same thing what do you think the problem could be?

May 12, 2015 at 6:51 AM

STRAILER

CERTIFIED EXPERT
53,854 POSTS

Hello,

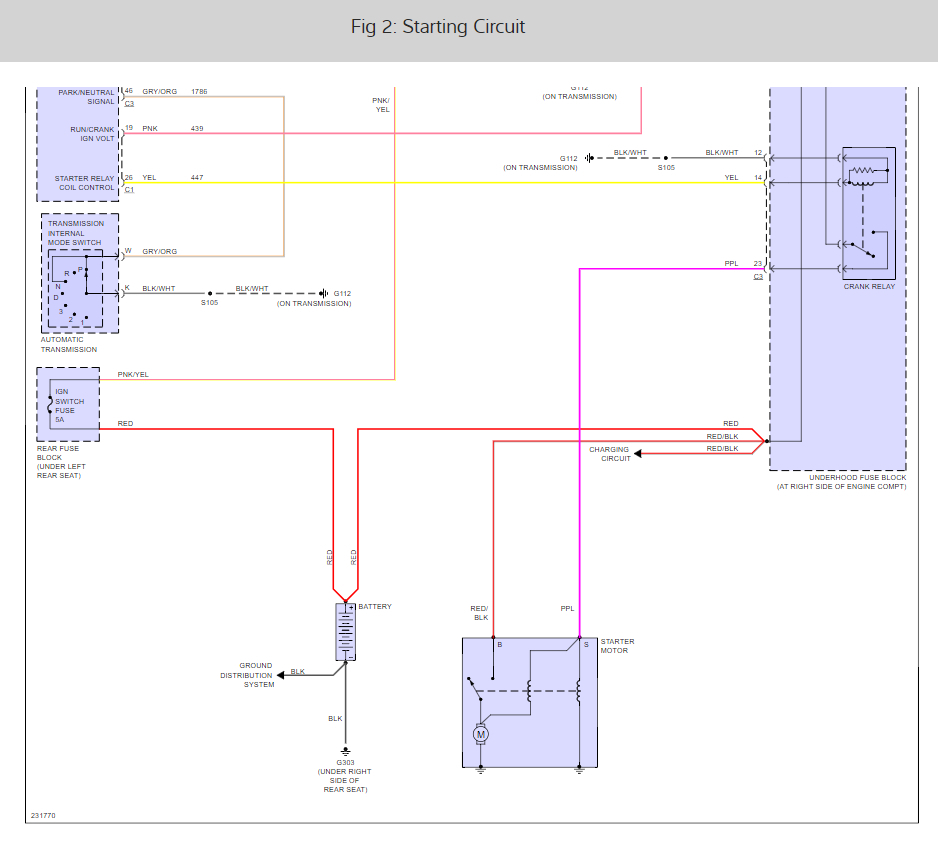

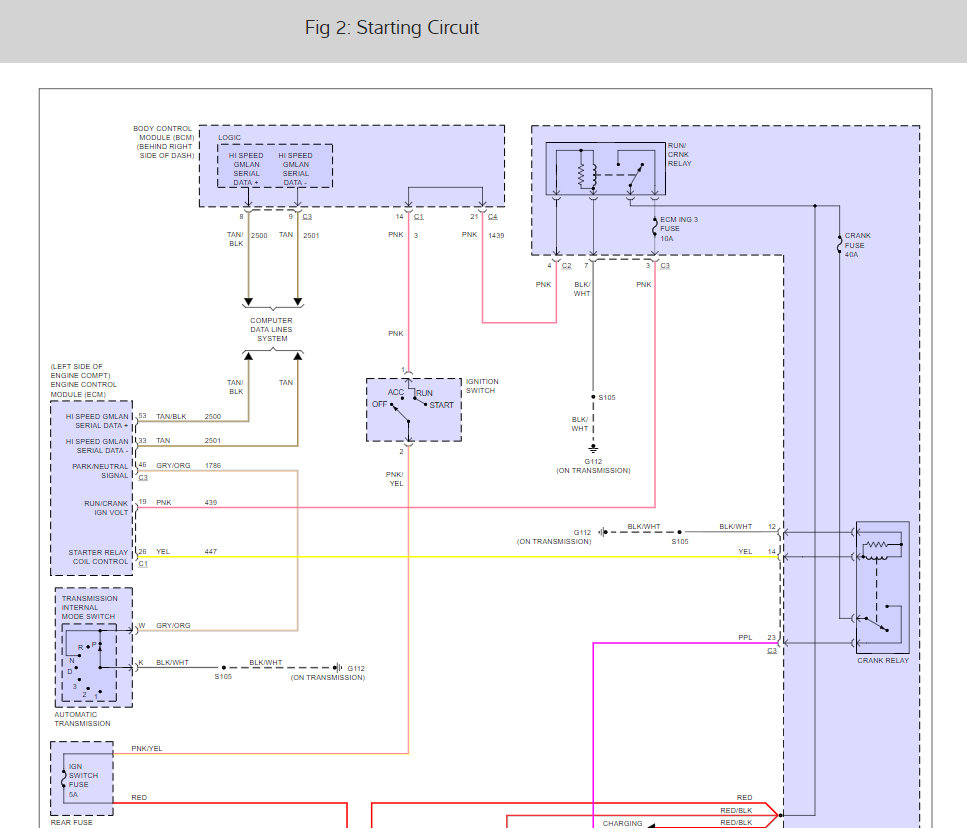

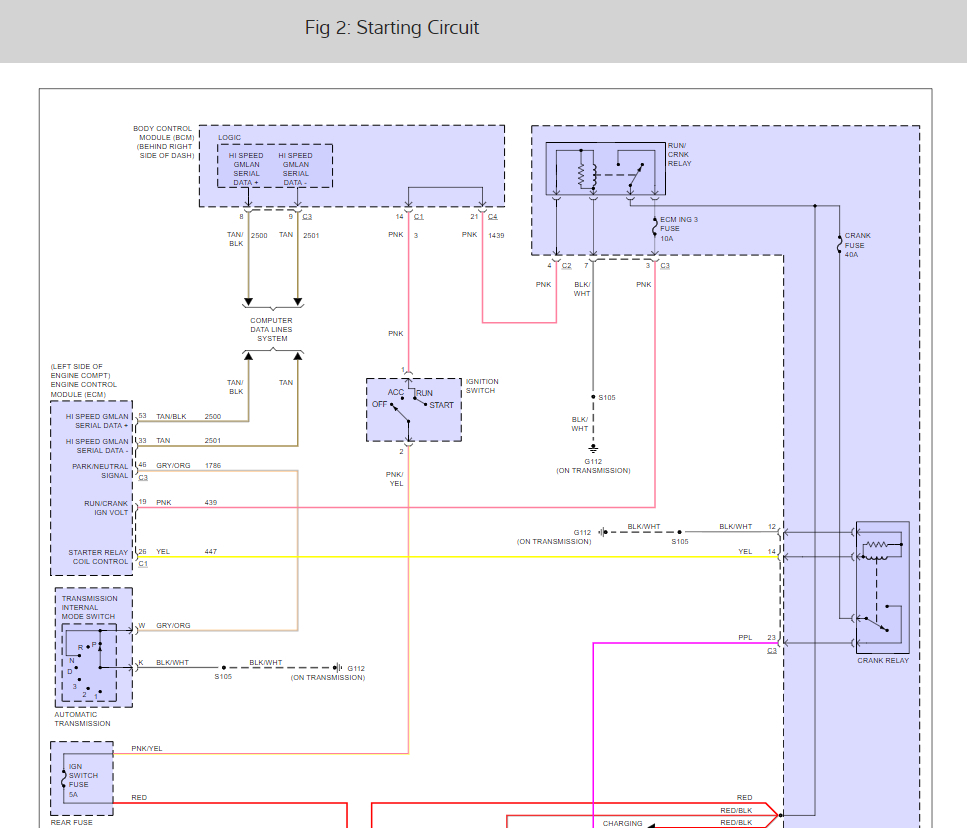

It sounds like it is a wiring issue, here is a guide and some starter wiring diagrams (below) so you can get started.

https://www.2carpros.com/articles/how-to-check-wiring

and

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

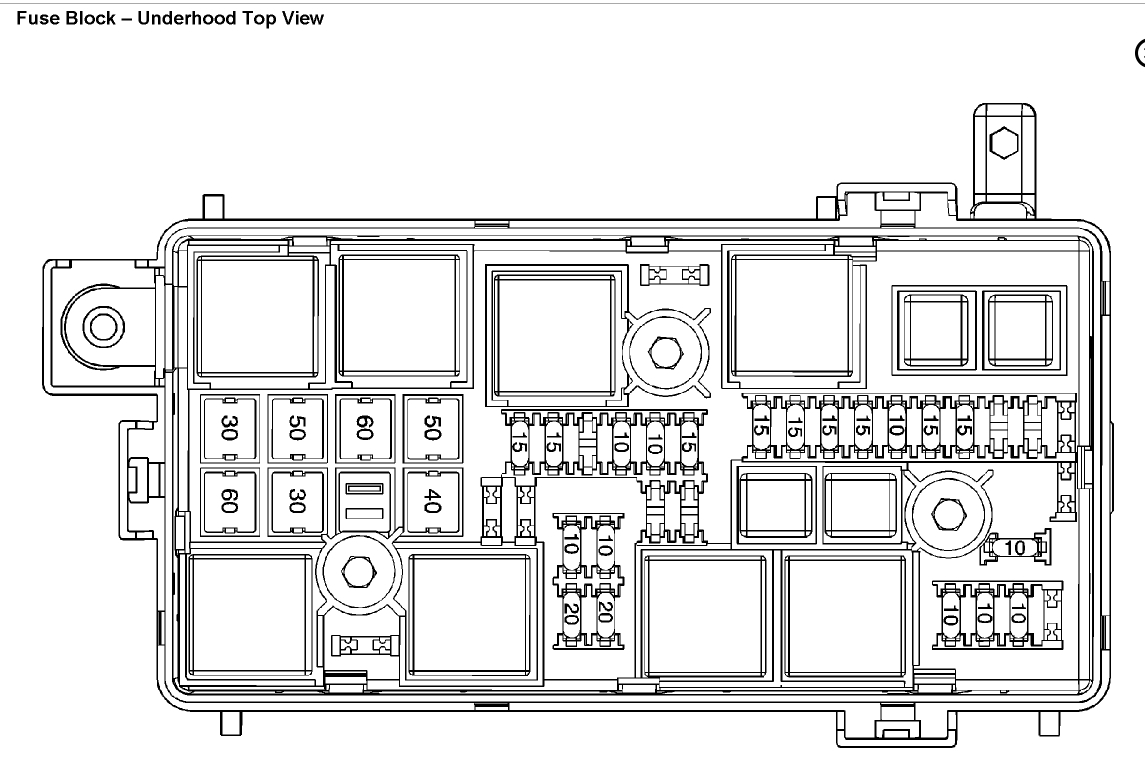

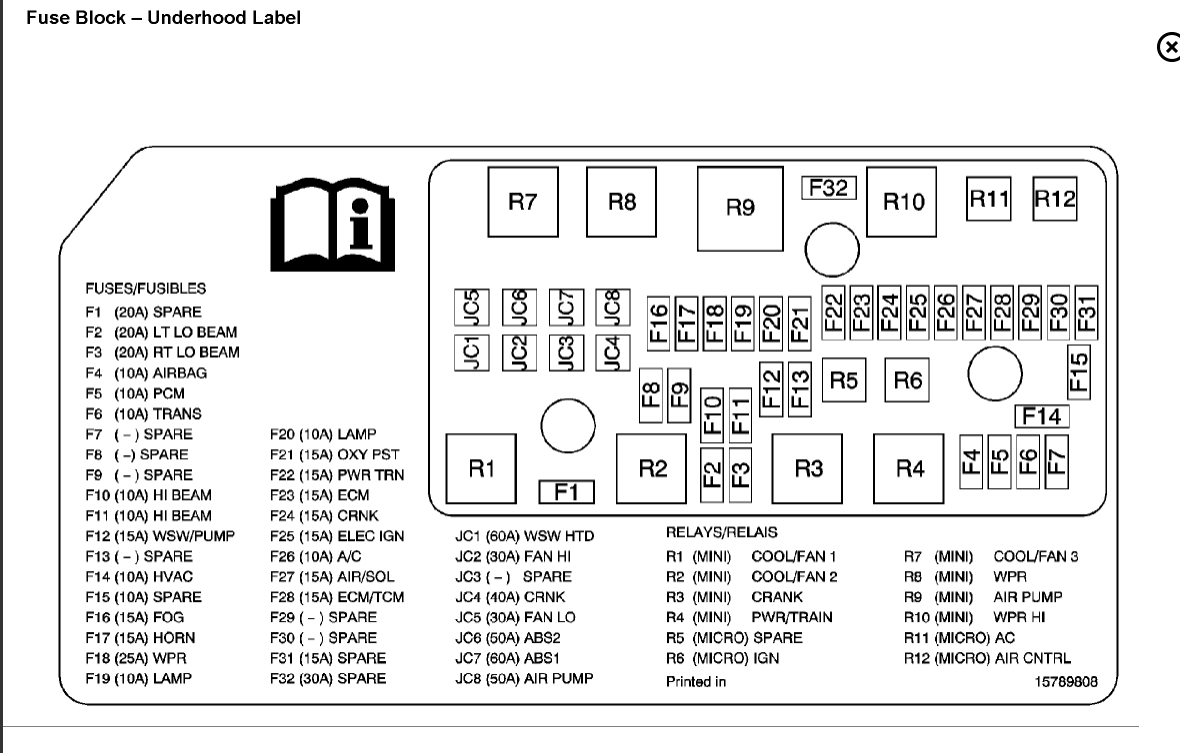

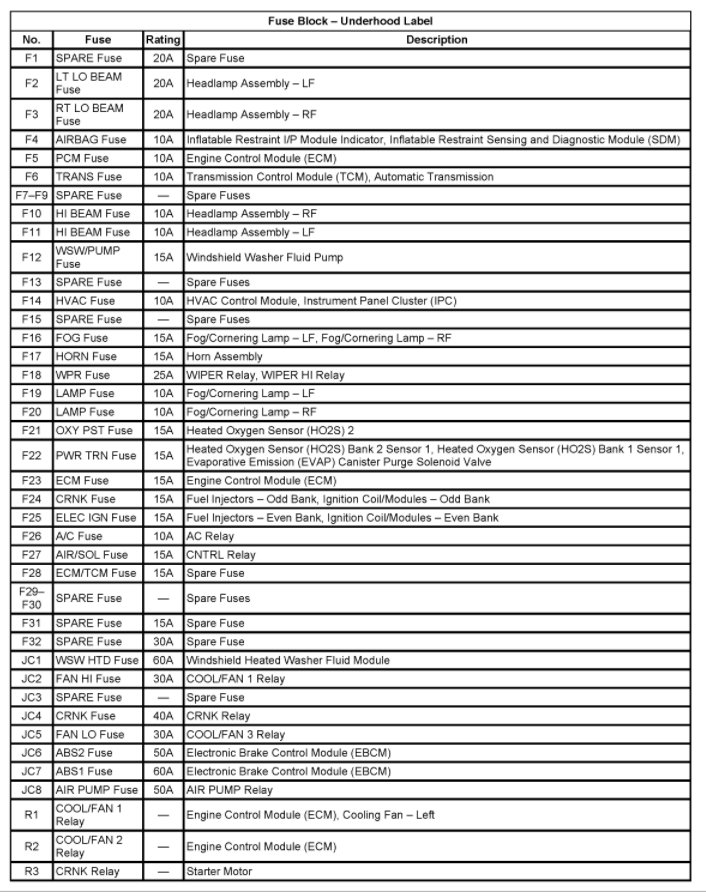

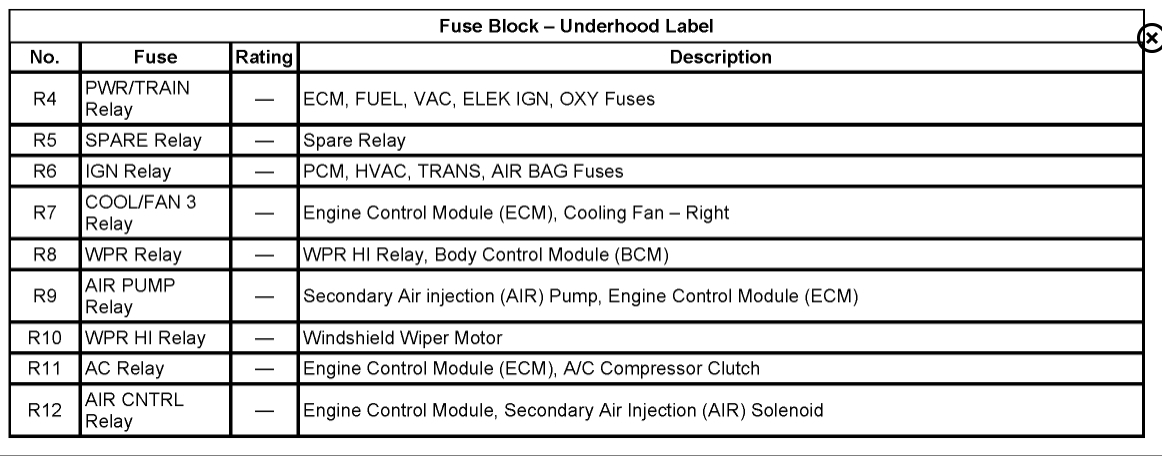

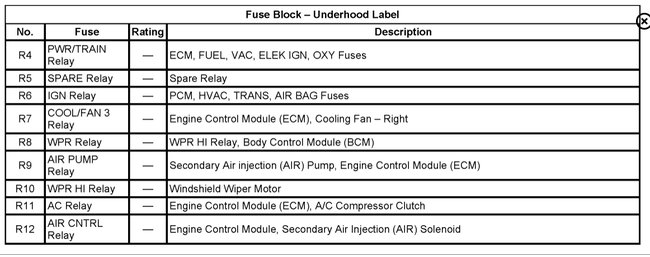

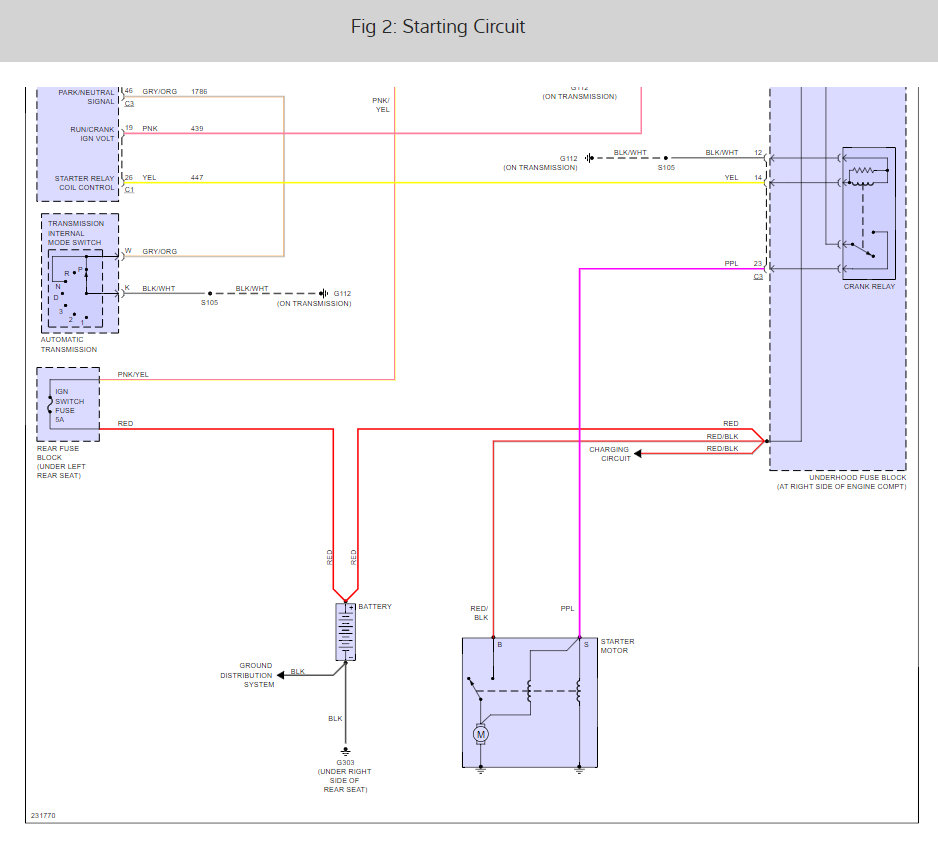

(Here are the diagrams Below)

Let us know what happens and please upload pictures or videos of the problem.

Cheers, Ken

Images (Click to enlarge)

Nov 8, 2017 at 6:33 PM
