2006 Buick Lucerne Rear Air Shocks

2006 BUICK LUCERNE
125,000 MILES
Avatar
OESTEP
  • MEMBER
  • 1 POST
The air shocks need to be replaced due to leaking fluid. I have already been told to remove the fuse for the air suspension pump before removing the air lines. What type connection is used to attach the air line to the air shock? Is a special tool needed to remove and reinstall the air lines?
Oct 28, 2013 at 12:25 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
some have push/pull tpe connectors some are nuts like a compression fitting.

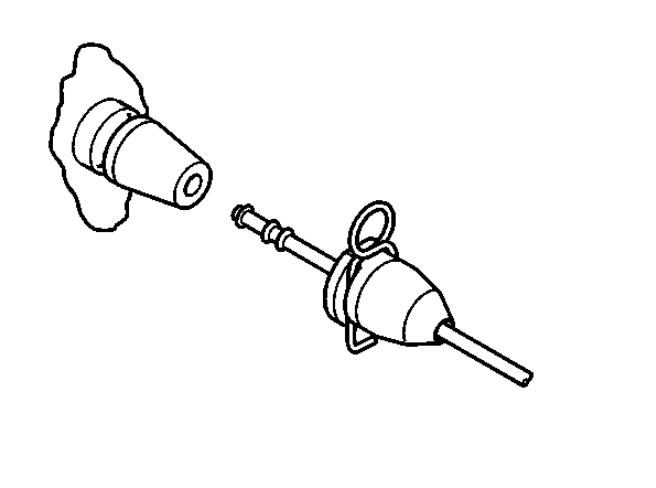

At the rear shock absorbers, the air tube connectors are held on with spring clips which snap into the grooves of the shock absorber air fittings. Air tube connectors are sealed using 2 O-rings
see pic
Oct 29, 2013 at 7:45 AM
