Valve cover gasket replacement

2005 NISSAN XTERRA
115,000 MILES • 4.0L • V6 • 2WD • AUTOMATIC
Avatar
SZALKUSKT
  • MEMBER
  • 274 POSTS
I plan on doing both valve cover gaskets on this vehicle listed above. I would like the step by step procedures along with torque specs please.
I also am wondering if there are o-ring grommets that seal the valve cover also to the spark plug tubes so oil doesn't leak? .

I found this part online and I am wondering if it is used to seal the valve cover to the spark plug tubes or is it just to seal the ignition coil only for sealing out dust?
----- FEL-PRO ES72481 {#1327631U10} Info
Valve Cover; For use with removable PCV Valve baffles only; w/o Welded Plastic Design
----- I haven't taken the valve covers off that is why I don't know. Thanks in advance.
Dec 8, 2019 at 11:24 AM
Advertisement
Avatar
SCGRANTURISMO
  • CERTIFIED EXPERT
  • 4,897 POSTS
Hello,

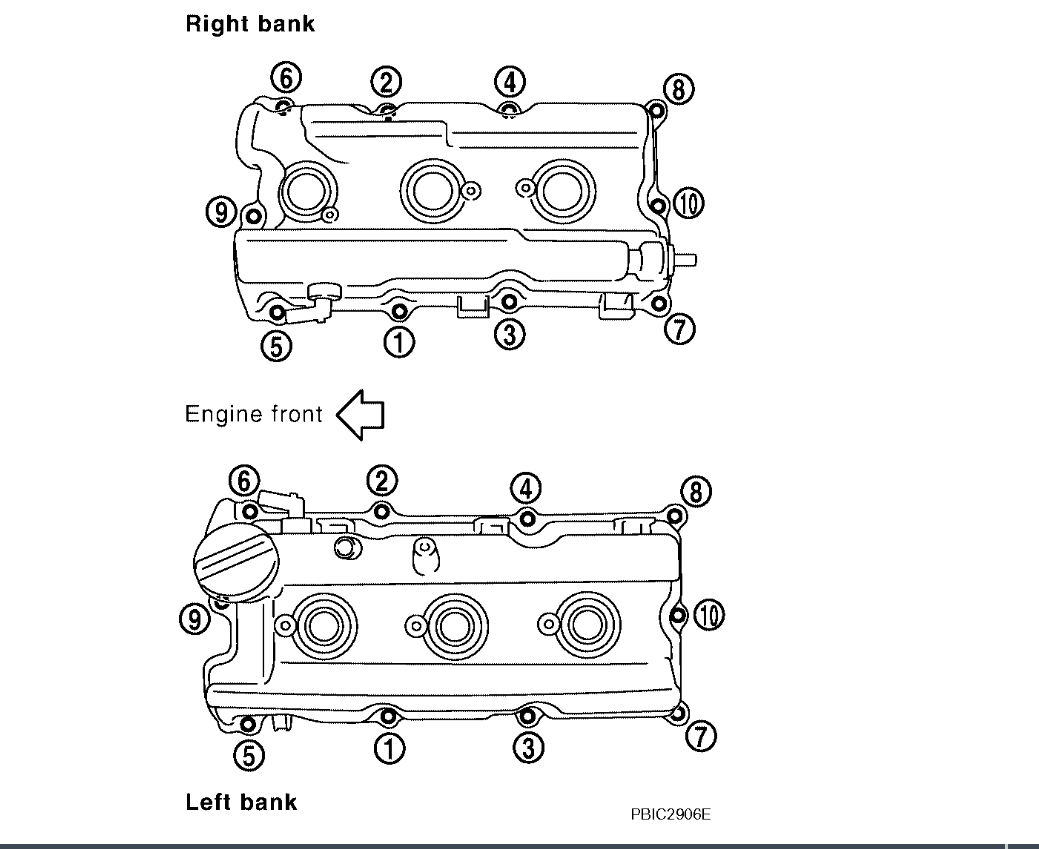

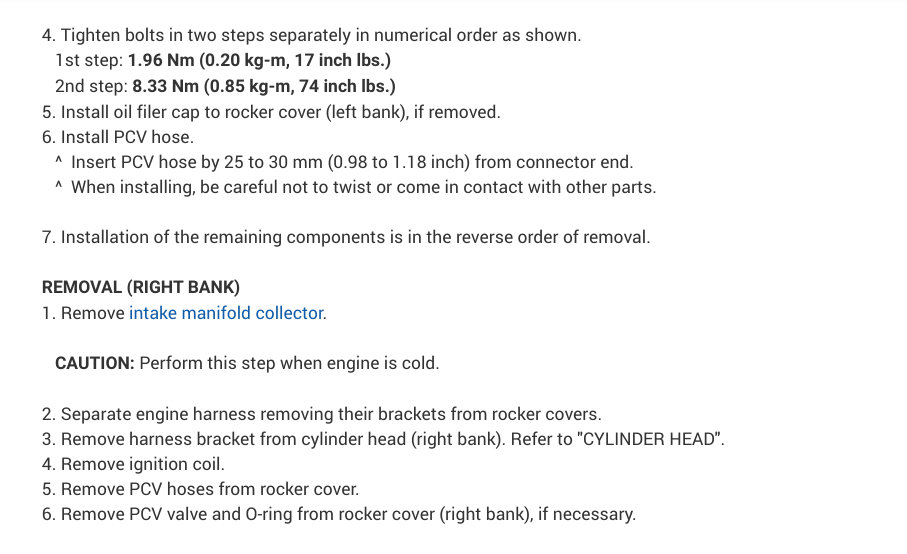

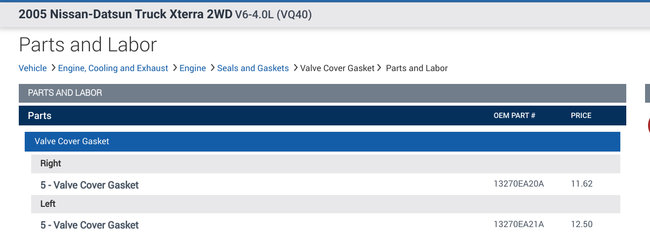

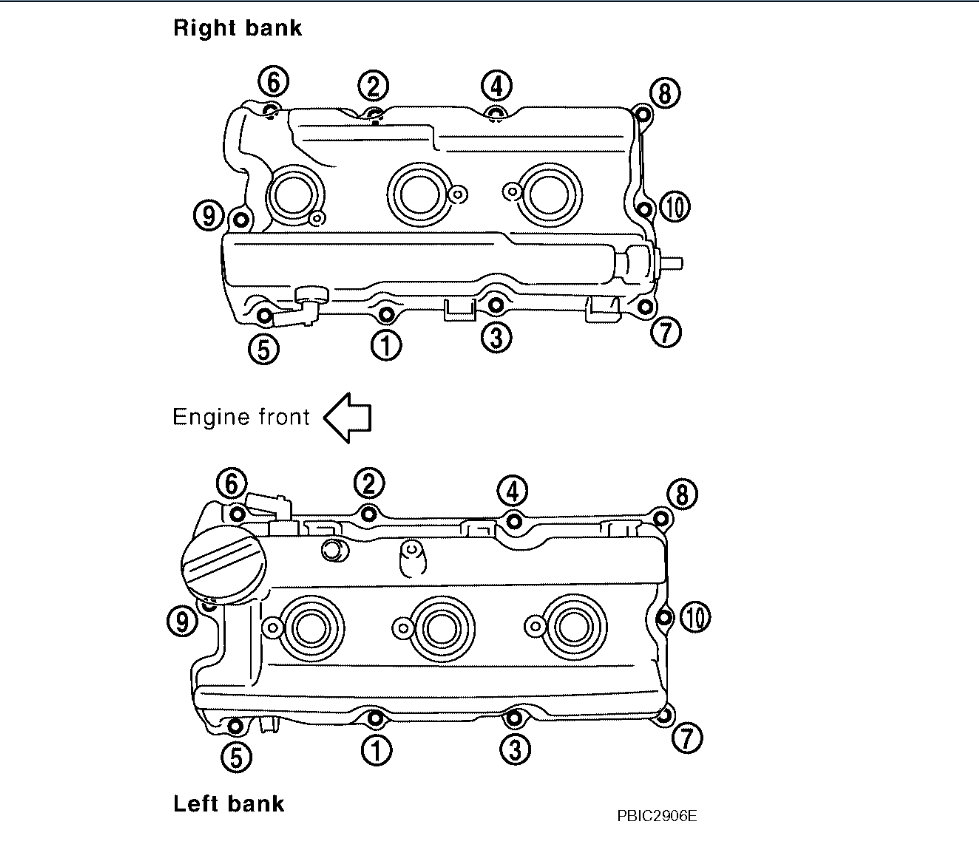

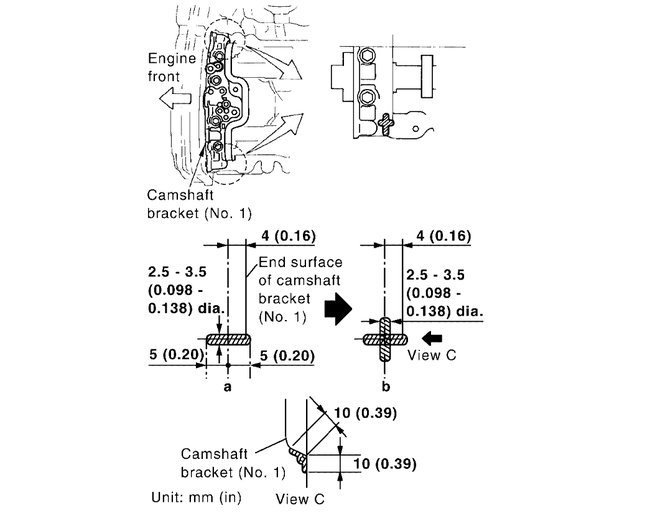

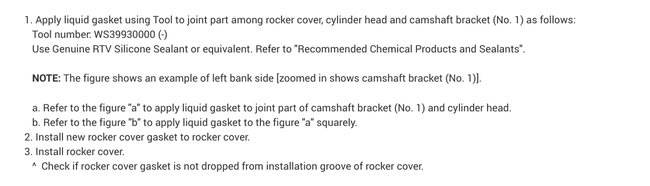

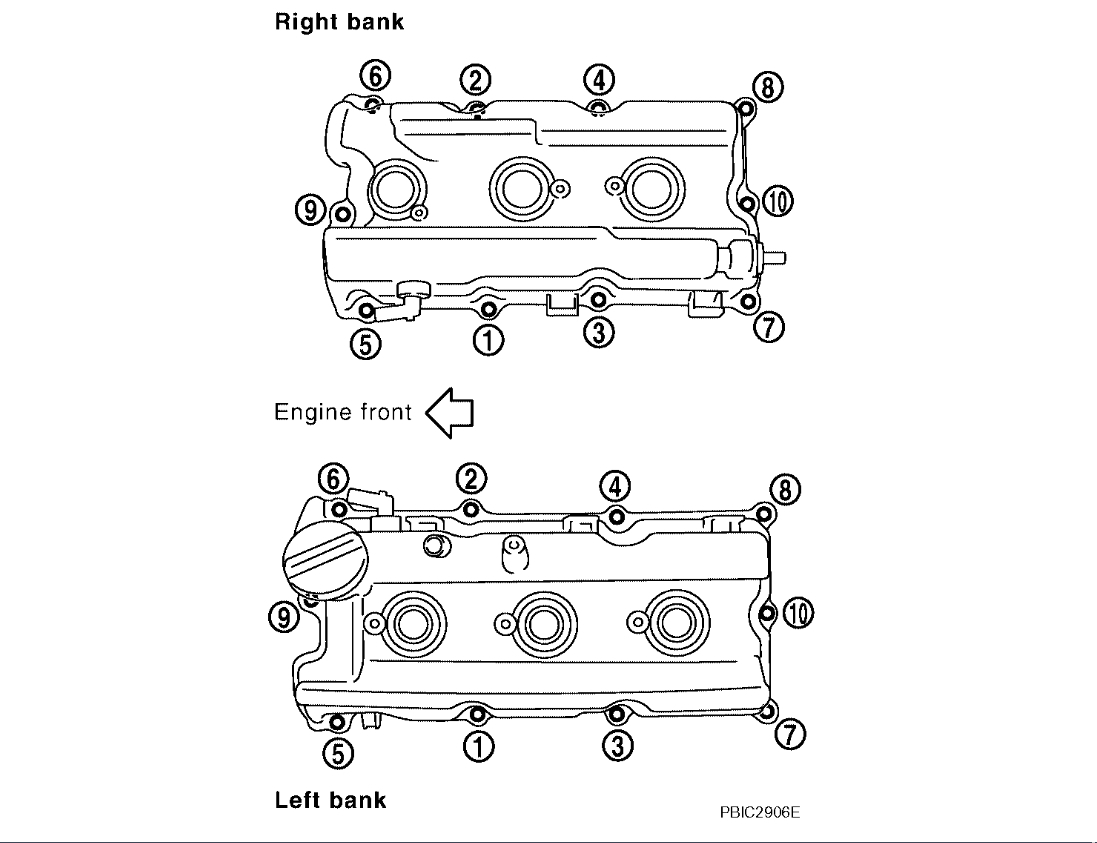

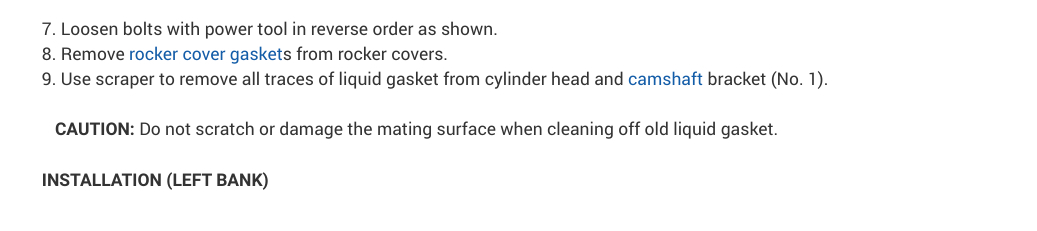

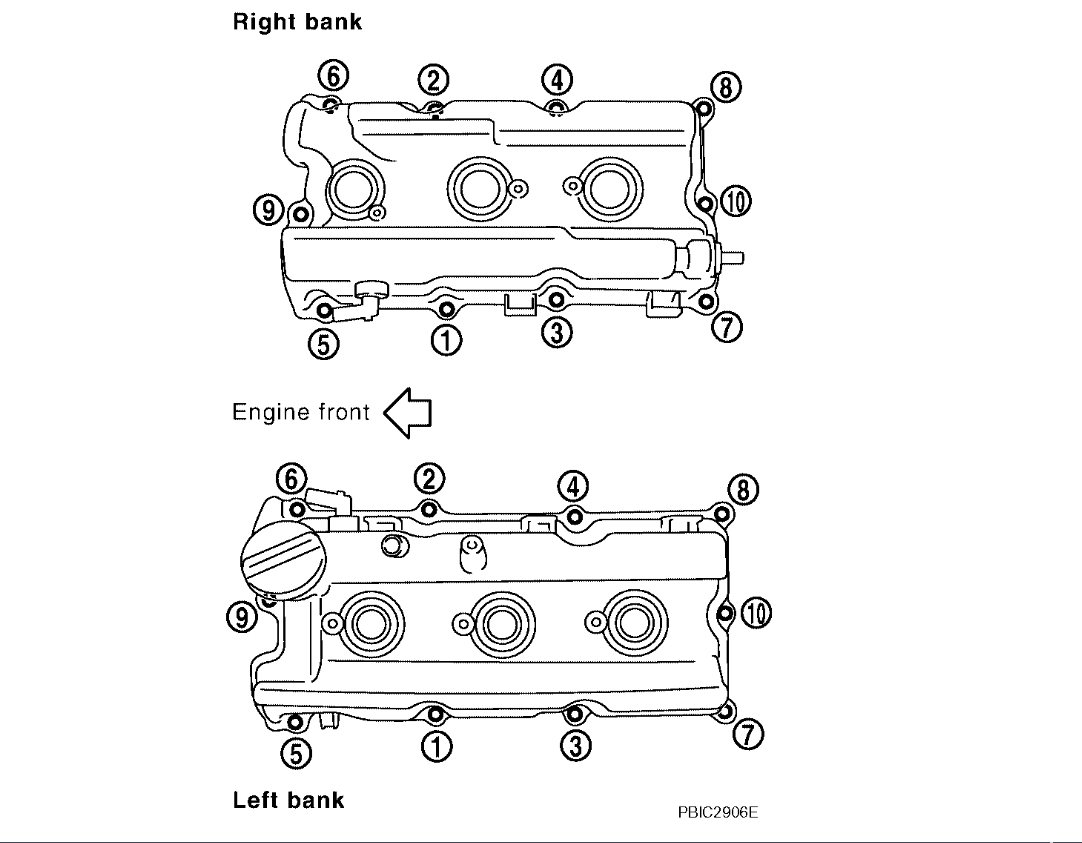

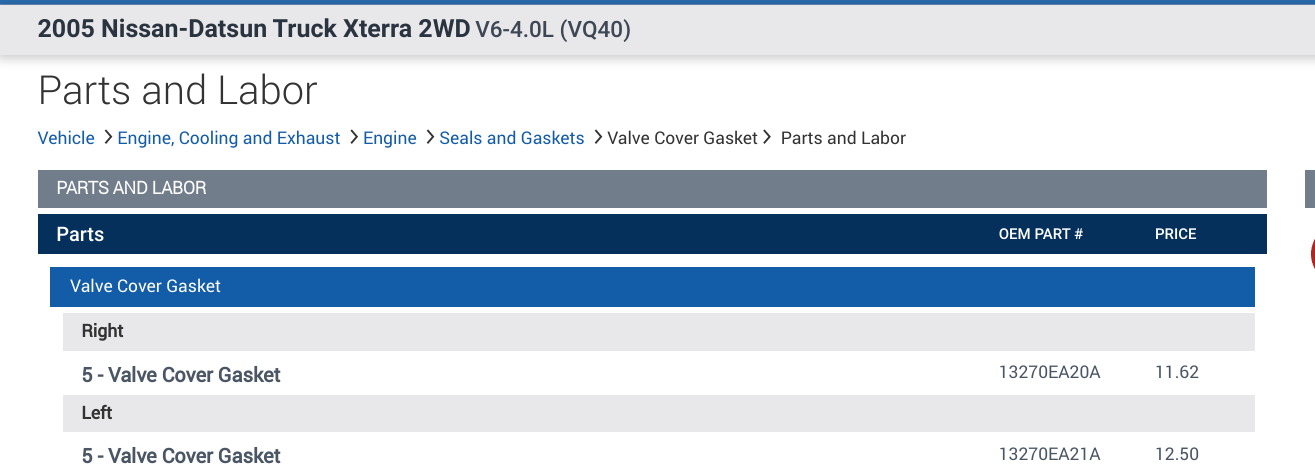

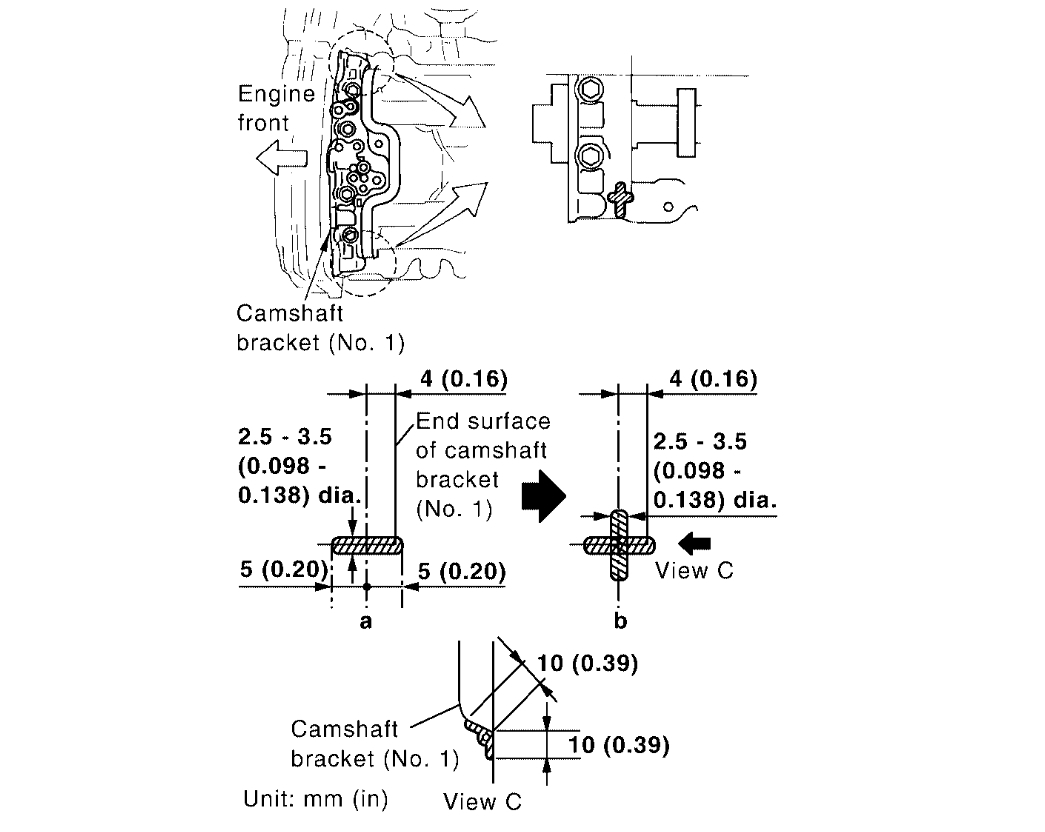

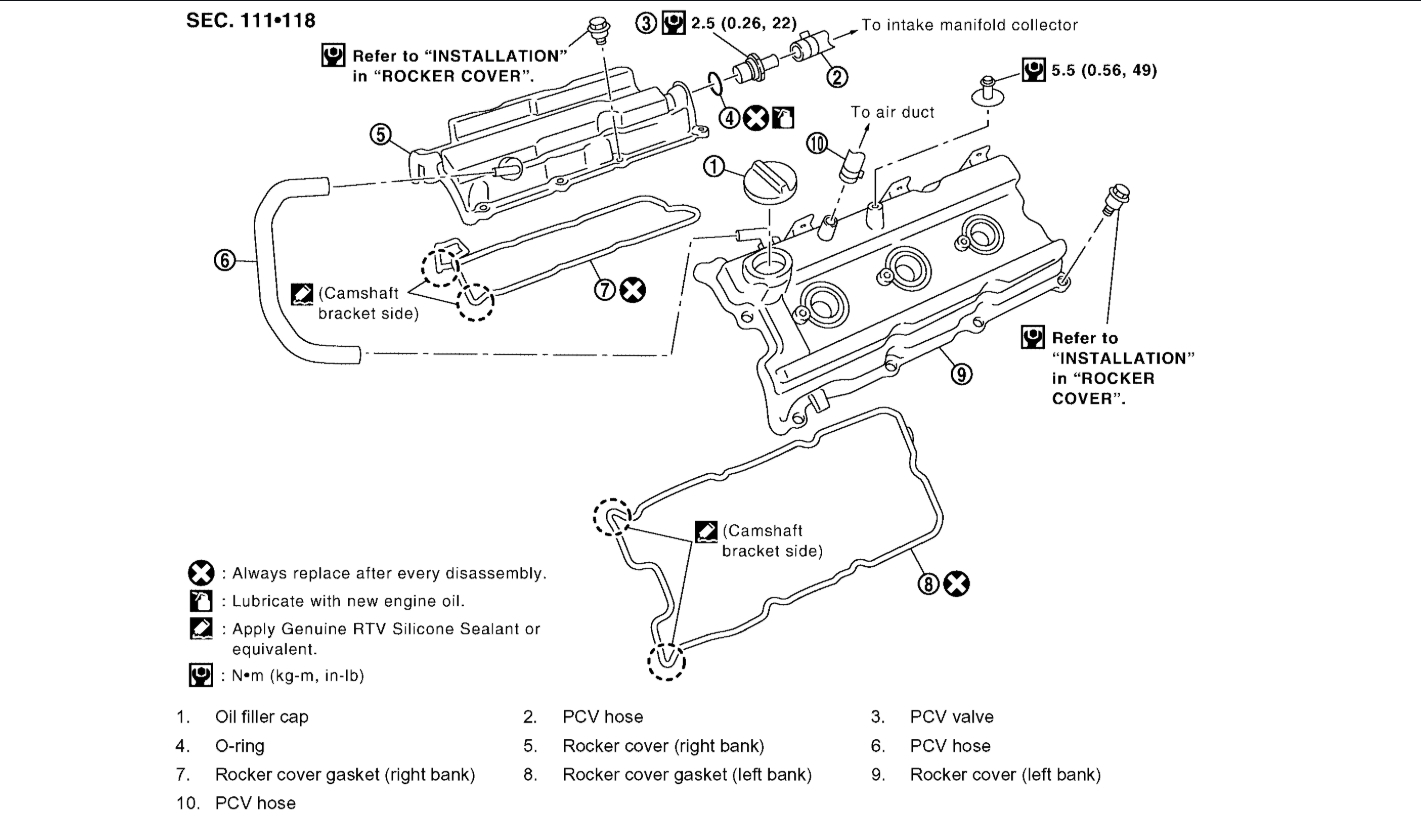

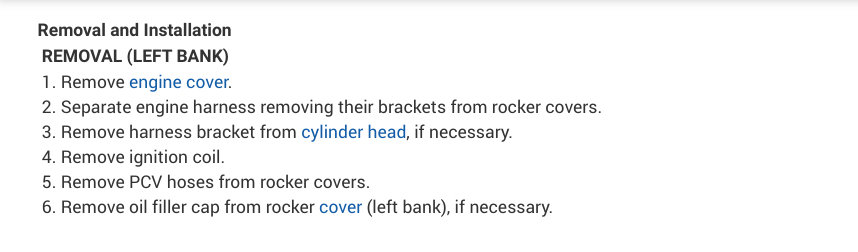

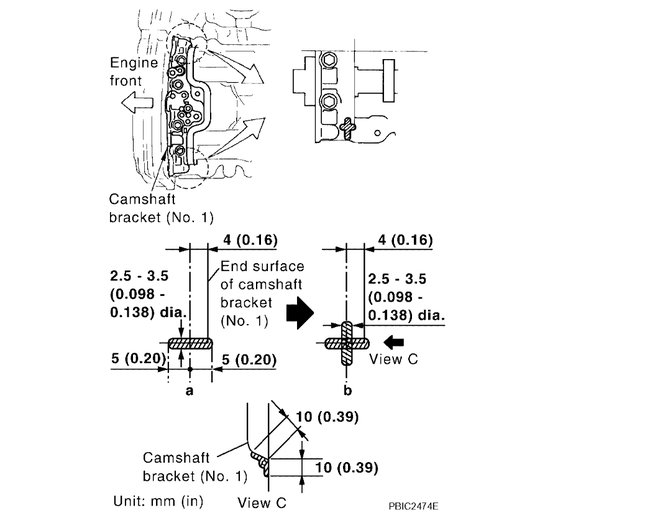

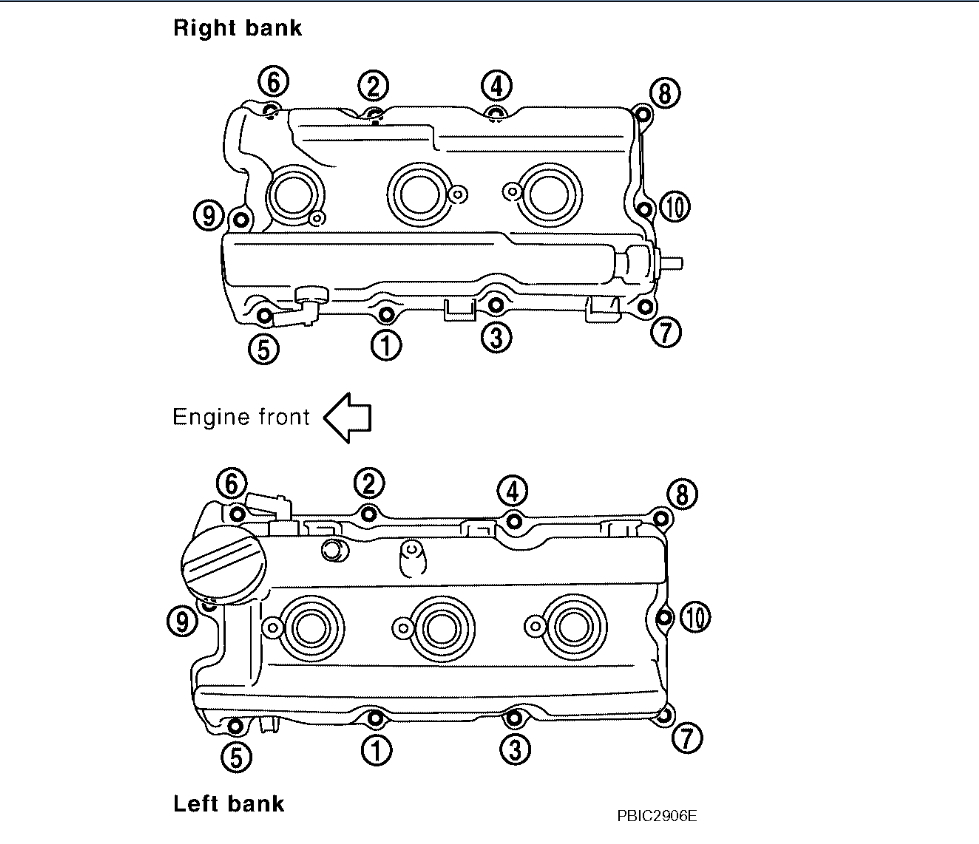

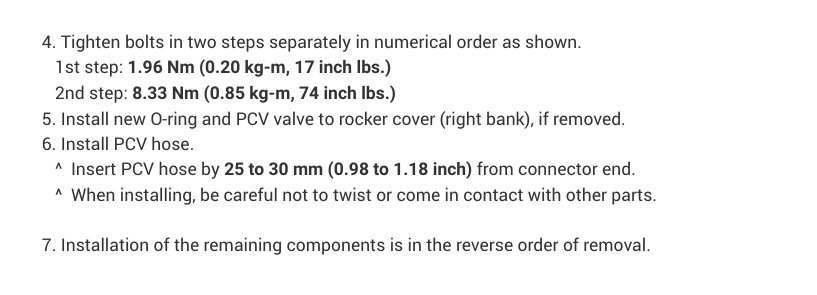

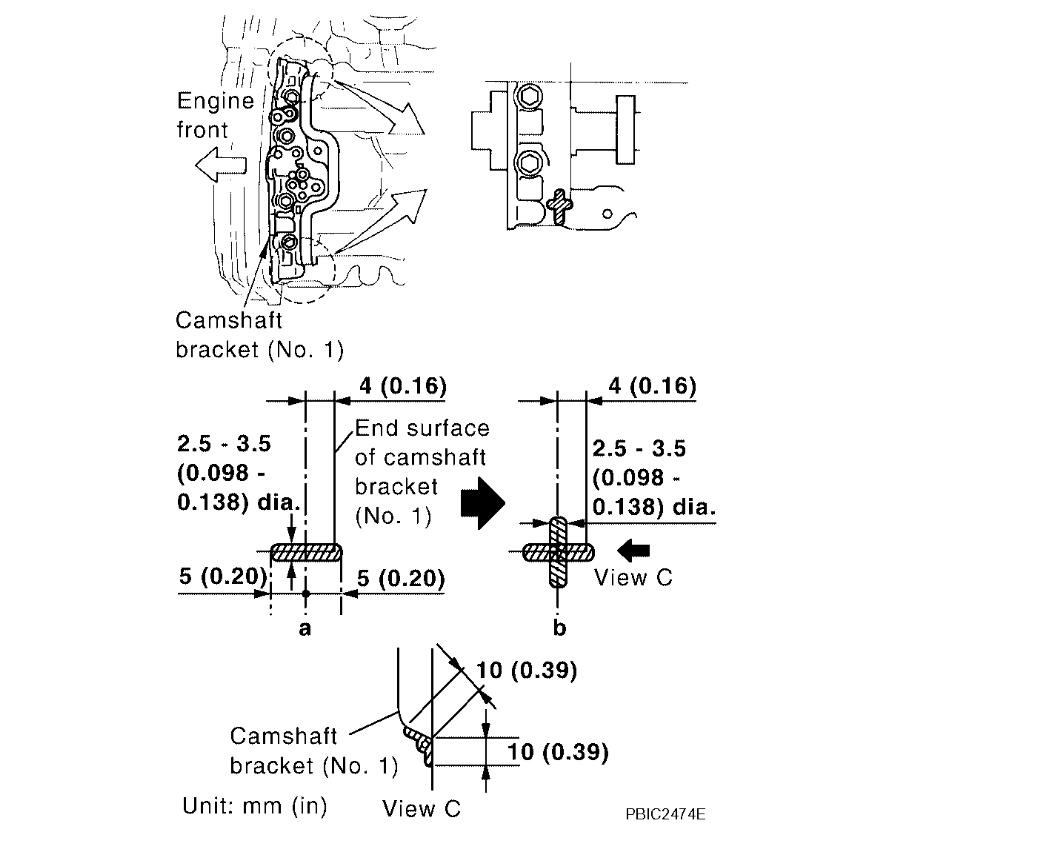

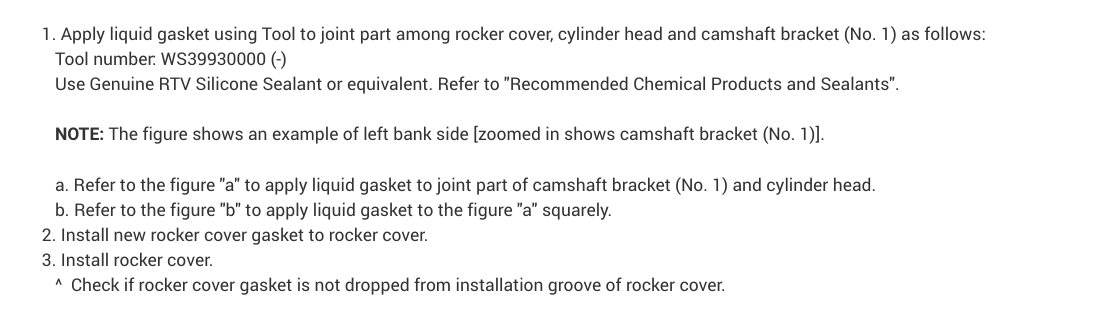

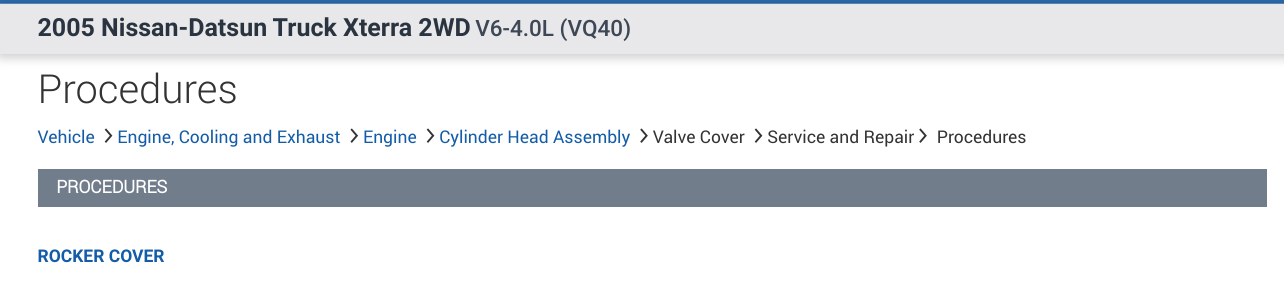

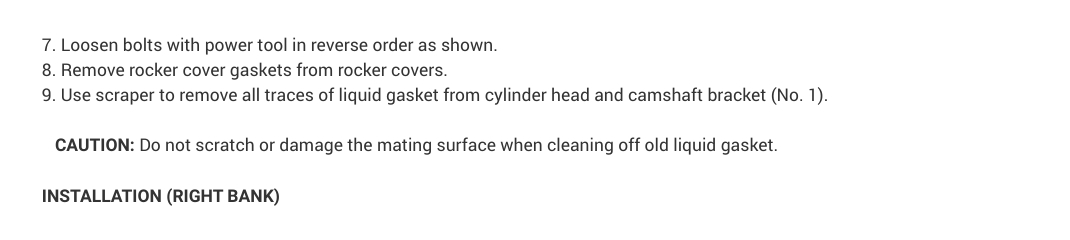

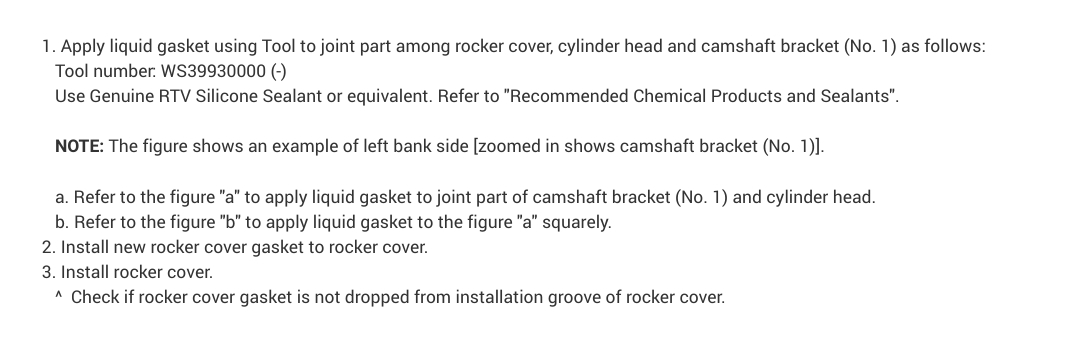

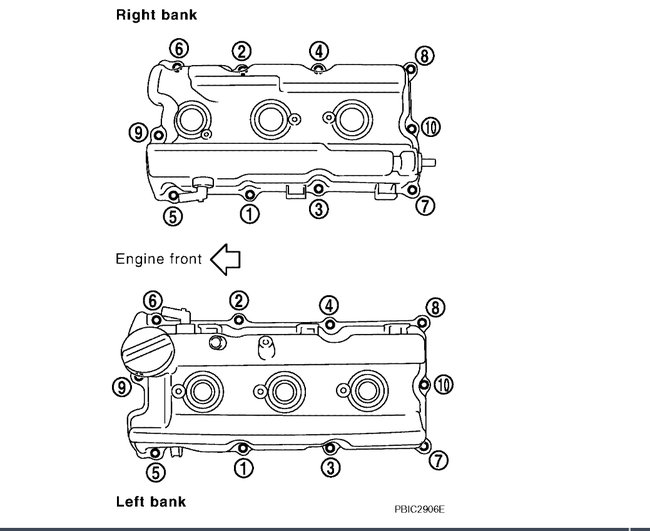

Okay, in the diagrams down below I have included the information that you have requested. I have included the Original Equipment Manufacturer [OEM] part numbers for both the left and right valve cover gaskets for cross reference, as well as the step by step instructions for the removal and installation of both the left and right valve cover gaskets along with torque specs. Please go through these guides and get back to us with how everything turns out.

Thanks,
Alex
2CarPros
Dec 8, 2019 at 2:40 PM
