rear brake sensor is broken
2005 SUZUKI XL7
75,000 MILES • 6 CYL • 4WD • AUTOMATIC
ABLH210
MEMBER
1 POST
FOLLOW
Our left rear brake sensor is broken?
Jan 18, 2011 at 2:07 PM
Advertisement
DANNY L
CERTIFIED EXPERT
5,648 POSTS
Hello, I'm Danny.
Here is the information you requested. Here is a guide to help you step by step with instructions in the diagrams below to show you how to perform the repair on your car:
https://www.2carpros.com/articles/how-to-replace-an-abs-wheel-speed-sensor

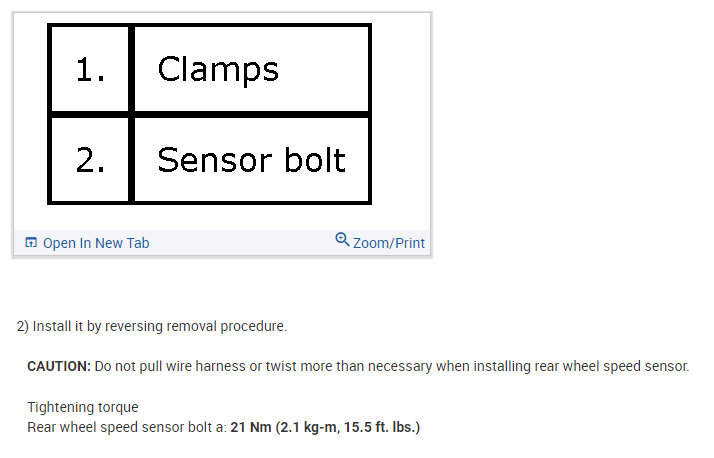

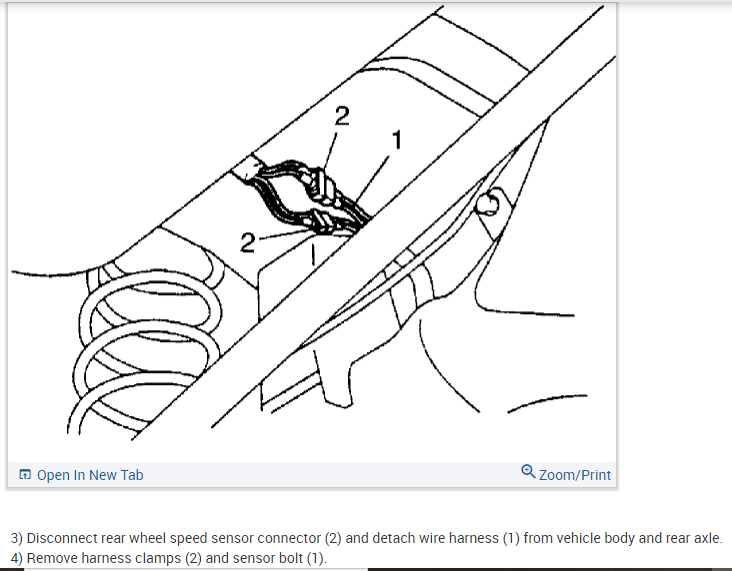

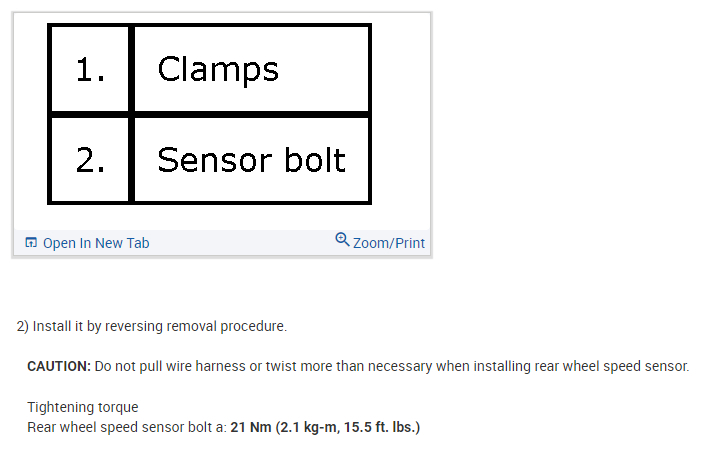

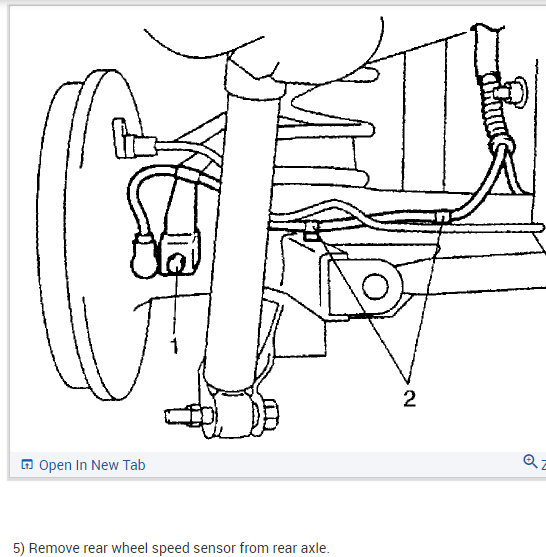

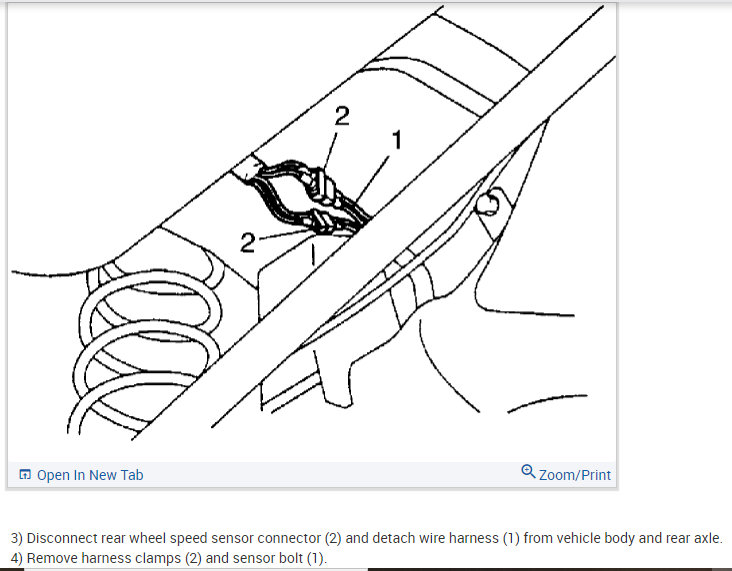

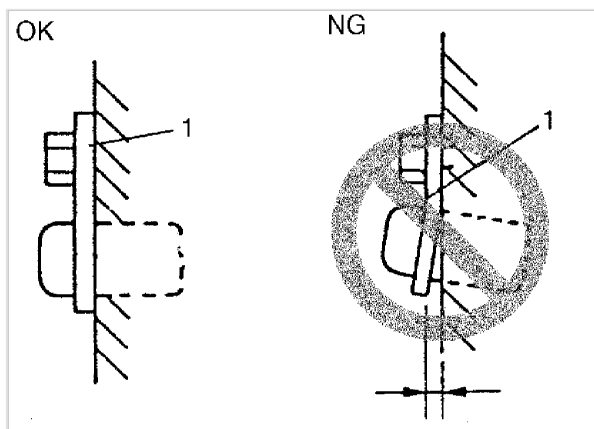

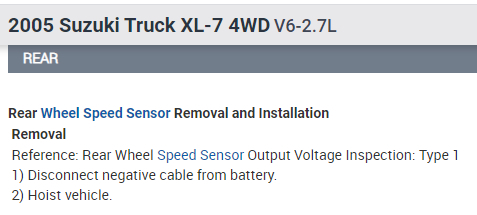

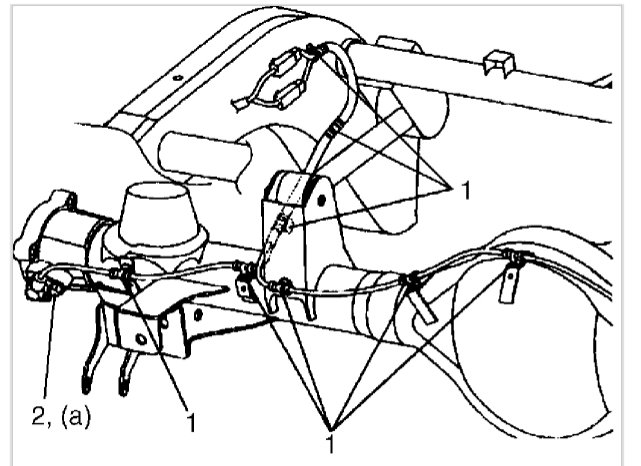

I've attached picture steps below on how to change the wheel speed sensor on your truck. Hope this helps and thanks for using 2CarPros.
Images (Click to enlarge)
Mar 31, 2021 at 9:19 PM
