2005 Saturn Ion serpentine belt problem

2005 SATURN ION
80,000 MILES • 4 CYL • AUTOMATIC
Avatar
STEVE1973BRYANT
  • MEMBER
  • 2 POSTS
Driving home I heard noises by the passenger front tire. Made it home. Turned out to be a shredded serpentine belt. Bought a new belt & special tool. Parked on dirt, can't jack the car up. Extremely tight squeeze through the top, but it's my only choice. (I have to work tomorrow & no $ right now) How can I change the belt?
Aug 25, 2015 at 9:24 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

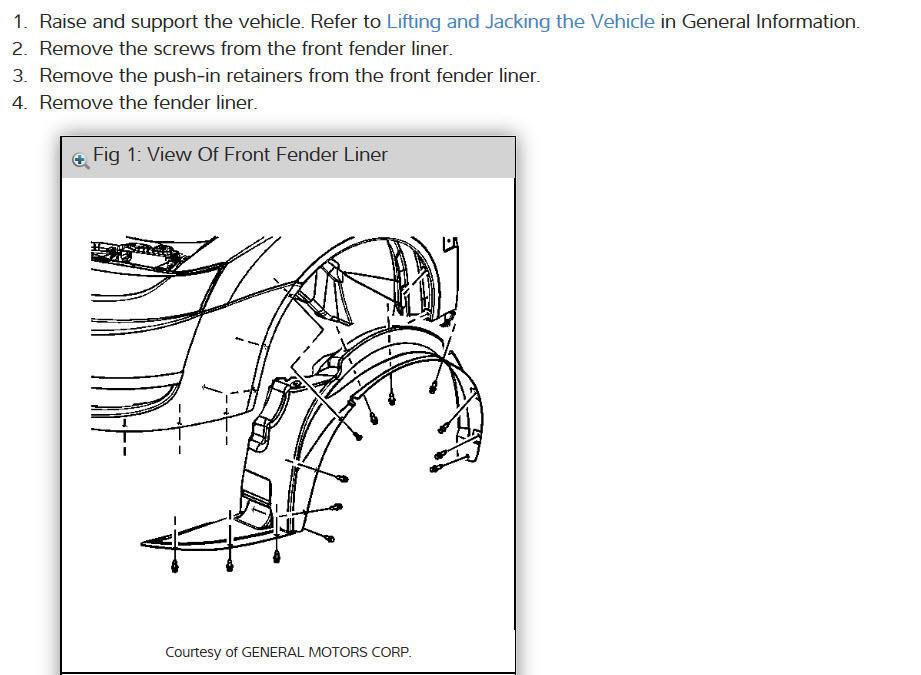

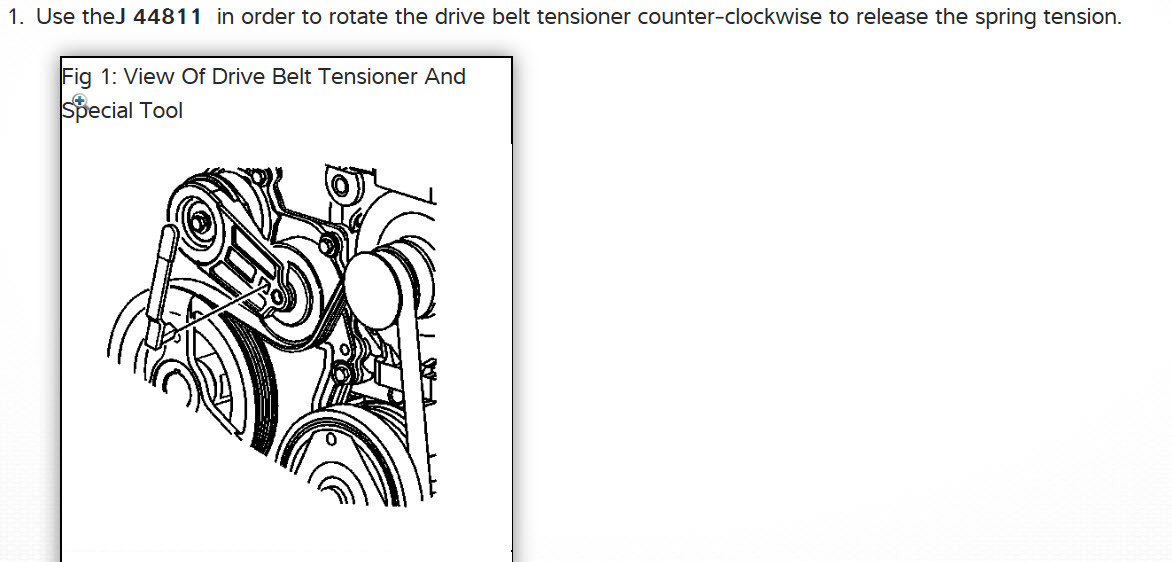

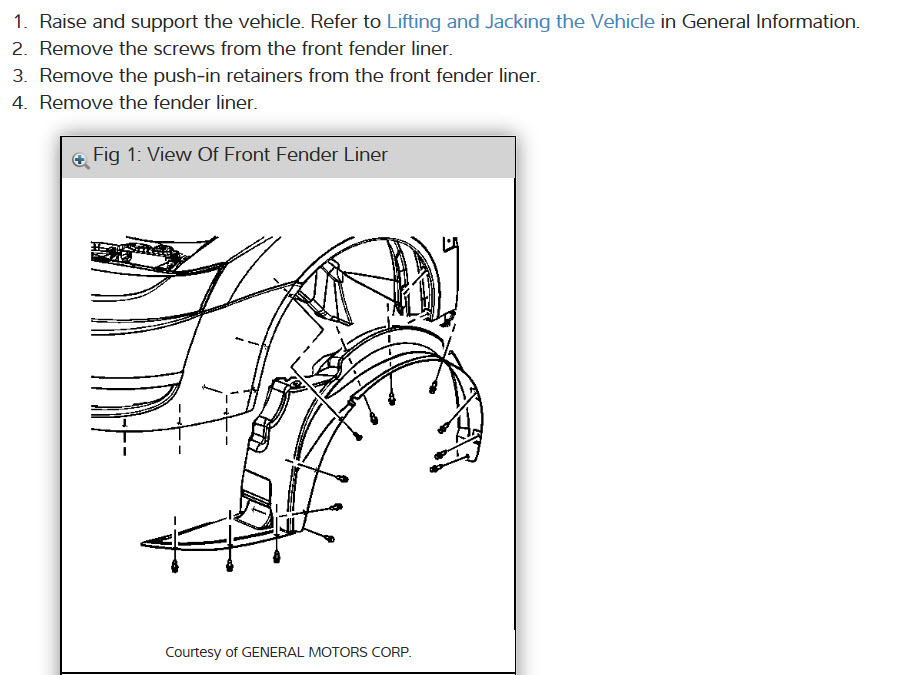

see pics you have to remove fender liner and can use a 3/8" rachet instead of tool or 1/2" rachet also replace tensioner.
Images (Click to enlarge)
Attached Media
Attached Media
Aug 25, 2015 at 10:06 AM
Avatar
STEVE1973BRYANT
  • MEMBER
  • 2 POSTS
Thank you very much for your answer, I will try to remove the fender. I am not a car guy by any means... but I have to do it.
Aug 25, 2015 at 10:25 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

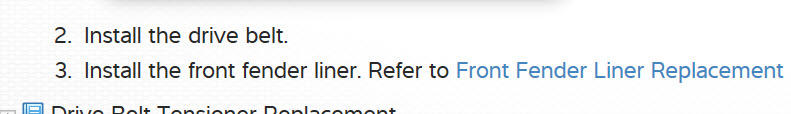

fender LINER not fender......
Image (Click to enlarge)
Attached Media
Aug 25, 2015 at 11:57 AM
