cigarette lighter fuse?

2005 NISSAN MAXIMA
135,000 MILES • V8 • FWD • AUTOMATIC
Avatar
1TRUTRINI
  • MEMBER
  • 1 POST
my cigarette lighter does not work, i replaced and new fuse keeps blowing, tried larger size fuse still no luck.?
Jul 13, 2011 at 11:38 PM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS
Look in the cig lighter socket see if there is anything stuck in there like coins the end of a cell phone charger i have seen all those things blow the fuse.So does the fuse blow as soon as you put the fuse in? Here is a guide to help test the fuse # 17, 7 and 5 in the interior fuse panel with the fuse location in the diagrams below.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

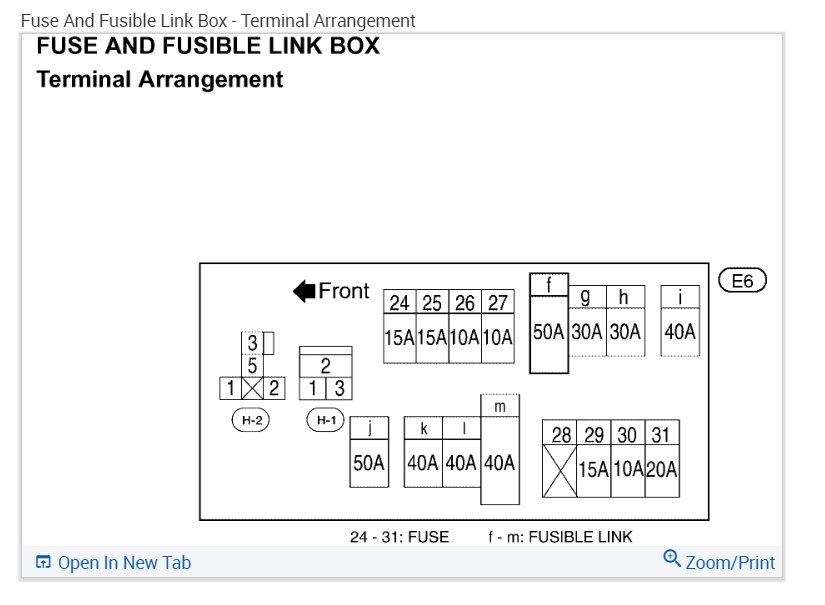

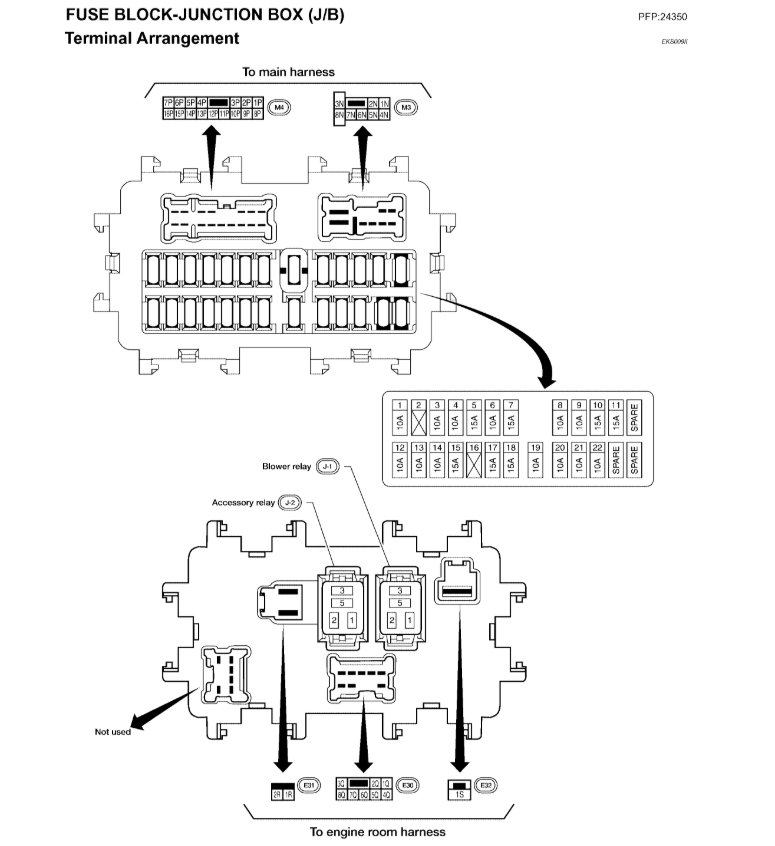

Check out the diagrams (Below). Please let us know what happens.
Images (Click to enlarge)
Attached Media
Attached Media
Jul 13, 2011 at 11:46 PM
Avatar
LCARPENTER
  • MEMBER
  • 1 POST
In using the cigarette lighter socket for power source for gps system, I found that there is no power. Is there a "cut-off" somewhere for that socket used to kill it unless needed? There is no cigarette lighter, only a plastic "power source" cover.
Nov 1, 2020 at 2:47 PM (Merged)
Advertisement
Avatar
MHPAUTOS
  • CERTIFIED EXPERT
  • 31,937 POSTS
Hi there, Check fuse No 16 in fuse box under dash, this is the fuse for the lighter and it should be 15Amp. mark (mhpautos)


https://www.2carpros.com/forum/automotive_pictures/61395_Graphic_76.jpg

Nov 1, 2020 at 2:47 PM (Merged)
