Low beam not working?

2005 NISSAN ALTIMA
111,000 MILES • 2.5L • 4 CYL • FWD • MANUAL
Avatar
CHARGER12
  • MEMBER
  • 1 POST
i uninstalled my stock headlight bulbs and installed aftermarket HIDs. they worked but now they don't. So, i switched back to the factory light bulbs and they don't want to work. i checked the fuses none are blown. what do i do?

Need help ASAP! please help.
Oct 11, 2014 at 9:19 PM
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS
More than likely we burned up the driver in the IPDM or the relay has failed.

We need to start with checking for power at the headlamp and trace it back through the system until we find where it is. Here is a guide that will help with this:

https://www.2carpros.com/articles/how-to-check-wiring

If you don't have it coming out of the IPDM then we need to check the relay using this guide:

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

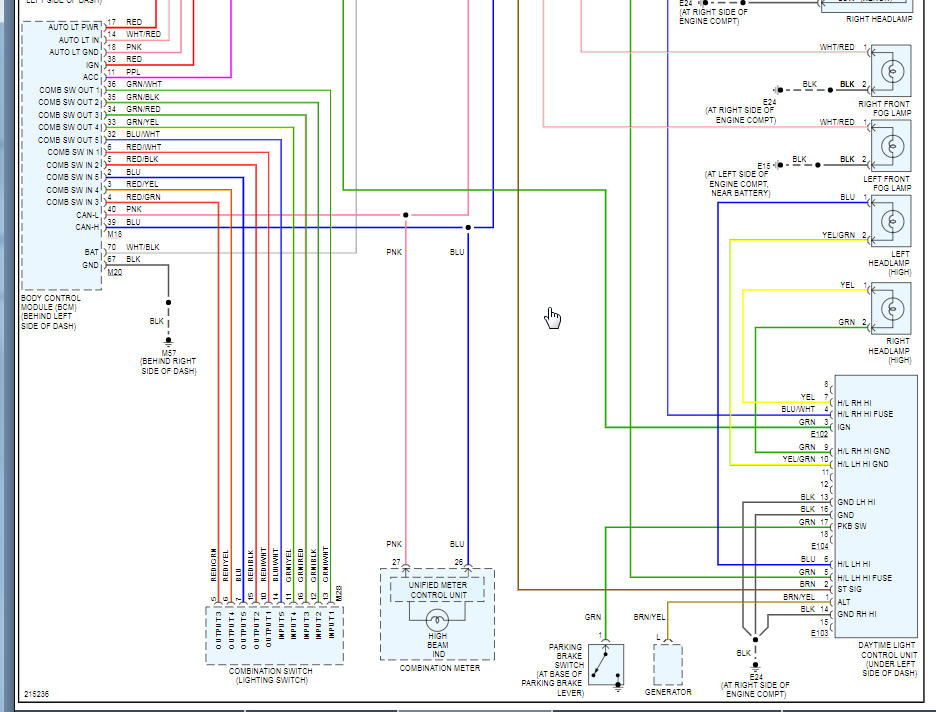

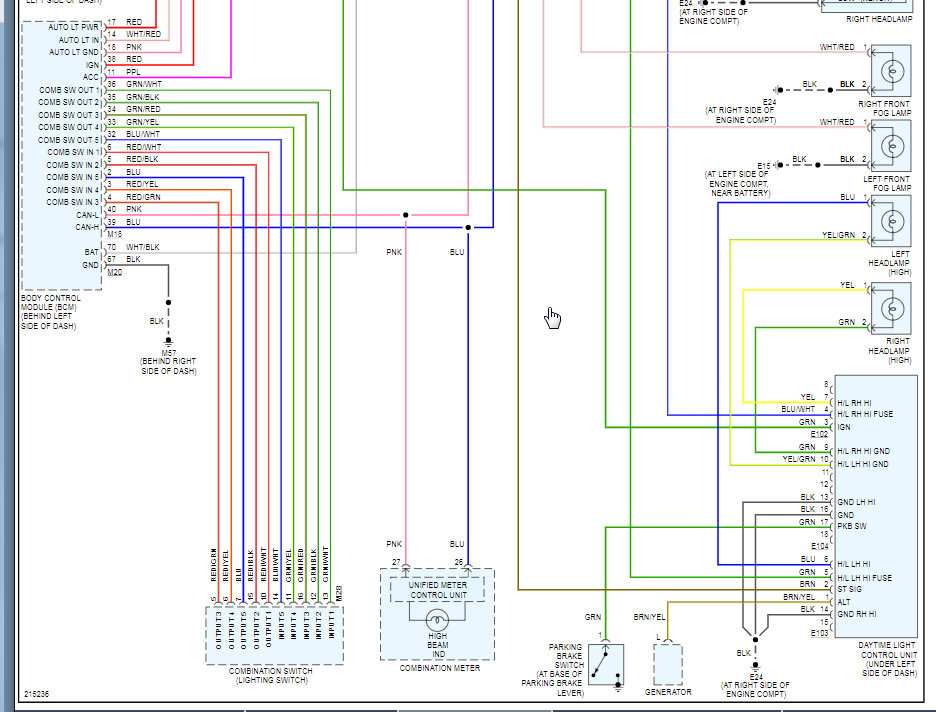

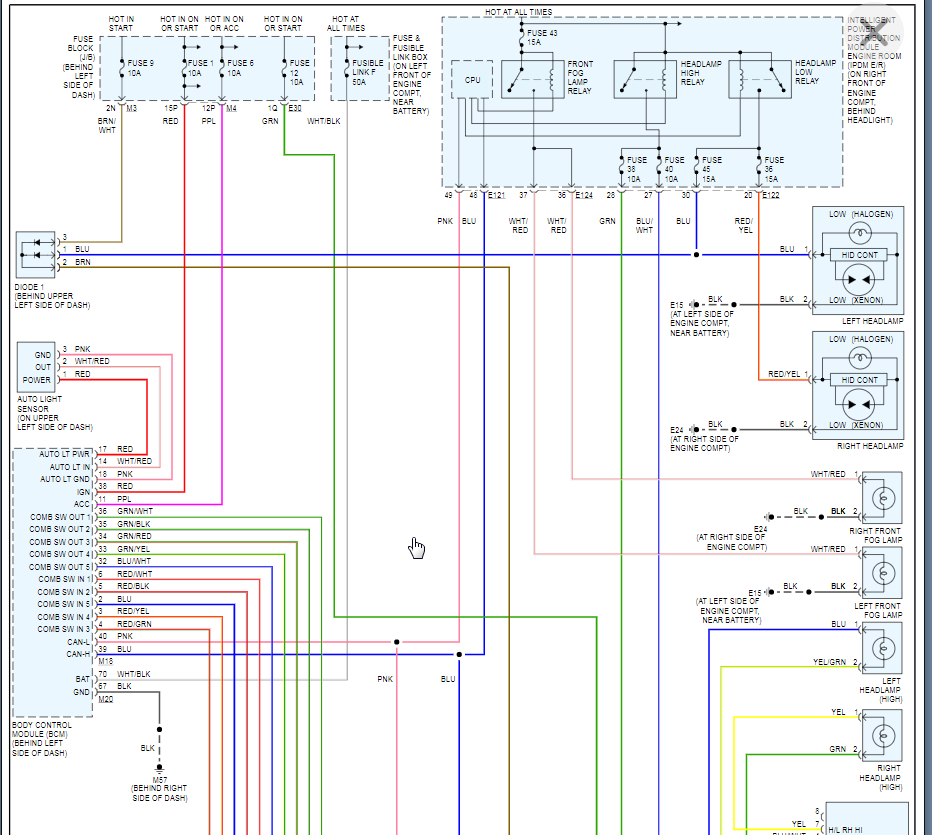

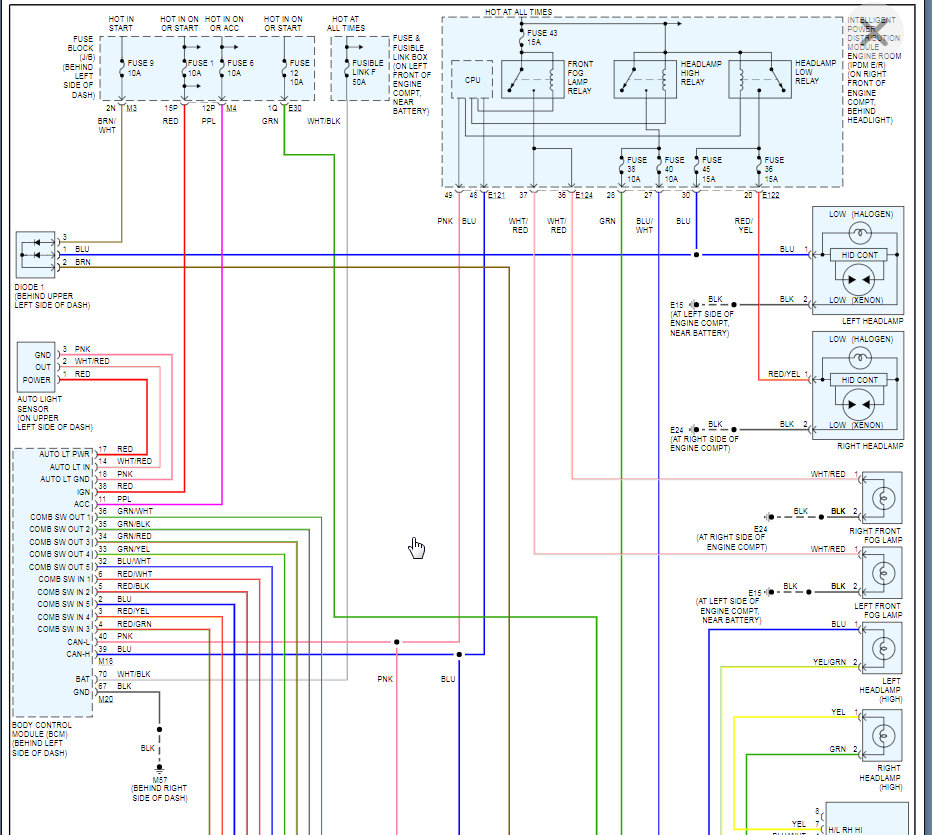

I attached the wiring diagram below. Please run through this info and let us know what you find. Thanks
Images (Click to enlarge)
Attached Media
Attached Media
Jan 17, 2021 at 7:03 PM
