Camshaft timing

2005 MITSUBISHI MONTERO
Avatar
THATGUYAUTO1
  • MEMBER
  • 1 POST
need timing marks diagram for a limited edition 3.8 liter engine can't seem to find one. thank you for your help i would appreciate help asp i don't have enough to say to make this long enough for this thing
Jun 1, 2013 at 4:45 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

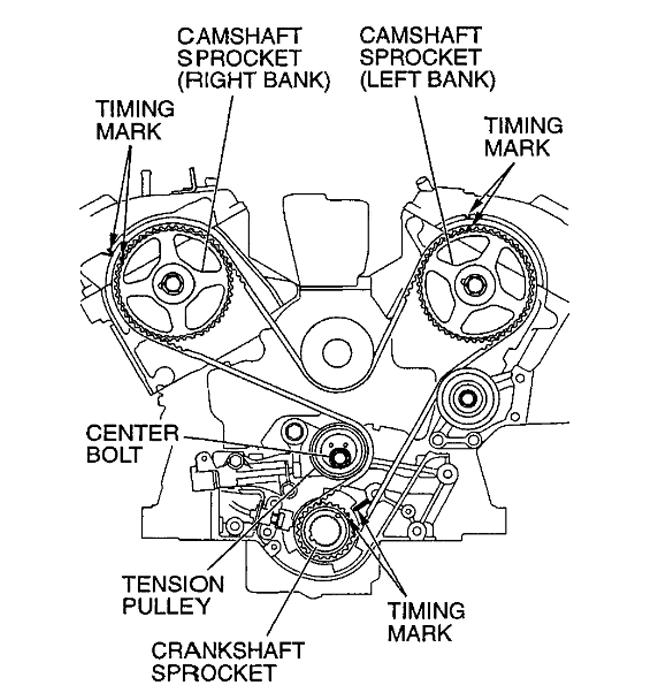

Here is a guide to show you how to do the timing belt and it shows the camshaft timing marks as well.

https://www.2carpros.com/diagrams/mitsubishi/montero/2005

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Cheers
Image (Click to enlarge)
Attached Media
Jun 1, 2013 at 8:25 AM
