Headlights will not work

2005 MERCURY MARQUIS
110,000 MILES
Avatar
ROGERMC68W
  • MEMBER
  • 3 POSTS
Unless I pull back on the flash lever. checked fuses and replaced headlight switch. still nothing checked headlight fuse and replaced the headlight switch but still no headlights
Jan 14, 2012 at 9:00 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS

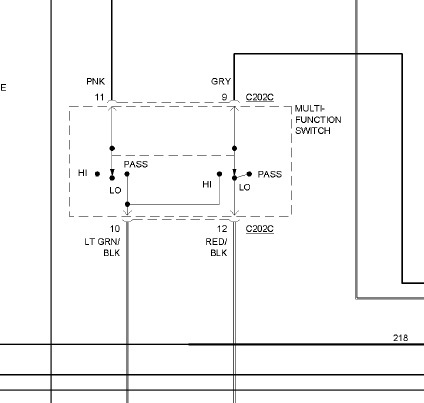

Maybe an issue with nultifunction switch/dimmer? In the diagram the gray wire is voltage for high and low beam, comes from the light module. Any applicable trouble codes?
Jan 14, 2012 at 9:12 PM
Avatar
ROGERMC68W
  • MEMBER
  • 3 POSTS
the parts store said there meter would not indicate unless a warning light was on
Jan 14, 2012 at 10:05 PM
Advertisement
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
Usually that isn't correct. If you have an inactive code, it would still be there, unless the code was manually erased or a certain number of drive cycles was completed. I'd have to double check that on your year--make and model.

I gave you a diagram.
Jan 14, 2012 at 10:10 PM
Avatar
MIKE H R
  • CERTIFIED EXPERT
  • 3,094 POSTS
Check headlight relay in the fuse panel under the hood. Your owners manual should tell you which one it is. When you pull back on the flasher it runs through a different relay. The headlight relay is a common item and most automotive stores have them
Jan 14, 2012 at 10:14 PM
Avatar
ROGERMC68W
  • MEMBER
  • 3 POSTS
the owners manual doesn't show a headlight relay. looked it over pretty good but could not find it. sorry to be so much trouble but it has really got me flustered
Jan 14, 2012 at 10:39 PM
Avatar
MIKE H R
  • CERTIFIED EXPERT
  • 3,094 POSTS
No problem, I will check on it. There might be a diagram of the relays on the inside top of the fuse panel under the hood of the car on the drivers side
Jan 15, 2012 at 3:22 AM
Avatar
JDL
  • CERTIFIED EXPERT
  • 16,098 POSTS
I looked at a marquis GS w/drl, no relay that I can find.
Jan 15, 2012 at 4:16 PM
