left side mirror turn signal bulb is out fuse panel locations
2005 MERCEDES BENZ C230
60,000 MILES • 4 CYL • 2WD • AUTOMATIC
RHYAGENB160
MEMBER
1 POST
FOLLOW
The left side mirror turn signal bulb is out. Is there any practical way I can test the fuses? Where is the panel and what do the fuses go too?
Jan 15, 2011 at 3:18 PM
Advertisement
JACOBANDNICKOLAS
CERTIFIED EXPERT
110,175 POSTS
Hi,

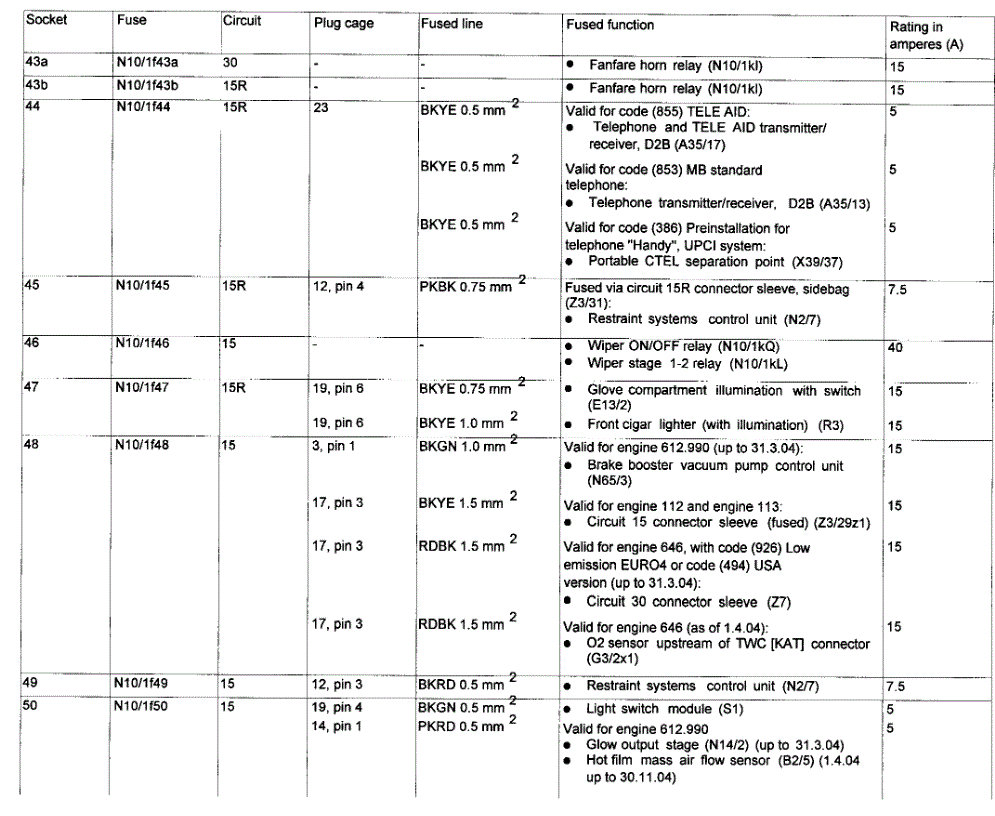

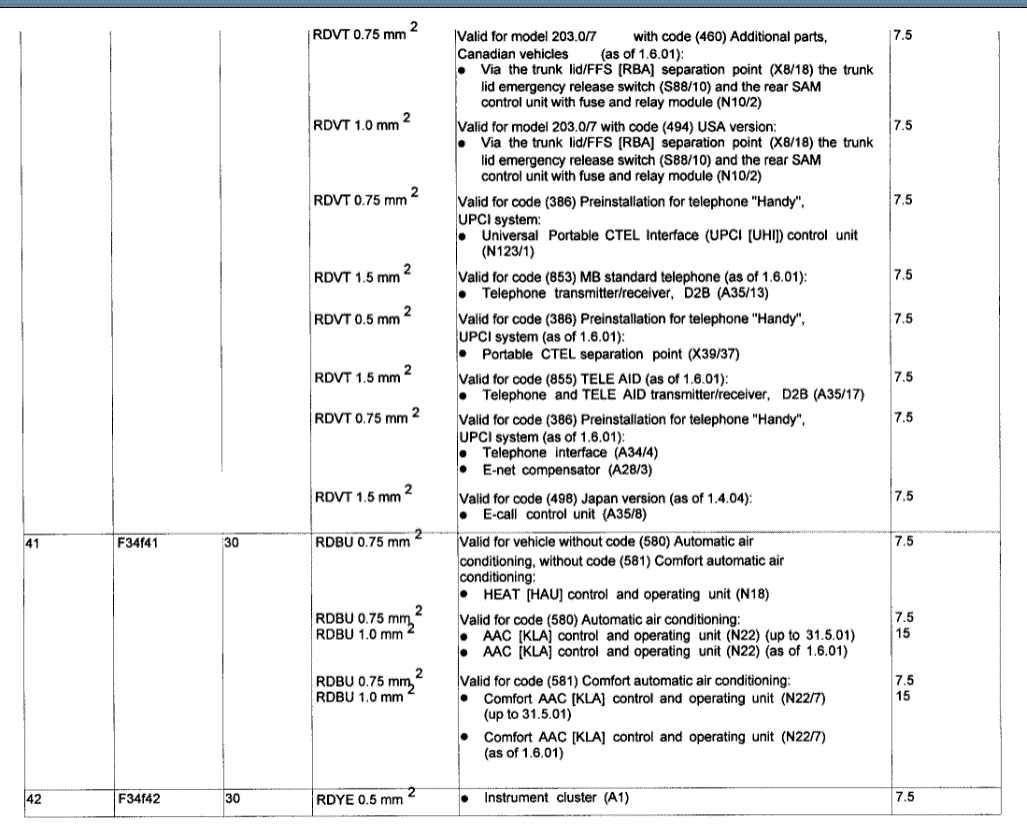

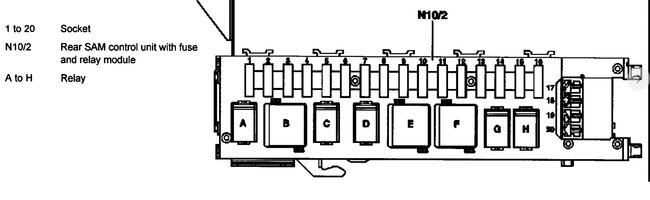

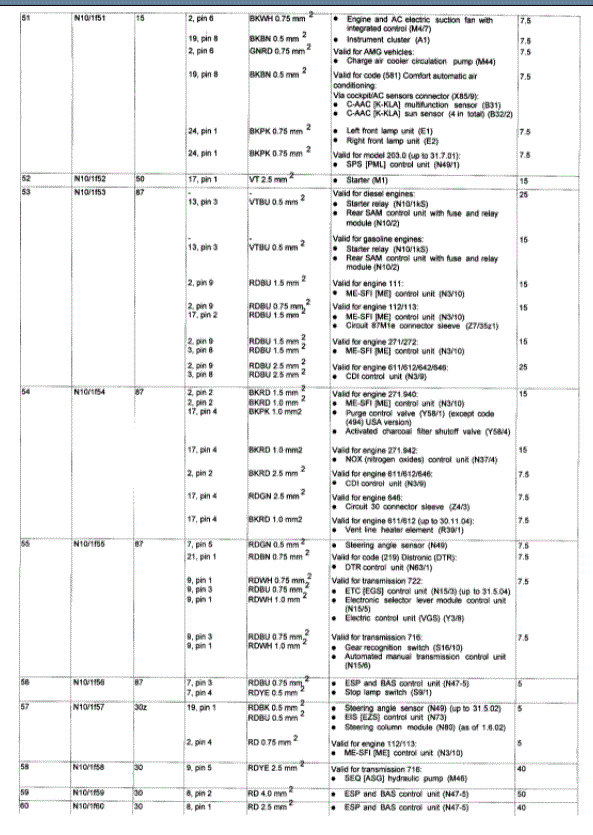

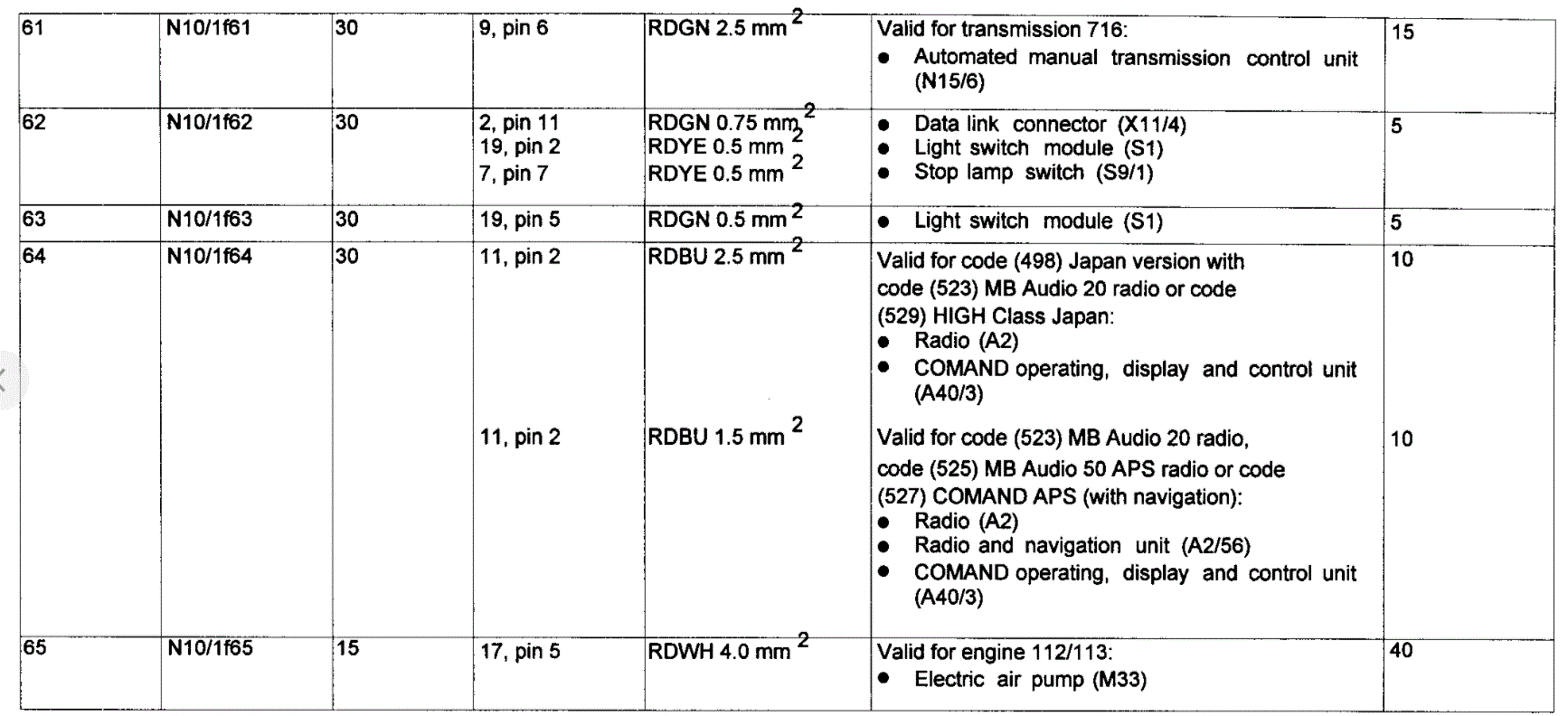

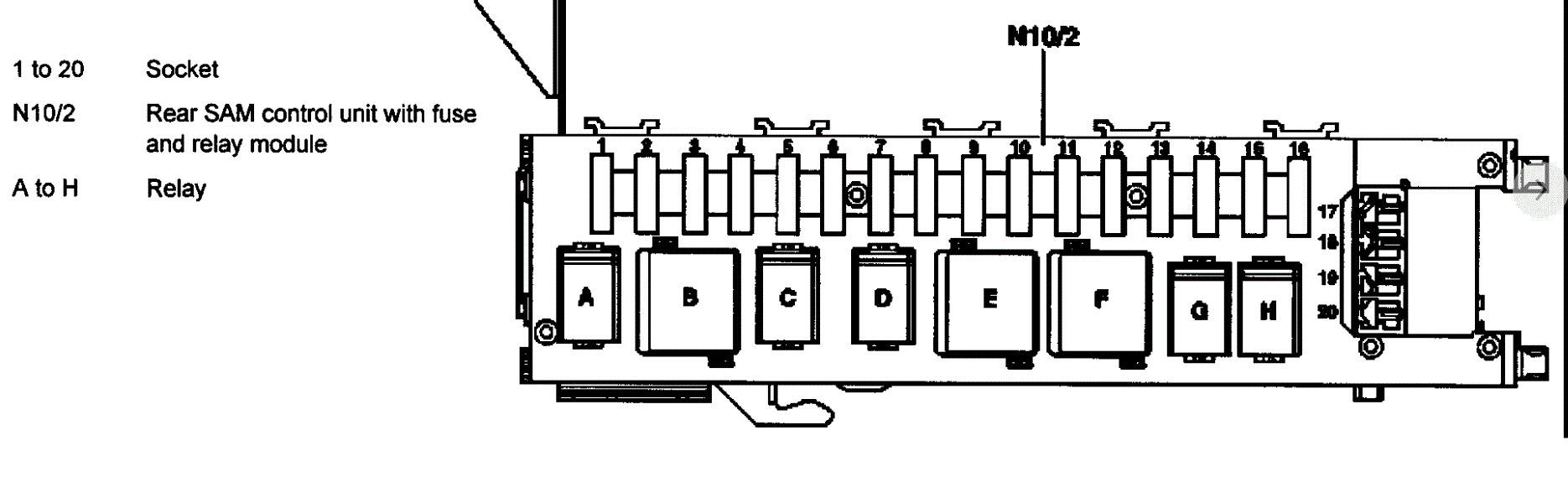

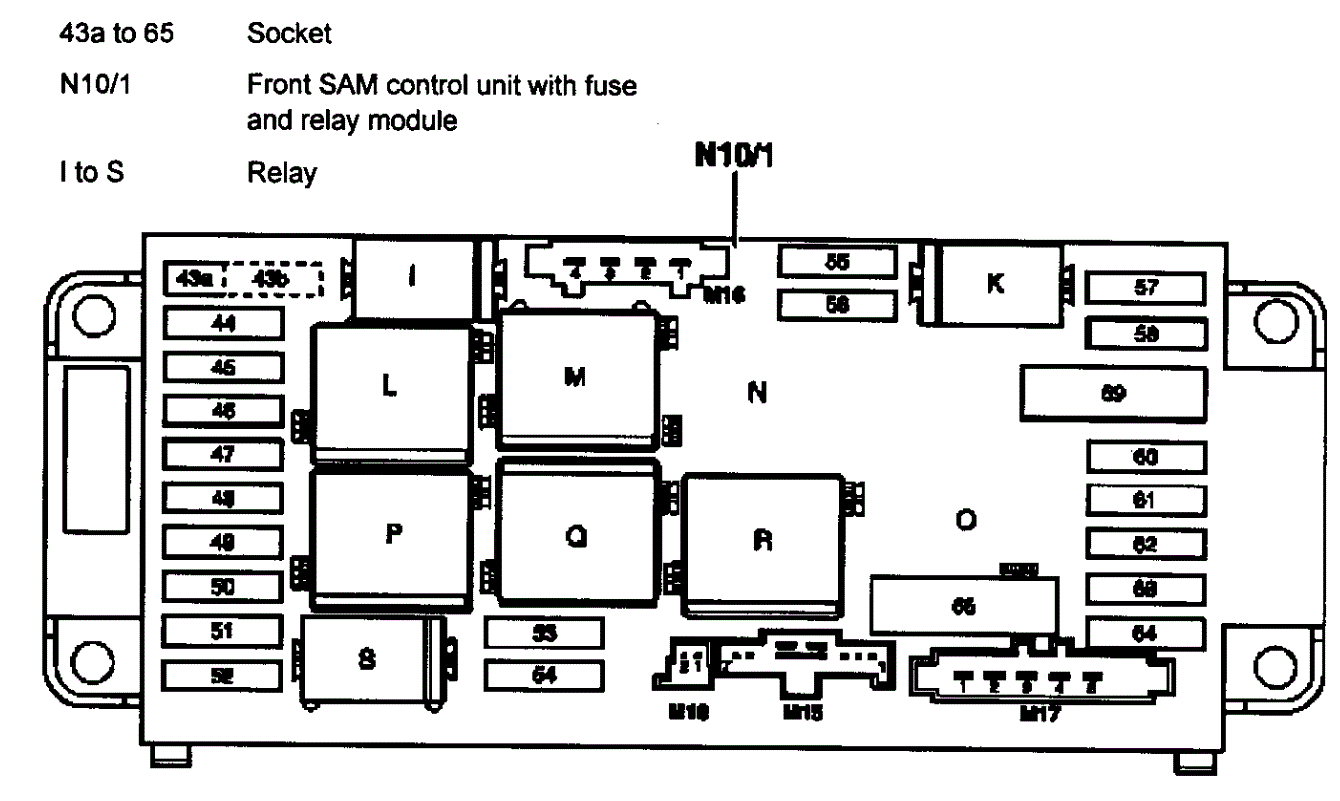

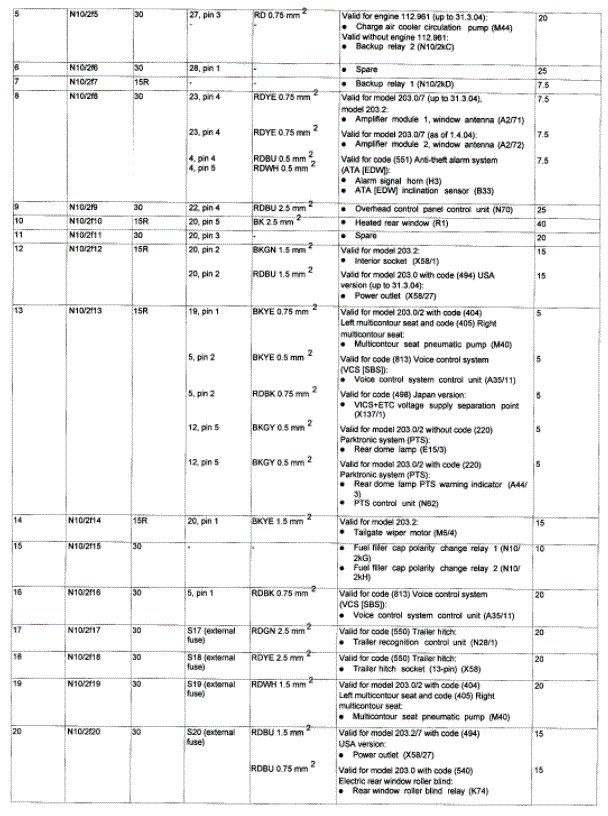

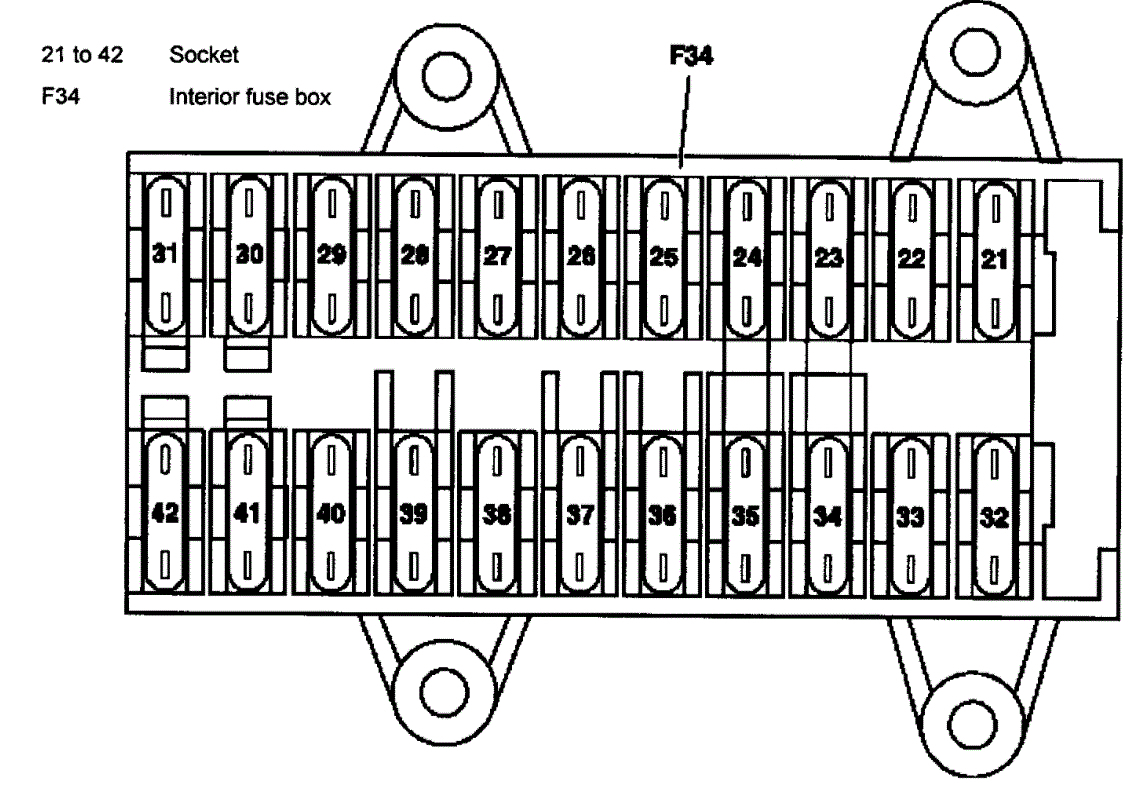

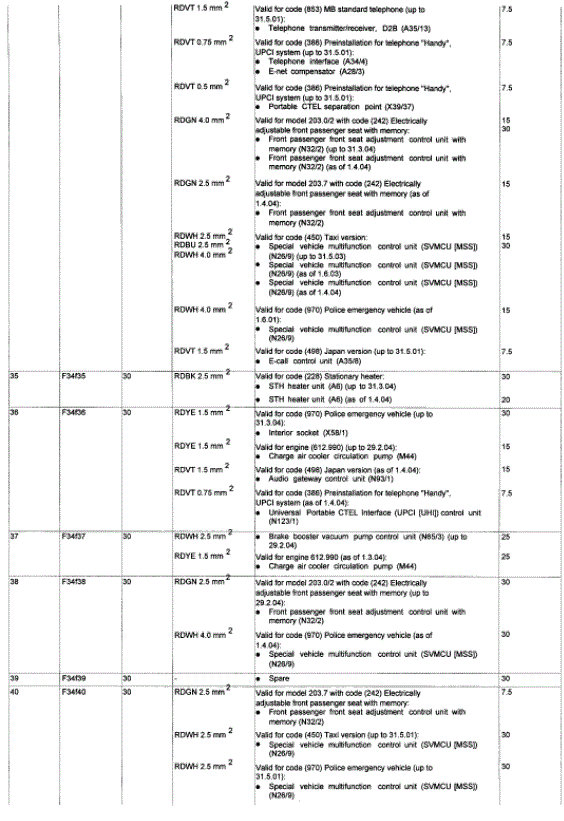

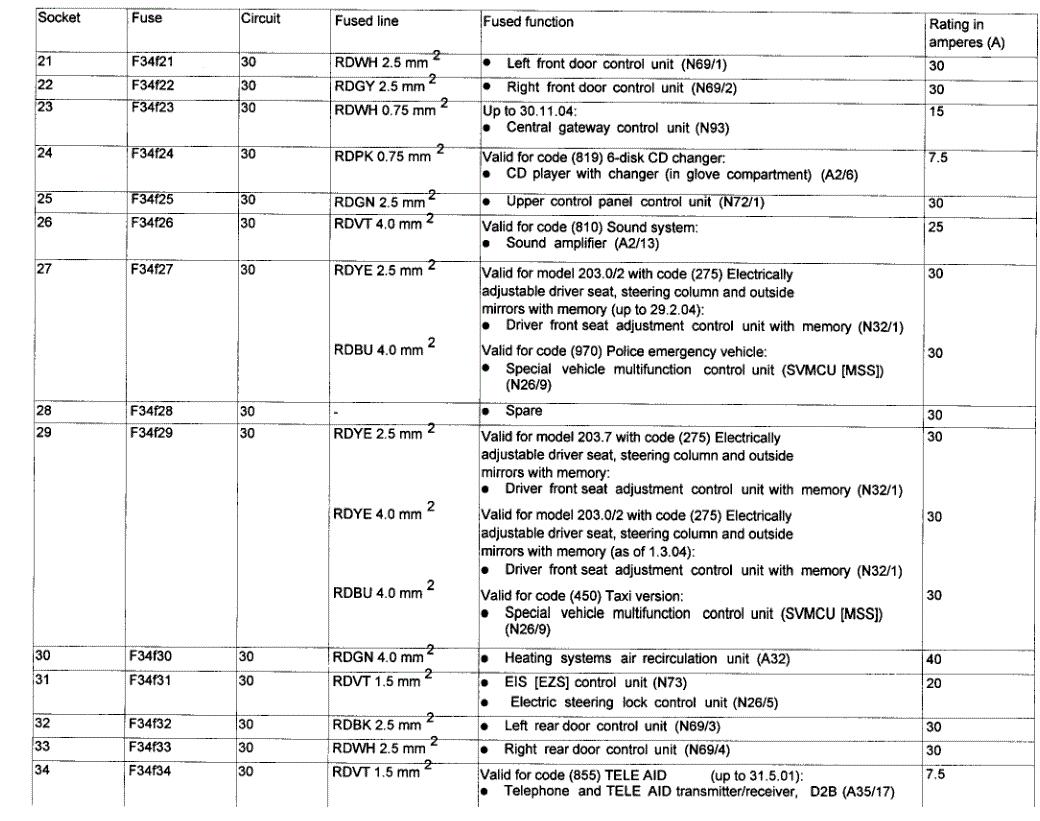

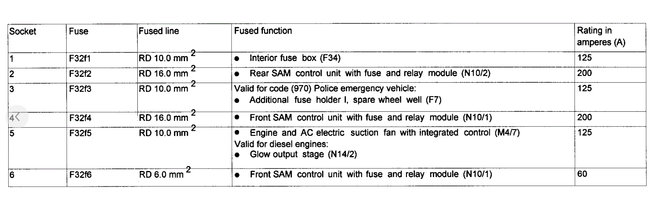

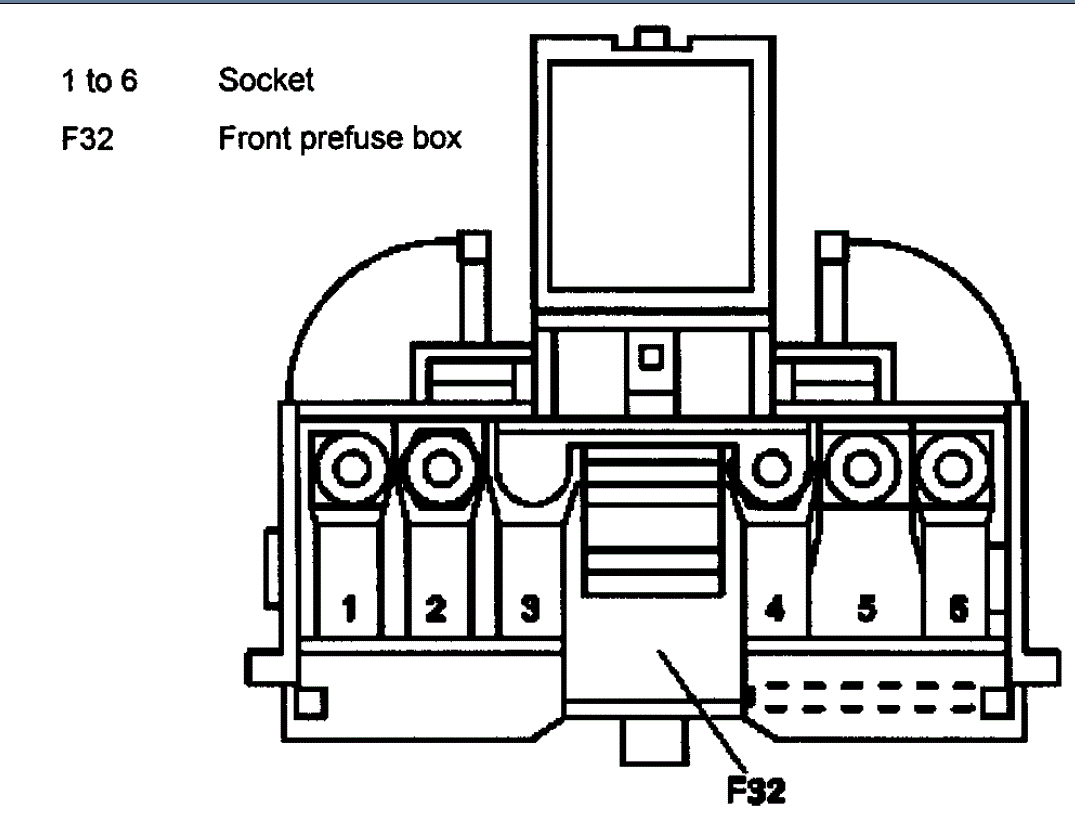

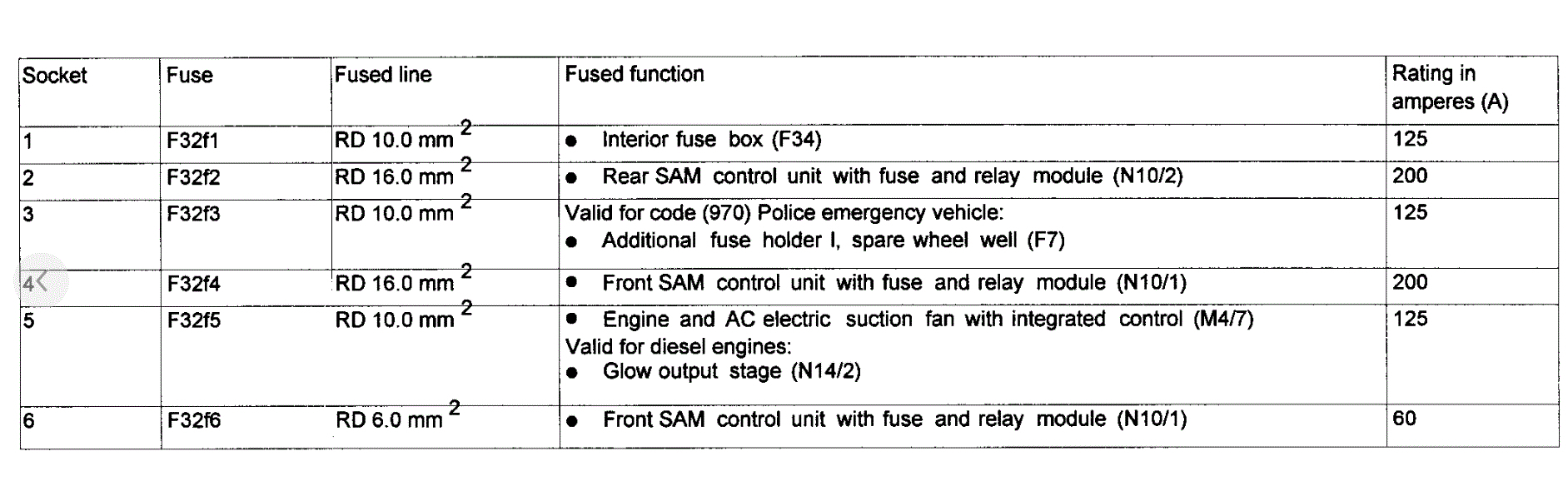

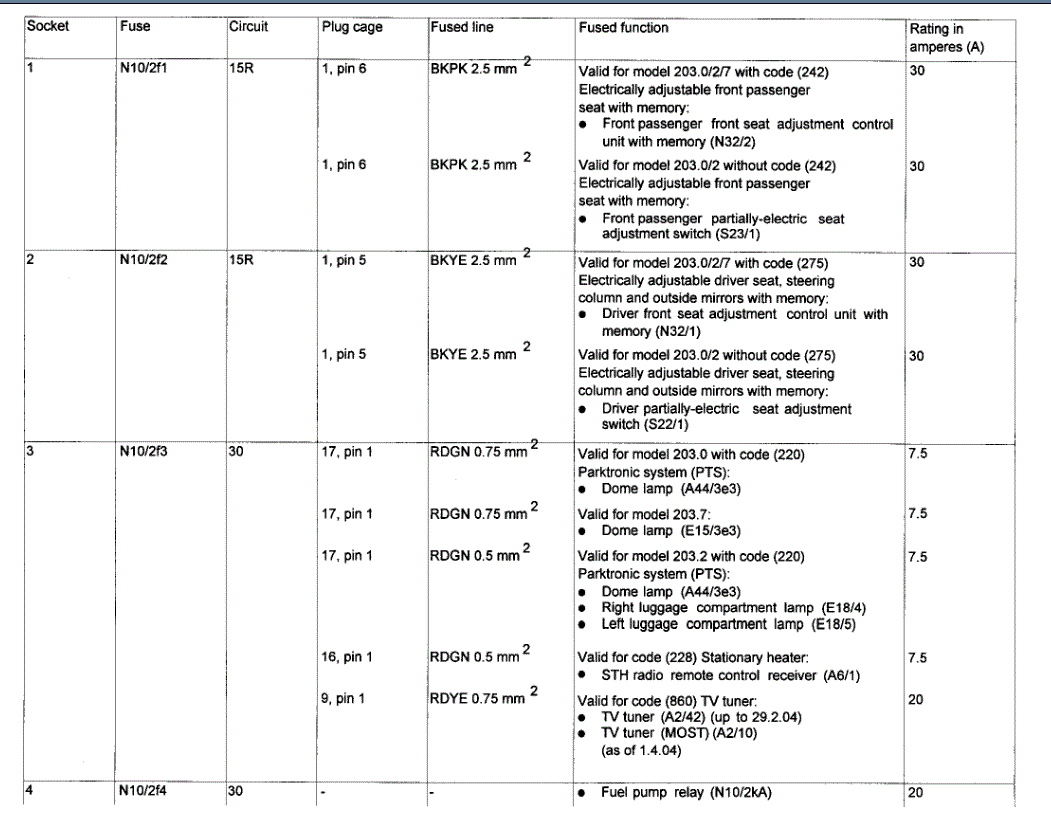

If you look at the attachments below, they provide the fuse box orientations and what each fuse is for.
In addition to just checking a fuse, make sure there is power to it. A fuse may be good and not be receiving power.
Here is a link that you may find helpful when testing:
https://www.2carpros.com/articles/how-to-check-a-car-fuse
I hope this helps. Let me know if you have additional questions.
Take care,
Joe
See pics below.
Images (Click to enlarge)
Jun 20, 2021 at 10:27 PM
