Fuse panel location front back where?

2005 LAND ROVER FREELANDER
85,000 MILES • 6 CYL • AWD • AUTOMATIC
Avatar
DGSCAMBIOAUTOMATICO
  • MEMBER
  • 1 POST
fuse panel is hiding? I cant believe they make it so hard to find
Nov 22, 2010 at 12:59 PM
Advertisement
Avatar
SQM
  • CERTIFIED EXPERT
  • 6,383 POSTS
Hello,

This vehicle has two fuse panels.

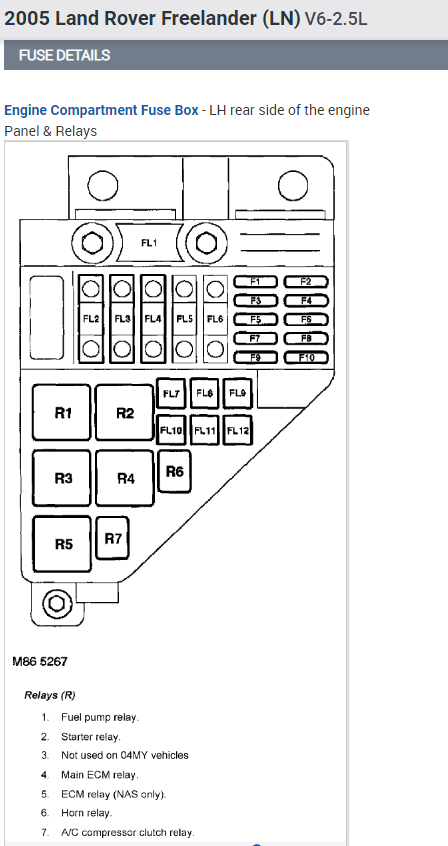

One in the engine compartment - LH rear side of the engine.

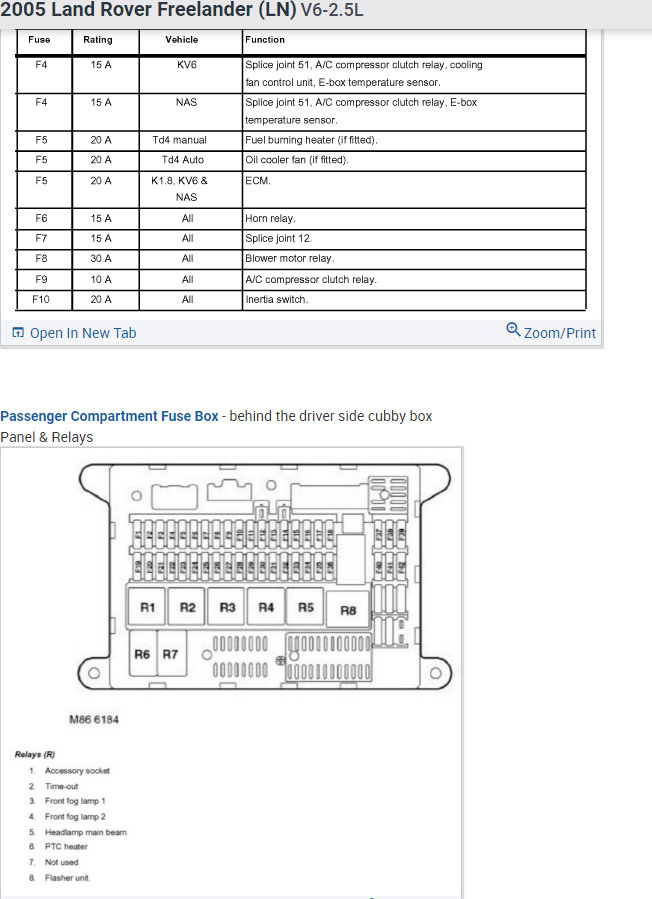

Other one in the inside - behind the driver side cubby box.

Here are some helpful info:

https://youtu.be/Hlna_kUt7As

https://www.2carpros.com/articles/how-to-check-a-car-fuse
https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

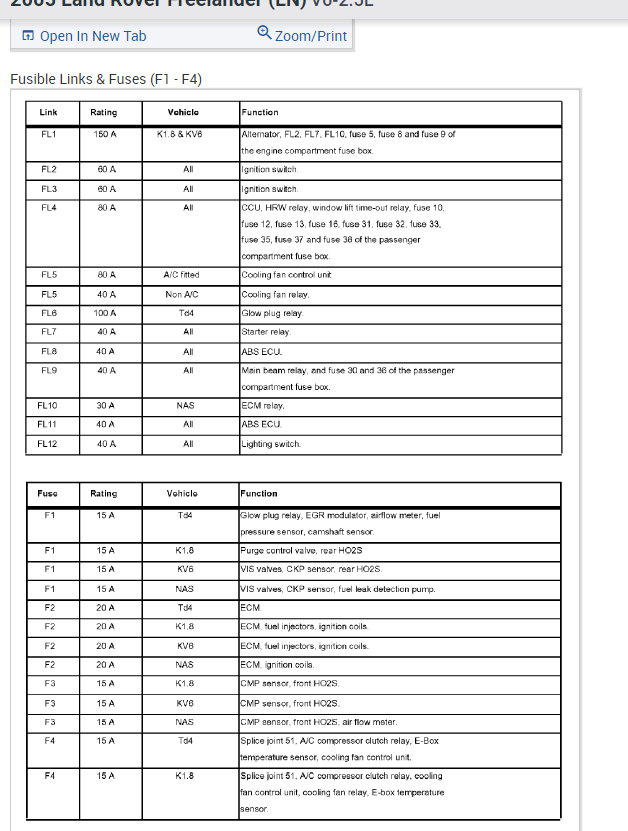

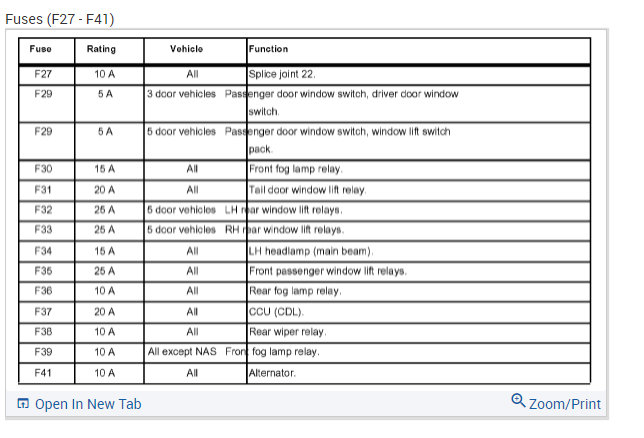

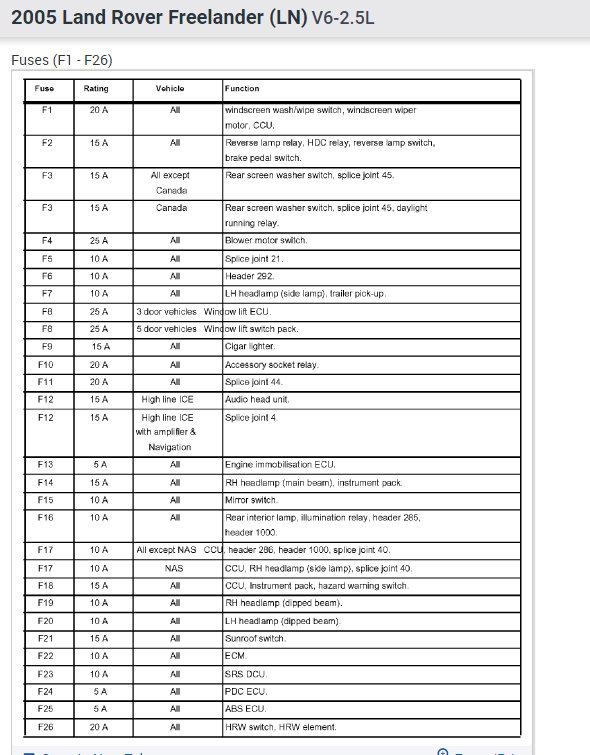

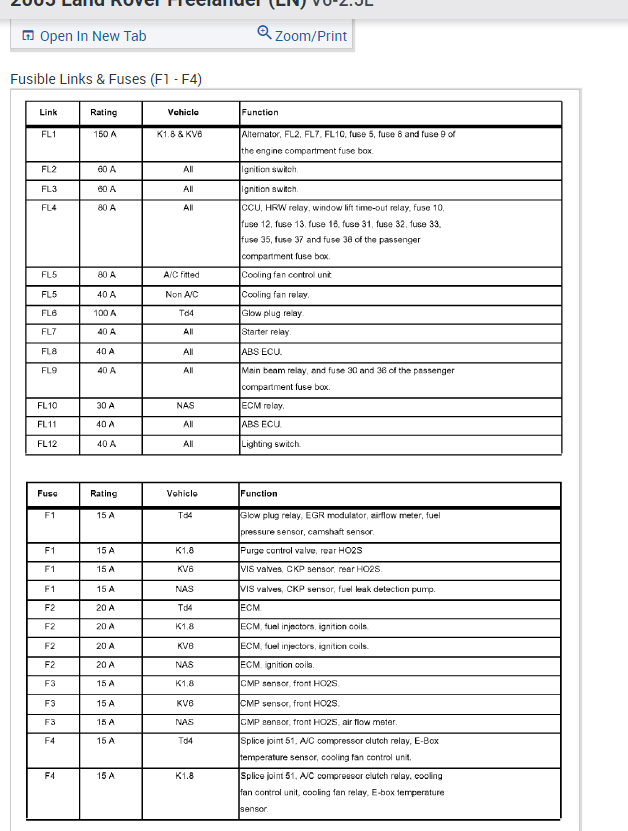

I have attached the diagrams for your reference.

Please let me know of any questions.

Thank you.
Aug 17, 2021 at 2:10 PM
