Rear Windshield Wiper Wont Stop/Cant Find Fuse

2005 KIA SORENTO
97,000 MILES
Avatar
GCC210
  • MEMBER
  • 1 POST
I wake up this morning and when I turned my car on my rear windshield wiper wouldn't stop even when I tried different settings, and turned it in the off position all together, even when the car was off it kept going. I tried to reconnect the battery thinking it was a glitch but it didn't work. Then I thought about a blown fuse but when I located the fuse panel I can't find the windshield wiper fuses anywhere. Any help?
Oct 11, 2011 at 1:05 PM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
Hello,

Here is a guide that will help you check the fuse for power and the fuse panel below.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

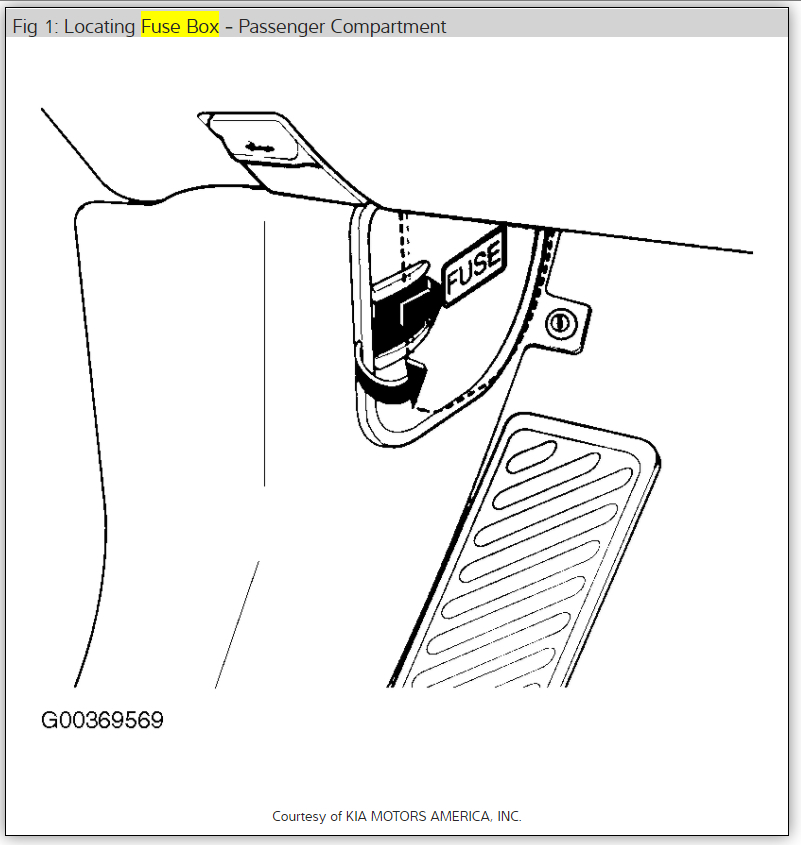

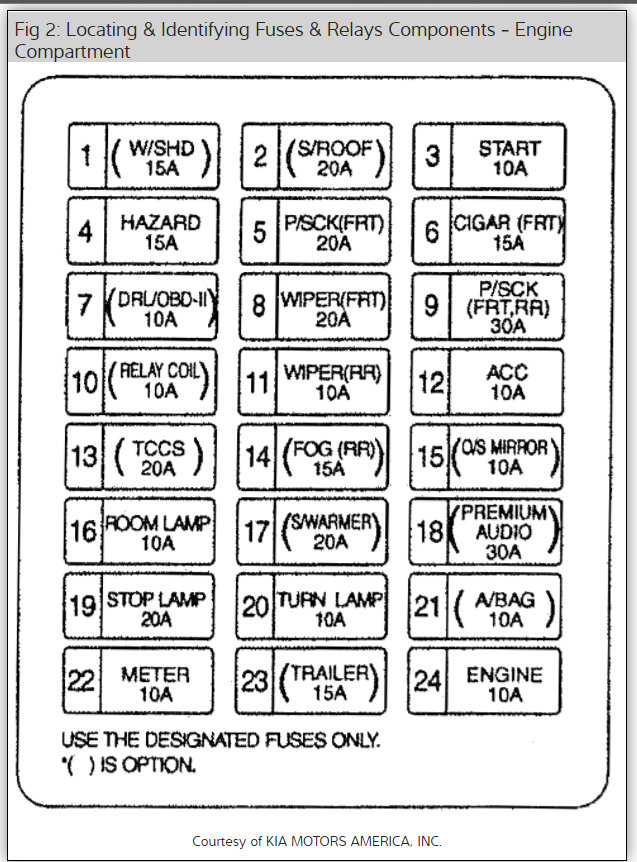

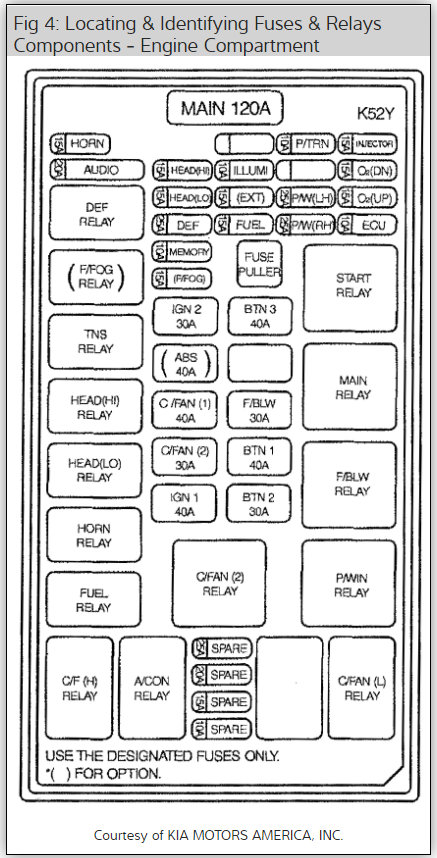

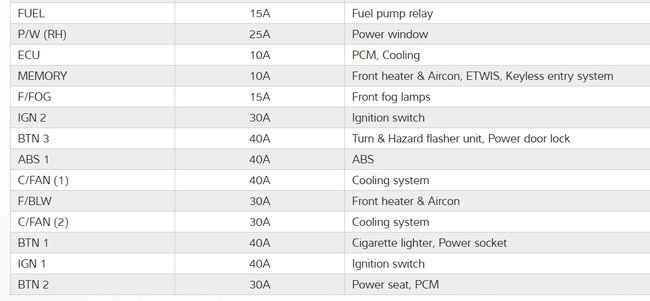

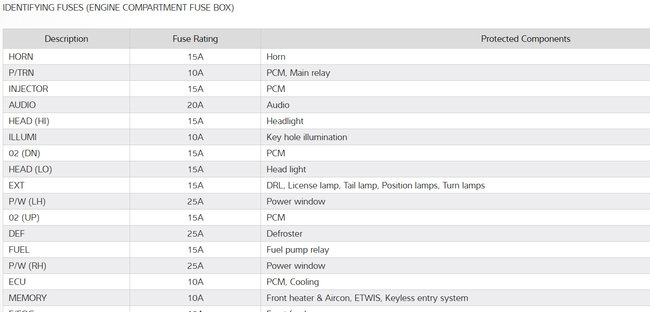

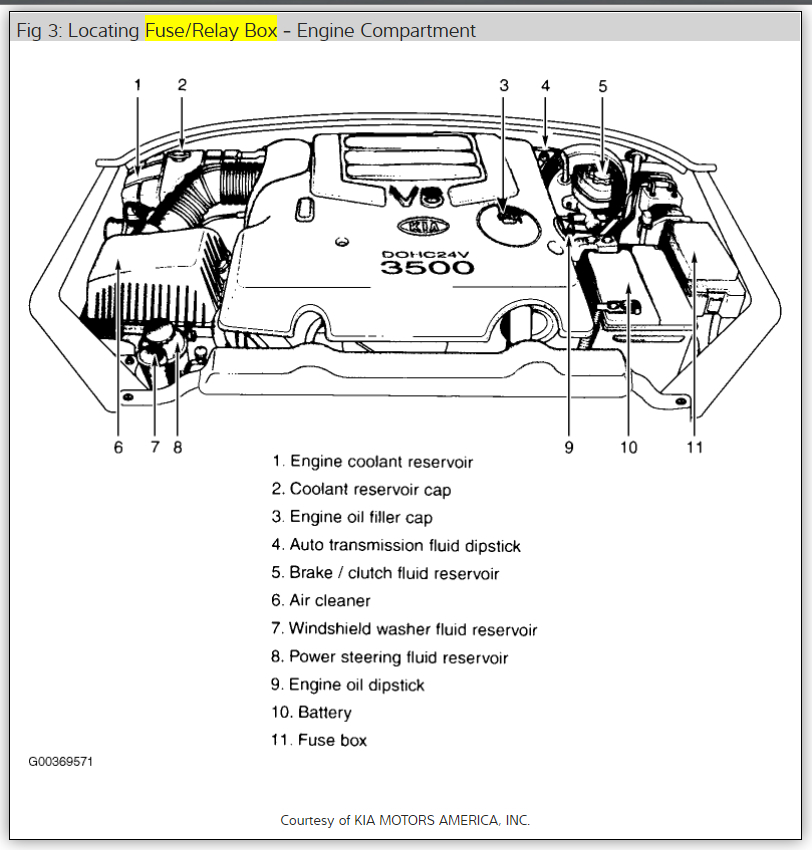

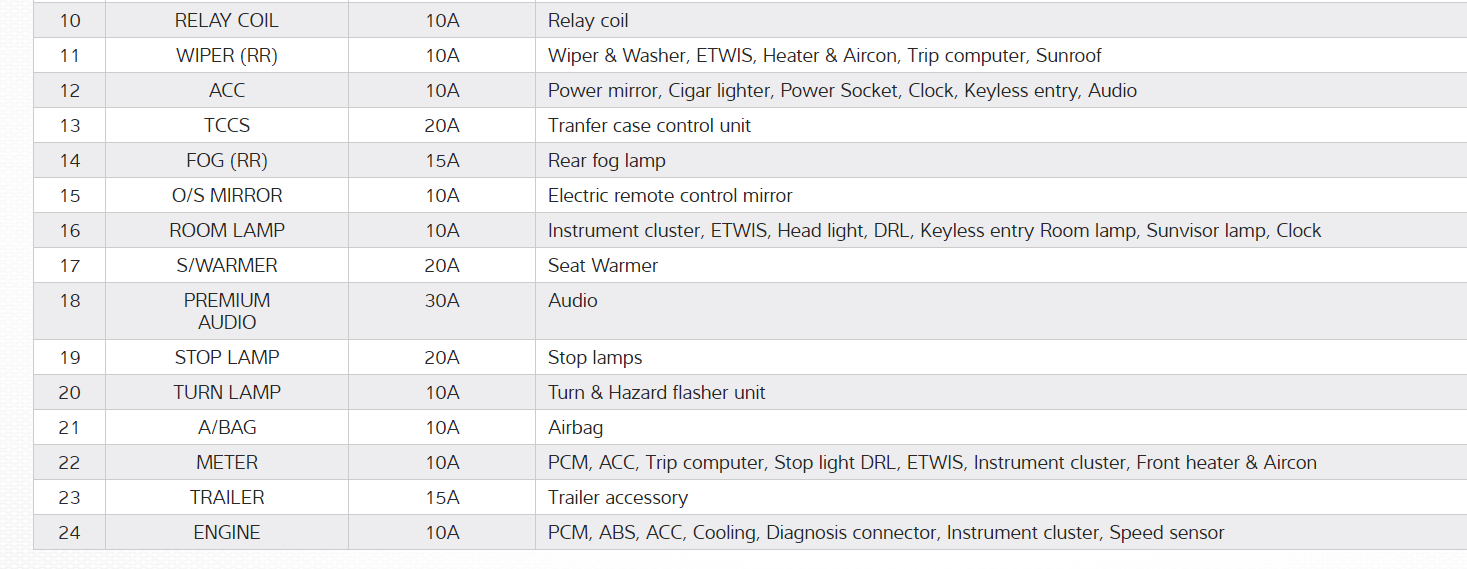

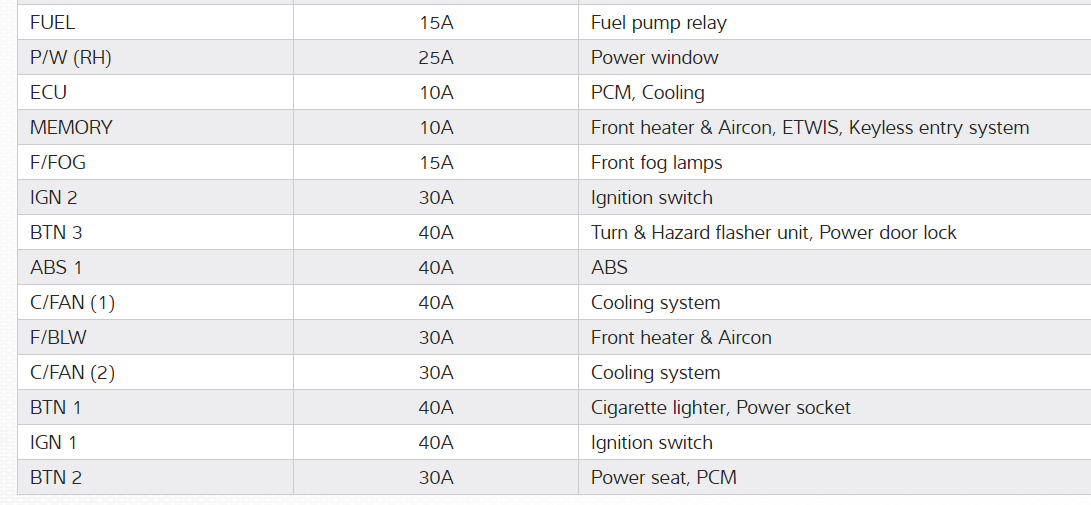

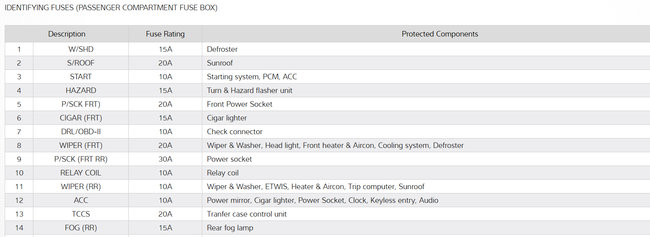

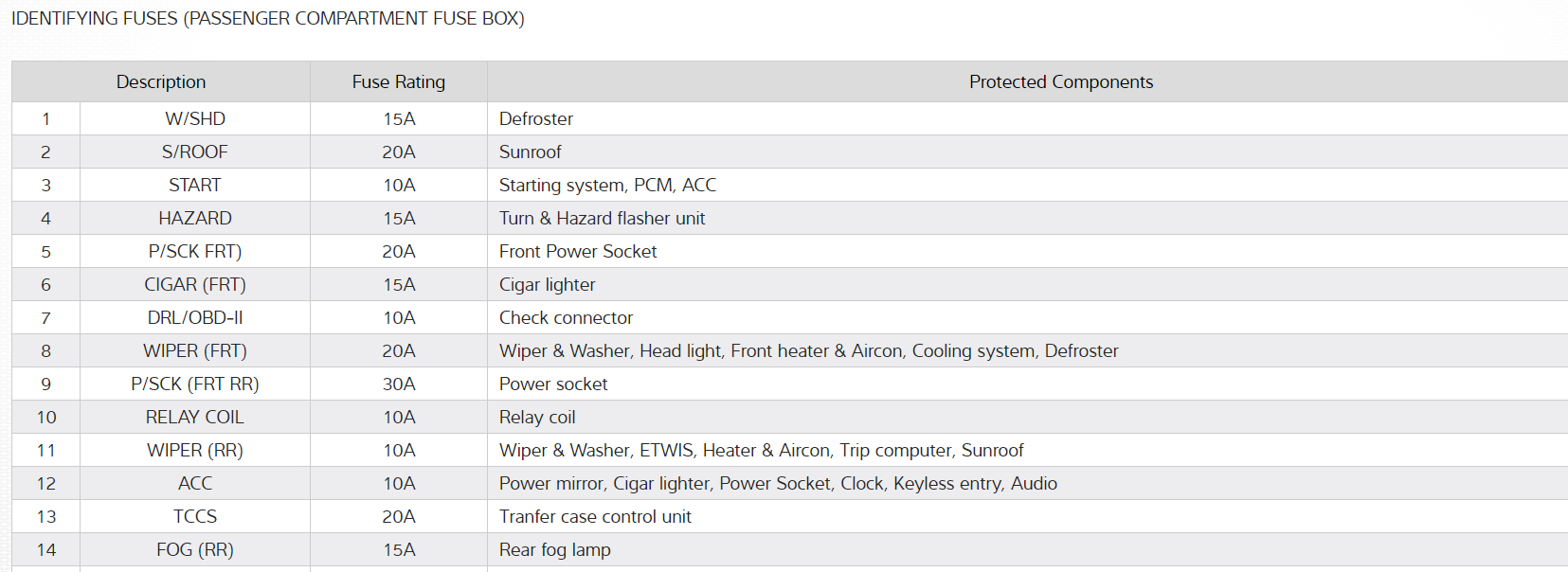

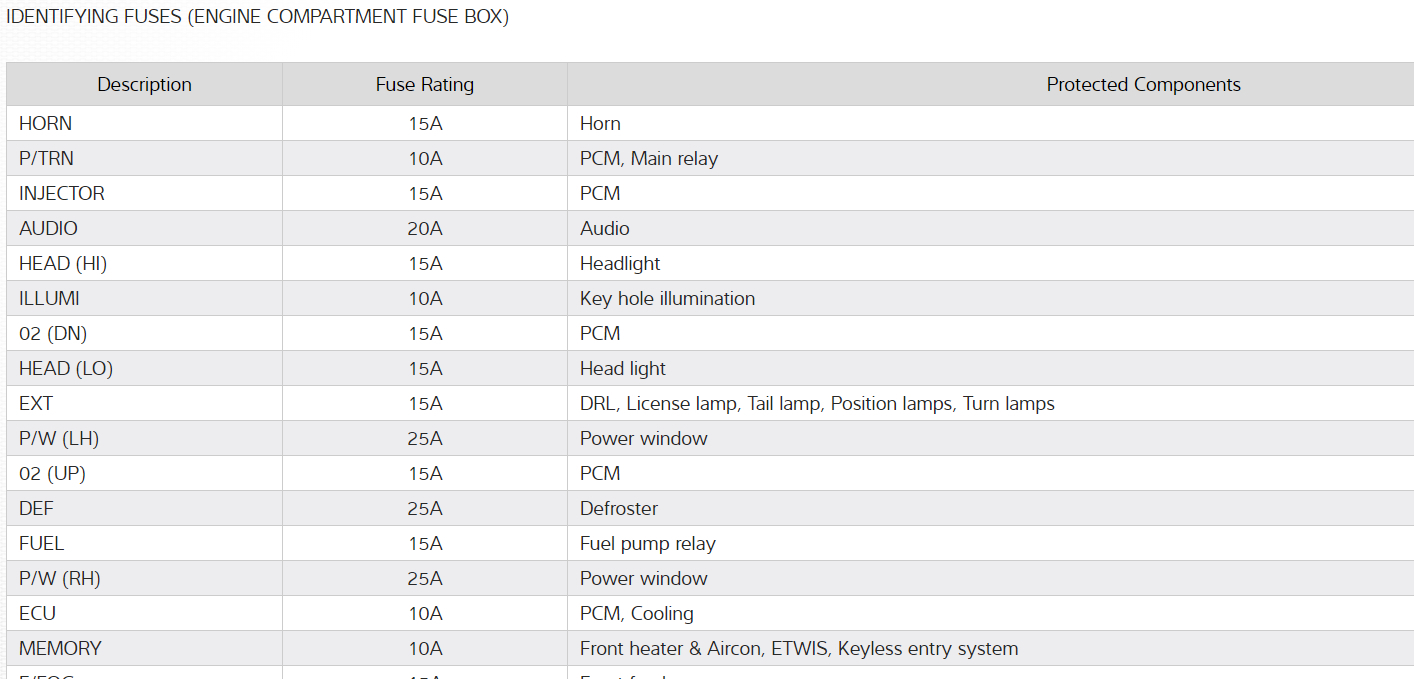

Check out the diagrams (Below). Please let us know what you find. We are interested to see what it is.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Oct 11, 2011 at 2:08 PM
Avatar
GAZBO7
  • MEMBER
  • 3 POSTS
The fuse isn’t my problem
Aug 1, 2019 at 8:59 PM
Advertisement
Avatar
STEVE W.
  • CERTIFIED EXPERT
  • 15,113 POSTS
GAZBO7 What vehicle are you working on? Same year make model? What have you tried.
Aug 4, 2019 at 9:40 PM
Avatar
GAZBO7
  • MEMBER
  • 3 POSTS
Hi, thanks for your help but a friend found the problem. Three wires had broken off the rear wiper motor,i soldered them back on when I had found the correct positions for them and it’s back working
Thanks to all parties who contributed to my problem.
Yours,
Gazbo
Aug 28, 2019 at 6:49 PM
Avatar
STEVE W.
  • CERTIFIED EXPERT
  • 15,113 POSTS
Good to hear that you found it. Broken wires at flexing points are common. Thank you for using 2CarPros. Please return anytime with automotive questions.
Aug 30, 2019 at 5:41 AM
