2005 KIA AMANTI
97,000 MILES
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
P0320 Ignition/Distributor Engine Speed Input Circuit Malfunction
the rpm display has stopped working and the check engine light is on. I have read about the camshaft position sensor and the ignition failure sensor but dont know which way to go.
Mar 16, 2013 at 3:05 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
Hello,

This sounds like a bad crankshaft angle sensor here is a guide that will give you an idea of what you are in for when going the job.

https://www.2carpros.com/articles/crankshaft-angle-sensor-replacement

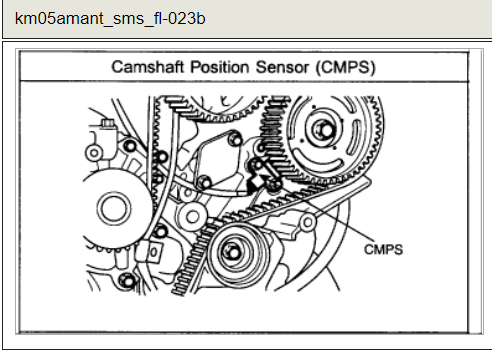

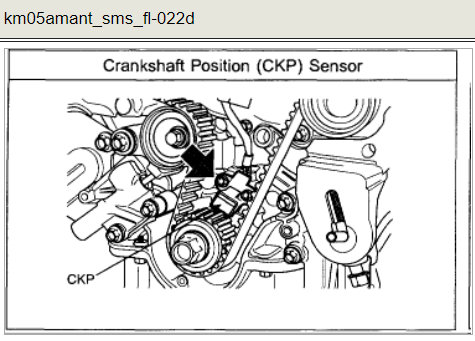

Here are the locations for your car. Check out the diagrams (Below)

Please let us know what you find.

Cheers
Images (Click to enlarge)
Attached Media
Attached Media
Mar 16, 2013 at 3:23 PM
Avatar
BOOPERIII
  • MEMBER
  • 1 POST
It took a while but I got eh crankshaft sensor replaced and then cleared the codes everything working good again, thanks for your help with the guides. Worked great for my car

Mar 29, 2018 at 8:26 PM
