abs wiring

2005 JEEP GRAND CHEROKEE LAREDO

350,000 MILES

GRAFFMANN

MEMBER
1 POST
FOLLOW

Hi, The ABS light is on all the time. I took it to my mechanic and he has a wire cluster hanging inside the car (driver's side) which is the ABS harness (female connections). Any help is appreciated. Cheers, Gord Graffmann

Apr 3, 2012 at 12:09 PM

SQM

CERTIFIED EXPERT
6,383 POSTS

Hello,

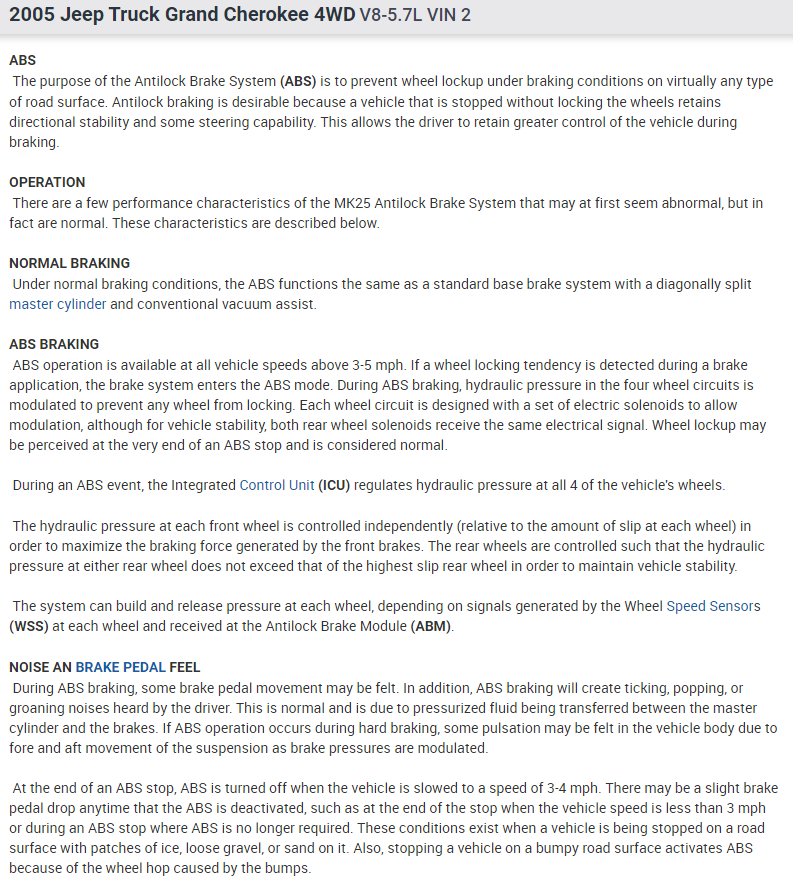

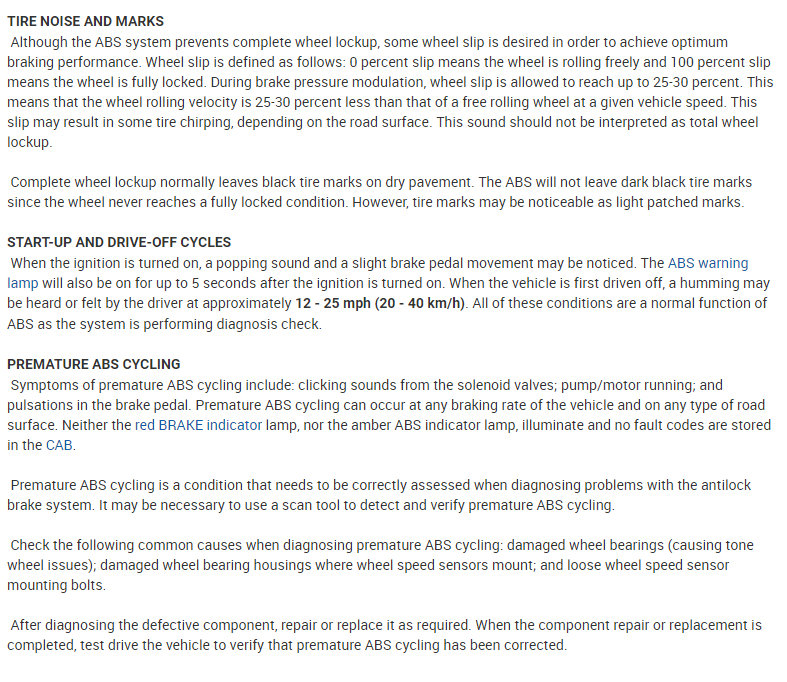

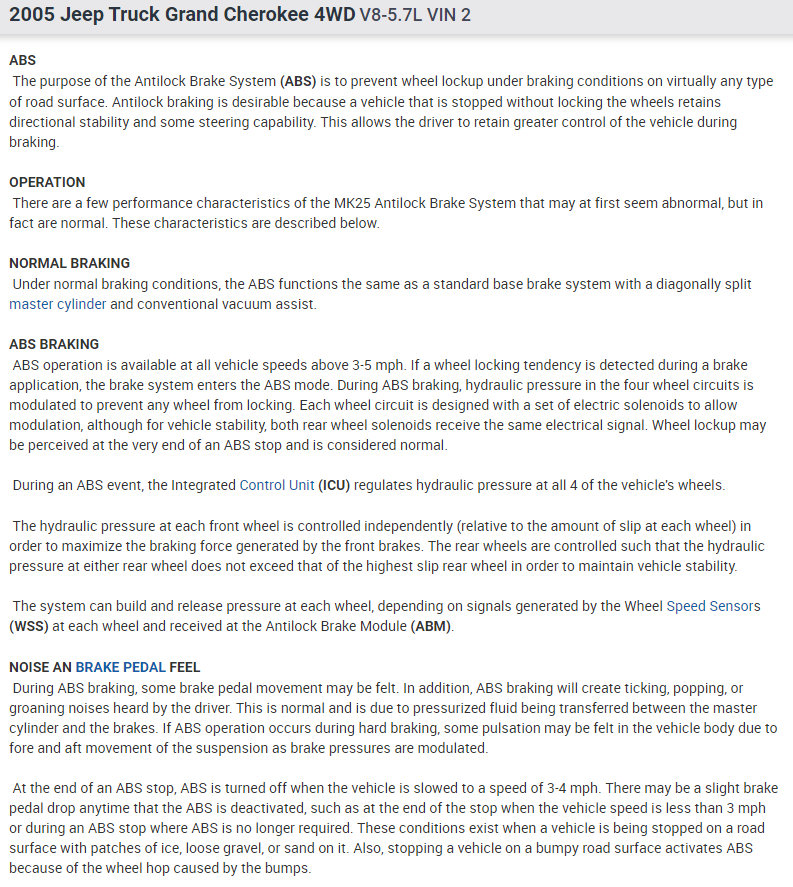

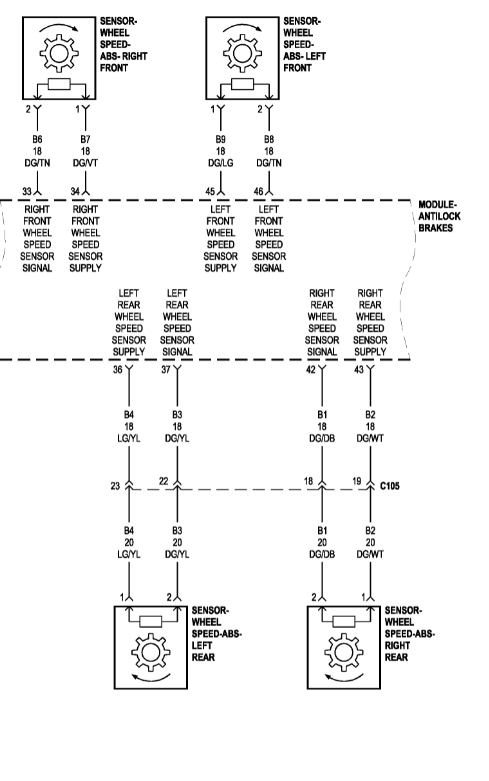

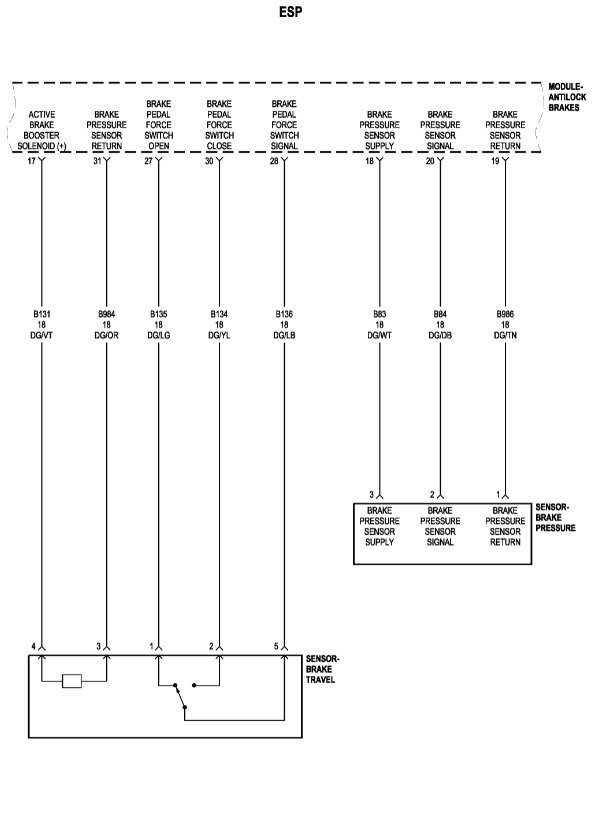

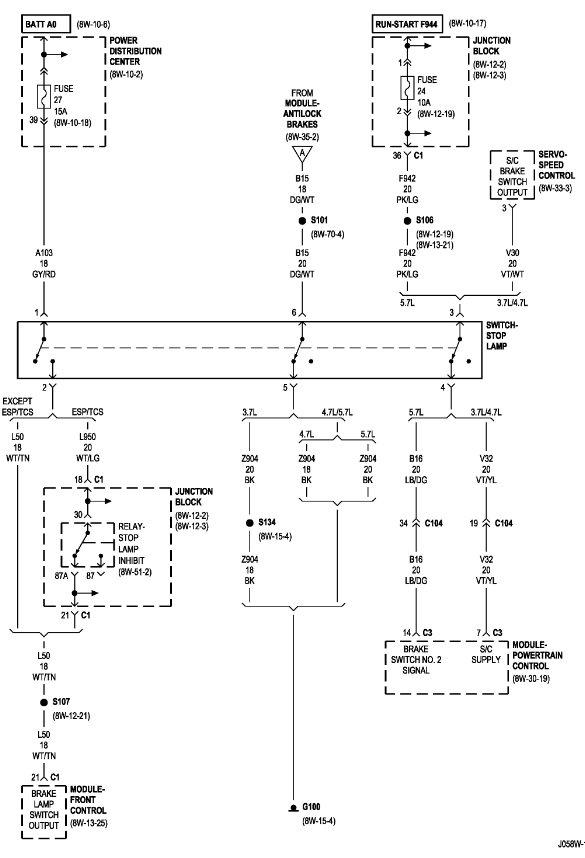

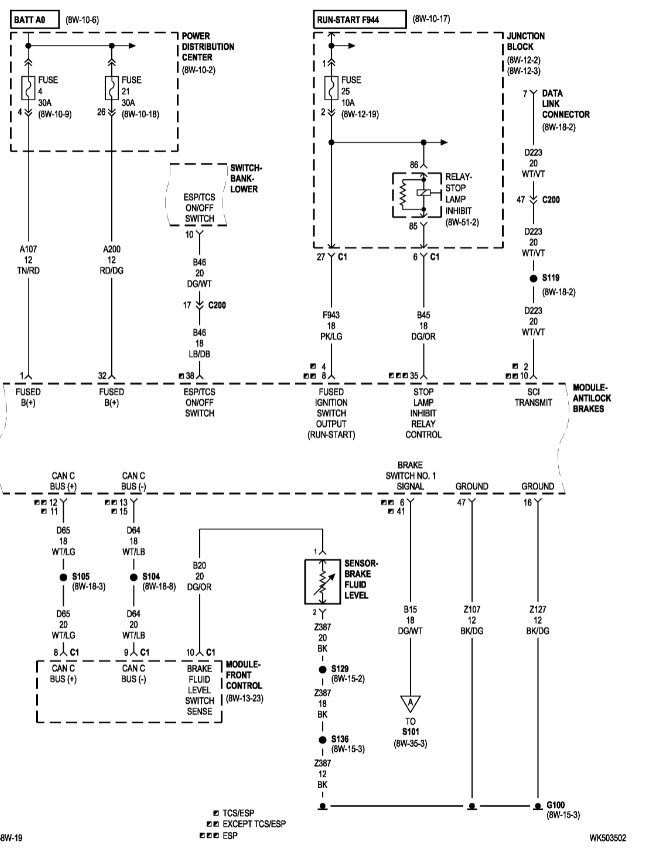

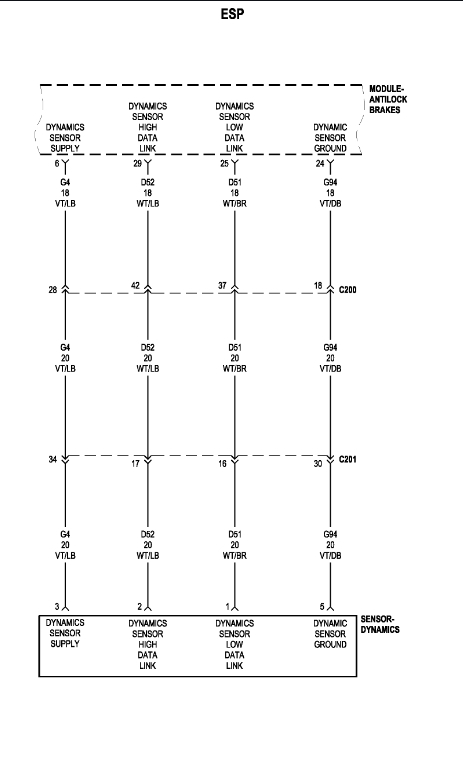

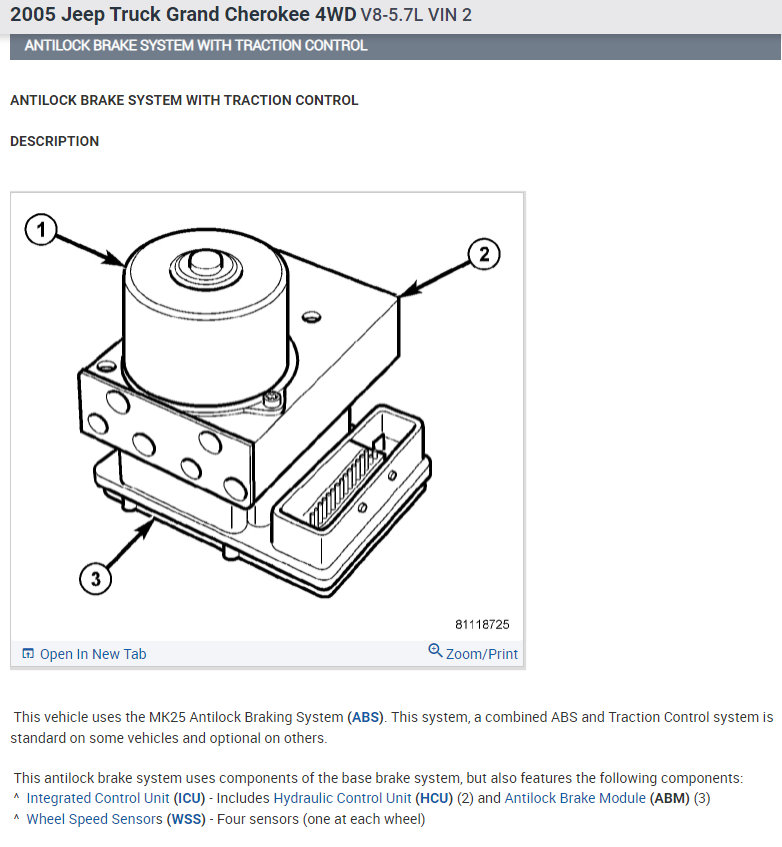

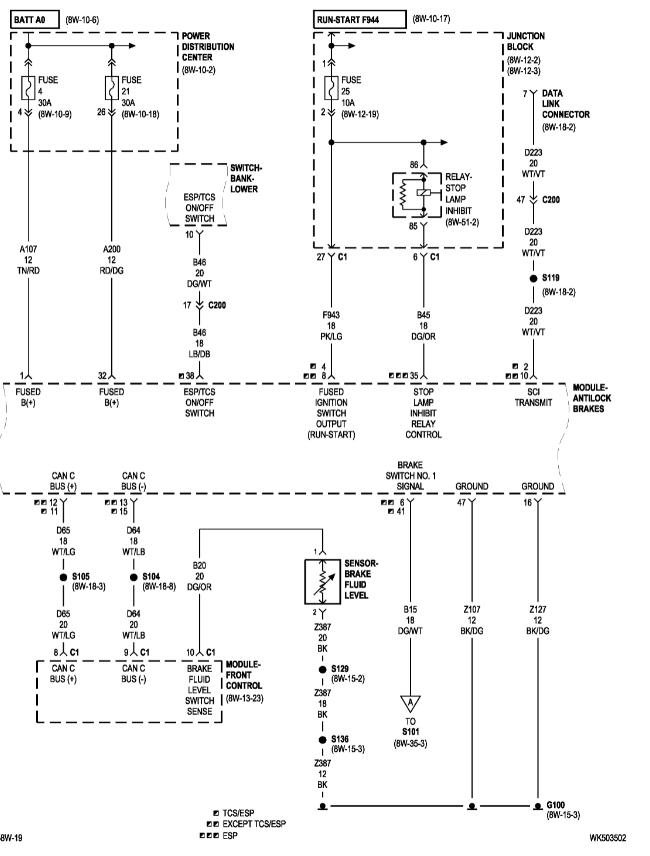

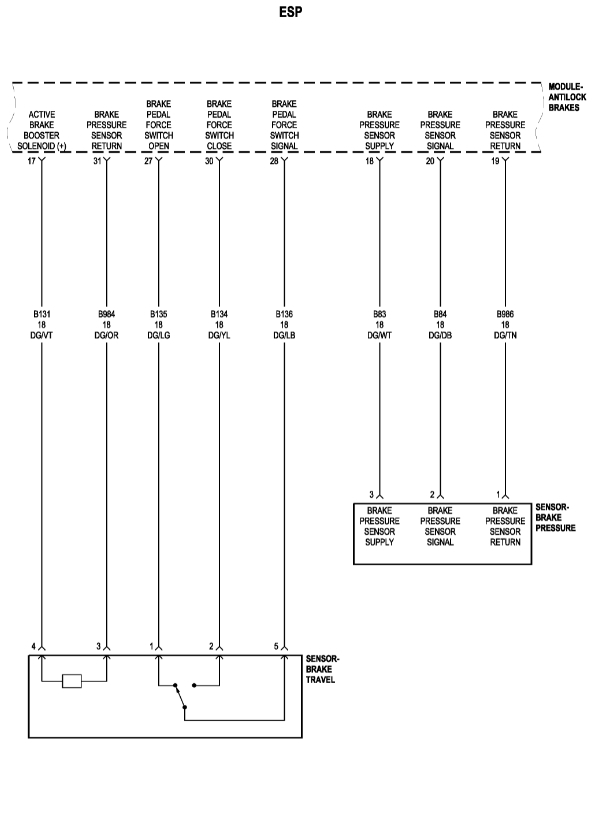

I have attached the wiring schematics of the ABS system for this vehicle (look below).

Here is a helpful article on how to check wiring:

https://www.2carpros.com/articles/how-to-check-wiring

Please let me know of any questions.
Thank you.

Images (Click to enlarge)

Oct 7, 2021 at 9:03 PM
