What cavity and what fuse is use for the radio?
Nov 24, 2014 at 12:49 PM
Fuse for radio
2005 JEEP GRAND CHEROKEE
KAYLIA
- MEMBER
- 1 POST
- FOLLOW
Advertisement
Hey KAYLIA
the fuse is #27 in integrated power module left hand side of engine compartment.

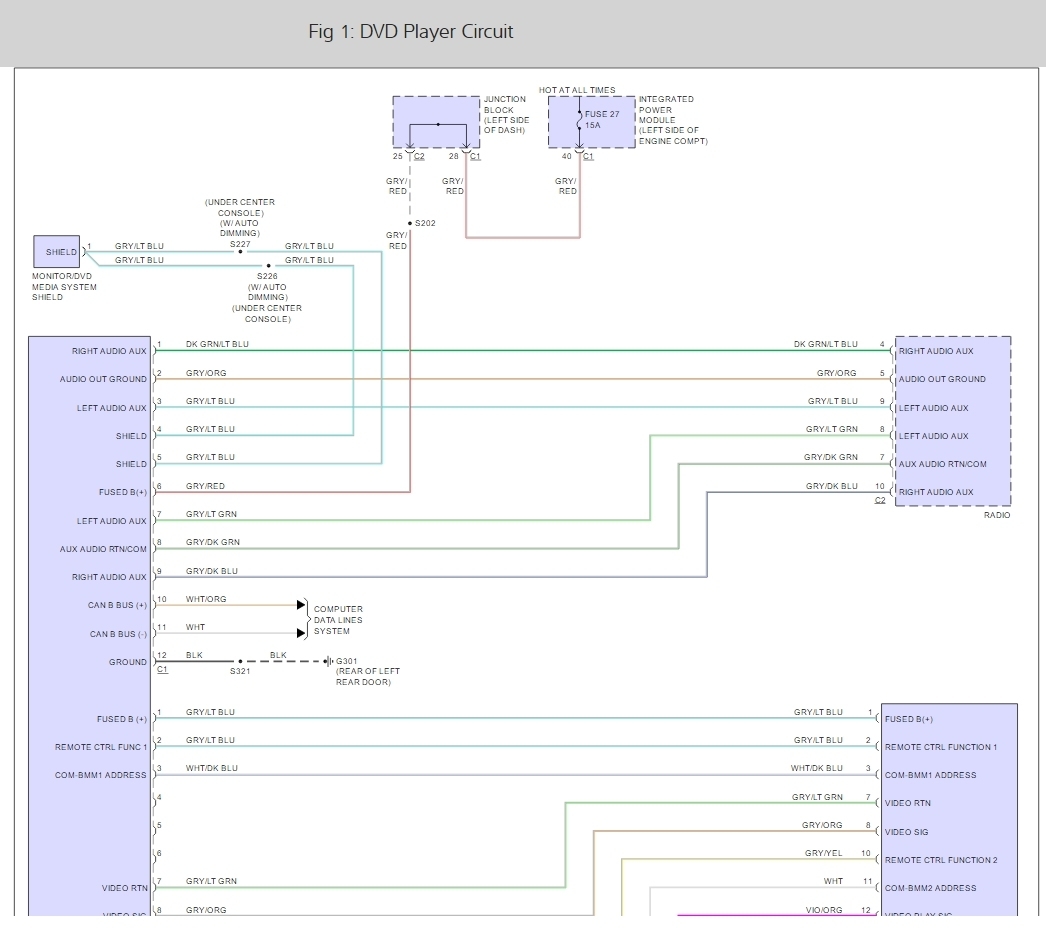

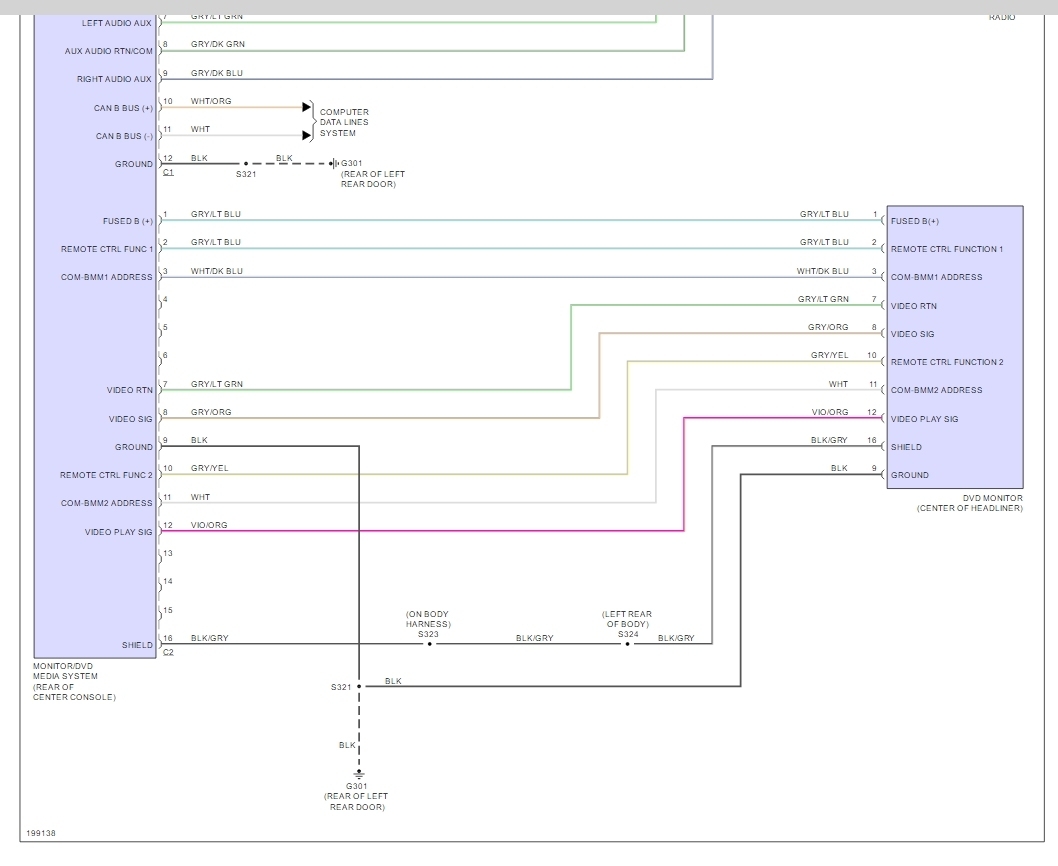

Here is a wiring diagram (below) so you can find the fuse.
Please let us know if you cant find it by replying to this thread!
Best, Ken
the fuse is #27 in integrated power module left hand side of engine compartment.

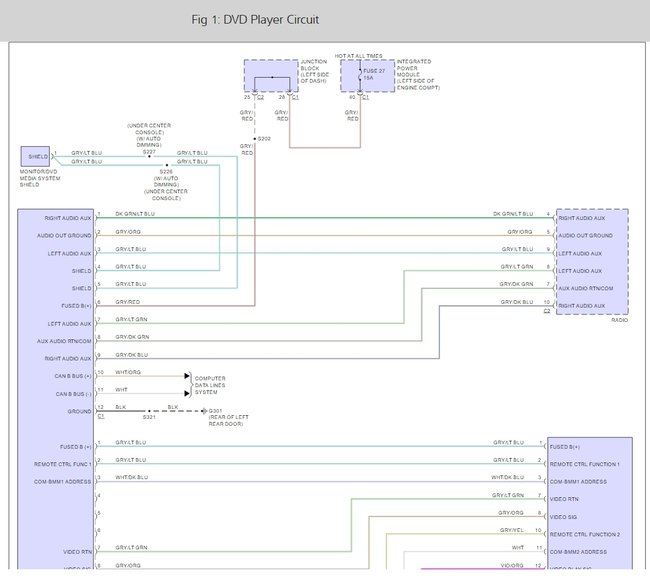

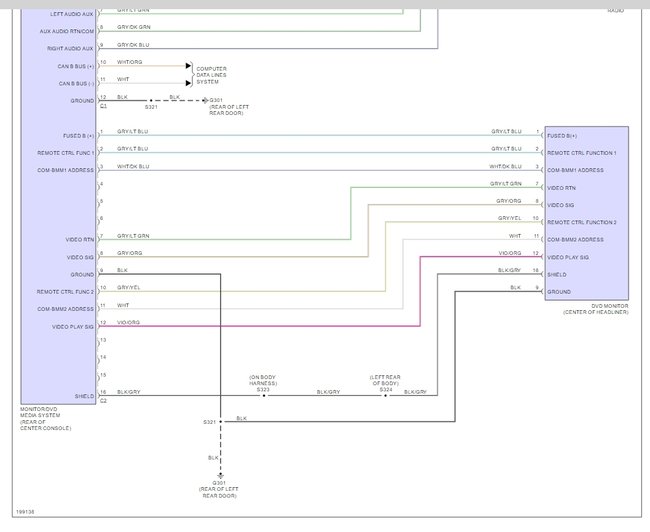

Here is a wiring diagram (below) so you can find the fuse.
Please let us know if you cant find it by replying to this thread!
Best, Ken
Images (Click to enlarge)
Dec 22, 2016 at 5:59 PM
