Driver´s door unlock relay

2005 JEEP GRAND CHEROKEE
90,000 MILES • 4.7L • V8 • 4WD • AUTOMATIC
Avatar
FRIAND01
  • MEMBER
  • 7 POSTS
I can´t locate the driver´s door unlock relay. I have looked on the left side under the instrument panel where the fuses are located but can´t see any relays. According the information I´ve found on Internet the junction box where the relays are supposed to be should be located under the instrument panel?
Dec 4, 2013 at 11:11 AM
Advertisement
Avatar
THIS IS MIKE
  • CERTIFIED EXPERT
  • 686 POSTS

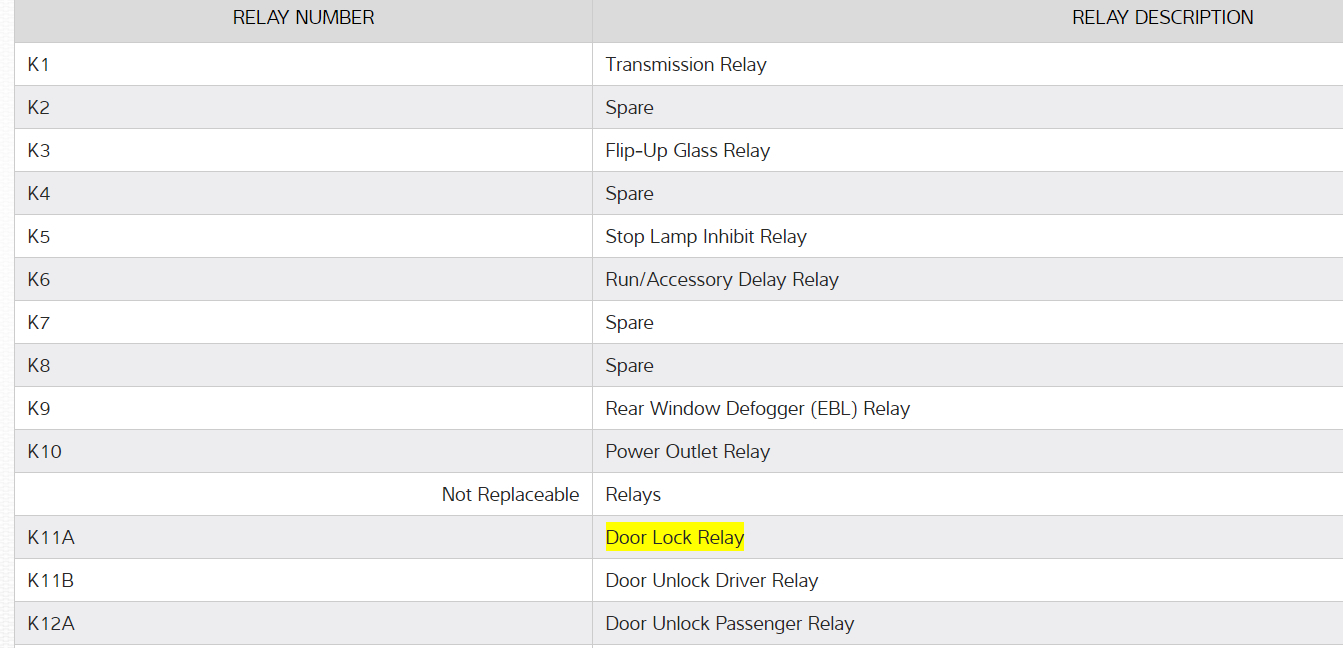

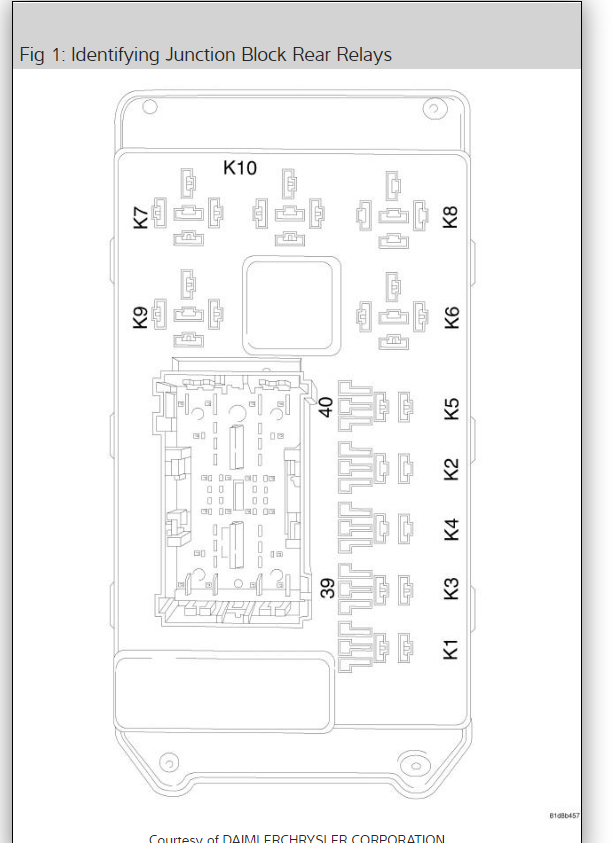

Here is diagram of the fuse and relay power distribution center under the hood and a guide to help check the relays.

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

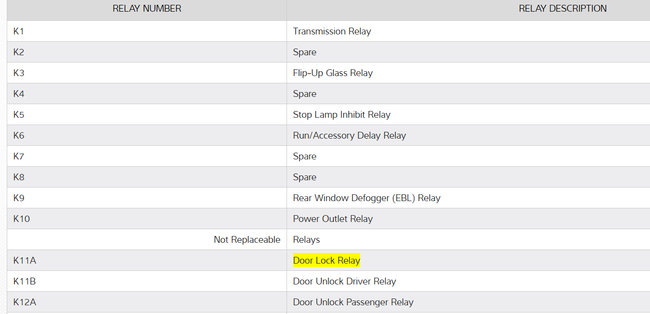

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Dec 4, 2013 at 11:48 AM
Avatar
FRIAND01
  • MEMBER
  • 7 POSTS
And where is the driver's door unlock relay located? /af
Dec 4, 2013 at 12:03 PM
Advertisement
Avatar
THIS IS MIKE
  • CERTIFIED EXPERT
  • 686 POSTS

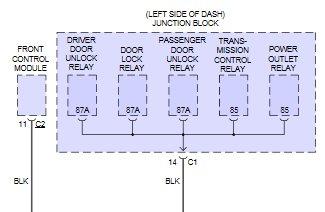

It should be under the left side of the dash in the following location:
Dec 4, 2013 at 12:14 PM
Avatar
FRIAND01
  • MEMBER
  • 7 POSTS
Do you mean left side under the hood in the Engine room or inside the car?/af
Dec 5, 2013 at 4:30 AM
Avatar
THIS IS MIKE
  • CERTIFIED EXPERT
  • 686 POSTS
By my diagrams it should be under the dash in the passenger cabin driver's side.
Dec 5, 2013 at 8:36 AM
Avatar
FRIAND01
  • MEMBER
  • 7 POSTS
I give up. I've looked under the dash but I only see the fuse panel. On the back side of these I can't see but feel some relays. But it can hardly be them???
I have also read somewhere that it's not possible to change/replace a single relay. One has to change the whole JB. Correct or not?/af
Dec 5, 2013 at 12:14 PM
Avatar
THIS IS MIKE
  • CERTIFIED EXPERT
  • 686 POSTS

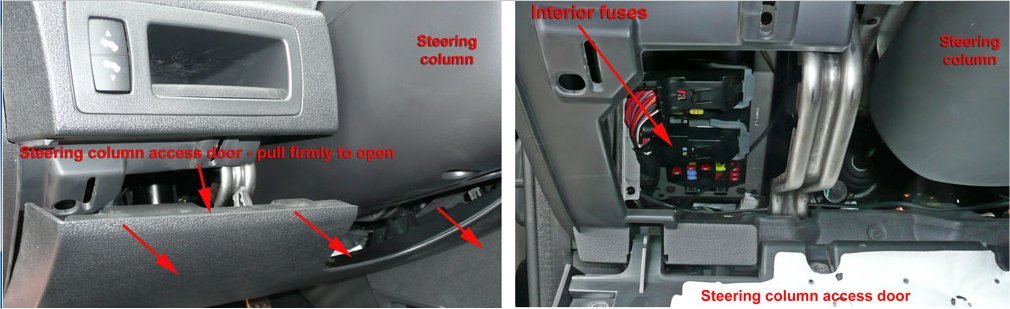

Here is a diagram of the interior fuses located behind the panel below and to the left of the steering column. The door lock fuse is next to the wiper relay. It is a mini 20 Amp yellow fuse in cavity #7. There should be a diagram on the fuse cover that details each fuse location. I hope this helps.
Dec 6, 2013 at 10:34 AM
Avatar
FRIAND01
  • MEMBER
  • 7 POSTS
Hi again, I've changed the yellow fuse no 7 but it didn't solve the problem. I Think I have to contact a Jeep dealer with a workshop which is not that easy in Sweden and especially not in the area where I live.
Another question: To repair the instruments lights in the center instrument panel bezel, is it possible to change bulbs or does one have to change the whole panel? It's lights for heat regulator, blower regulator etc.
/af
Dec 14, 2013 at 10:22 AM
Avatar
THIS IS MIKE
  • CERTIFIED EXPERT
  • 686 POSTS
The lights in the instrument cluster are soldered in, if you remove the cluster you can carefully open it and re-solder in new lights. Otherwise replacing the cluster is your next option.
Dec 16, 2013 at 10:09 AM
