change the thermostat?

2005 JAGUAR S-TYPE
104,000 MILES
Avatar
GENIE.IN.A.BOTTLE
  • MEMBER
  • 1 POST
Video on how to change the thermostat assembly housing on a 4.2 2005 s type jaguar we have a crack on the thermostat housing assembly that has been confirmed as the problem by our local Jag dealership.
Apr 24, 2012 at 4:06 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
You will need to drain the cooling system before you begin. Here is a guide that will show you what you are in for when doing the job.

https://www.2carpros.com/articles/replace-thermostat

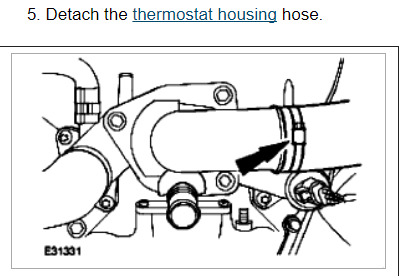

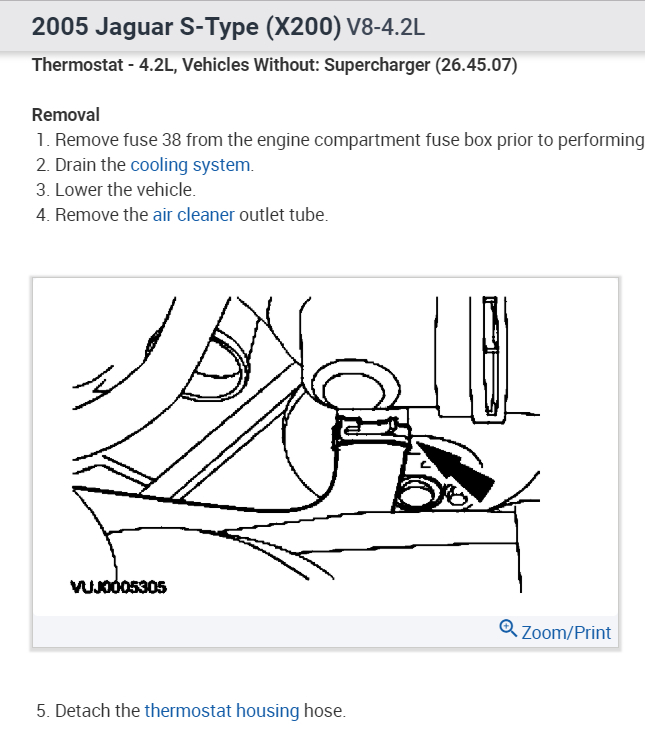

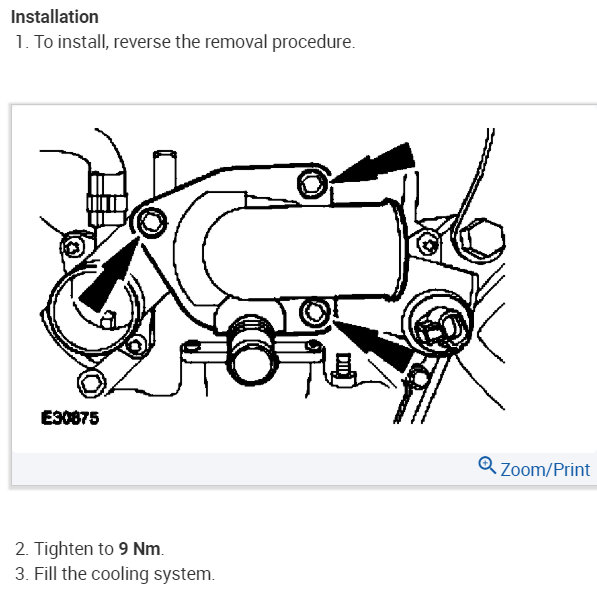

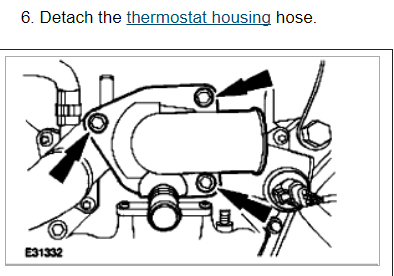

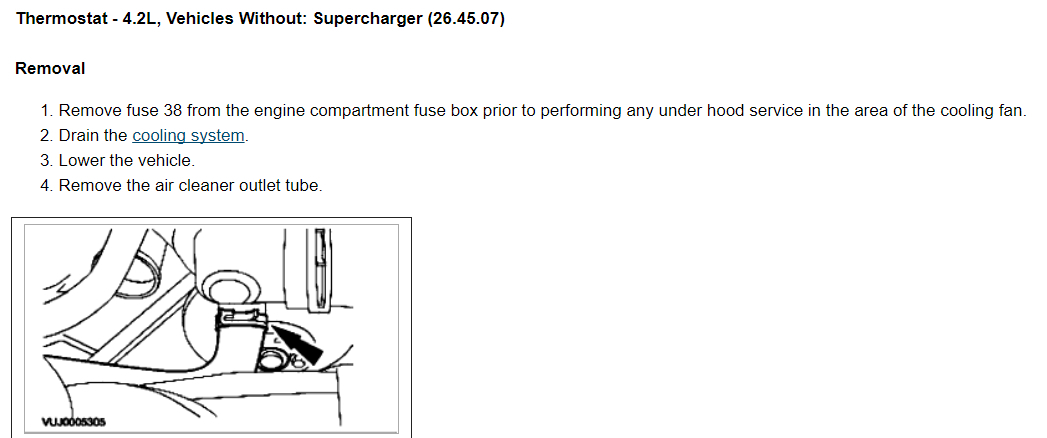

Here are diagrams to show you what it will be like for your car there is both engine in case someone needs them (below) Please let us know if you need anything else to get the problem fixed.

Cheers, Ken
Jan 17, 2018 at 12:16 PM
Avatar
ELMOOK
  • MEMBER
  • 1 POST
need to change thermostat, don't know exact location and what to remove?
Sep 1, 2019 at 11:43 AM (Merged)
Advertisement
Avatar
DOCFIXIT
  • CERTIFIED EXPERT
  • 18,828 POSTS

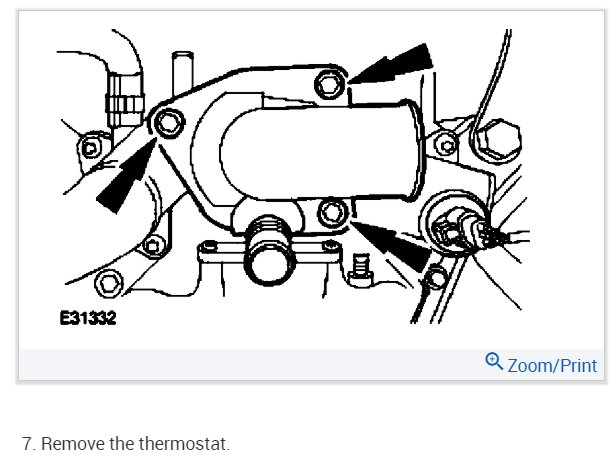

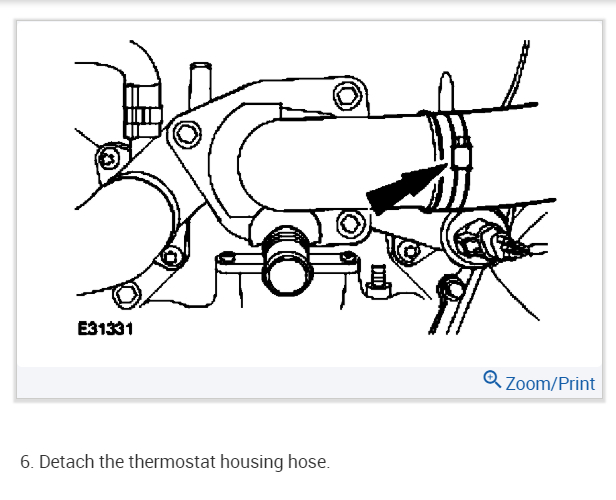

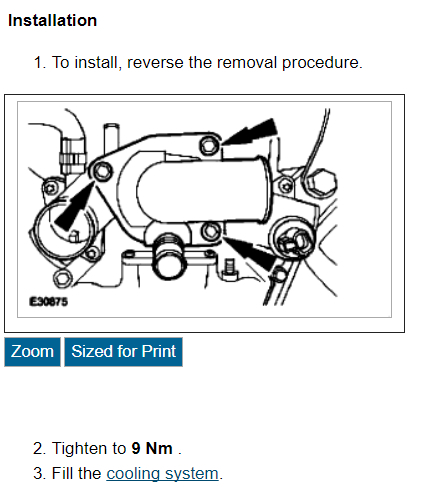

Here is a guide to walk you through the steps with instructions in the diagrams below to show you how on your car.

https://www.2carpros.com/articles/replace-thermostat

Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Sep 1, 2019 at 11:43 AM (Merged)
Avatar
ROBERT DUNSON
  • MEMBER
  • 1 POST
I need to know where to find the thermostat.
Oct 7, 2020 at 11:49 AM (Merged)
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

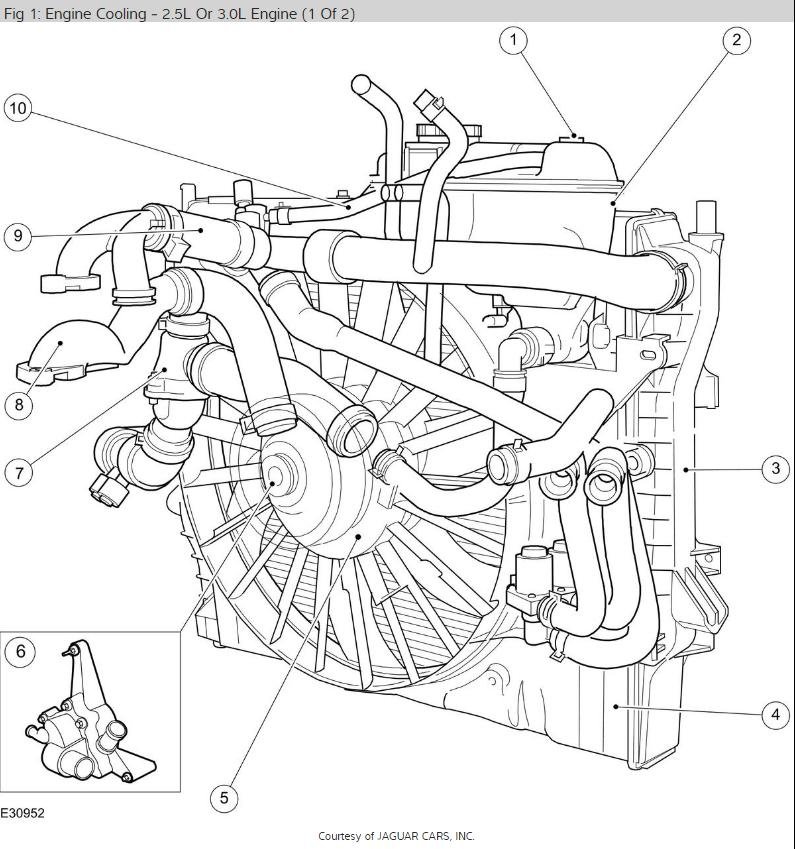

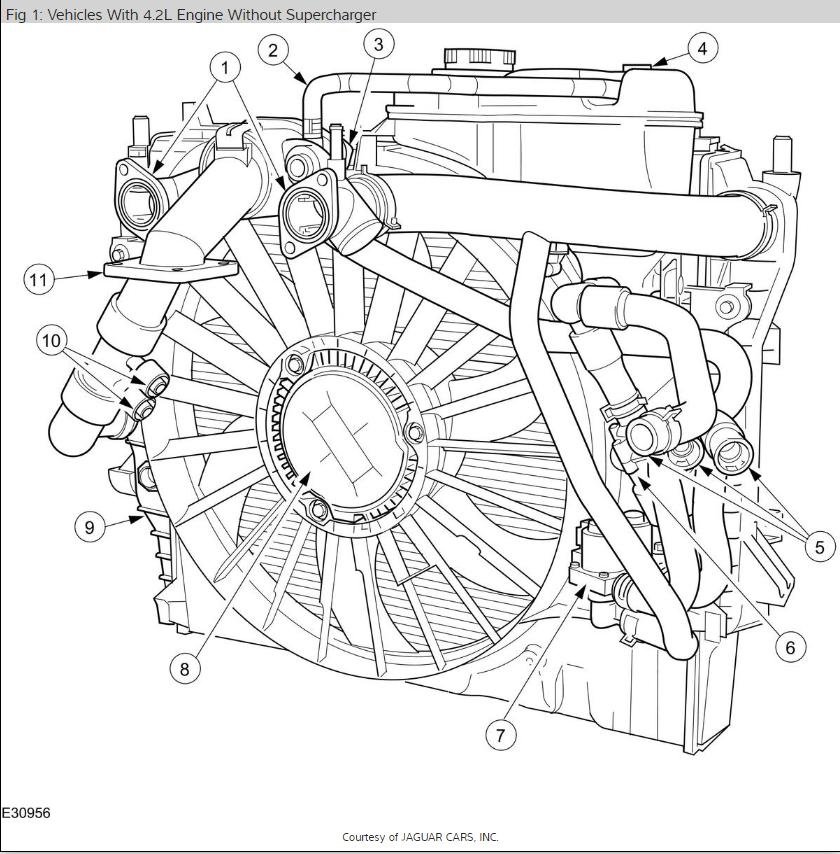

The thermostat is within the thermostat housing. Refer to diagram according to your engine specifications. Check out the diagrams (Below). Please let us know what happens.
Oct 7, 2020 at 11:49 AM (Merged)
