2005 ISUZU TRUCK
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
I have a isuzu tipper.now it can't be started by key.but we can start it by pullin.it has DPD unit.
now engine check light is on.
Feb 5, 2013 at 8:49 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
You need to retrieve the trouble code to find out what is causing it.
As to non starting, are you able to crank without starting or it does not crank at all?
Feb 5, 2013 at 8:25 PM
Avatar
UPALI1980@R
  • MEMBER
  • 6 POSTS
I'm so sorry. I couldn't ripply u. because i wasn't home.
please forgive me & help me.
thank u so much for your kindness.

yes I can crank.

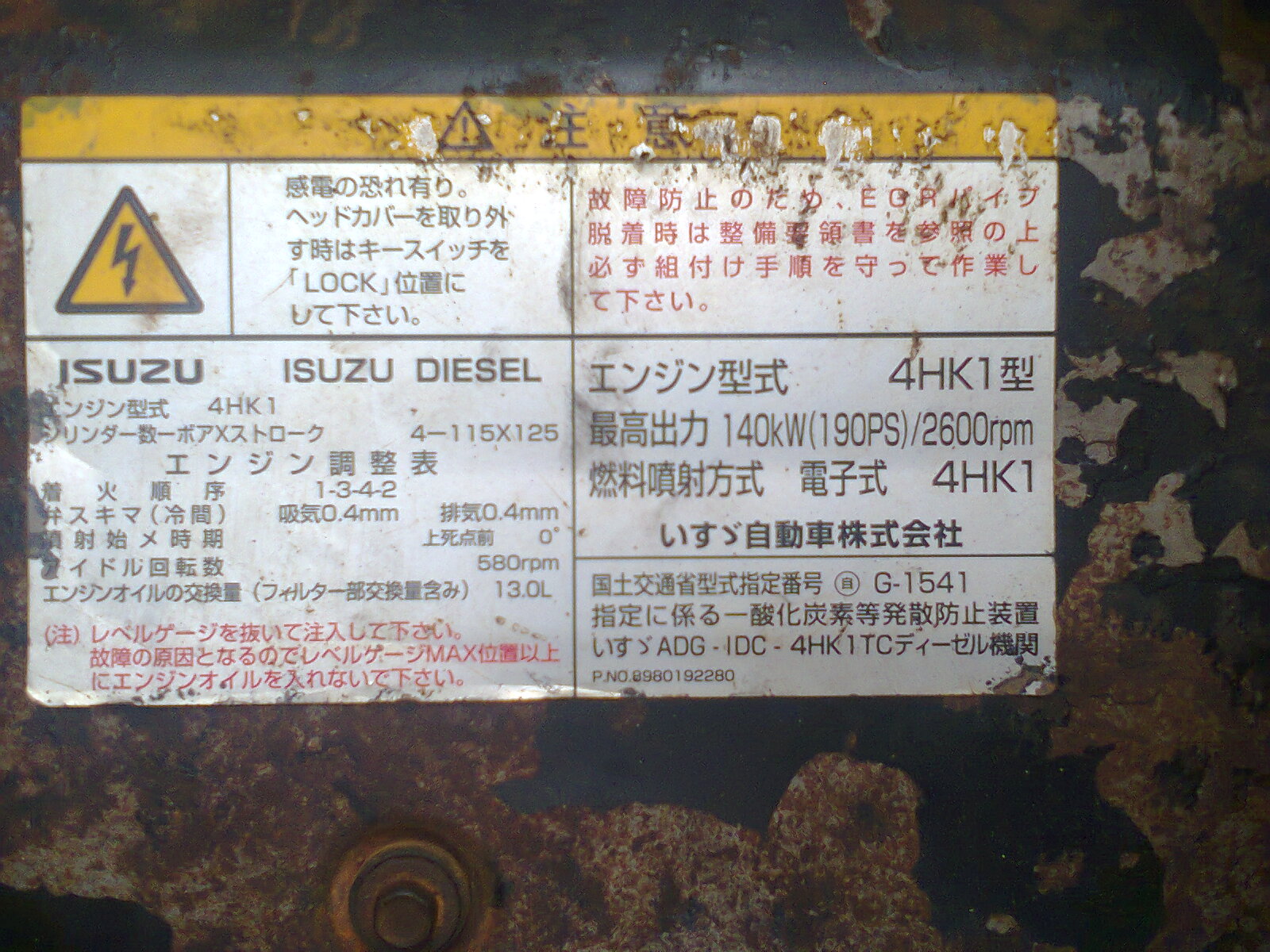

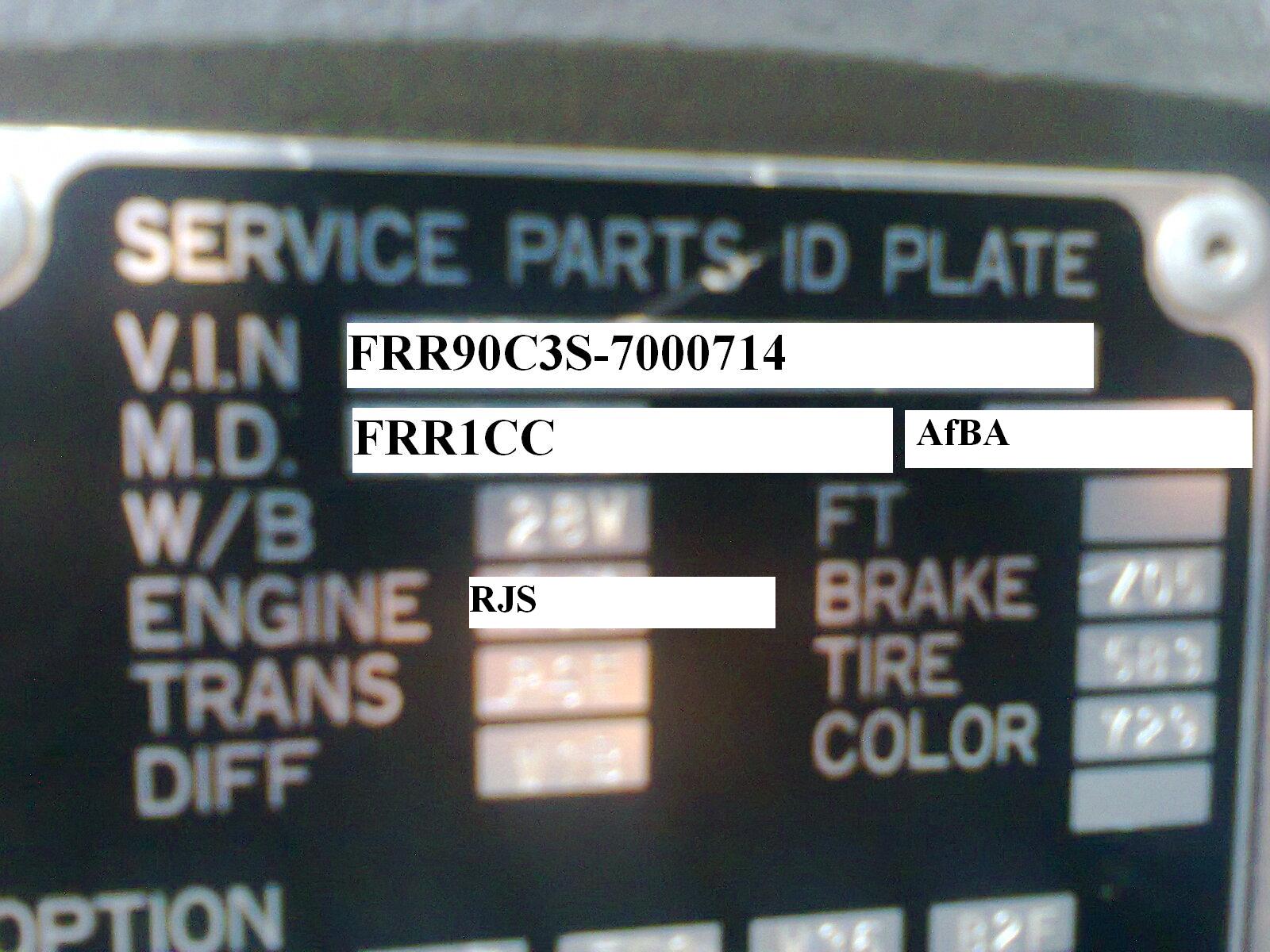

i attached name plate photos

I appreciate your help.
Feb 10, 2013 at 4:06 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
You need to check the engine compression, battery and starter. If cranking speed is low, it might not be easy to start. Check the glow plugs as well.
Feb 10, 2013 at 8:22 PM
Avatar
UPALI1980@R
  • MEMBER
  • 6 POSTS
I took the glow plug out,and checked them individually.
I connected its to 24V.it took 10 s to heat.
cranking speed is normal.can i check compression by using
pressure gauge.
Feb 11, 2013 at 3:46 PM
Avatar
UPALI1980@R
  • MEMBER
  • 6 POSTS
I removed the injectors and cleaned.
Feb 11, 2013 at 11:56 PM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
For Diesel engines the compression is rather high so you need appropriate pressure gauge to test.
Feb 12, 2013 at 4:35 PM
Avatar
UPALI1980@R
  • MEMBER
  • 6 POSTS
pleas can u tell me what the pressure is.

some one tell me, the rail pressure is incorrect.can u tell me the rail pressure also.
thank.
Feb 12, 2013 at 5:28 PM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Sorry I do not have the information on your vehicle. If the rail pressure is incorrect, a scan tool should be able to diagnose it.
Feb 12, 2013 at 7:48 PM
Avatar
UPALI1980@R
  • MEMBER
  • 6 POSTS

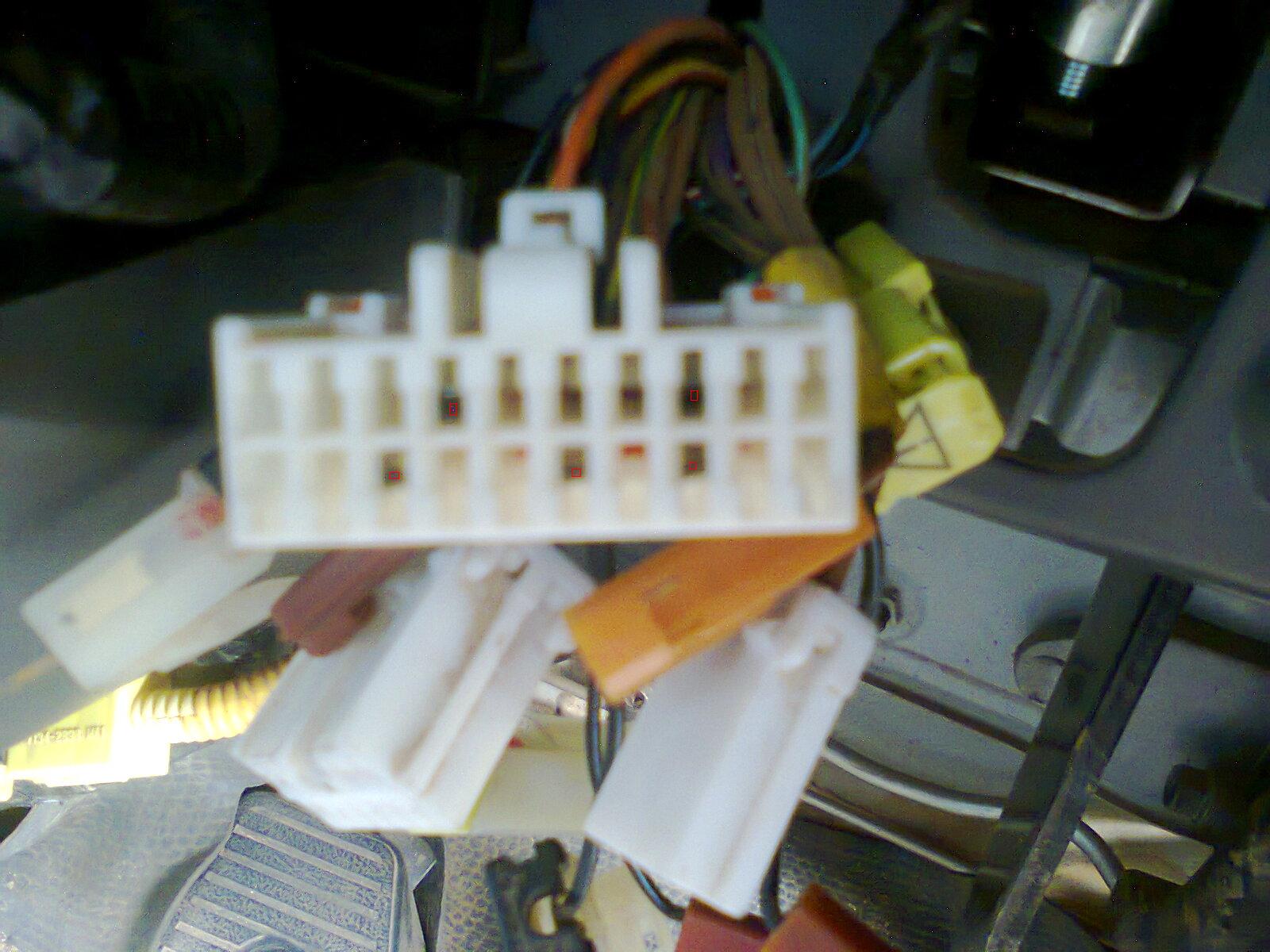

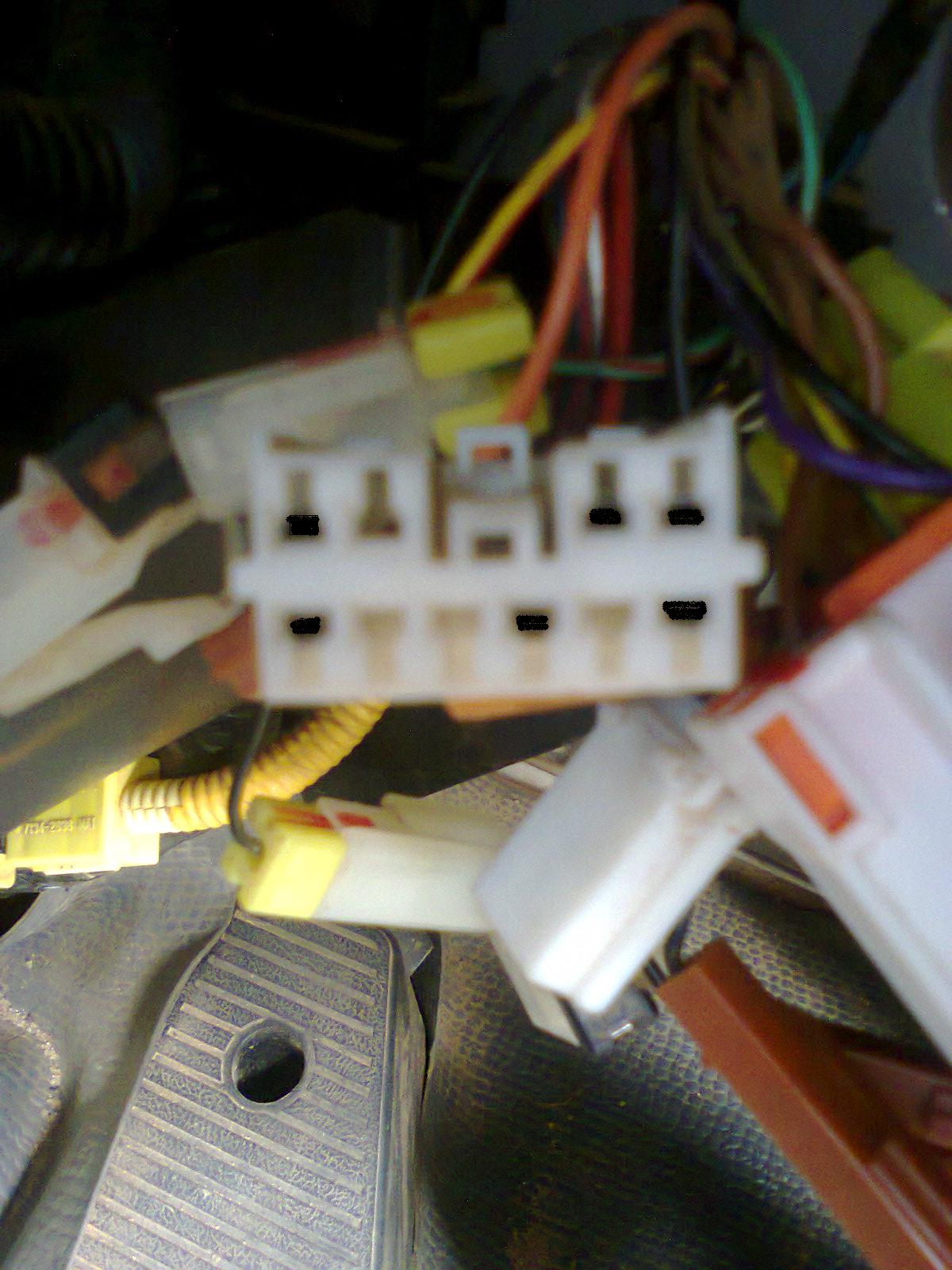

i gave it to the auto electricians. but they had no appropriate diagnostic socket. because this vehicle has many sockets.it has a 3 pin socket,we could able to communicate. but i have no a photo. but we have a doubt abut some data.
ENGINE SPEED 31987rpm ( only IGN-KEY ON)
have u detail of that diagnostic sockets.
Feb 13, 2013 at 4:31 AM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
There should be an OBD-II socket somewhere as believe the system used is rather new.
Feb 14, 2013 at 1:08 AM
Avatar
UPALI1980@R
  • MEMBER
  • 6 POSTS
no, i search every where.
i have a some detail abut 4hk1 engine.i like to give u it.
my email (upaliyapa1980@mail .com)send me a email.
than u.
Feb 14, 2013 at 3:50 AM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Most generic scan tools would come with an adapter for pre-OBD-II diagnostic connectors.

[email protected].

I would like to know what information you have and it could be helpful to me as our database does not have any information for your vehicle.

Thank you.
Feb 14, 2013 at 5:50 AM
