Code U1000

2005 INFINITI G35
AUTOMATIC
Avatar
LOPEZIL
  • MEMBER
  • 1 POST
and recently the EDC and Slip lights came on with the check engine light. I powered off the car and the EDC and Slip light went off but the check engine light remained on. I took it in to get the codes at AutoZone and got a code of U1000 I feel everytime I press the gas the car jolts. I was thinking it could be the throttle body but I'm unsure if that would cause the check engine lights to come on. Any ideas?
Aug 27, 2015 at 3:48 PM
Advertisement
Avatar
WRENCHTECH
  • CERTIFIED EXPERT
  • 20,761 POSTS
That code is a communication code. It means that one of the computers did not communicate on the bus network.

Almost everything I could find uses an Infiniti scan tool for diagnosing this issue. It is usually a harness/connector problem.

Read the guide below on using a multi meter (DVOM)

https://www.2carpros.com/articles/how-to-use-a-voltmeter

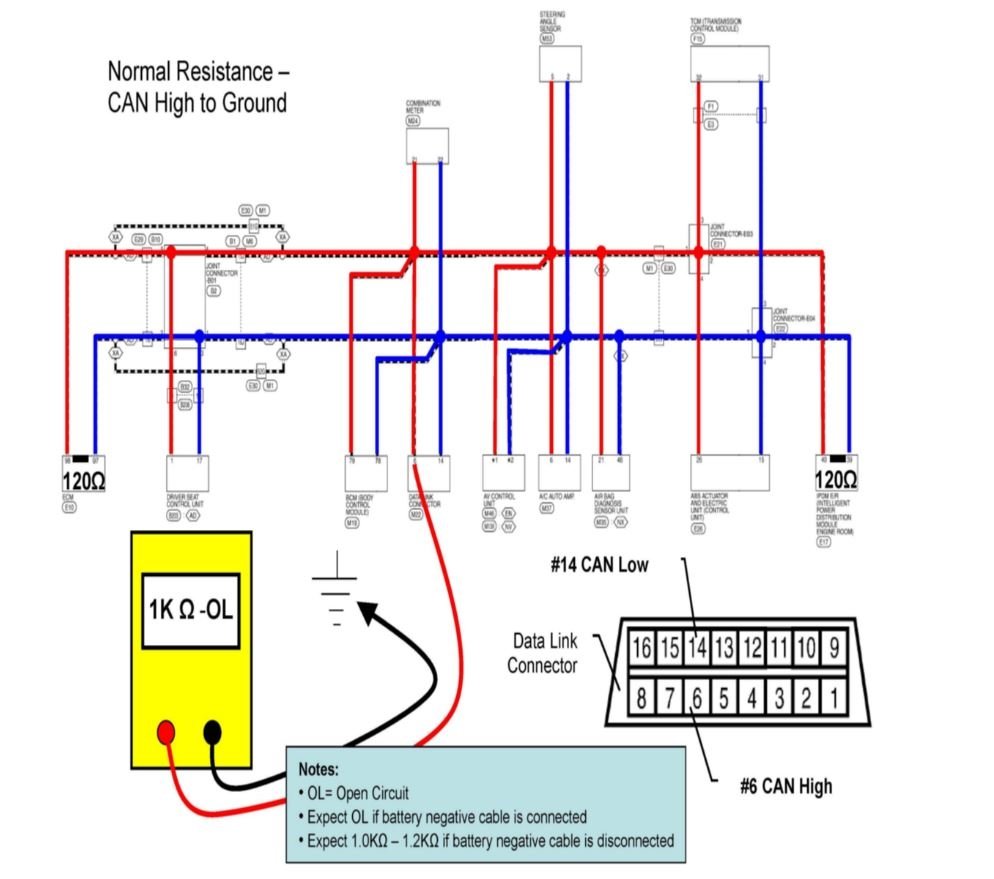

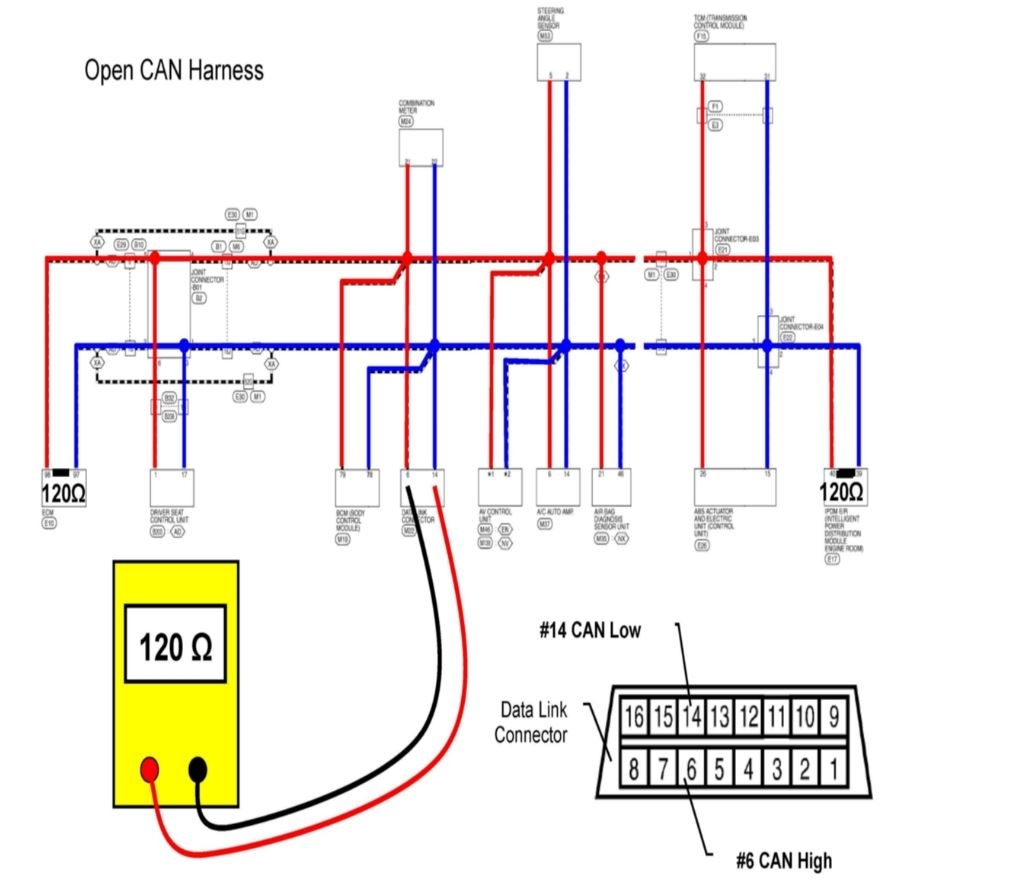

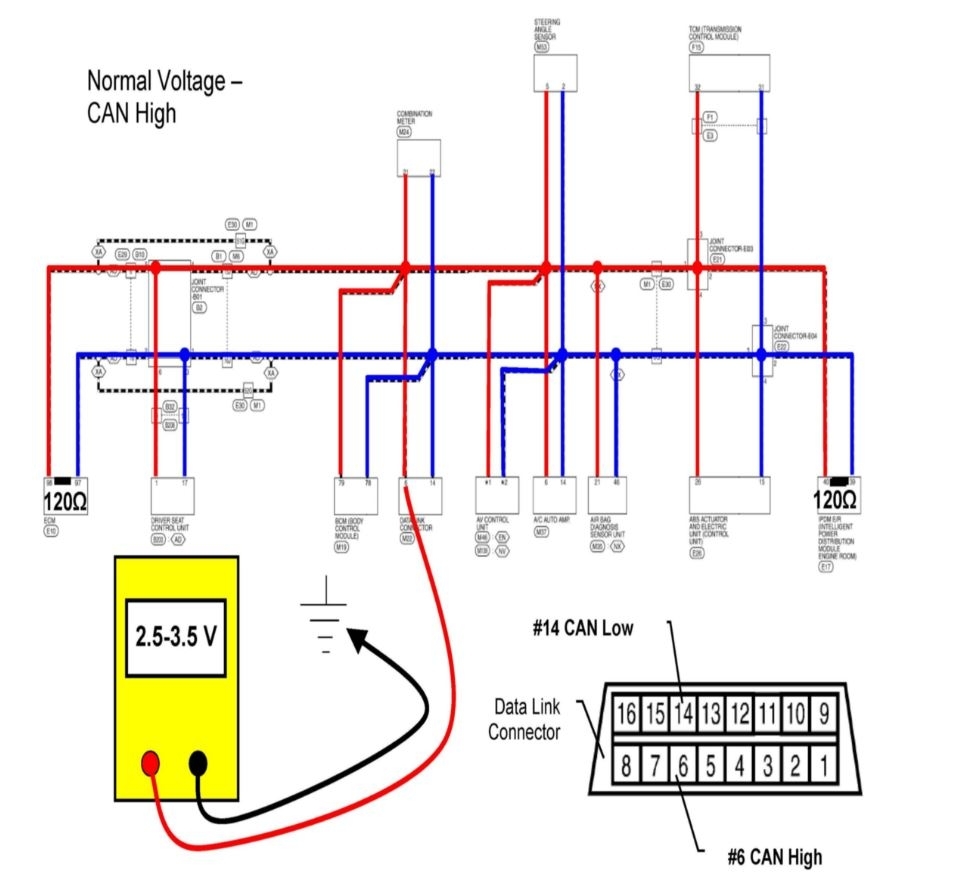

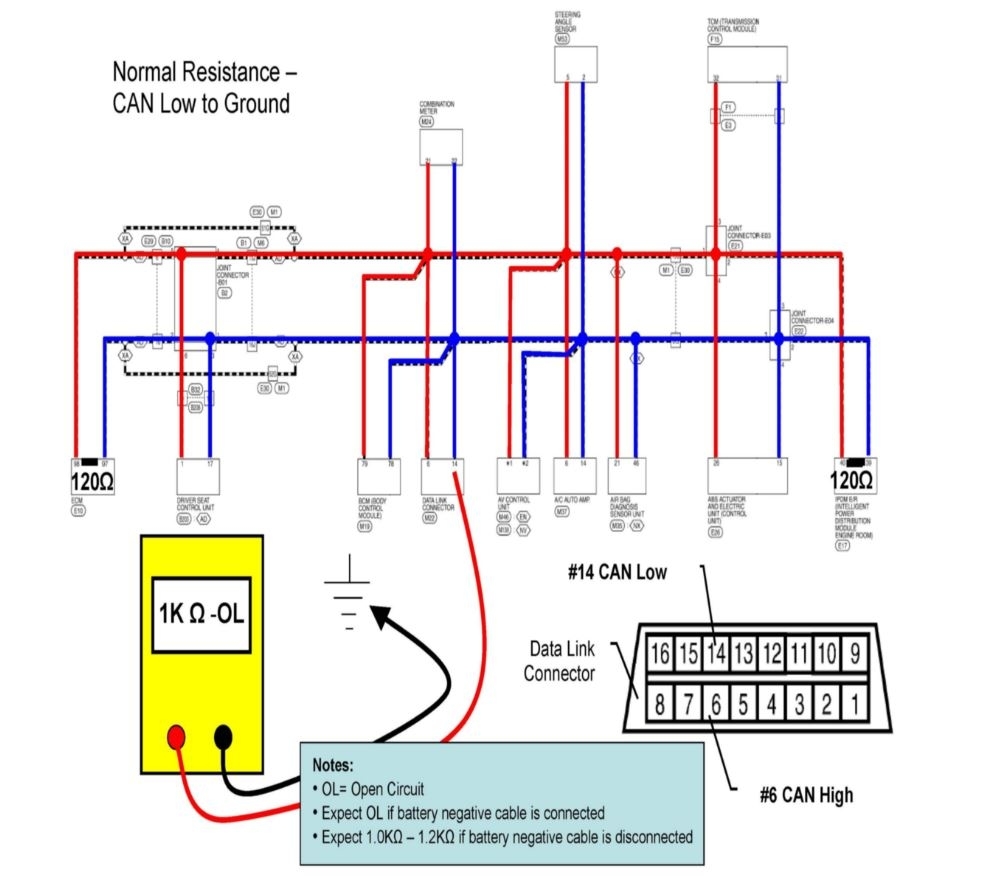

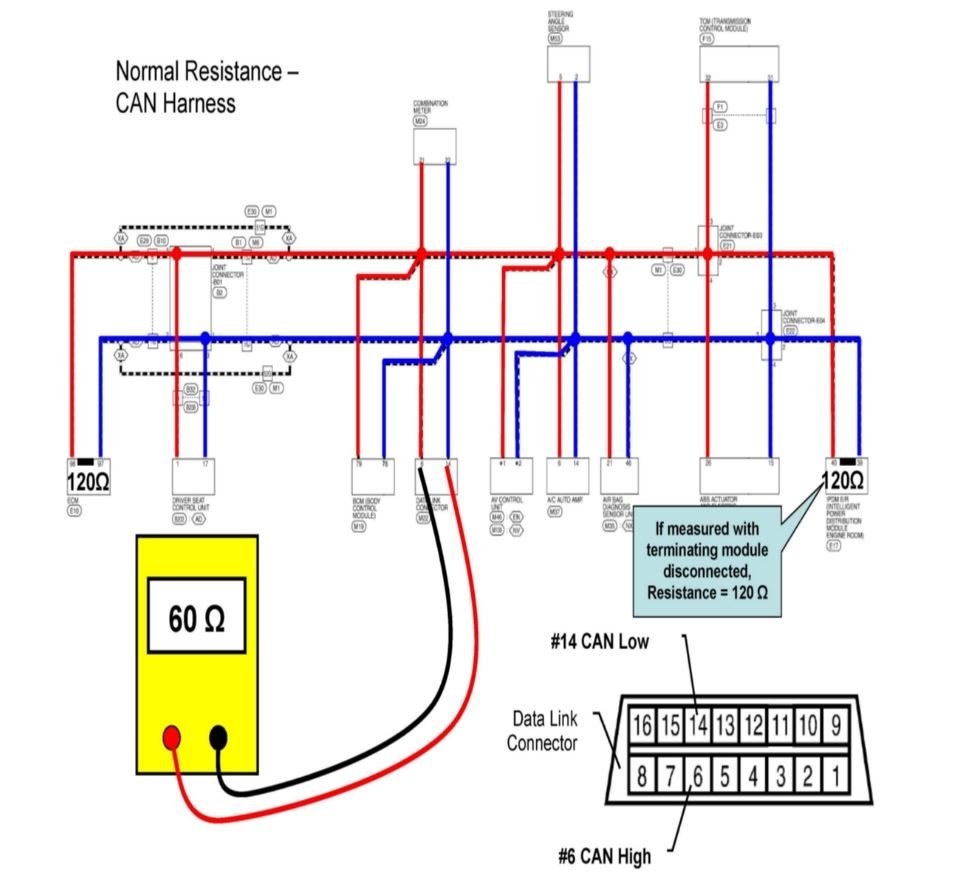

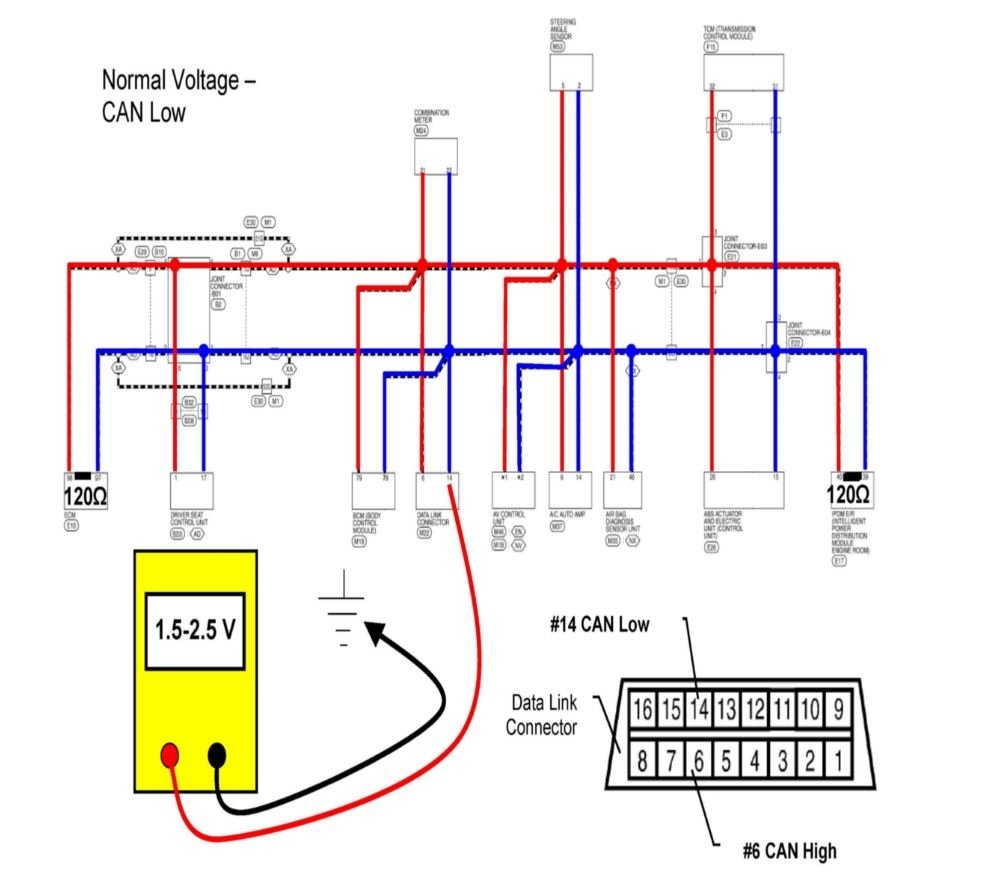

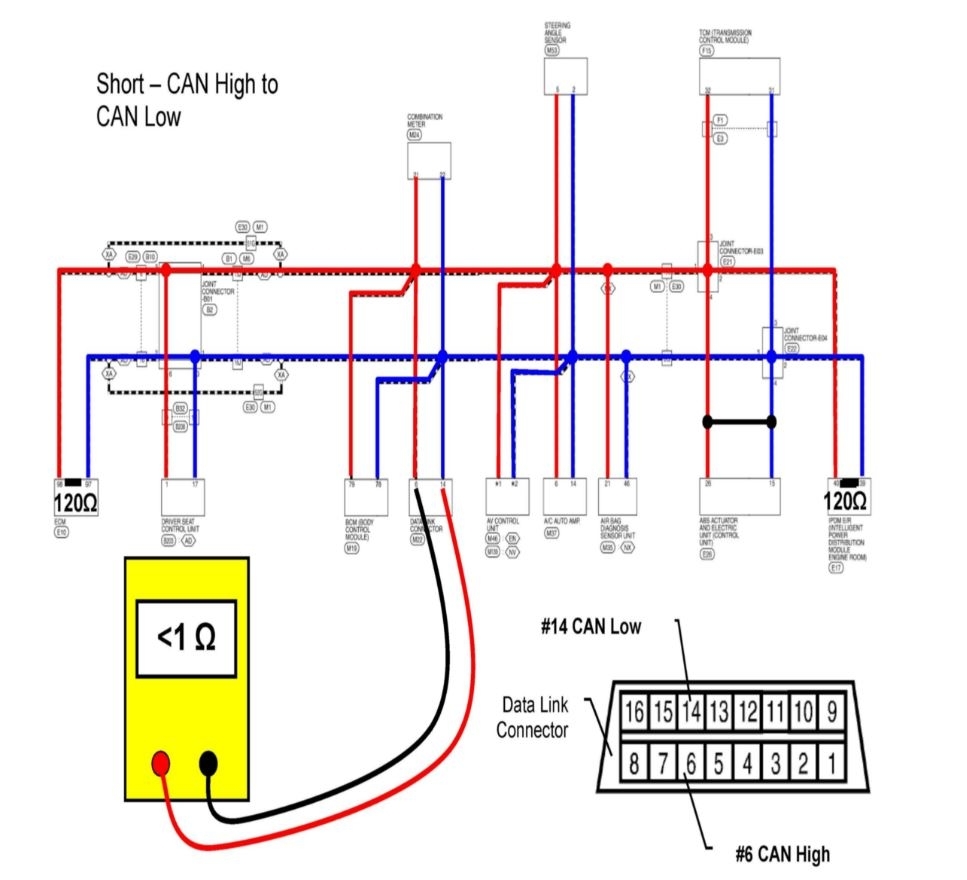

Attached below are some diagnostic diagrams to help you check the harness to see if it is shorted and if so to what
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Aug 27, 2015 at 4:39 PM
