Crankshaft Position Sensor (CKP) 2005 Tucson GLS 2.7 V6

2005 HYUNDAI TUCSON
58,000 MILES
Avatar
S22225
  • MEMBER
  • 4 POSTS
After reading many forums about sporadic loss of engine power and stalling issues, I have decided that there is a very good chance what I have been experiencing (after rain storms it seems) is related to the CKP going back which seems to be a known issue after about 5 years of engine heat which causes cracking and brittleness of the wires and insulator.

My question (which i cannot find a thorough answer to online despite hours of searching) is:

1. Where is the sensor located specifically?
2. How is it accessed
3. Any good photos showing this?

I am just seeing many wires bundled together in a conduit in front of the coil pack area.

Thanks in advance!
Oct 28, 2011 at 5:56 PM
Advertisement
Avatar
FIXITMR
  • CERTIFIED EXPERT
  • 9,990 POSTS
on transmission bellhousing above starter.
Oct 30, 2011 at 3:32 AM
Avatar
FIXITMR
  • CERTIFIED EXPERT
  • 9,990 POSTS
it's just below engine temp sensor so you dont get them confused.
Oct 30, 2011 at 3:36 AM
Advertisement
Avatar
S22225
  • MEMBER
  • 4 POSTS
How is the part accessed to be changed? What needs to be removed, order, any photos or detailed diagrams would be very helpful. I've done radiators and most forums said that this part is easy to replace - is it?

Thanks.
Oct 30, 2011 at 4:53 AM
Avatar
FIXITMR
  • CERTIFIED EXPERT
  • 9,990 POSTS
basically takeoff plug, unbolt and pull out. replacement reverse order. will find more detailed info later.
Oct 30, 2011 at 8:05 PM
Avatar
S22225
  • MEMBER
  • 4 POSTS
It sounds simple, but do I need to remove the radiator hoses, radiator? Approach from below? I'm trying to do this with as little intrusion as possible.
Oct 30, 2011 at 11:16 PM
Avatar
FIXITMR
  • CERTIFIED EXPERT
  • 9,990 POSTS
did you TRY looking for it at all where i indicated? i have not actually changed 1 of these. but i would be looking from underneath. the starter is located where engine attaches to transmision.
Oct 31, 2011 at 2:19 AM
Avatar
FIXITMR
  • CERTIFIED EXPERT
  • 9,990 POSTS
here's a pic.
Image (Click to enlarge)
Attached Media
Oct 31, 2011 at 2:50 AM
Avatar
S22225
  • MEMBER
  • 4 POSTS
I'm going to have to take a look tomorrow, i think 2 radiator hoses, heater hose, etc.. may be in the way - I looked yesterday from overtop and couldn't see it by just taking off the snorkel. I could take off the guard underneath and see if that's more feasible.
Oct 31, 2011 at 2:57 AM
Avatar
FIXITMR
  • CERTIFIED EXPERT
  • 9,990 POSTS
that picture i just posted was off another answer on this forum. i looked at it more closely now and dont think it's the right 1!
Oct 31, 2011 at 9:33 PM
Avatar
JKNISELY
  • MEMBER
  • 1 POST
where is the crankshaft postion sensor on a 2005 Huyndai Tucson with a V6 engin?
Feb 23, 2019 at 7:49 PM (Merged)
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS

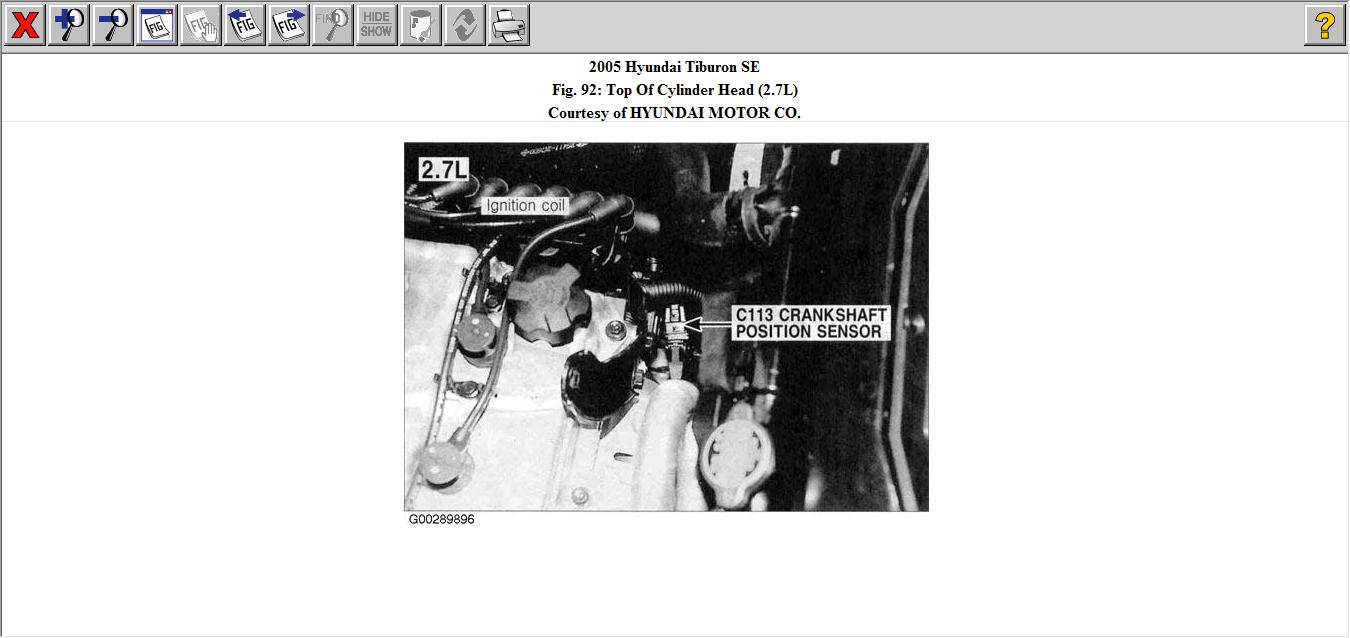

On left rear of engine-It shouldn't be hard see below



Image (Click to enlarge)
Attached Media
Feb 23, 2019 at 7:49 PM (Merged)
