flasher relay location

2005 HYUNDAI GETZ
30,000 MILES
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
Where is the turn signal relay? How to put up with the side turn signal bulbs?
Apr 2, 2013 at 4:56 PM
Advertisement
Avatar
KASEKENNY
  • CERTIFIED EXPERT
  • 18,907 POSTS

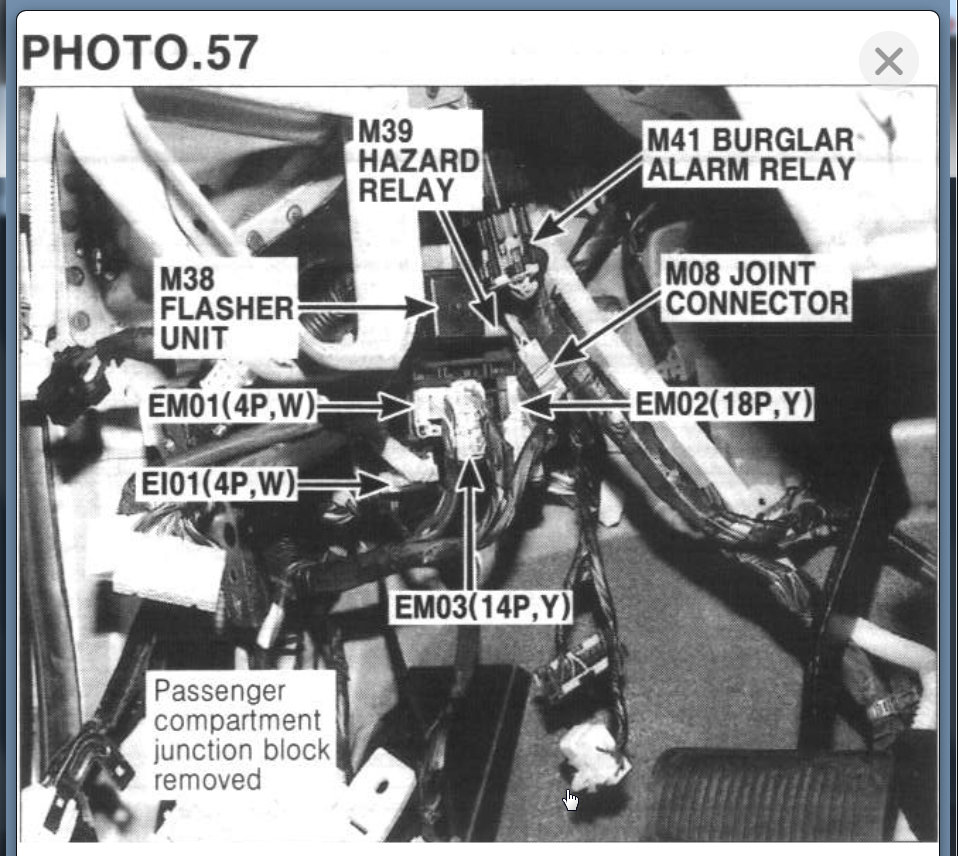

I am attaching the information on a similar vehicle that we offer here in the USA. Unfortunately we don't have a manual on your vehicle because it is not offered here in the USA but this is going to be the same.

Here is a guide that will show you how to test a relay in case you need that as well:

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

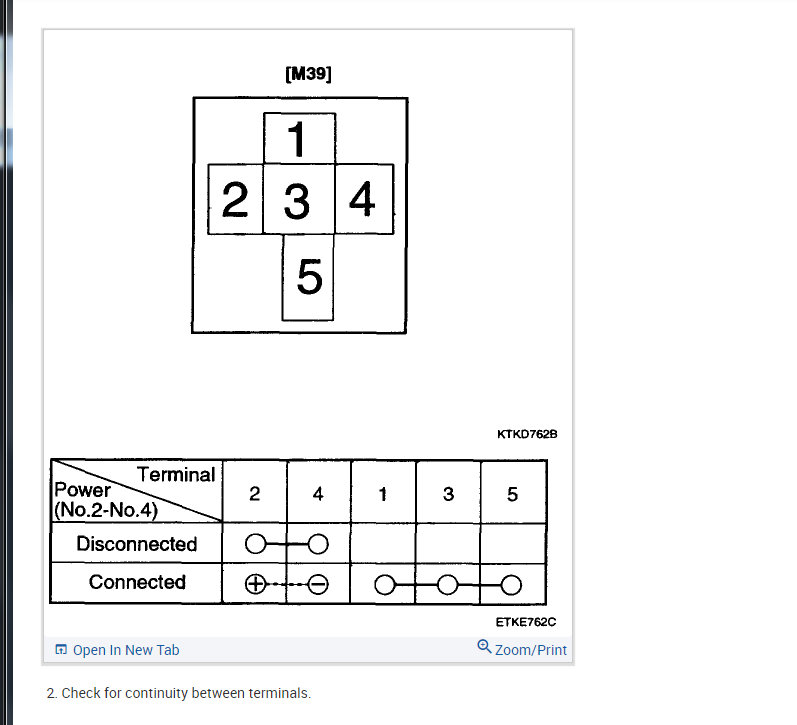

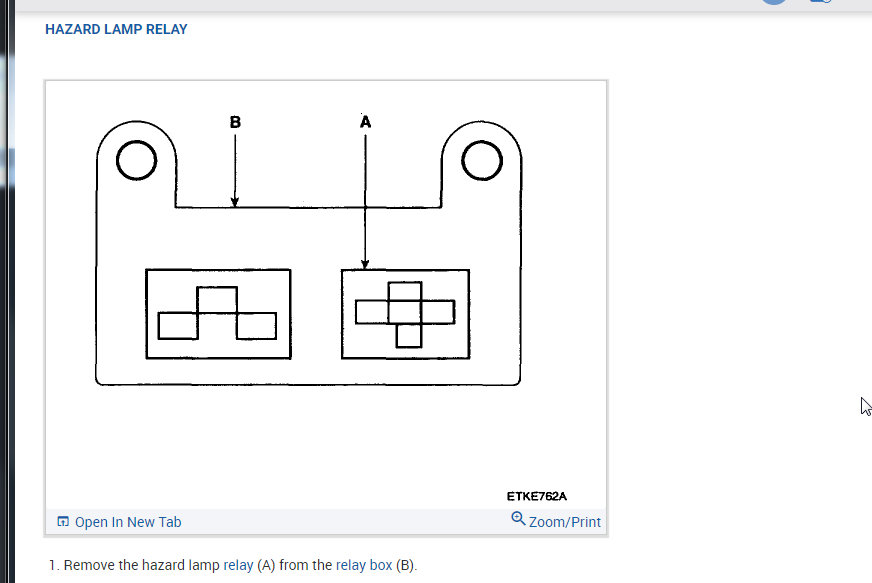

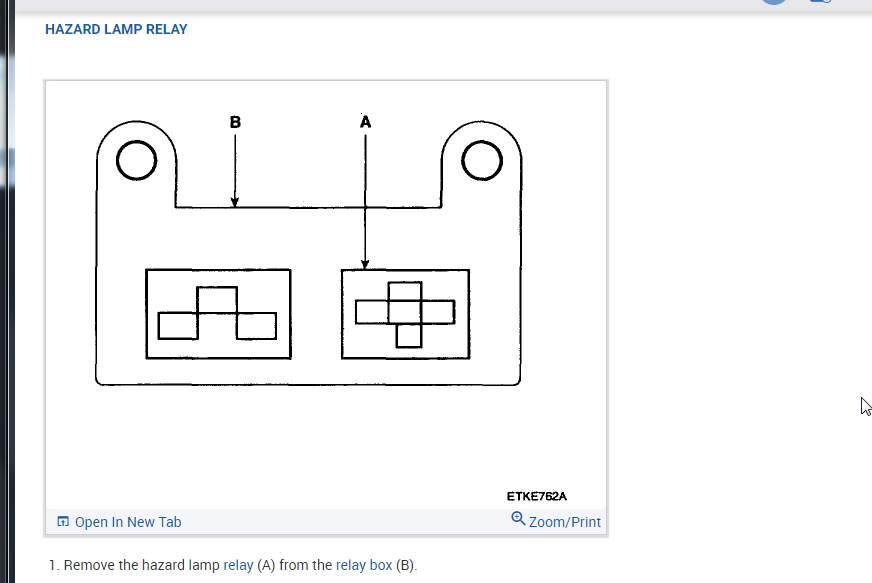

I also attached below the info on how to test the relay from the manual. Let us know what you find and we can go from there. Thanks
Dec 18, 2020 at 7:14 AM
