airbag Warning light?

2005 HONDA PILOT
149,060 MILES • 3.5L • 6 CYL • 4WD • AUTOMATIC
Avatar
GODWIN82
  • MEMBER
  • 1 POST
Code is detected 83-22 is detected on 2005 honda pilot No signal from front passenger's weight sensor. The red airbag light stays on on dash. What part do i need to replace or what do i need to do
Aug 6, 2014 at 10:57 AM
Advertisement
Avatar
HONDA TECH 1818
  • CERTIFIED EXPERT
  • 536 POSTS
Code 83-22 no signal from the outer side front passenger's weight sensor.
Check the front passenger's weight sensor connector, make sure it's connected. If connector is tight need to replace the outer weight sensor, it's on the right side of the seat track.
Feb 1, 2015 at 11:48 PM
Avatar
ASEMASTER6371
  • CERTIFIED EXPERT
  • 52,796 POSTS
Good evening,

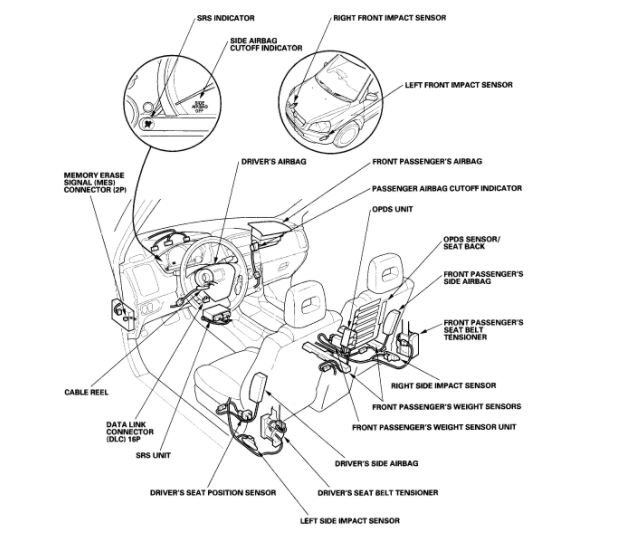

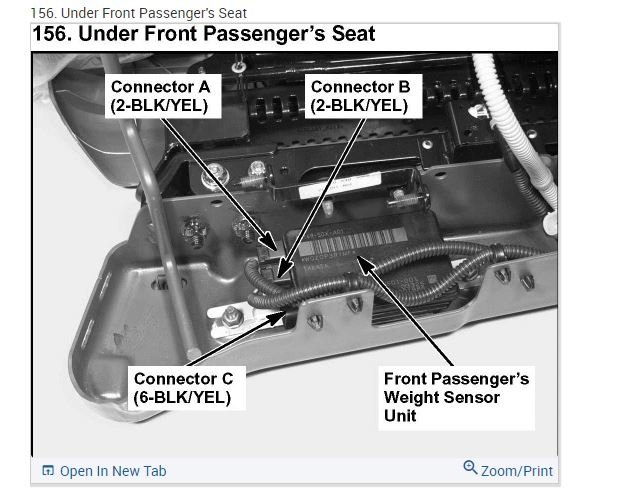

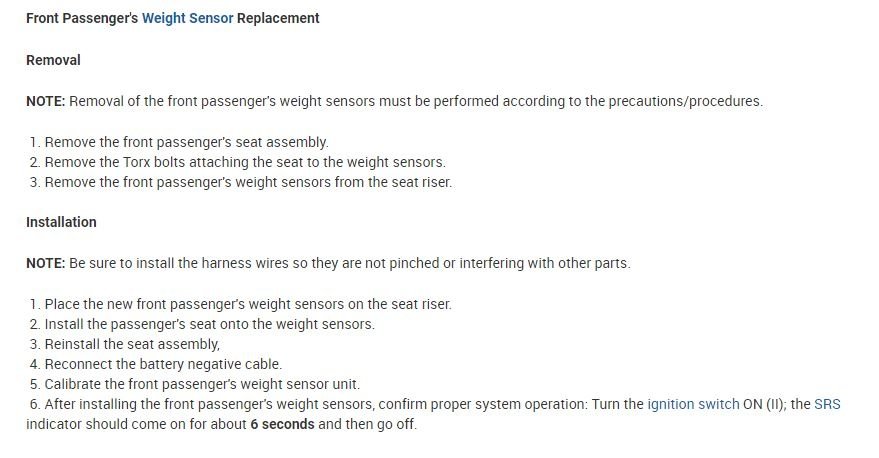

I attached the procedure for you for the sensor and some pictures for the repair.

let us know if you have any other questions.

Roy
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Aug 6, 2021 at 3:52 PM
