No rear turn signals or brake lights third brake light does work?

2005 FORD EXPLORER
14,500 MILES
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
no rear turn signals or brake lights third brake light does work,fuses seem good,please advise to which fuses to check and what to do.
Oct 28, 2012 at 5:24 AM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS

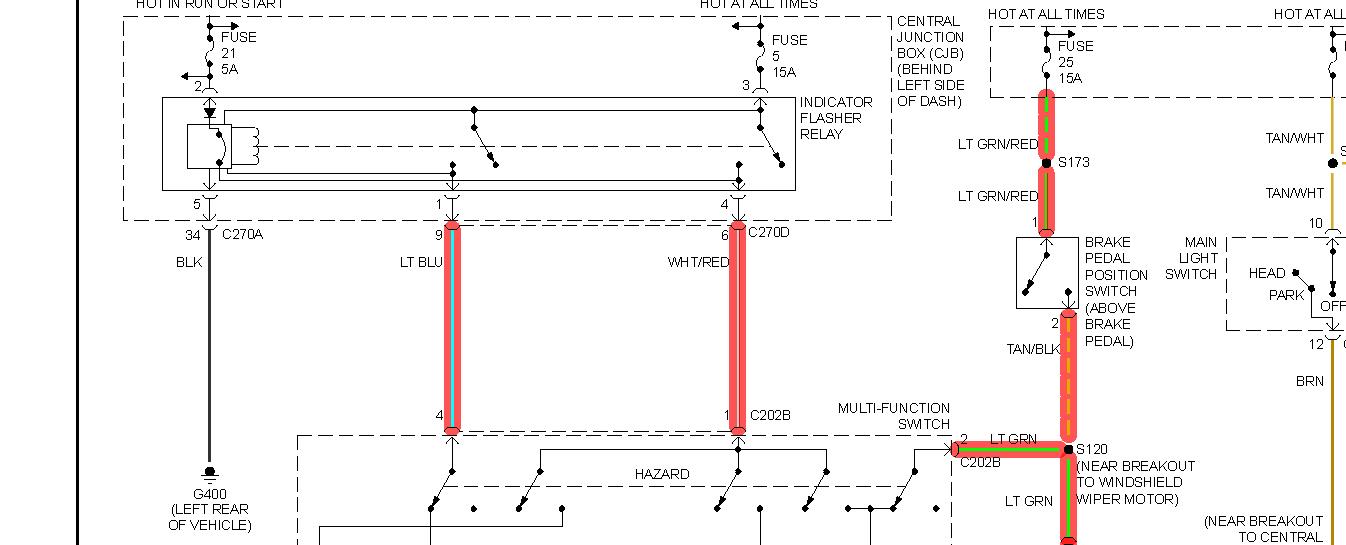

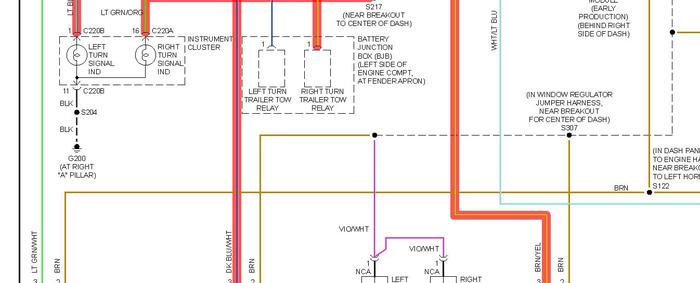

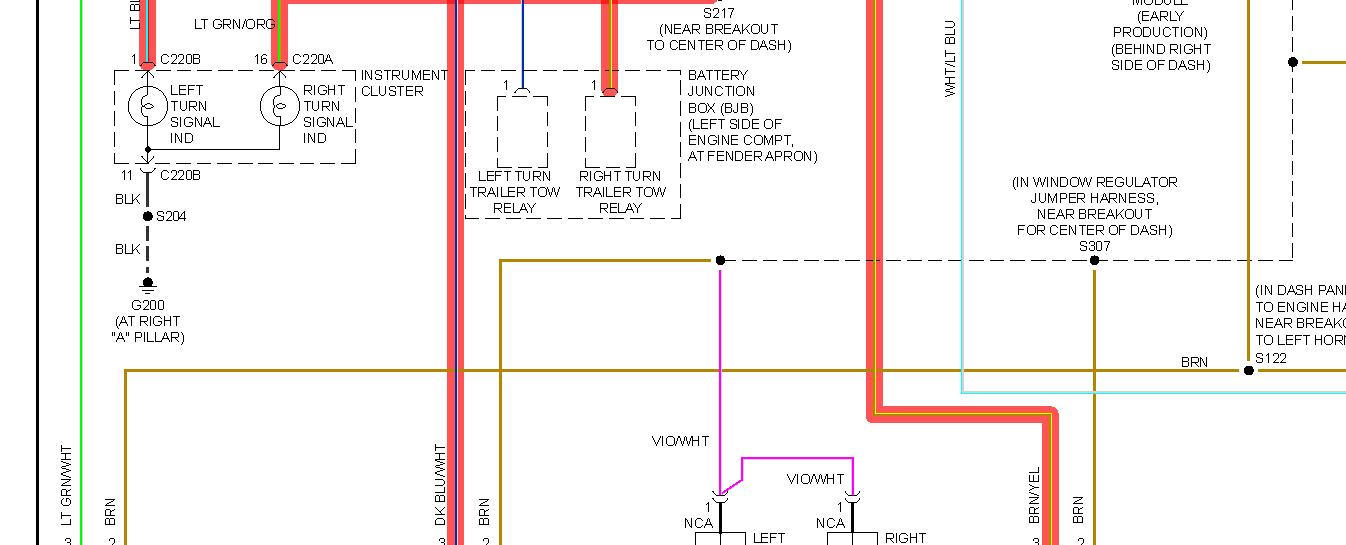

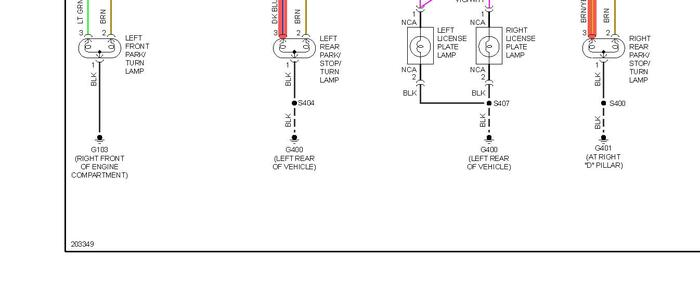

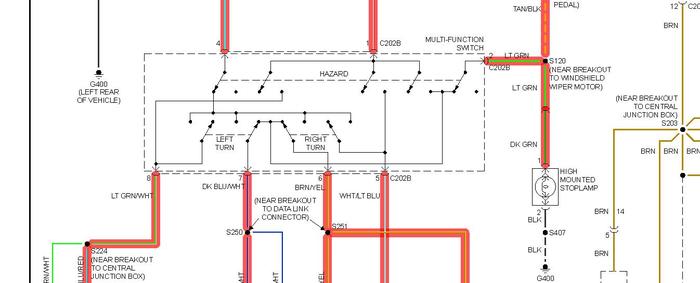

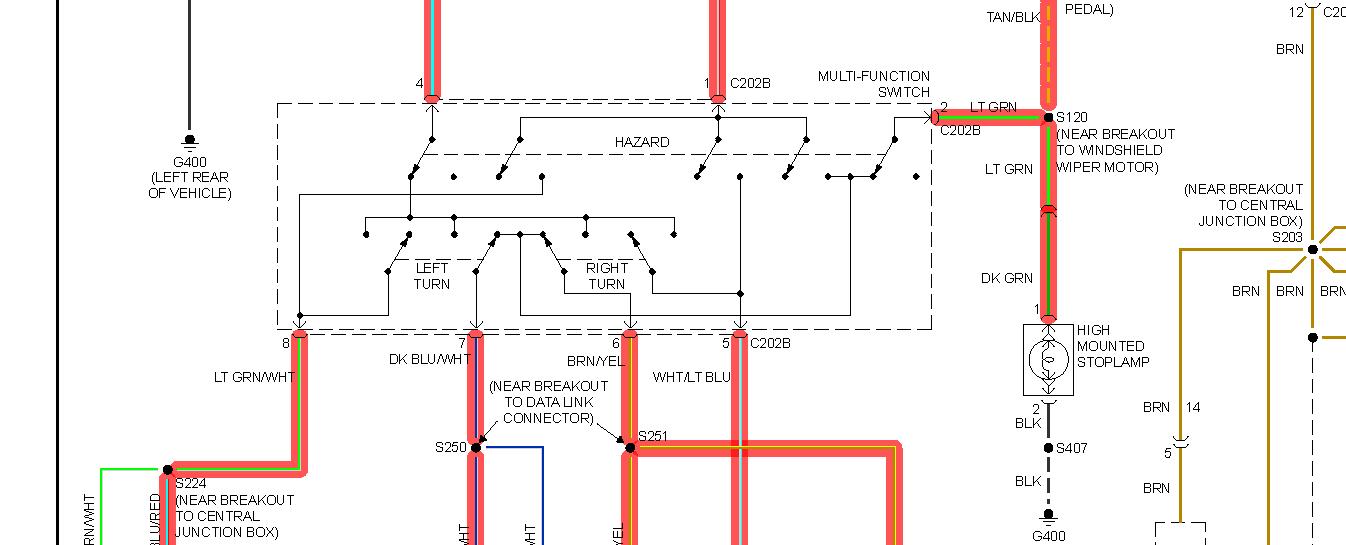

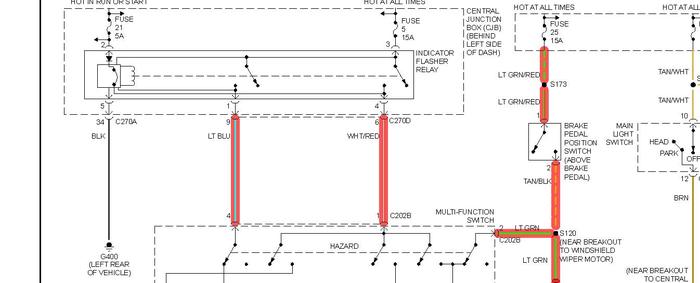

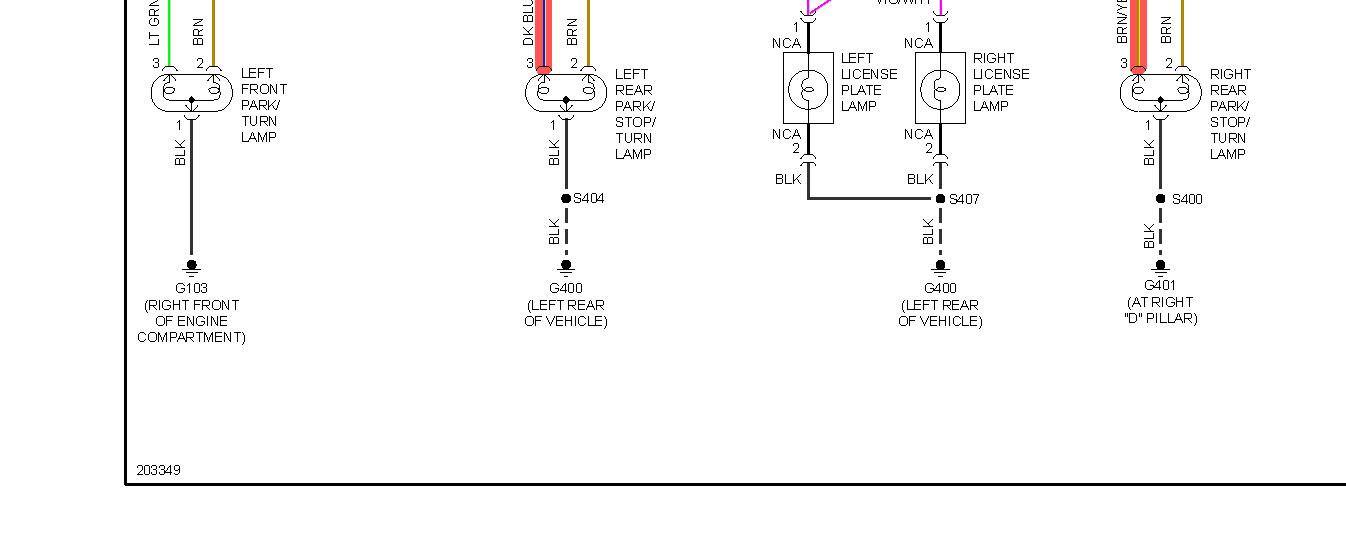

Check this fuses no.21 and 5 in central junction box, if both okay your problem is either the flasher relay or the multifunction switch-see EWD below Also this guide can help

https://www.2carpros.com/articles/brake-lights-not-working

Check out the diagrams (Below). Please let us know what you find. We are interested to see what it is.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Oct 28, 2012 at 6:30 AM
