drain plug or fill plug

2005 FORD FIVE HUNDRED

100,000 MILES

GAREY

MEMBER
1 POST
FOLLOW

Don,t see drain plug or fill plug on rear axle of my all wheel drive ford 500 they show no information in the owners Manuel of this vehicle i looked at the rear end and all bolts look the same normally the drain plug is bigger also the fill hole is a bigger bolt than the other bolts on the differential

Oct 12, 2013 at 9:20 AM

STRAILER

CERTIFIED EXPERT
53,854 POSTS

Hello,

This car is a little different there is a guide below with diagrams for how it needs to be done on you car.

Here is a guide that will help you.

https://www.2carpros.com/articles/differential-gear-oil-fluid-check

you will need to raise the car up

https://www.2carpros.com/articles/jack-up-and-lift-your-car-safely

Please let us know happens so it will help others.

Best, Ken

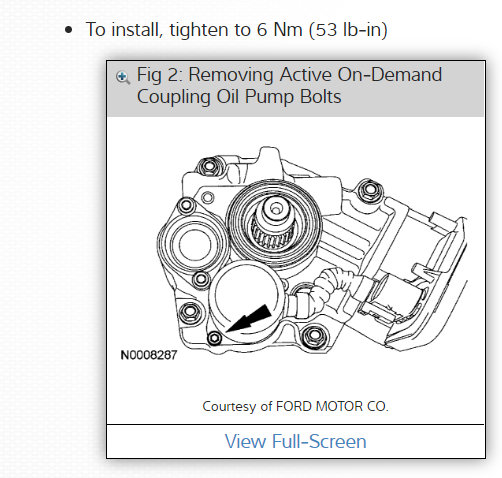

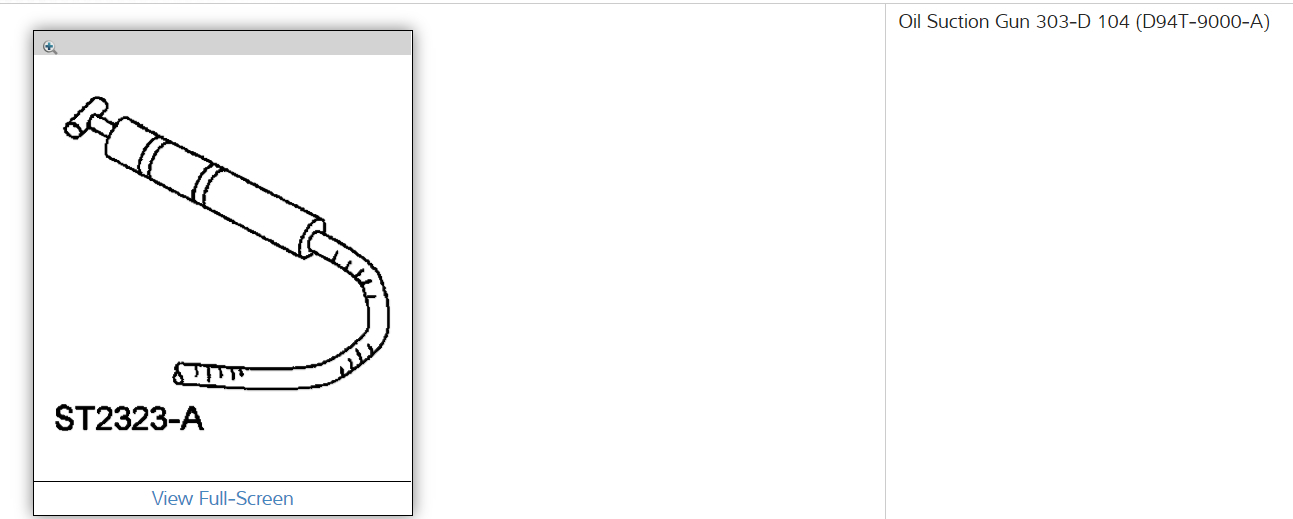

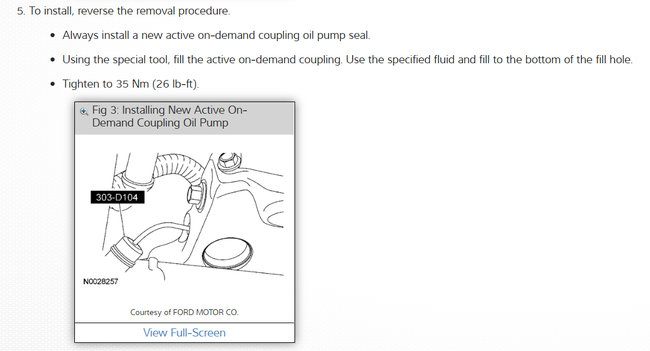

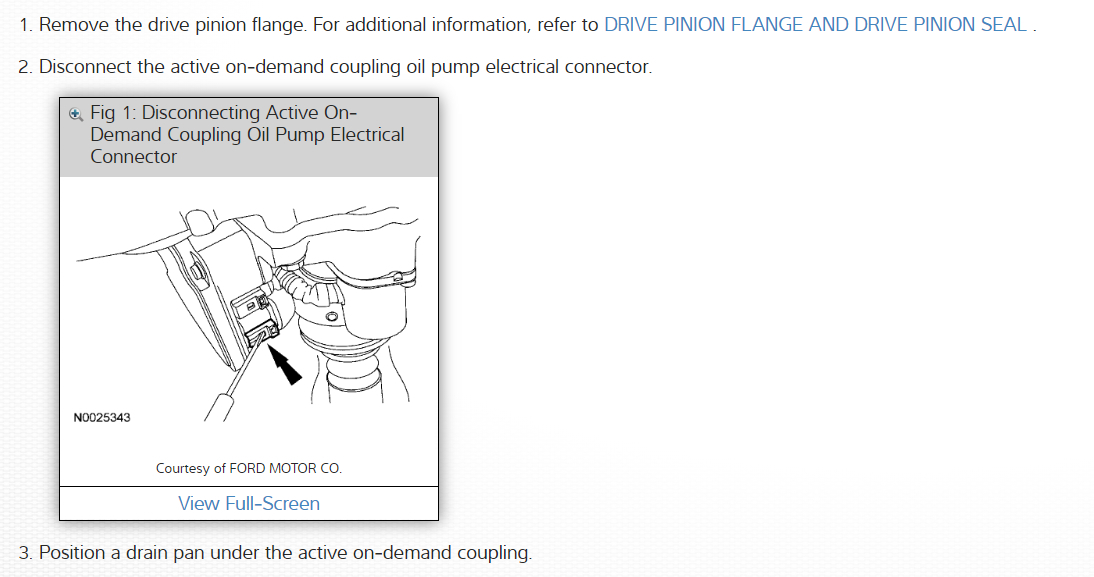

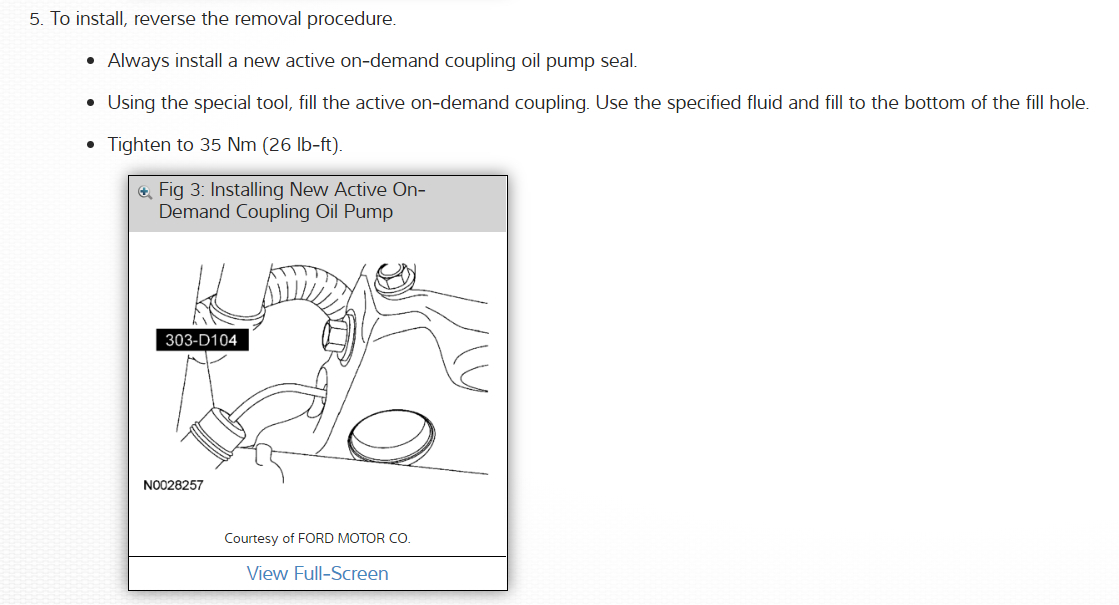

Images (Click to enlarge)

Feb 15, 2017 at 3:39 PM
