2005 Town and Country P0039...killing me

2005 CHRYSLER TOWN AND COUNTRY
110,000 MILES • 6 CYL • 2WD • AUTOMATIC
Avatar
ANDREWMILICH
  • MEMBER
  • 3 POSTS
I have a 2005 Town and Country Chrysler..error code p0039 Here is what I have done so far to clear it

Replaced the 02 up stream sensor (OEM)
Replaced the PCM (dealer said it was bad...hard to believe since the I did replace it and flashed it to latest software...light still on)
Check for shorted wires...fixed a couple
Changed the fuel pump (still has a little hesitation when accelerating)
Checked for vacuum leak..none
checked spark plugs...fine

I am at a lose....please help

whats next...beside running it into a pole
Aug 19, 2011 at 12:40 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS

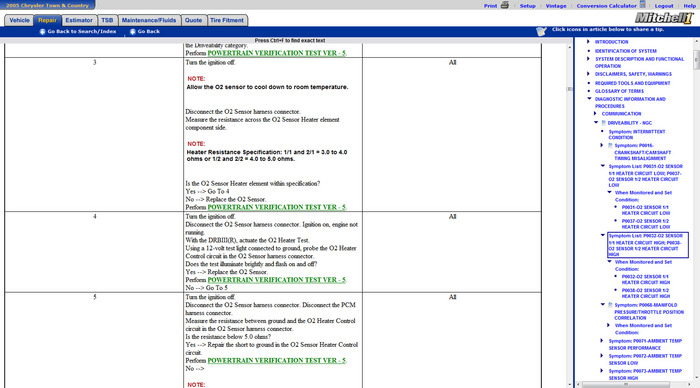

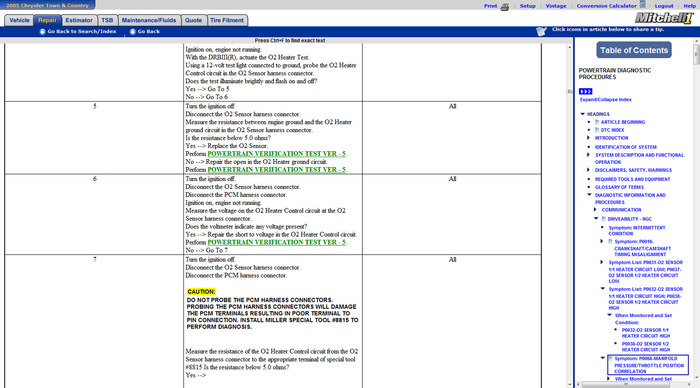

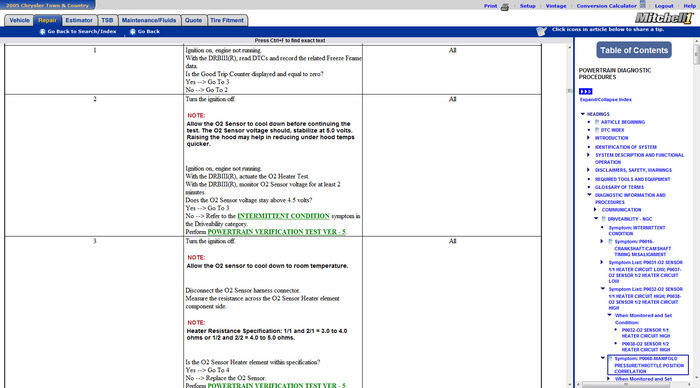

there is no code 39 in our manual but there is a 38 i'm sending instructions on how to test the system by hand. hope they come outok.
Images (Click to enlarge)
Attached Media
Attached Media
Aug 19, 2011 at 1:21 AM
Avatar
ANDREWMILICH
  • MEMBER
  • 3 POSTS
I meant P0032 sorry> the deal gave me the above info also...have read the ohms and watt ratings...nothing solved...could it be a vacuum leak....and how can I test again.from home
Aug 19, 2011 at 1:30 AM
Advertisement
Avatar
HMAC300
  • CERTIFIED EXPERT
  • 48,601 POSTS
this is about the only thing you can do at home is to check resistance of O2 sensor. otherwise you need a pro type scanner to do the correct thing. with this problem this vehicle shold be road tested with the scanner attached to try to find the cause of the problem. you could check ohms between connections to see if something is bad and look for bare wires as well. Also clean your ground battery to engine, battery to body and pcm to ground.the grounds for the O2 sensors are near the top of starter and around starter. clean those as they may be corroded and not getting good ground.
Image (Click to enlarge)
Attached Media
Aug 19, 2011 at 1:35 PM
