blower resistor location

2005 CHRYSLER PT CRUISER
56,000 MILES
Avatar
ANONYMOUS
  • MEMBER
  • 1 POST
I replaced the a/c blower fan, I cannot find the location of the resistor?
Jan 8, 2013 at 10:31 PM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS

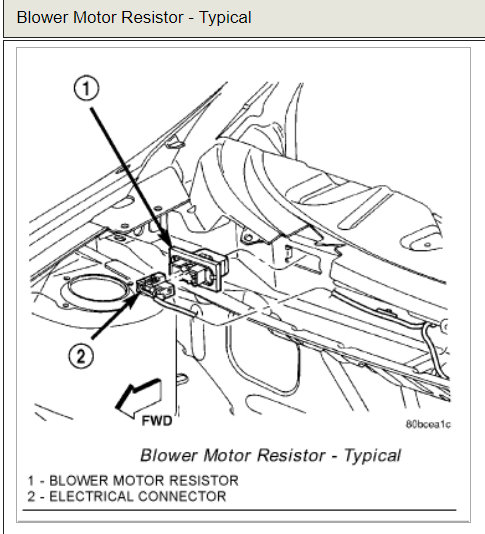

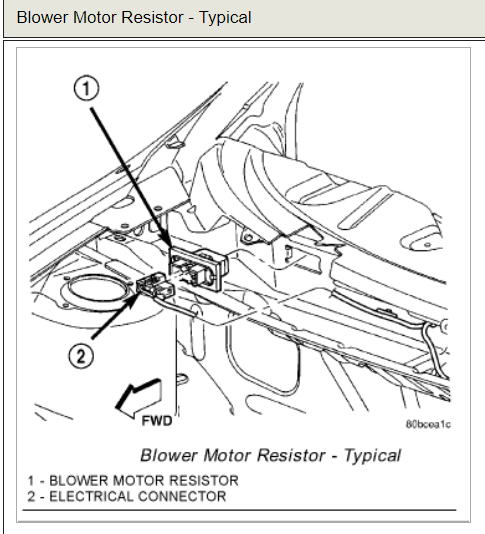

The blower motor resistor block is on right side of firewall, below base of windshield.

Check out the diagrams (Below)

Please let us know if you need anything else to get the problem fixed.

Cheers
Images (Click to enlarge)
Attached Media
Attached Media
Jan 8, 2013 at 10:53 PM
