2005 Chrysler Pacifica Can You Tell Me Where the Heater Mode Door Actuator Is on a 2005

2005 CHRYSLER PACIFICA

80 MILES

DOUG.O

MEMBER
2 POSTS
FOLLOW

Can you tell me where the heater mode door actuator is on a 2005 Chrysler pacifica. I've look under the dash on the drivers side insterment panel and can't find it.

Thank you Doug

Nov 16, 2012 at 6:53 PM

STRAILER

CERTIFIED EXPERT
53,855 POSTS

Hello,

Here is a guide to show you what you are in for when doing the job and the diagrams for your car below:

https://www.2carpros.com/articles/replace-blend-door-motor

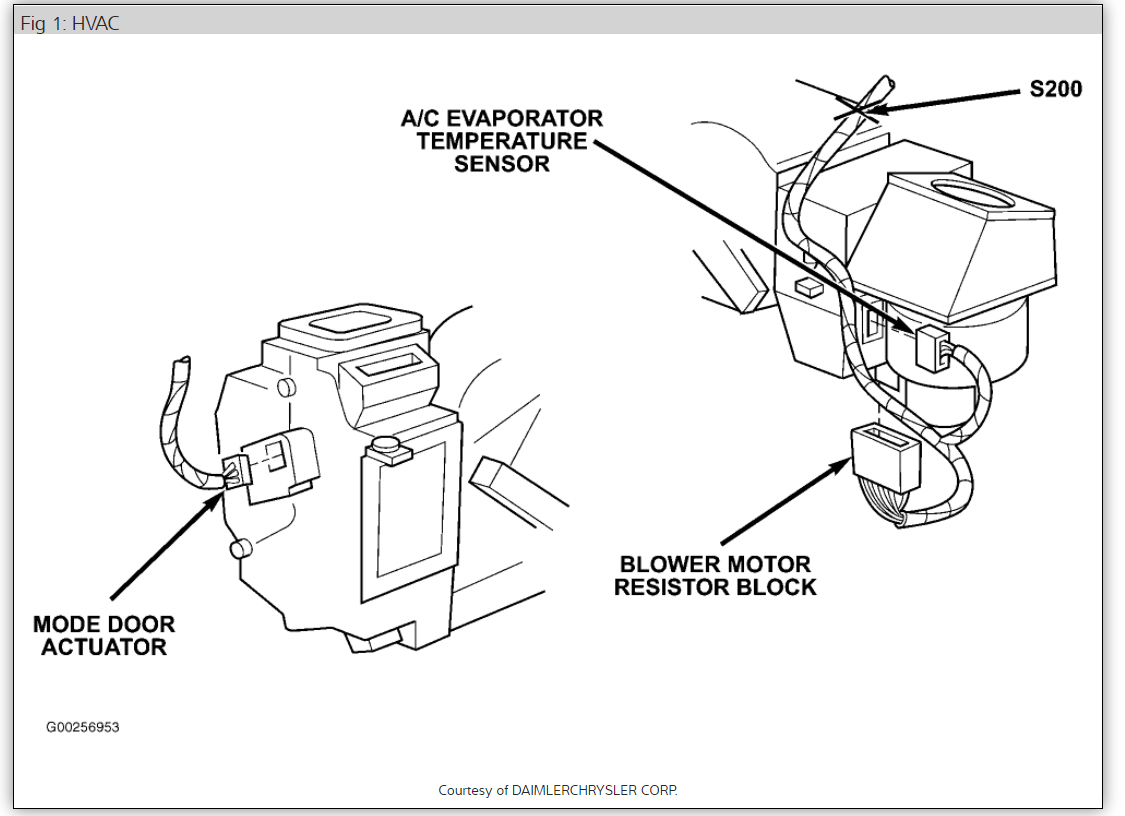

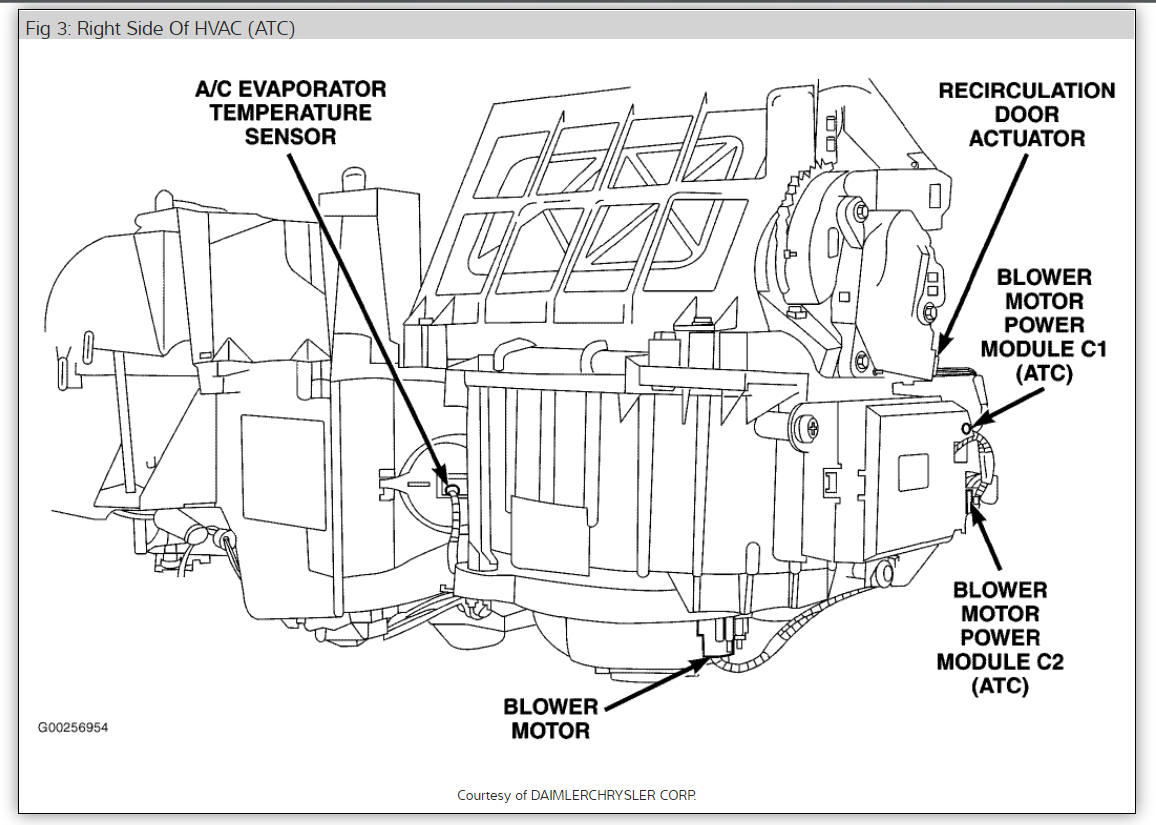

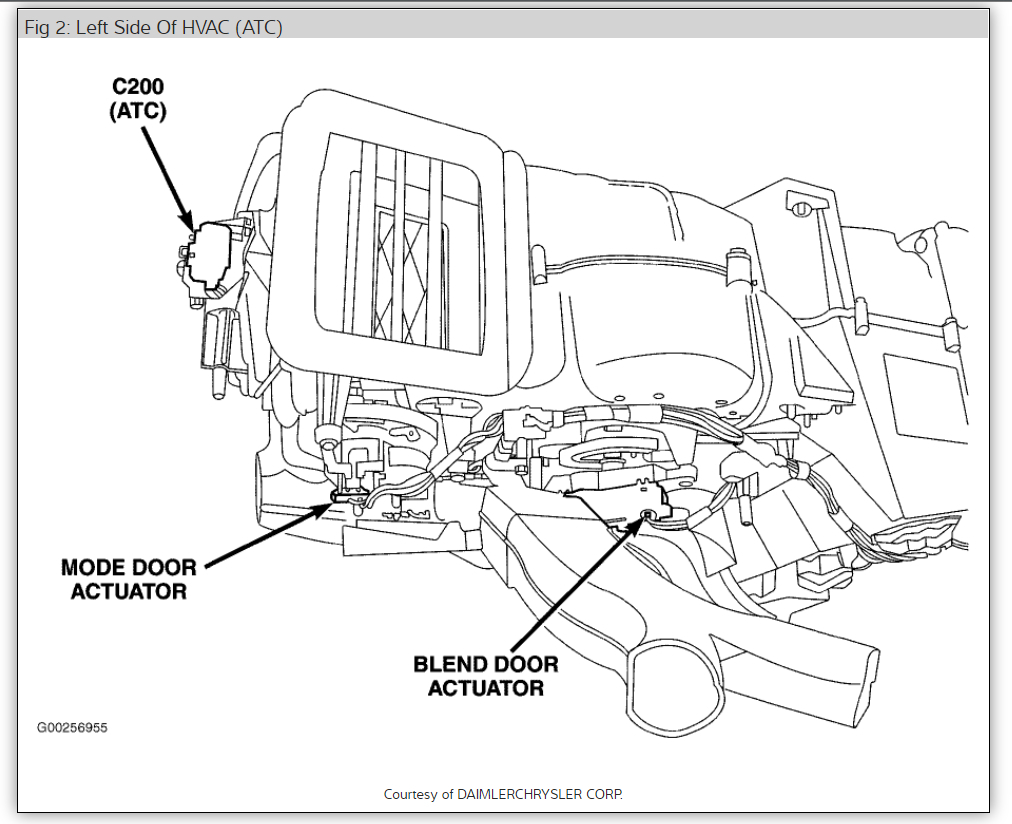

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.

Cheers, Ken

Images (Click to enlarge)

Jun 9, 2018 at 10:43 AM

ERNIE SHORES

MEMBER
2 POSTS

2007 Chrysler Pacifica. Where is the blend door located?

Feb 5, 2022 at 1:22 PM

SQM

CERTIFIED EXPERT
6,383 POSTS

Hello,

This vehicle has two blend door actuators (for dual zone HVAC). One for the driver side and the other for the passenger side.

They are located on the HVAC box; you can access them from under the driver side dash by removing the silencer.

https://www.2carpros.com/articles/replace-blend-door-motor

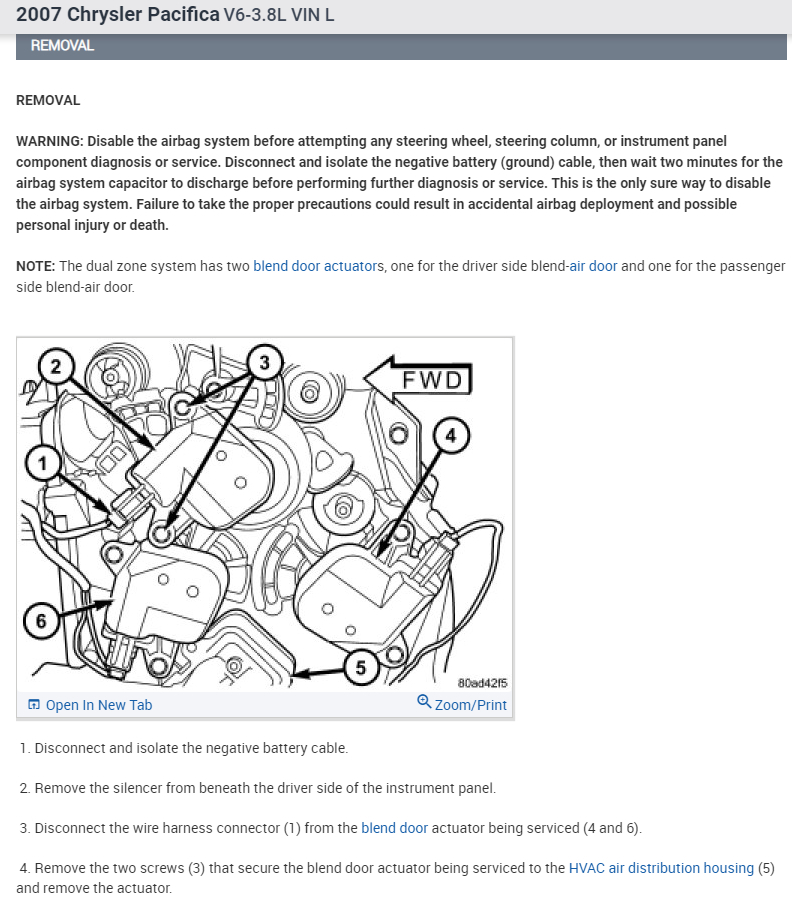

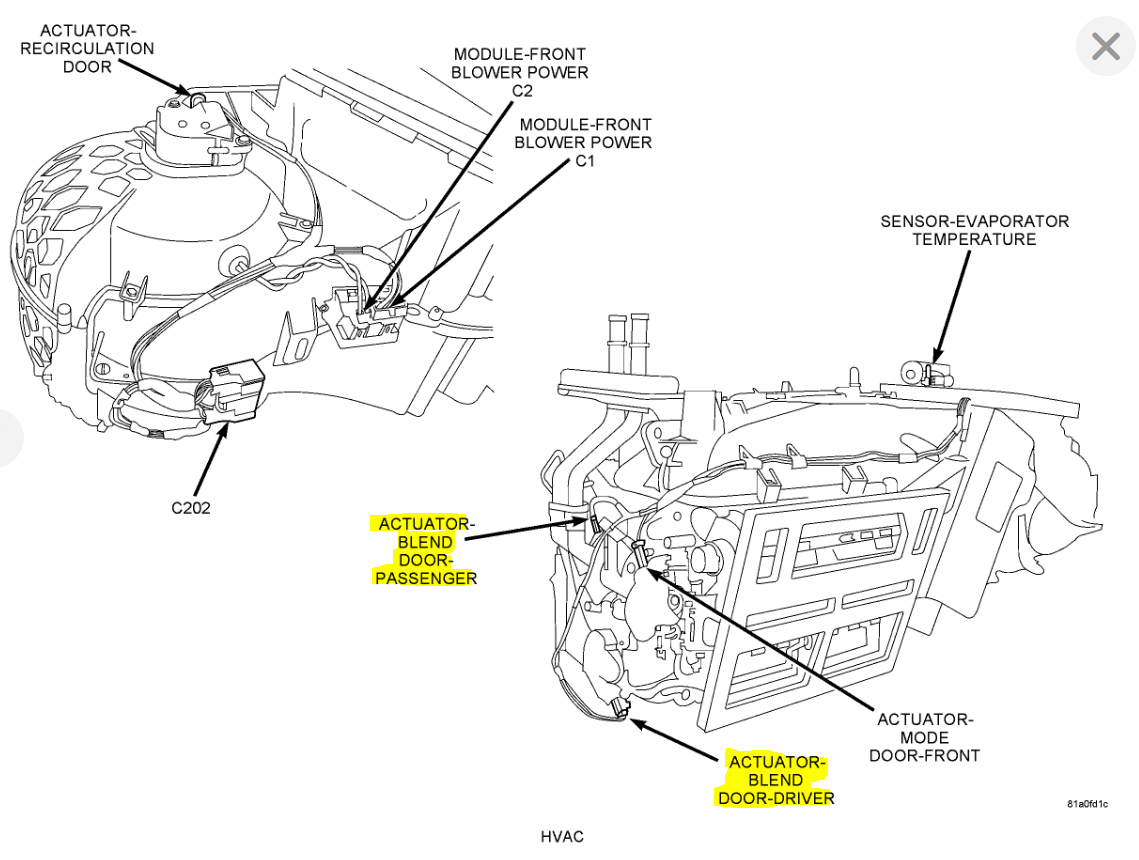

I have attached the diagrams below.

Please let me know if you have any questions.
Thank you.

Images (Click to enlarge)

Feb 5, 2022 at 9:13 PM

ERNIE SHORES

MEMBER
2 POSTS

Thanks, helped.
