I can't find the location of the crankshaft position sensor?

2005 CHEVROLET VENTURE
6 CYL • FWD • AUTOMATIC
Avatar
HOLLYMICHELLE
  • MEMBER
  • 1 POST
Service Engine light came on so I stopped by Oreilly's and had it tested. The codes both came back as the camshaft and crankshaft sensors. I did tons of googling and looking under the hood. I can't find the location of the crankshaft position sensor anywhere. Can someone tell me where it would be in a 2005 Chevrolet Venture please.
Thanks.
Jan 23, 2015 at 11:17 AM
Advertisement
Avatar
OBXAUTOMEDIC
  • CERTIFIED EXPERT
  • 3,711 POSTS
Hello,

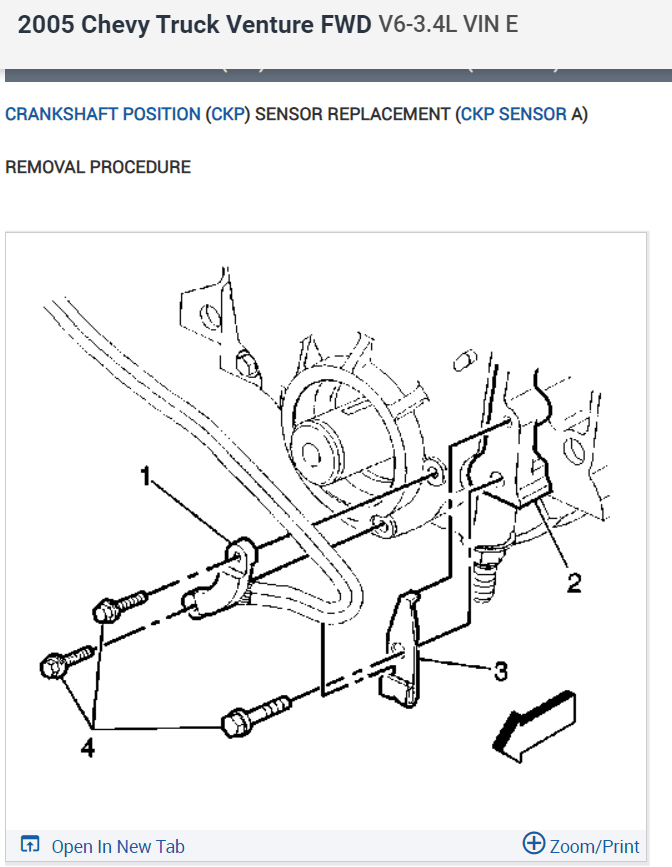

OK, looks like there may be 2 of them. Here is a diagram of were they are. The one on front of motor is located behind the Crank Pulley.

Image (Click to enlarge)
Attached Media
Jan 23, 2015 at 11:52 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS

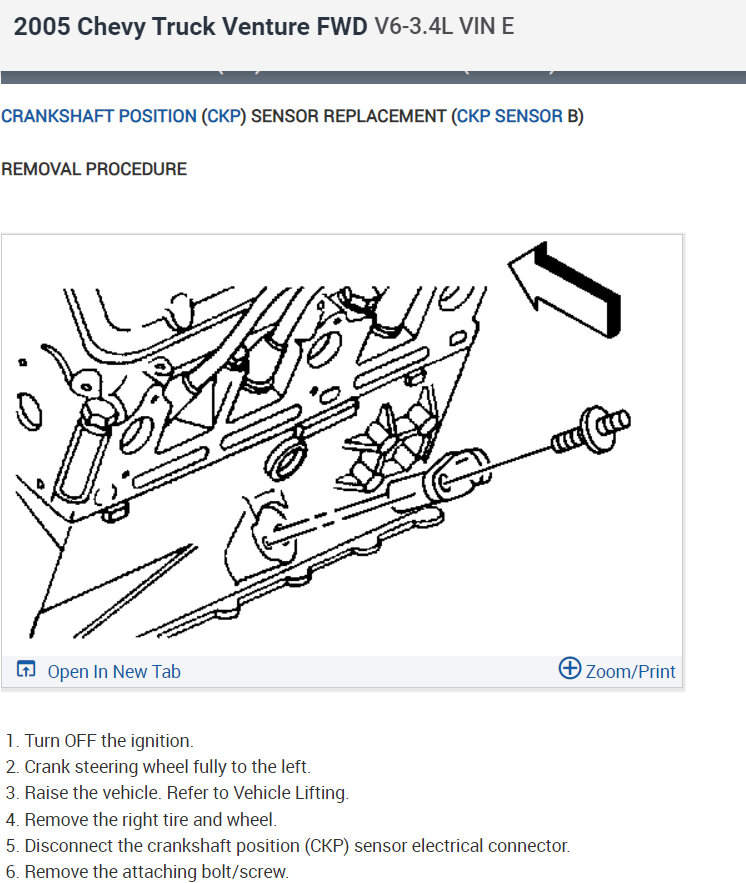

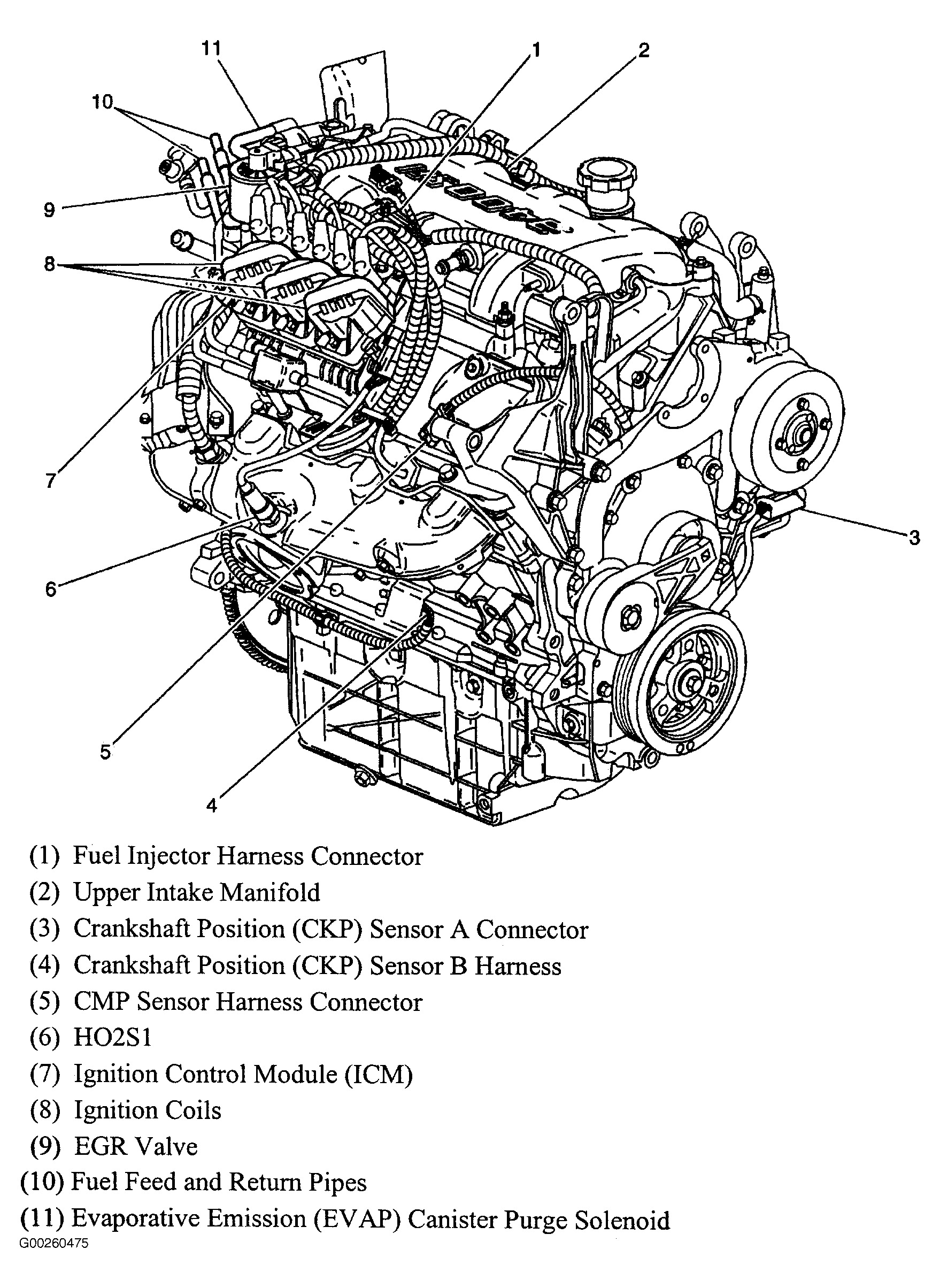

I agree with OBXAUTOMEDIC, there are two of them, here are the locations. Check out the images (below). Let us know if you need anything else.
Images (Click to enlarge)
Attached Media
Attached Media
Sep 27, 2024 at 1:59 PM
