power windows

2005 CHEVROLET MALIBU
Avatar
JOECINOHIO
  • MEMBER
  • 1 POST
Ssix cylinder front wheel drive automatic 75,000 miles.

Main/driver side power window switch no longer working. Only front passenger power window works; the other three power windows do not work. Started a month or so ago, where I could only put the windows up and down periodically. For example, would have to play with the switch (five buttons four windows and child lock) in the drivers side front (up, down, etc.), sometimes for twenty to thirty minutes. Finally, it would catch and I could then power up/down all four windows from the front driver side. The issue got progressively worse, taking a half-day or so, before it would catch and I could use the windows. Now, the only power window I can use is the front passenger, and only when using the switch on the front passenger door. No other windows or power window switches, apart from the front passenger, is working. I thought it might be the main power window switch (five-button part), so I bought a used one on E-Bay Motors. I put the switch in, but still does not work. I am not much of a mechanic, so I do not know how to test the replacement power window switch that I purchased. I was thinking that maybe that is still my problem and that I should bite the bullet and buy a new one, but do not want to do so if that is not really my problem? Any advise would be greatly appreciated.
Jul 20, 2010 at 7:49 PM
Advertisement
Avatar
CADIEMAN
  • CERTIFIED EXPERT
  • 3,544 POSTS
It sounds like you have a power wire issue. Buy a test light for quick voltage checks. it is either a bad switch or motor.test for power to the master switch then go up and down on the switch buttons. You should have power on each button going up and down testing the wires.remove the other switches they should have power and power going up and down also. an easy test for a bad motor is to hold the window switch to go down and bang on the panel with your hand. a bad motor will start working.

Here are guides and a wiring diagram to help you do some testing.

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester

and

https://www.2carpros.com/articles/electric-window-repair

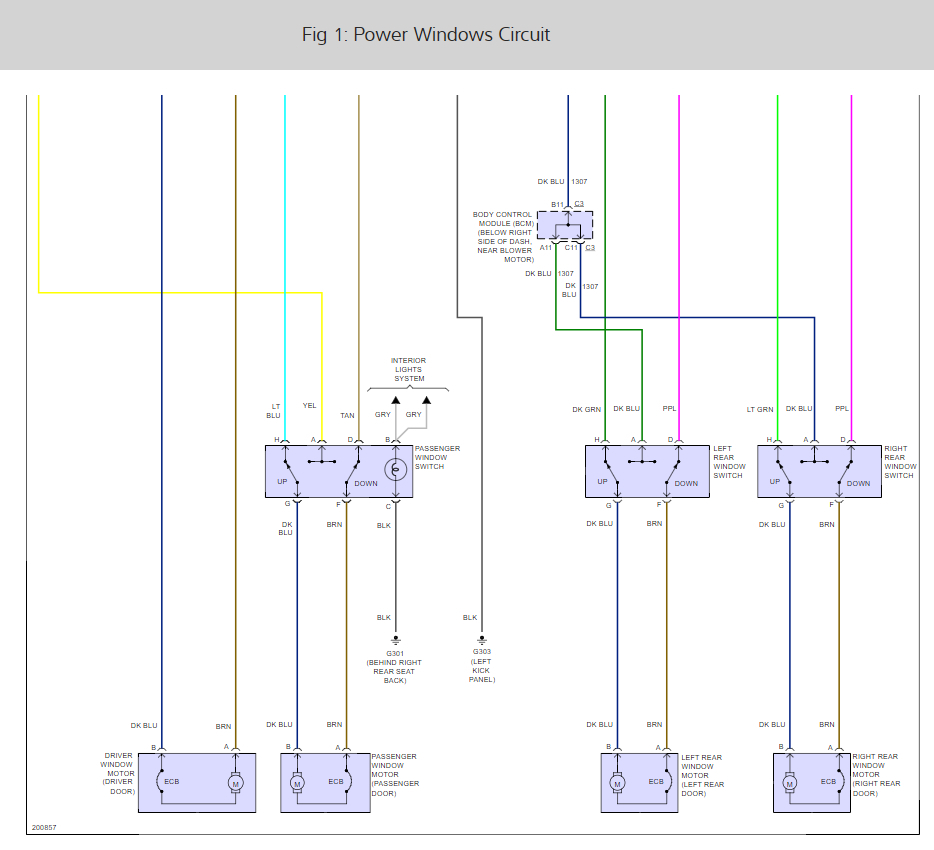

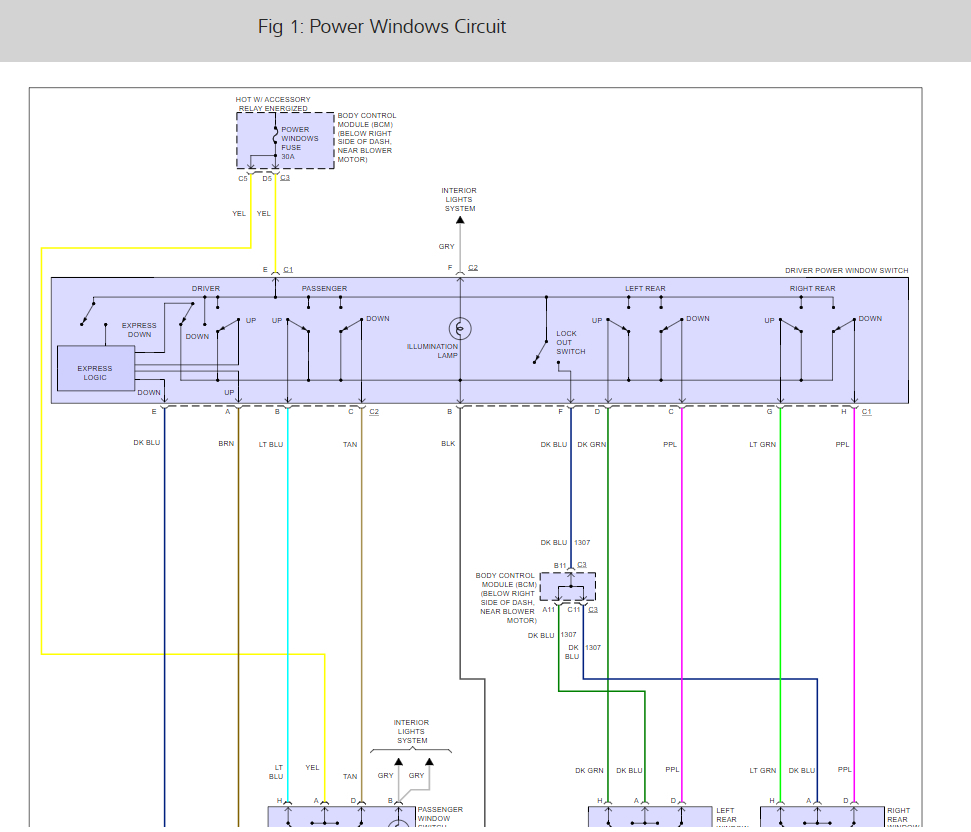

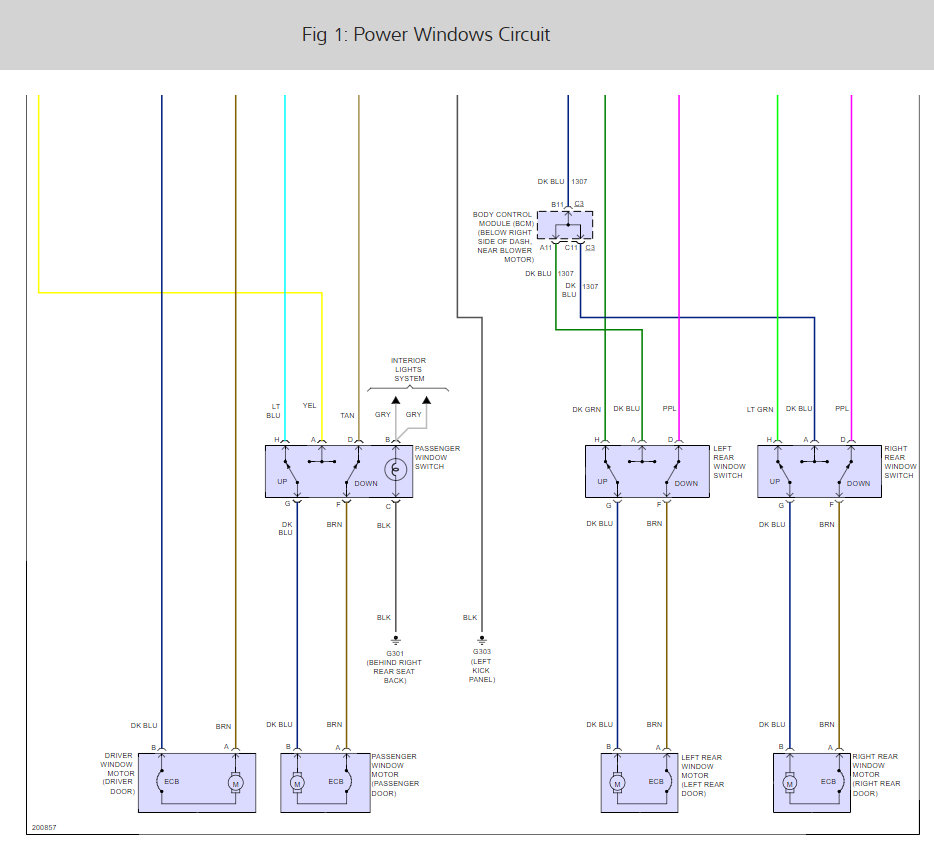

Check out the diagrams (Below)

Please let us know what you find. We are interested to see what it is.

Cheers
Feb 9, 2012 at 11:09 PM
Avatar
SPREADHEAD100
  • MEMBER
  • 2 POSTS
Out of curiosity as I have this same exact issue, how could a bad driver side motor affect the rear windows? Would not the power going through the motor be "passive" and carry on through the wiring to the rear windows?

My issue started shortly after my battery died and replaced it. That could not possibly have anything to do with it could it?
Feb 14, 2012 at 3:45 PM
Advertisement
Avatar
RIVERMIKERAT
  • CERTIFIED EXPERT
  • 6,110 POSTS

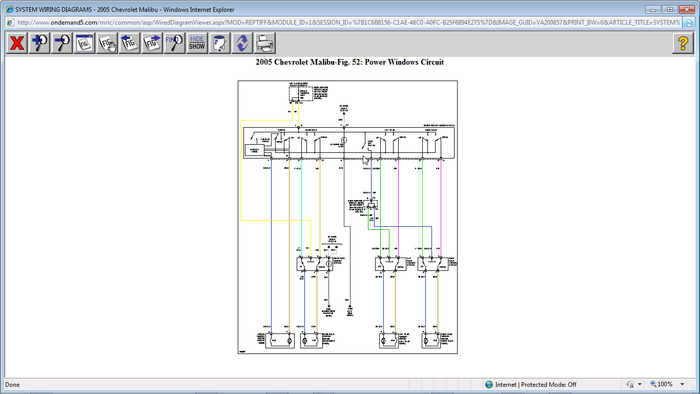

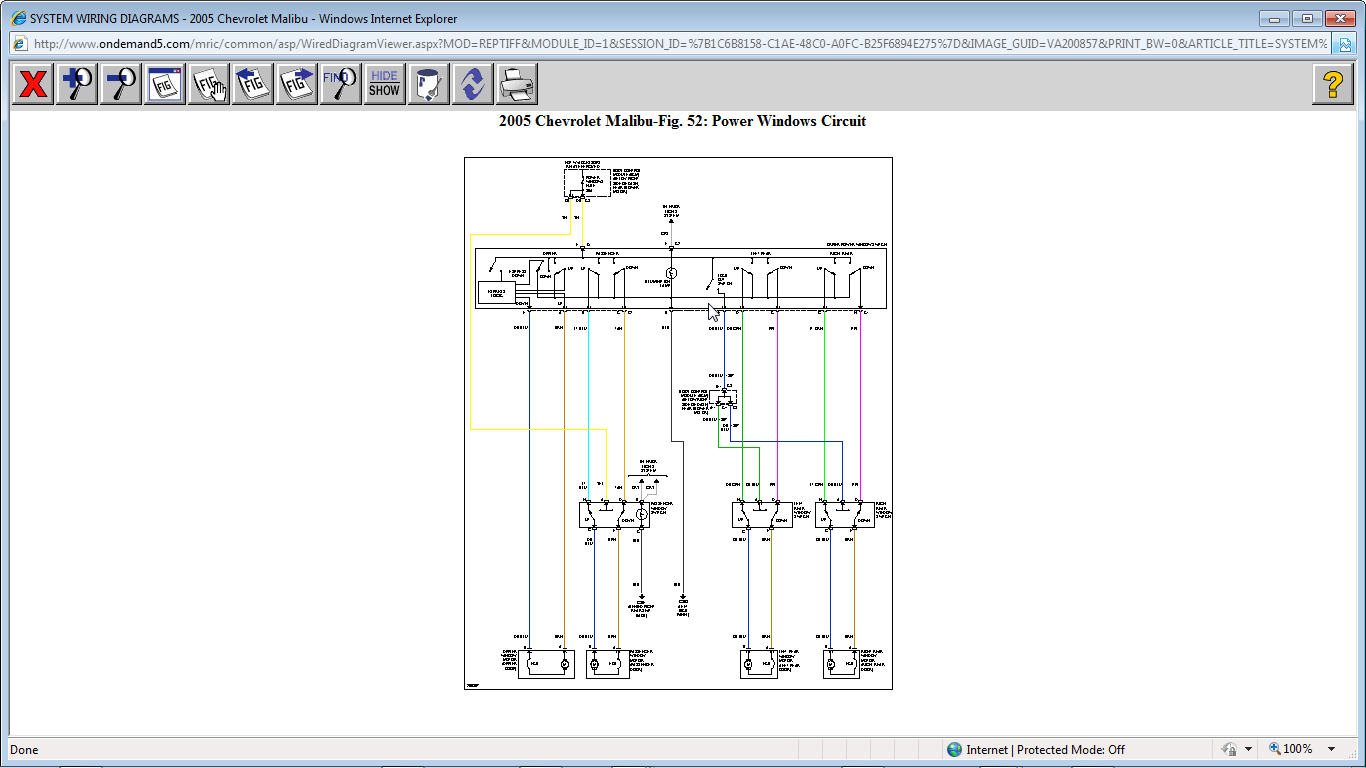

A schematic might help you diagnose this. Here you go.
Feb 16, 2012 at 2:13 AM
Avatar
CADIEMAN
  • CERTIFIED EXPERT
  • 3,544 POSTS
have you tried to check the motor by holding the switch to go down and bang on the panel?
Feb 16, 2012 at 4:05 AM
Avatar
SPREADHEAD100
  • MEMBER
  • 2 POSTS
Well, it is defintiely not the switch. I purchased a new one from Auto Zone, installed it, and nothing happened.

As far as the motor, I have held down the switch and banged on the door panel. However, nothing happened when I did that.
Feb 21, 2012 at 9:16 PM
Avatar
RIVERMIKERAT
  • CERTIFIED EXPERT
  • 6,110 POSTS
See if the motor is getting power when you click the switch. If not, trace the circuit out to see where power stops. Start at the switch, then go to the relay(s), and then the power source, etc.
Feb 21, 2012 at 10:10 PM
Avatar
GHOSTOPS
  • MEMBER
  • 1 POST
I had the exact problem same car. Main/driver side power window switch no longer working. Only front passenger power window works; the other three power windows do not work. I bought a new switch same thing long story short for me. Where the hinges are for opening /closing the driver side door there is a boot like thing that protects the wires, also where the wires pass through to the body into the car. I was not getting any power because the wire that need to supply power to the switch was pinch and cut in that area I mentioned. Fixed it all windows work great.
Apr 29, 2014 at 9:15 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,855 POSTS
Great addition to this thread! Please feel free to help out whenever you are on the site :)

Cheers, Ken
