Cigarette Lighter fuse location
2005 CHEVROLET EQUINOX
ANONYMOUS
MEMBER
1 POST
FOLLOW
Where is the fuse for the lighter located?
Mar 8, 2013 at 6:16 PM
Advertisement
STRAILER
CERTIFIED EXPERT
53,854 POSTS
Hello,

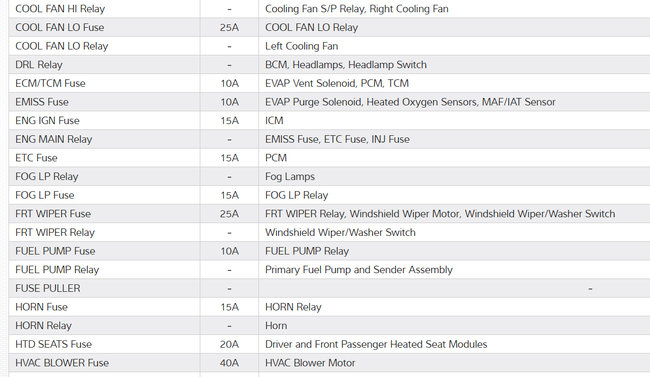

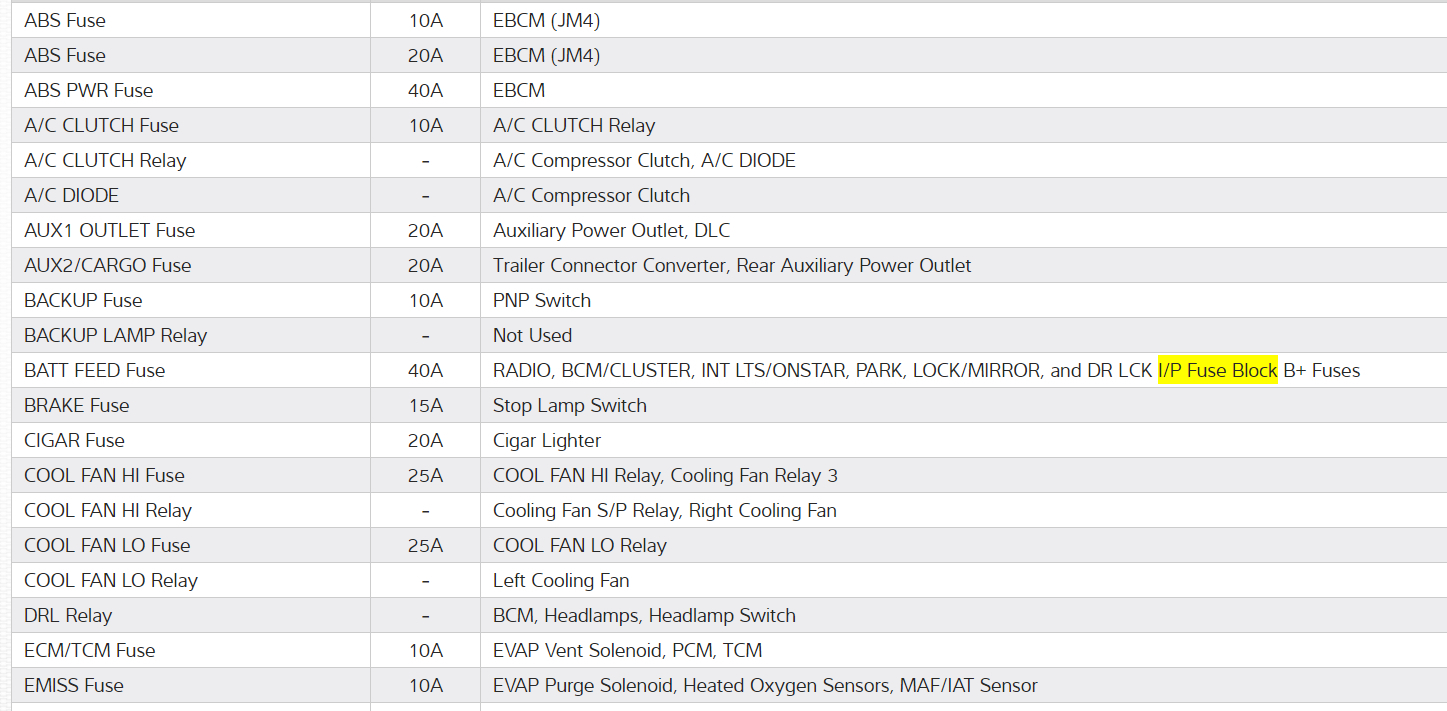

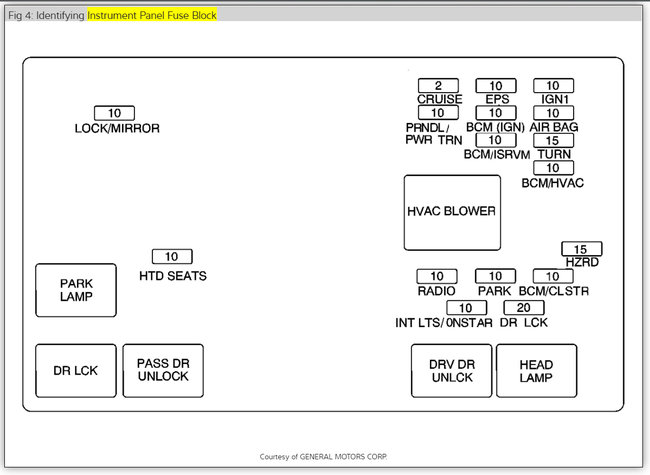

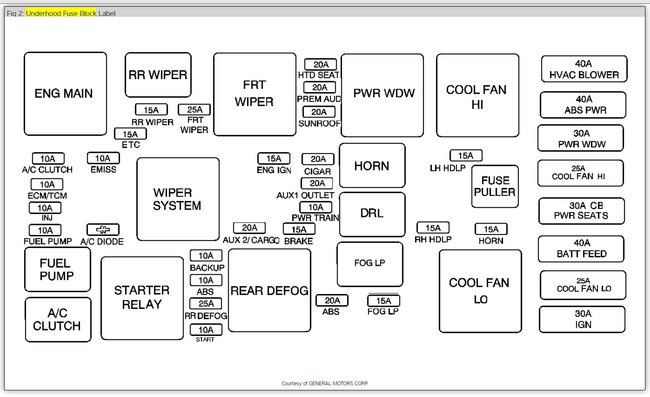

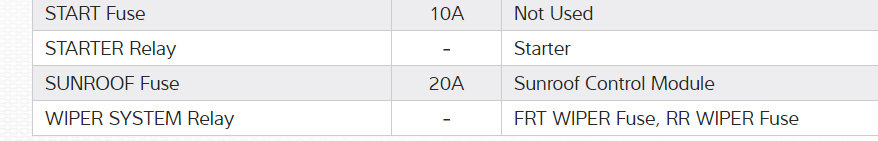

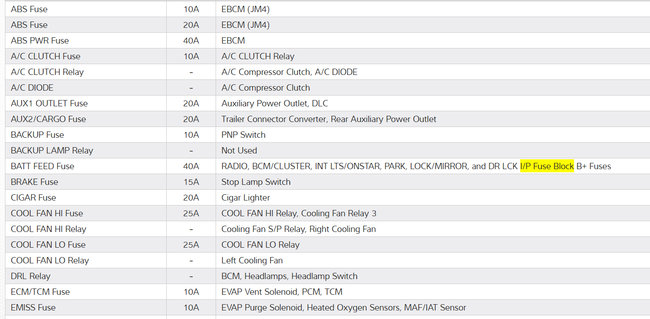

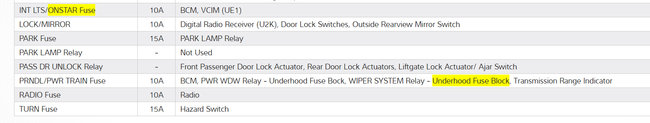

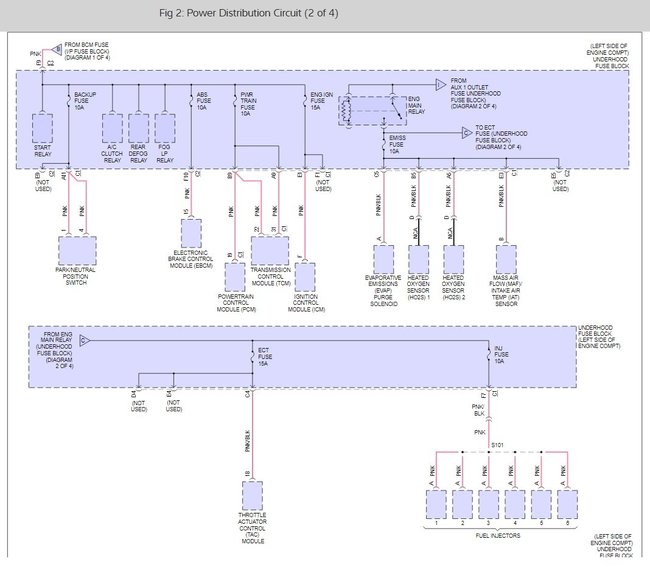

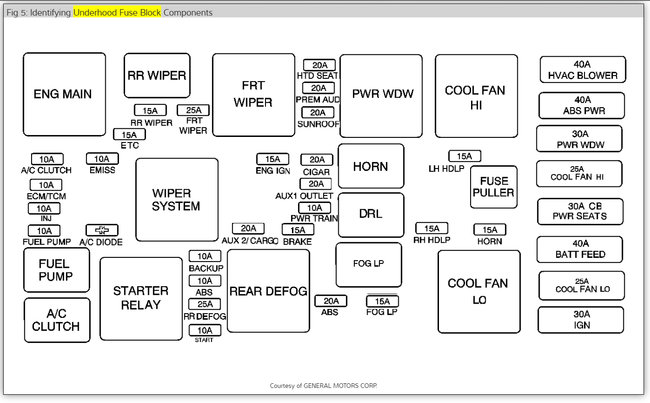

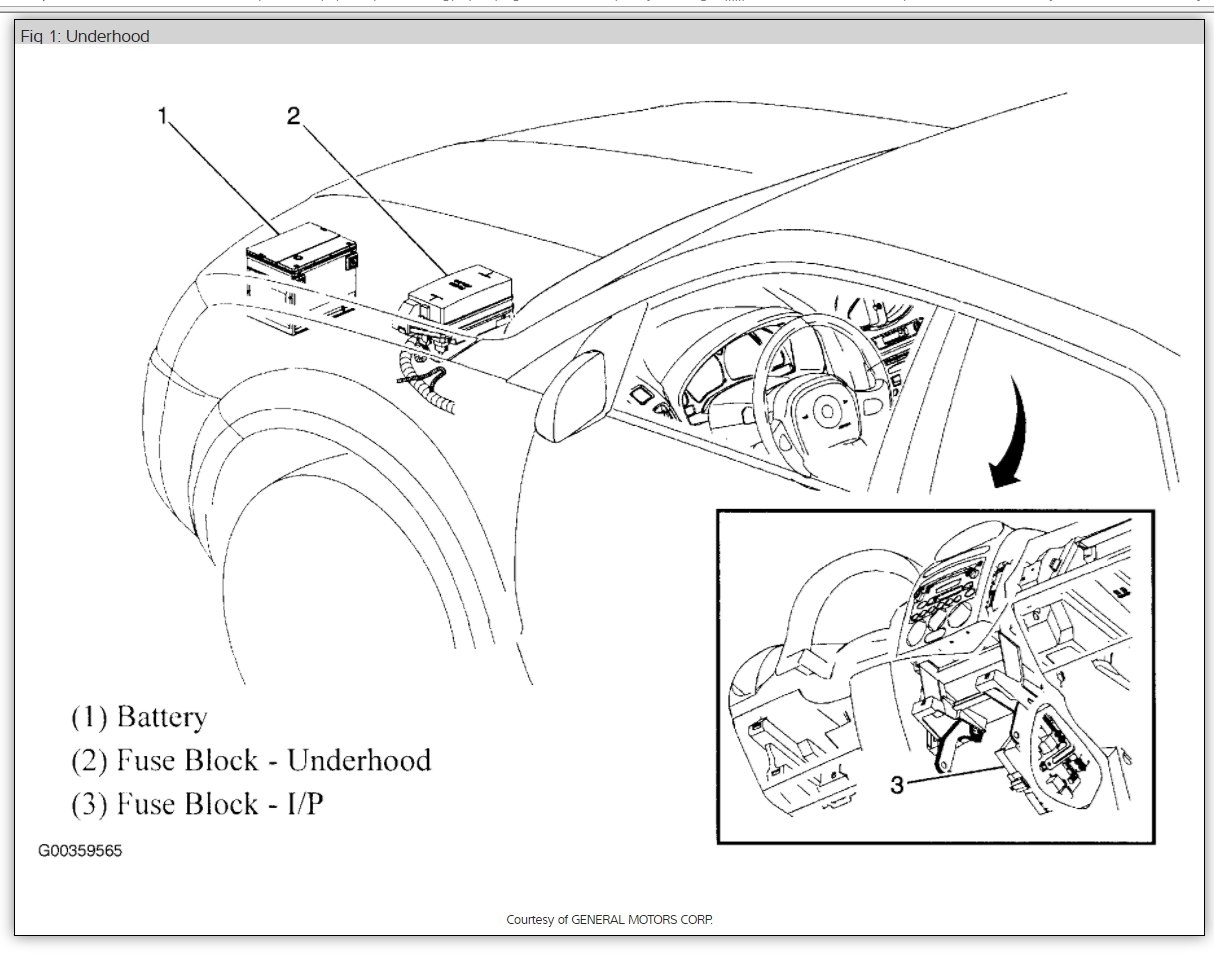

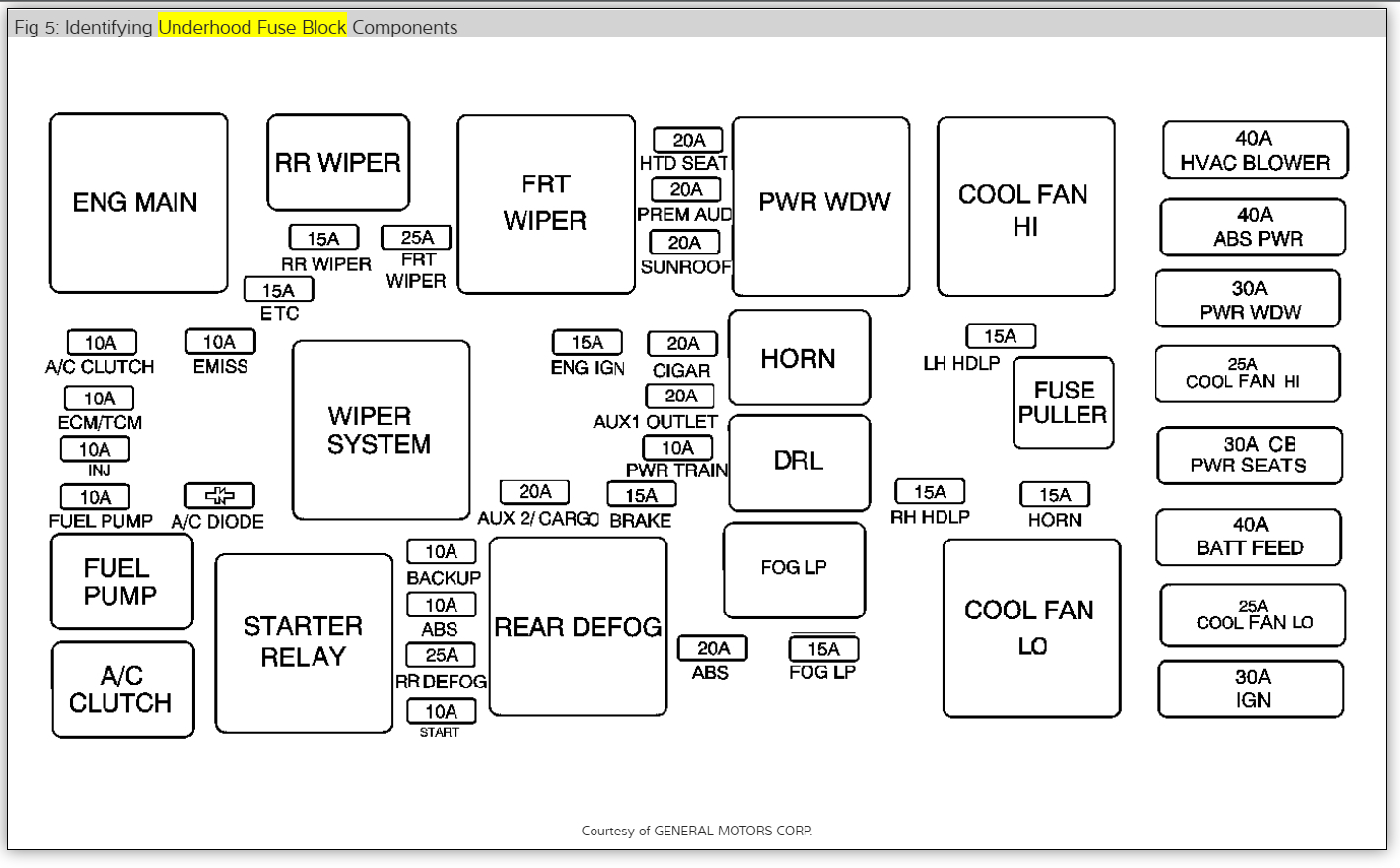

The fuse for the cigarette lighter is located in the fuse panel under the hood. Here is a guide to help you test the fuse once you find it from the diagrams below. CIGAR FUSE is the panel
https://www.2carpros.com/articles/how-to-check-a-car-fuse

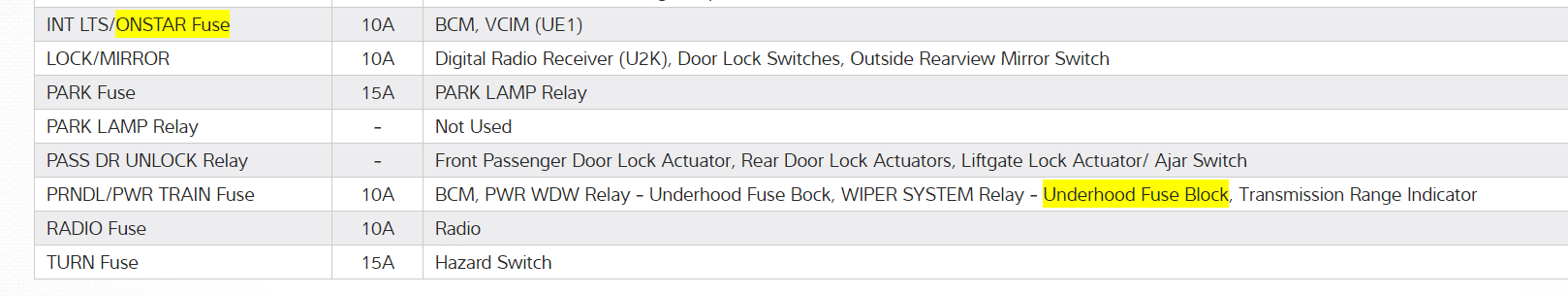

Check out the diagrams (Below) Please let us know if you need anything else to get the problem fixed.
Images (Click to enlarge)
Dec 24, 2017 at 1:08 PM
WALT WENIG
MEMBER
2 POSTS
no power to lighter do not know fuse where and number. do not see cigarette lighter on panel.
Dec 24, 2017 at 3:38 PM (Merged)
Advertisement
STRAILER
CERTIFIED EXPERT
53,854 POSTS
Hello,

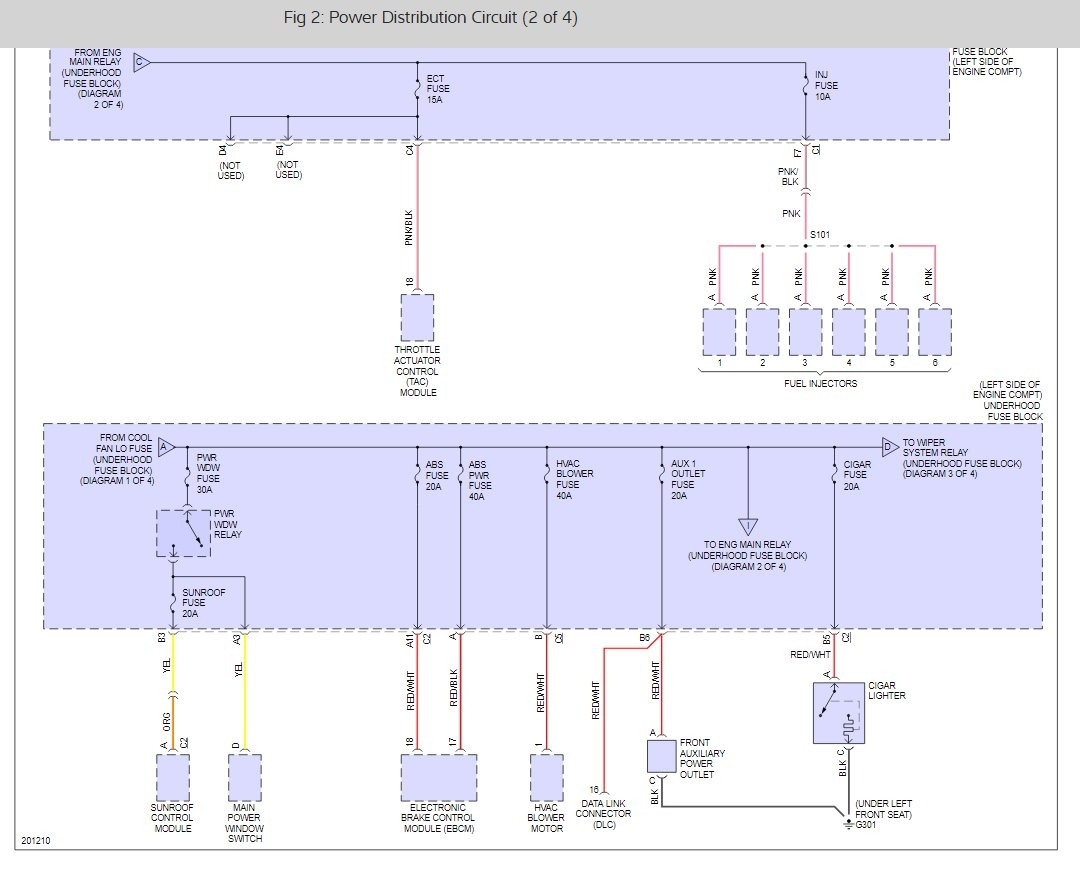

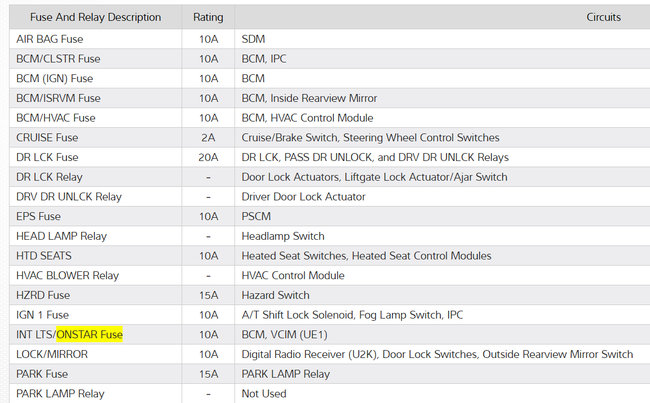

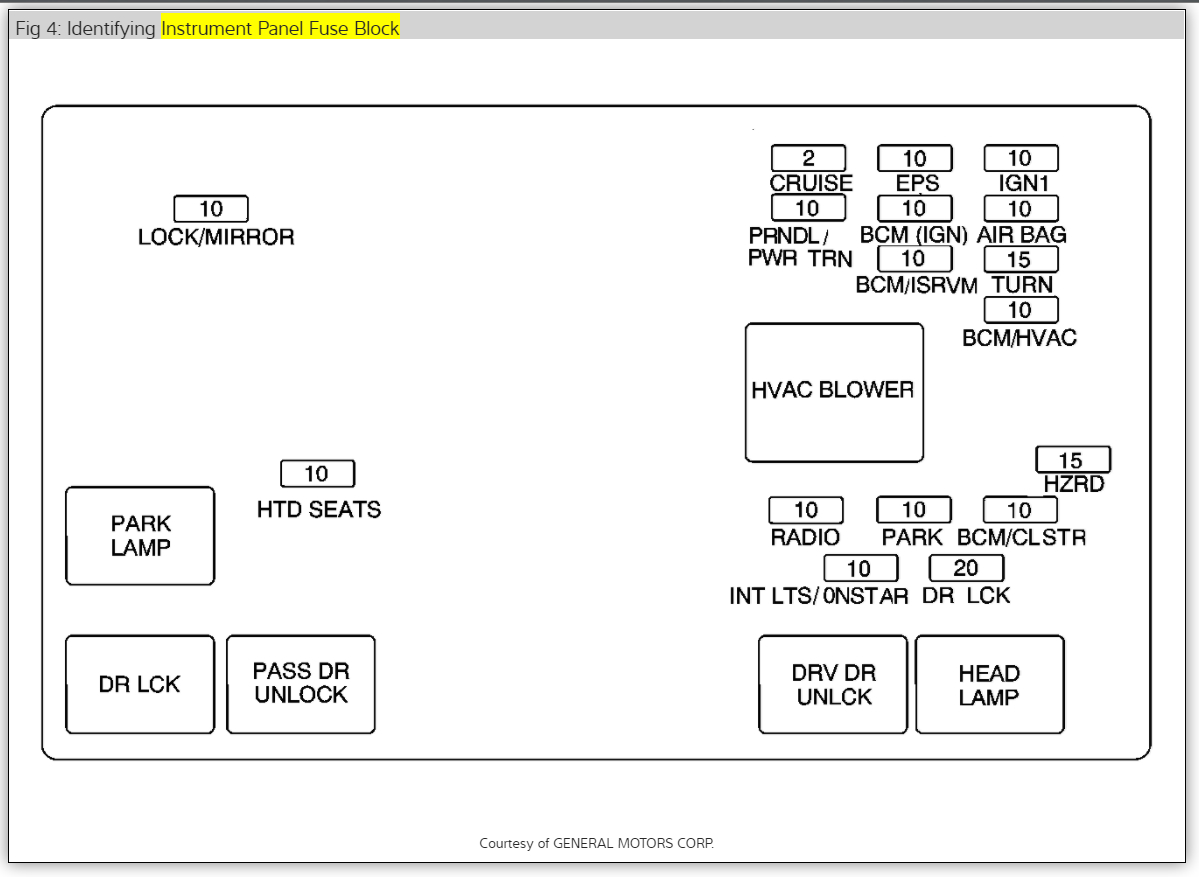

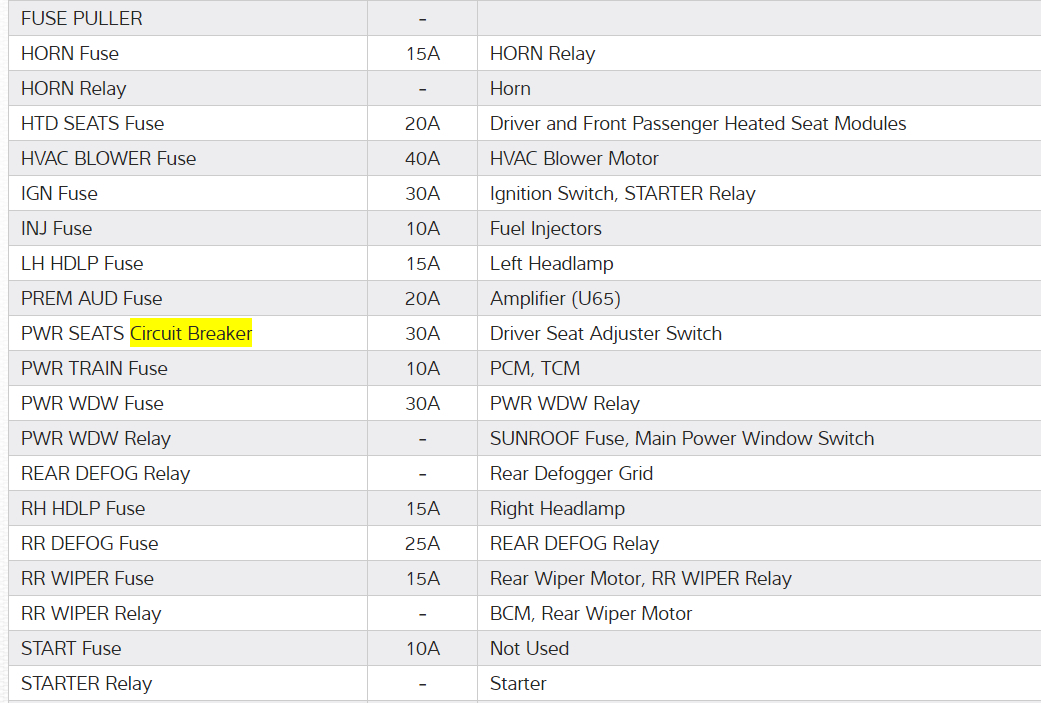

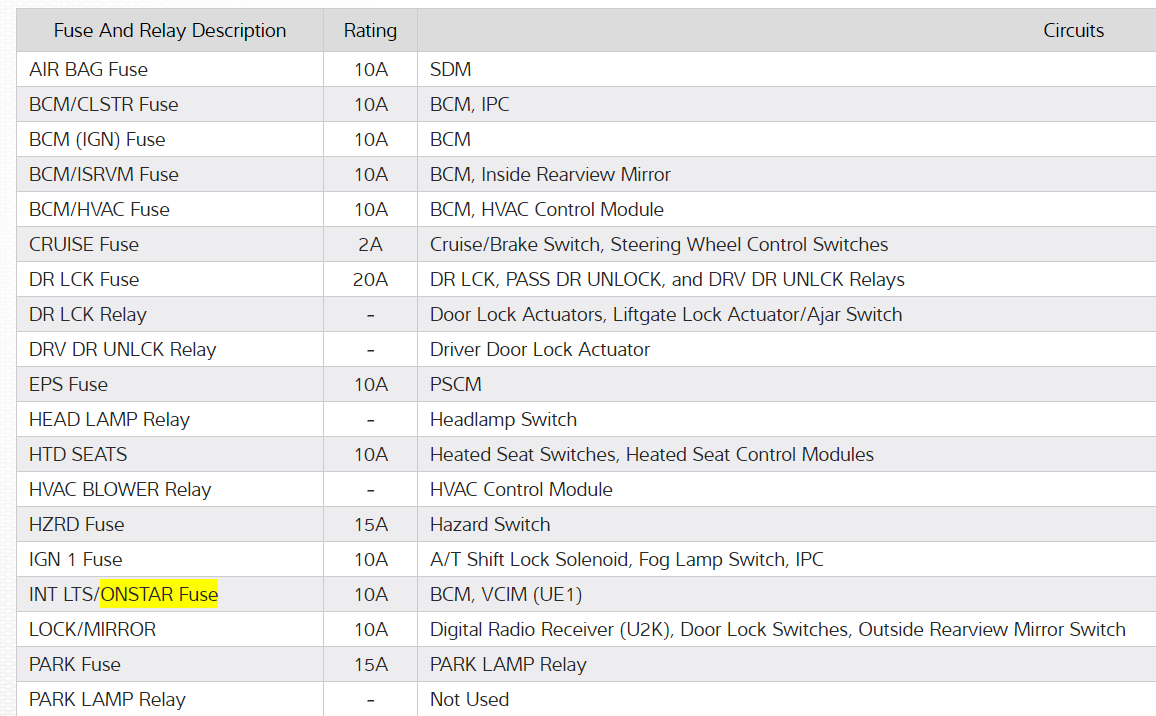

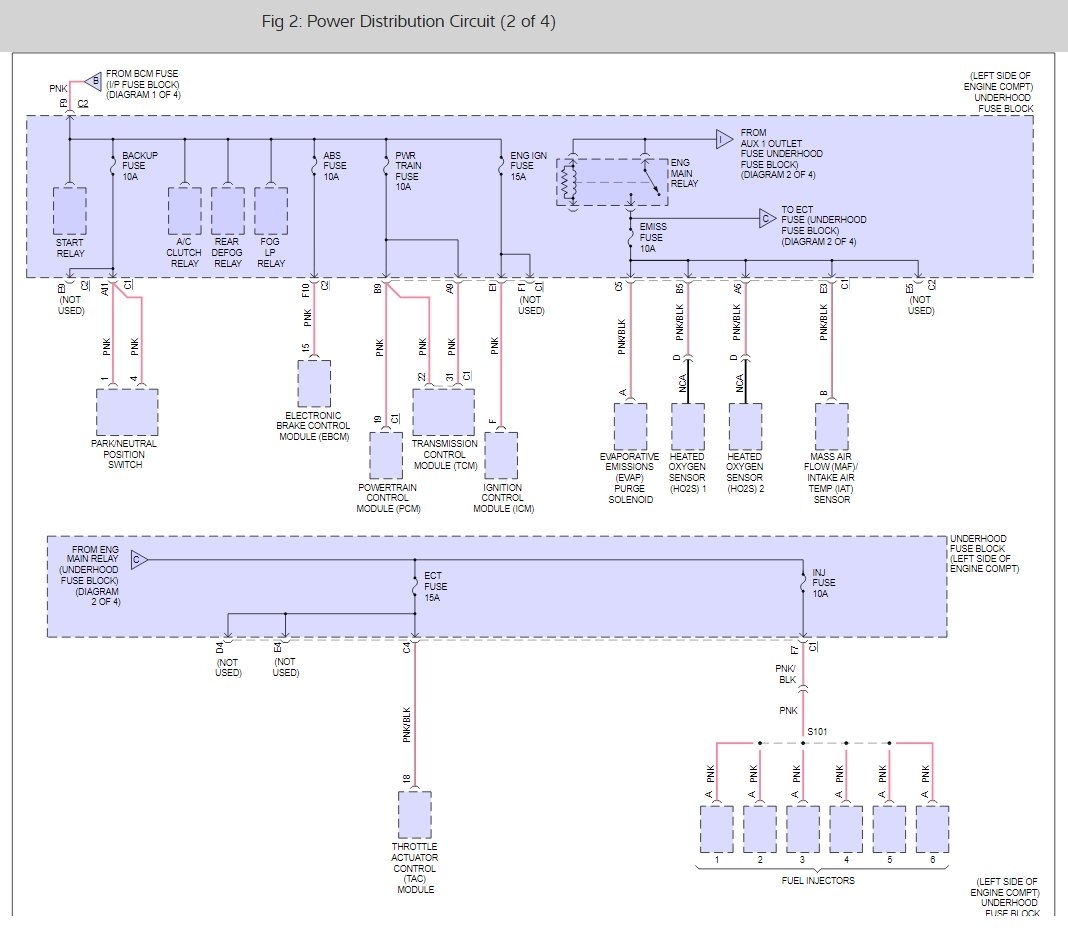

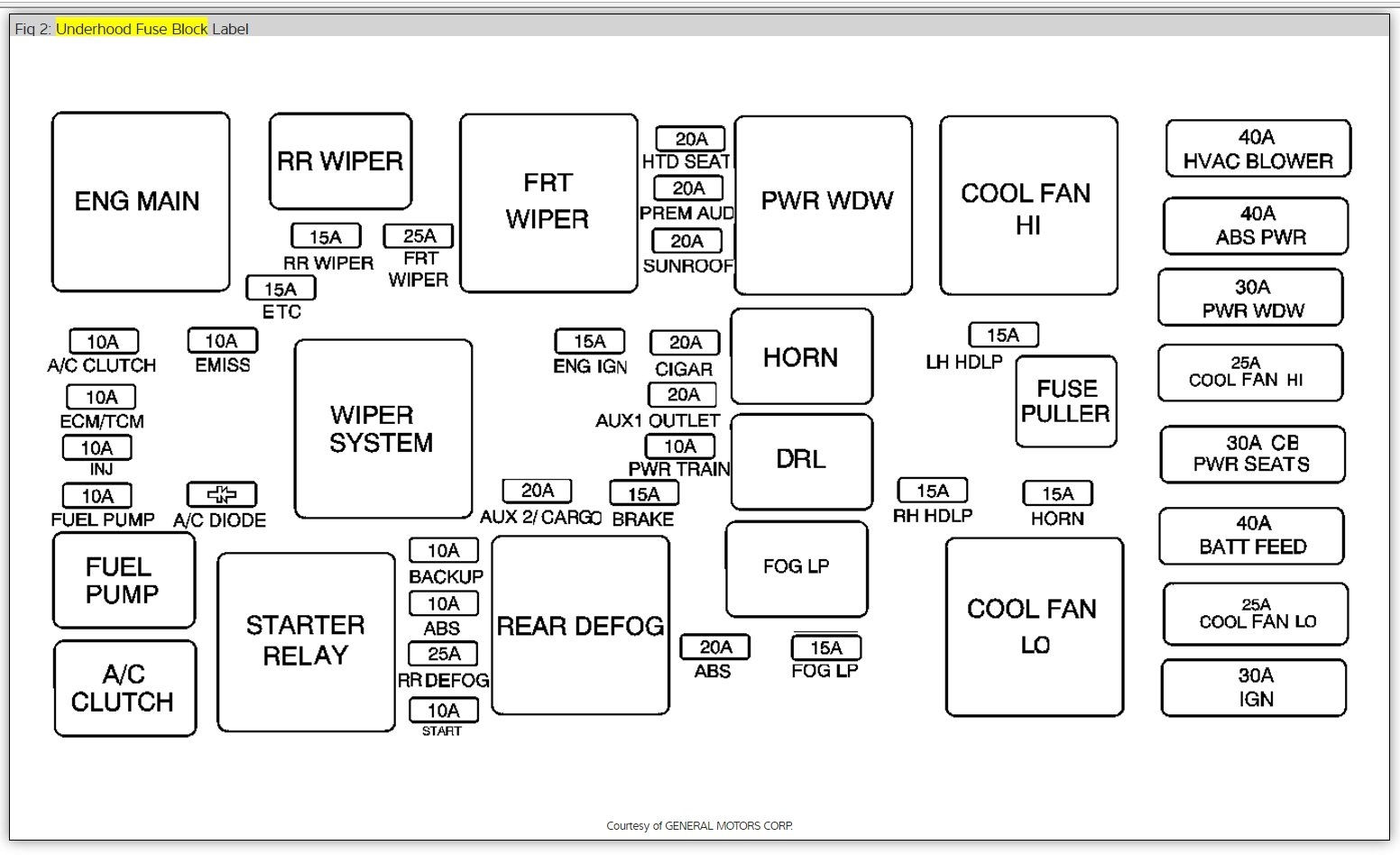

The fuse is located under the hood in the PDC. Here is a guide and some diagrams (below) that should help you get the problem fixed:
https://www.2carpros.com/articles/how-to-check-a-car-fuse
and
https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester
Please let us know if you need anything else to get the problem fixed.
Cheers, Ken
Images (Click to enlarge)
Dec 24, 2017 at 3:38 PM (Merged)
WALT WENIG
MEMBER
2 POSTS
My panel does not look like those.
Dec 24, 2017 at 3:38 PM (Merged)
STRAILER
CERTIFIED EXPERT
53,854 POSTS
Can you upload a picture of what they do look like?
Dec 24, 2017 at 3:38 PM (Merged)
