Fuel pump location

2005 CHEVROLET CAVALIER
155,634 MILES • 2.2L • 4 CYL • FWD • MANUAL
Avatar
FELPREX
  • MEMBER
  • 1 POST
I'm no expert yet I want to do this job myself can you help?
Jul 22, 2015 at 9:23 AM
Advertisement
Avatar
DANNY L
  • CERTIFIED EXPERT
  • 5,648 POSTS
Hello, I'm Danny.

Here is the information you requested. You will have to drop the gas tank to gain access to the in-tank fuel pump. Here is a tutorial showing what is involved for replacement:

https://youtu.be/Lhd0vd8pdBU

and

https://www.2carpros.com/articles/how-to-replace-an-electric-fuel-pump

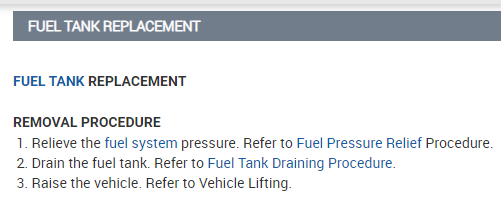

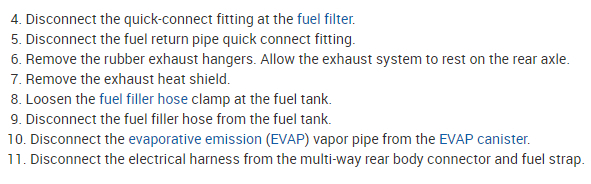

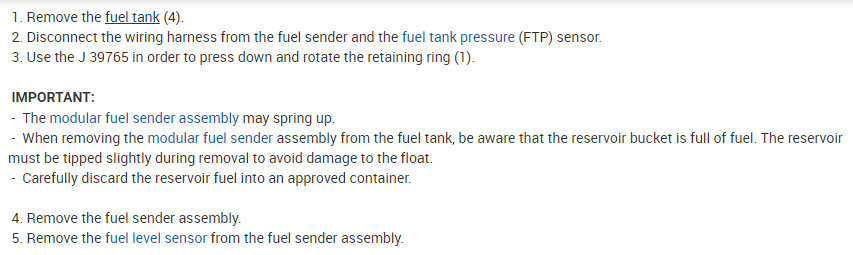

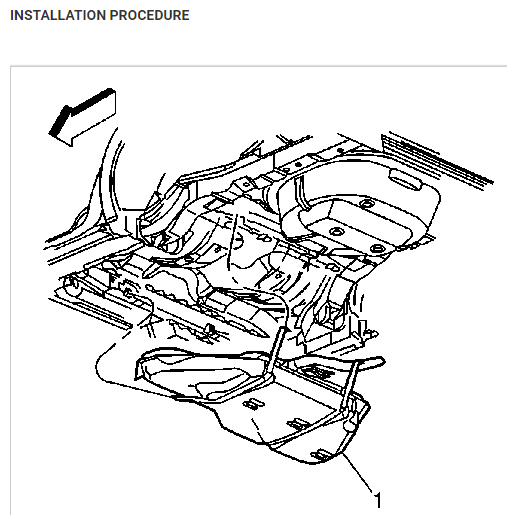

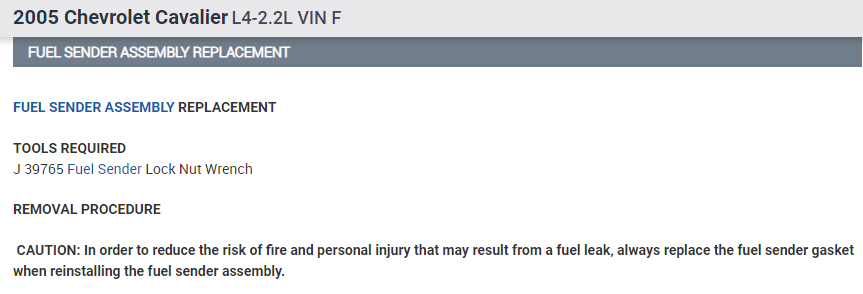

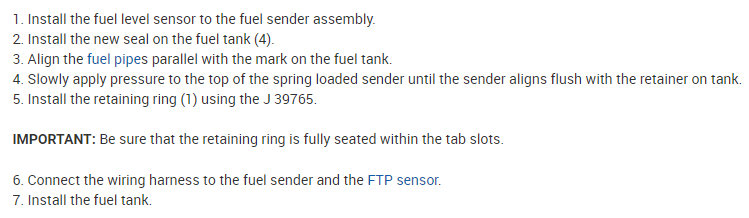

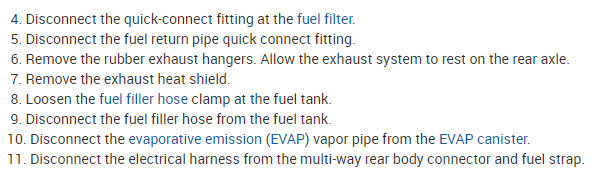

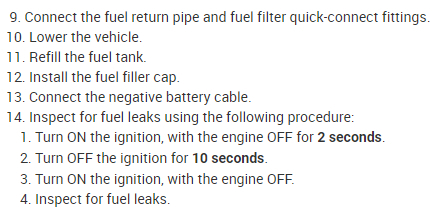

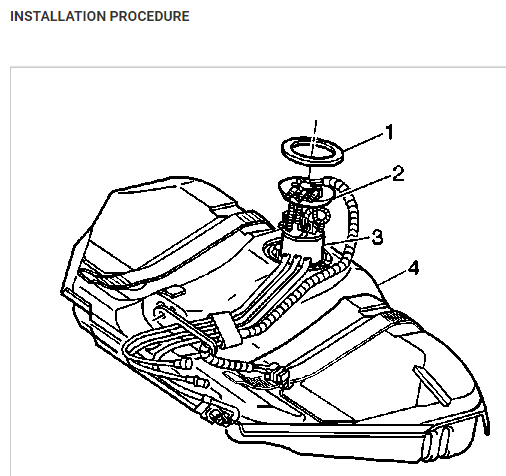

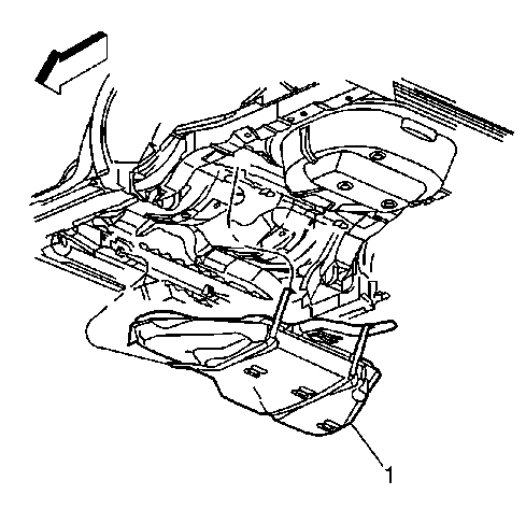

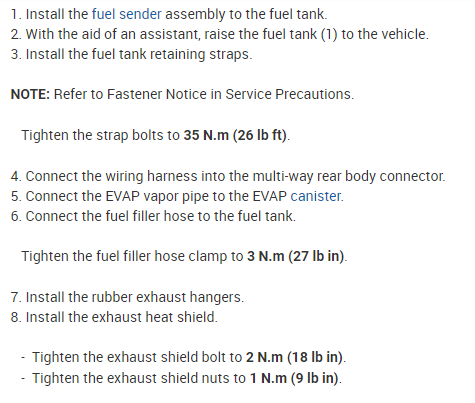

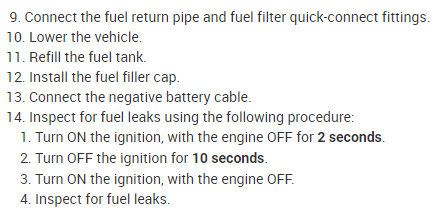

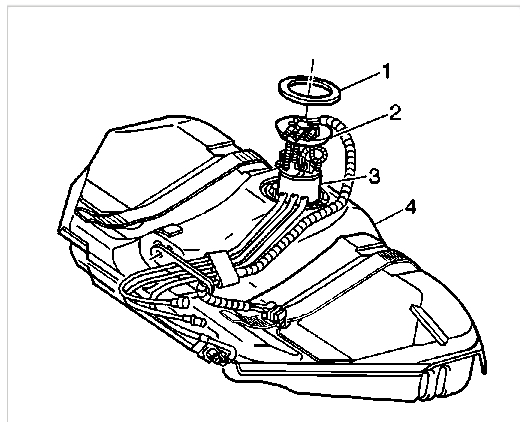

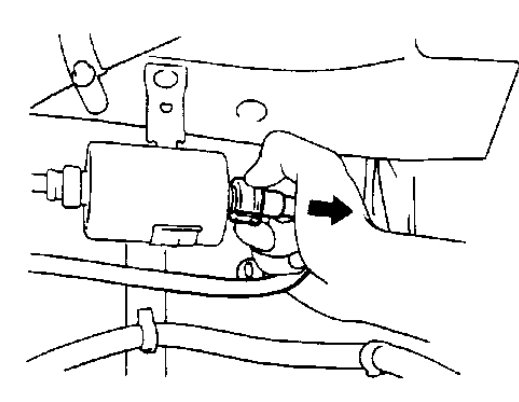

I've attached picture steps below on how to replace the in-tank fuel pump and removal and replacement of the fuel tank on your car. Hope this helps and thanks for using 2CarPros.
Apr 24, 2021 at 4:03 PM
