No DVD power

2005 BUICK TERRAZA
6 CYL • FWD • AUTOMATIC
Avatar
WETBER
  • MEMBER
  • 1 POST
There is no power to the rear dvd player. I checked the fuses and can't find one that's blown. Is there an inline fuse? Or maybe another fuse that's not labeled clearly? According to the schematics i could find it gets it's power from the radio amplifier, a 20A Fuse, located in the cabin fuse block. Any info would be much appreciated. Thanks for your time.
Mar 24, 2011 at 3:44 AM
Advertisement
Avatar
RASMATAZ
  • CERTIFIED EXPERT
  • 75,992 POSTS

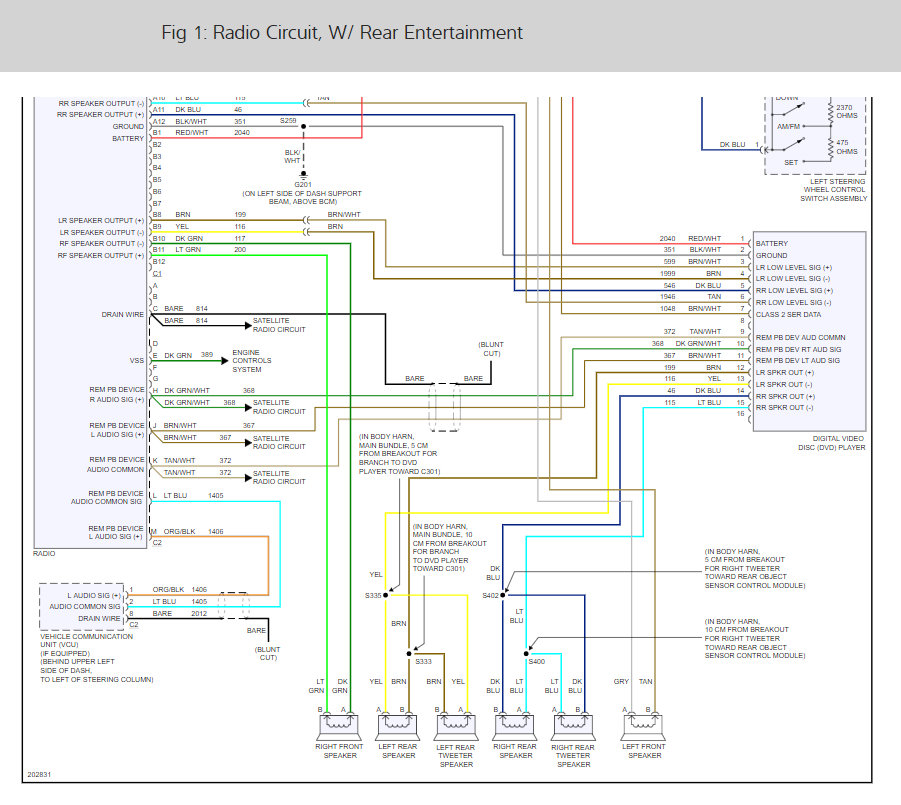

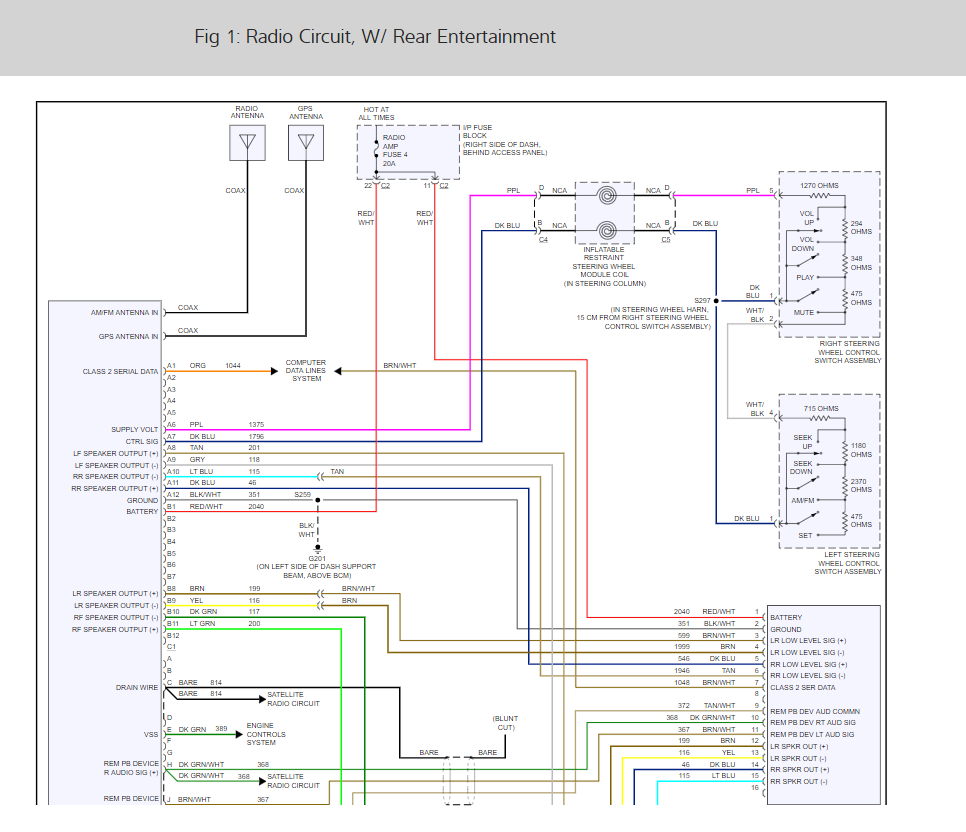

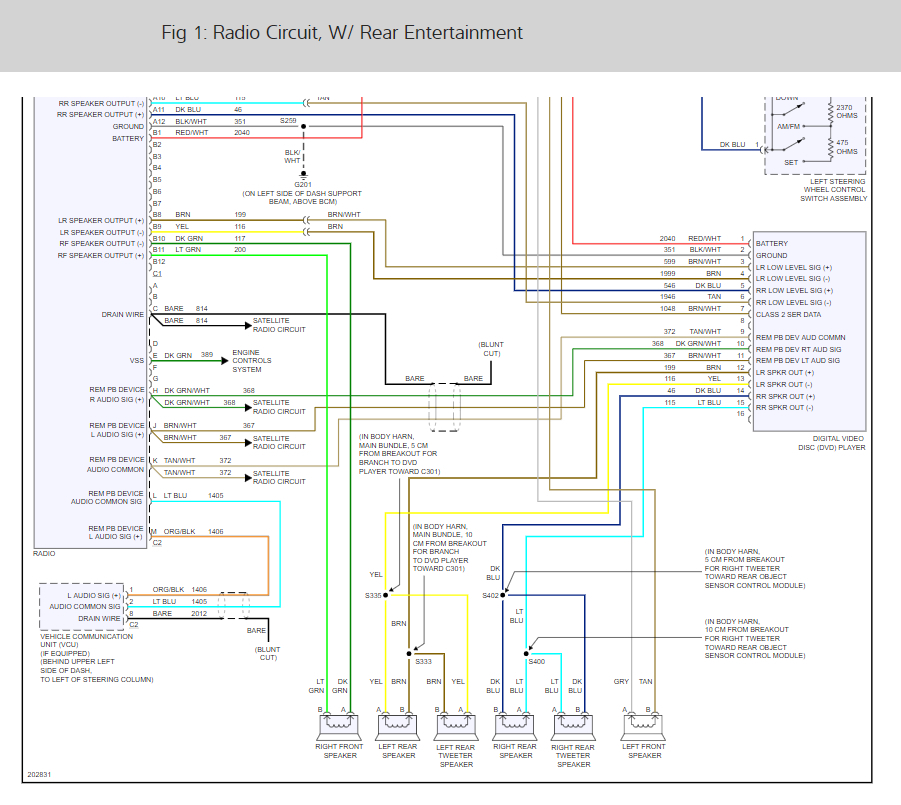

The power for the DVD comes from the radio fuse #4 here is the DVD and radio wiring diagrams so you can do some testing and see how the system works.

https://www.2carpros.com/articles/how-to-use-a-test-light-circuit-tester


Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.
Mar 24, 2011 at 7:01 AM
Avatar
CAKEMIXX
  • MEMBER
  • 0 POST
Thanks for this post I had this problem and had to replace the DVD player cost me $154.00 all fixed! I love this site.
Sep 1, 2019 at 12:28 PM
Advertisement
Avatar
2CP-ARCHIVES
  • MEMBER
  • 4,540 POSTS
how dos the dvd player work it wont take in my dvd or show any thing when it is in
Sep 1, 2019 at 12:29 PM (Merged)
Avatar
DRCRANKNWRENCH
  • CERTIFIED EXPERT
  • 3,380 POSTS
To my knowledge there is not any mechanical means by which a CD is detected in a CD player. It is all based off whether there is a reflection of the reading laser light onto the reading surface. So if there is a CD in it would sense the laser. There must be an isssue with the reading surface circuit or the laser itself in the CD player. Unfortunately it is a board level failure which means that you would spend much more money trying to fix it rather than replacing it.
So, you should look into an aftermarket replaceent. If you aren't replacing speakers or adding an amp replacing the head unit is not too hard. You would be buying the CD player, and adapter for the trim and an adapter for the wiring harness which. The wiring harness adapter is a simple instal with just a couple of saudered wires to the new CD player you can plug it right into the stock wiring harness and you then only need to add the new trim adapetr.
It is an hour to do the job and there is plenty of support for any installation. Try www.crutchfield.com as they are a weel known retailer and have good selection, prices and excellent customer support. Don't be intimidated by the installation. You can do a much better job of installling it yourself rather than paying someone who is trying to install it as faast as possible and will end up doing a sloppy job.
The adapters make installation easy and are available for any application.
Sep 1, 2019 at 12:29 PM (Merged)
