Clutch replacement manual

2005 HYUNDAI ACCENT
140,000 MILES • 1.6L • 4 CYL • 2WD • MANUAL
Avatar
A0302
  • MEMBER
  • 62 POSTS
Hi, I am planning on replacing clutch it is front wheel drive. Trying to find the shop manual guide for doing clutch. Car will not go into gear or neutral and is squealing and burned smell. The slave cylinder piston is all the way out and clutch pedal all way to floor. Would like the shop manual instead of a generic outline of clutch replacement, as they are more detailed. Thanks
May 23, 2019 at 12:22 PM
Advertisement
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
You don't need a manual all you need to do is watch this video and use the instructions and diagrams below.

https://youtu.be/6N6b5F2ChyE

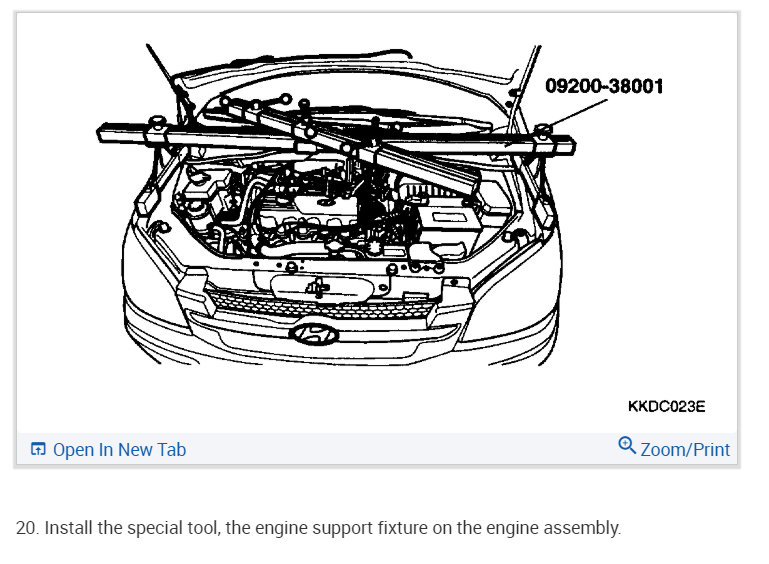

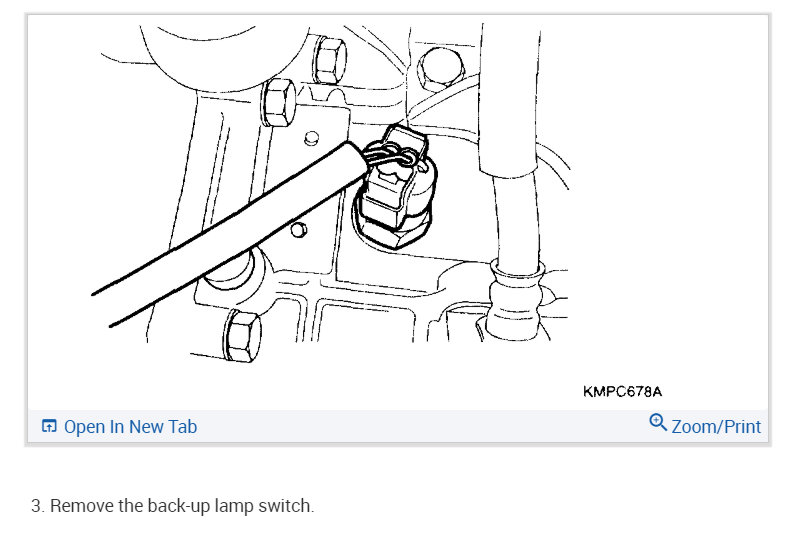

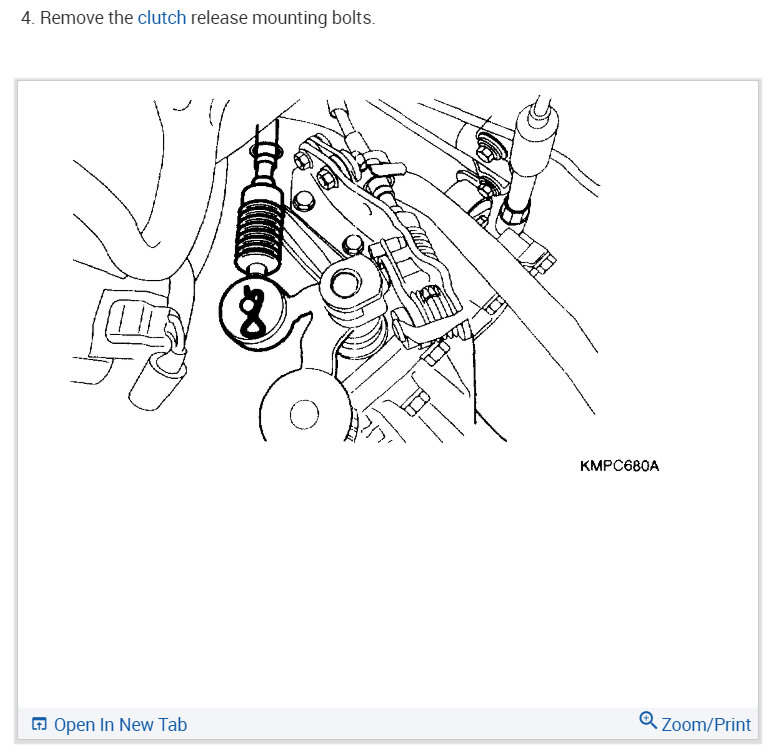

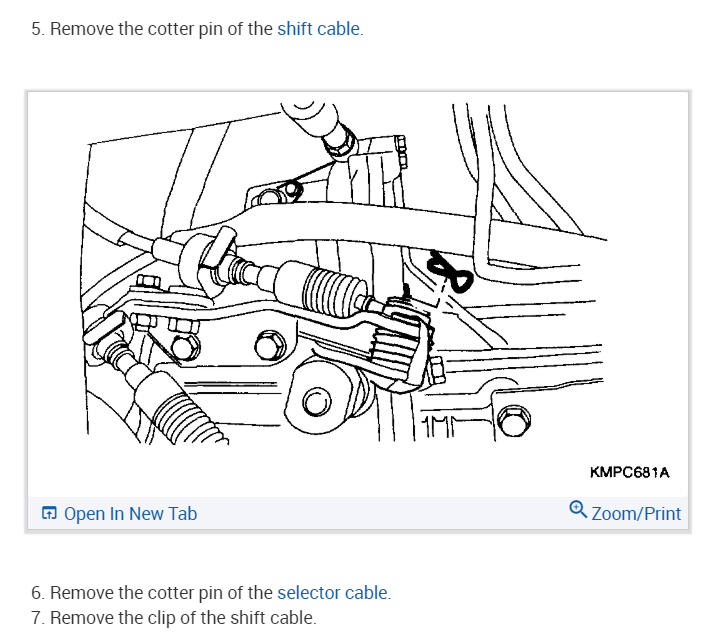

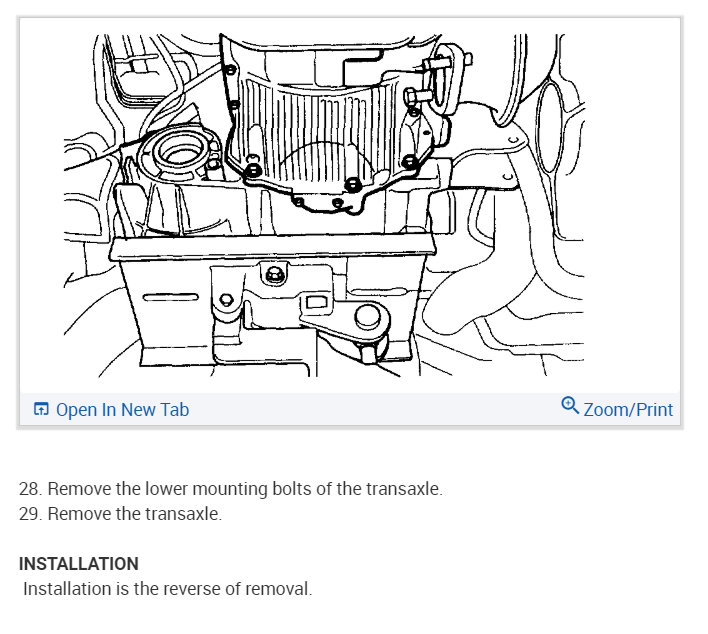

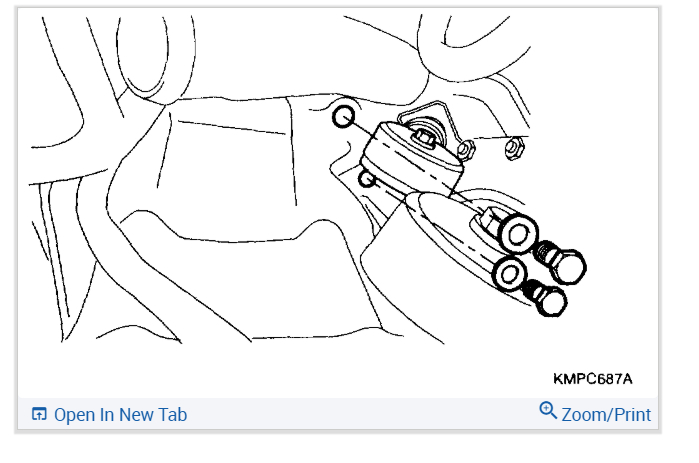

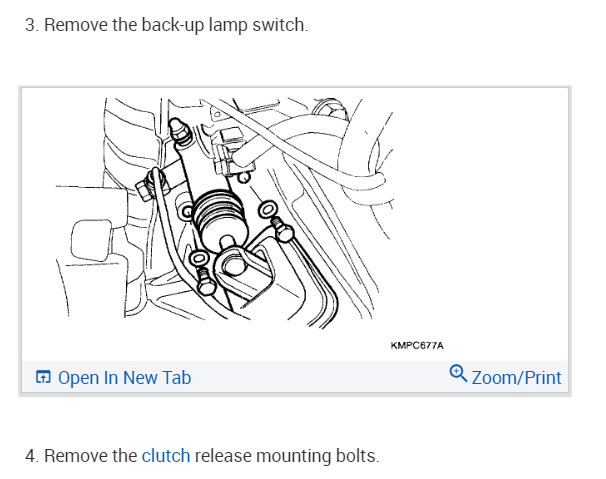

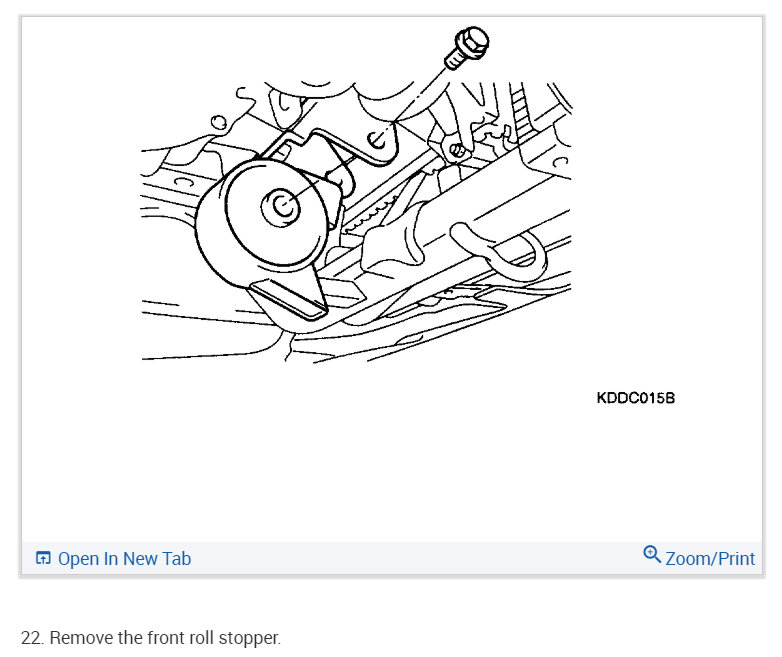

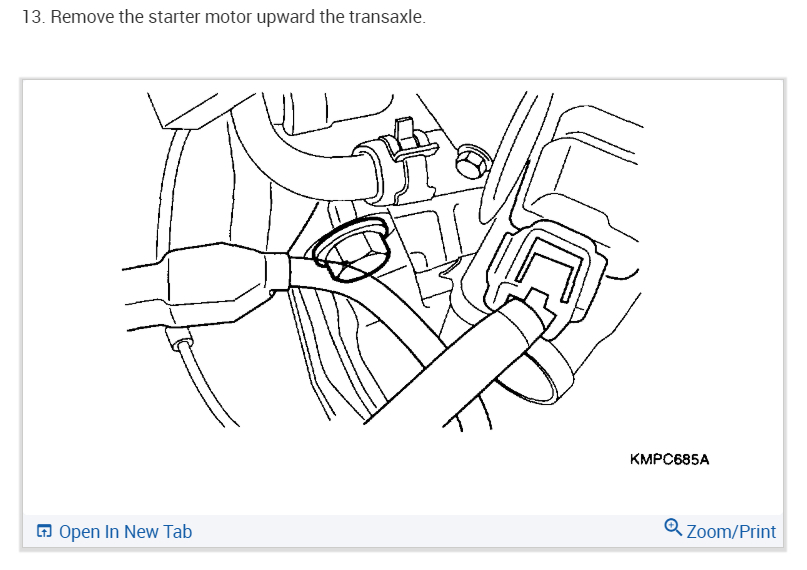

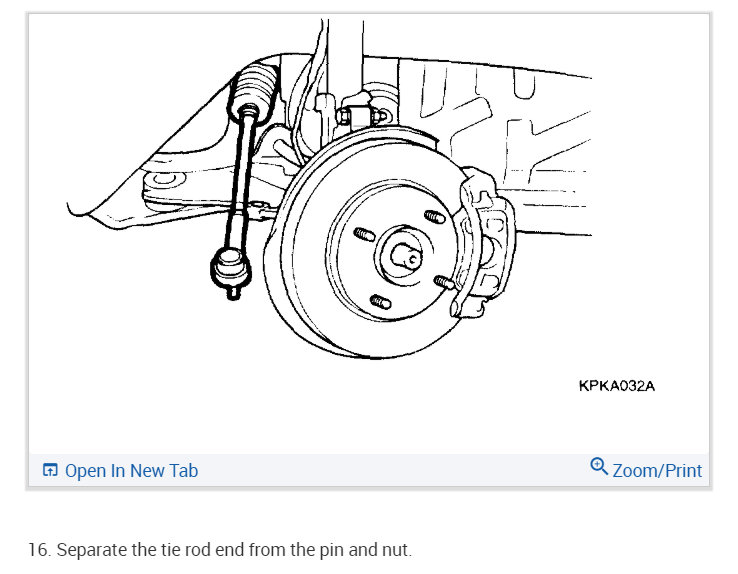

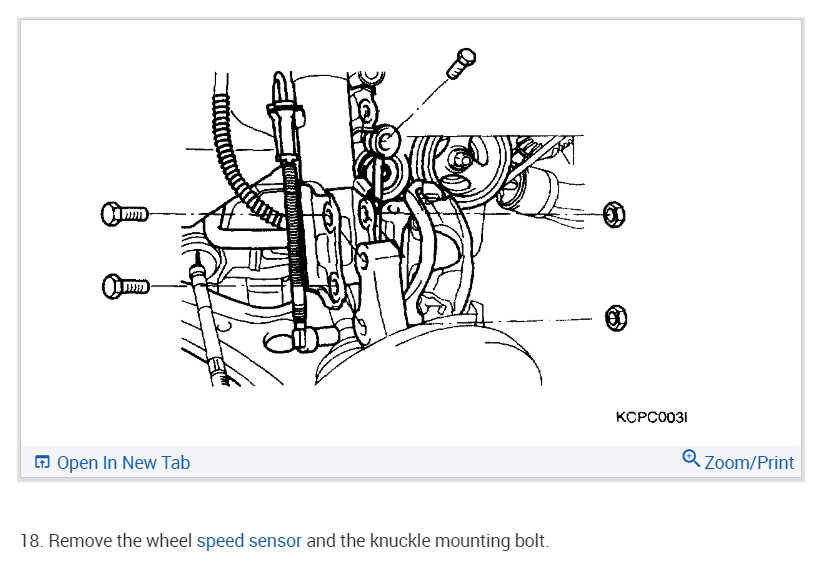

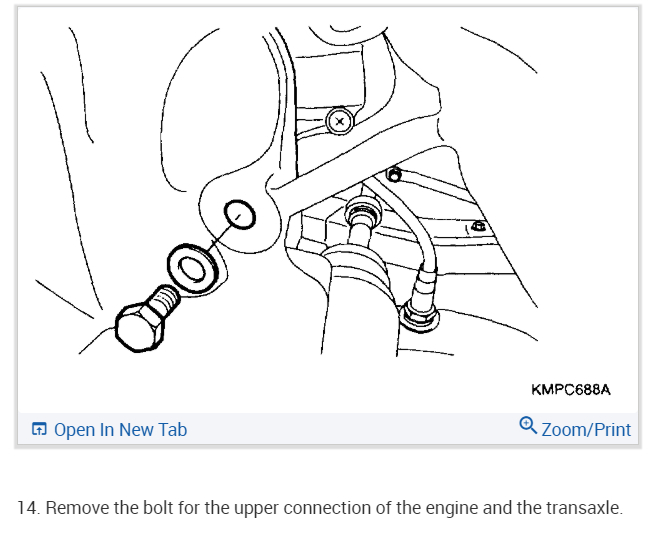

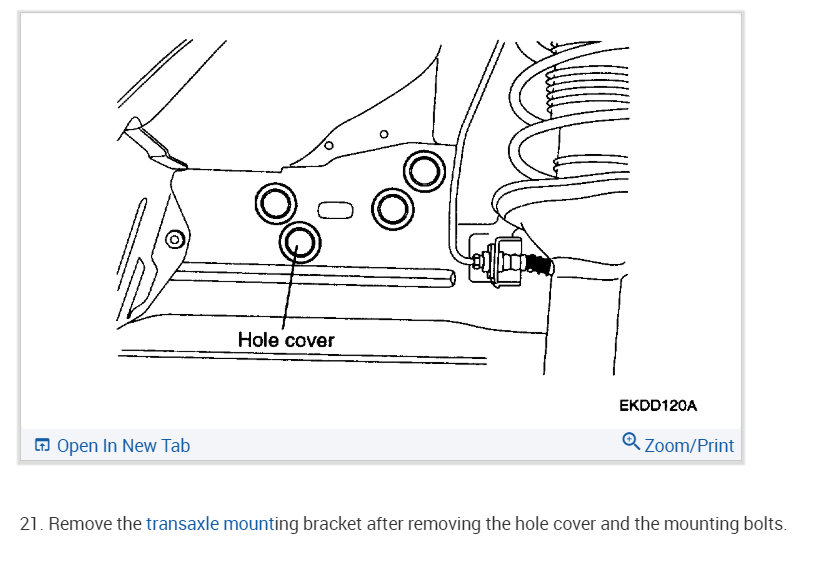

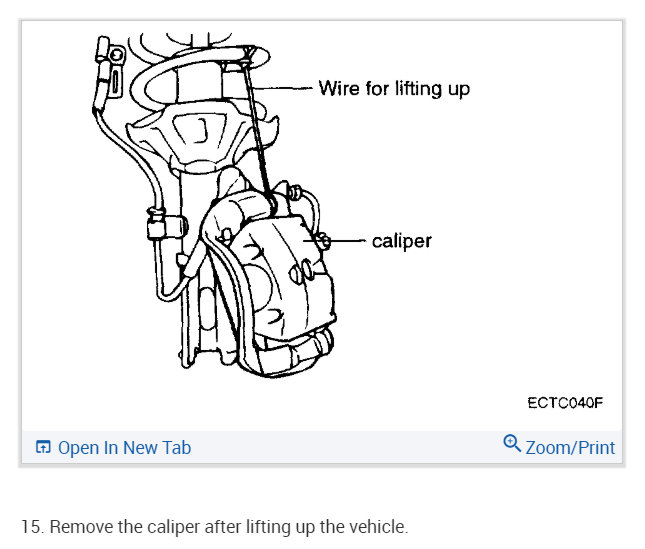

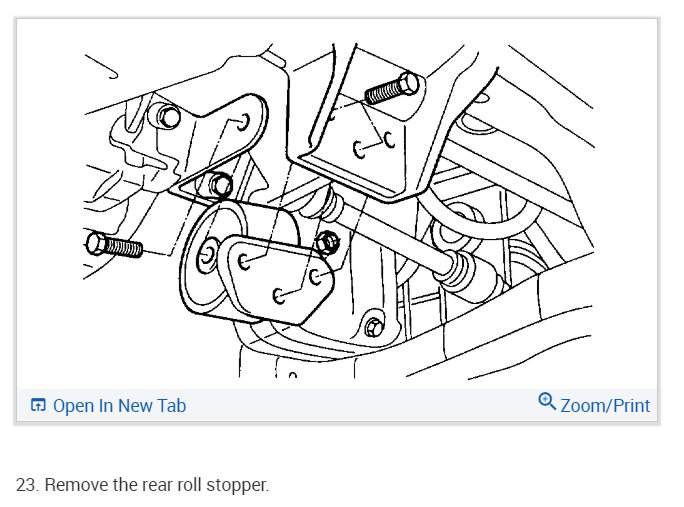

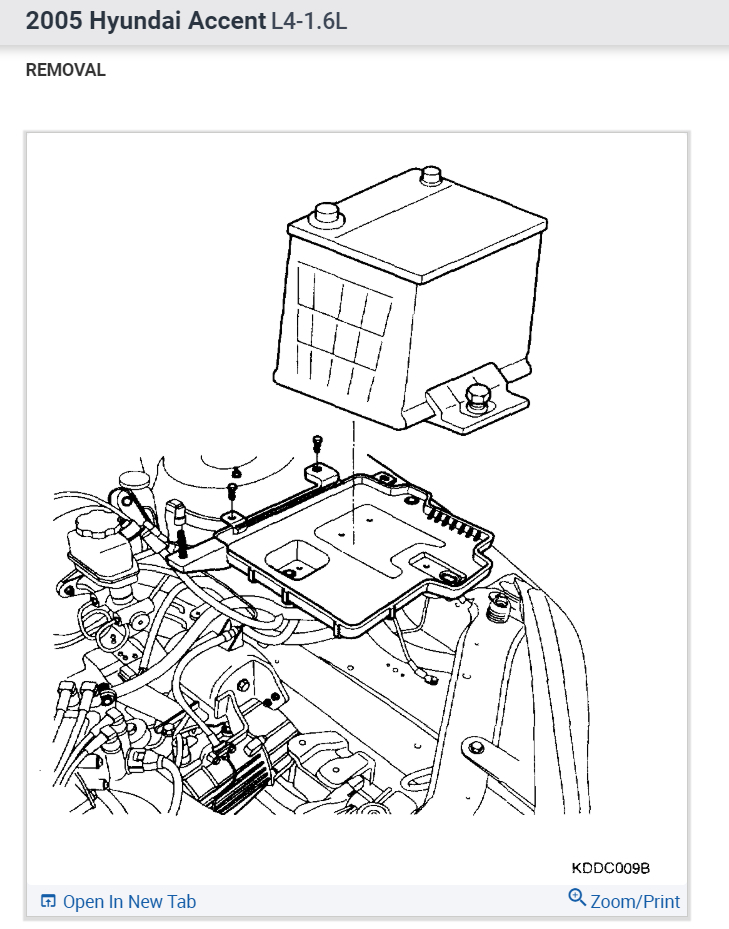

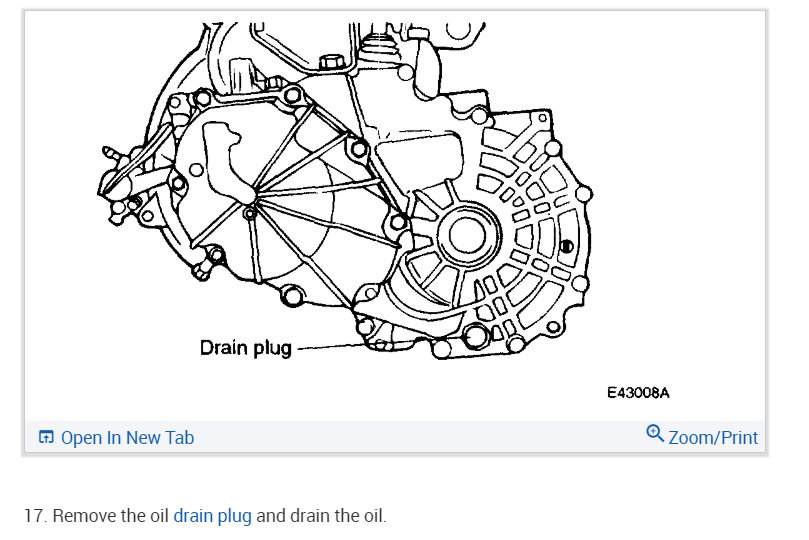

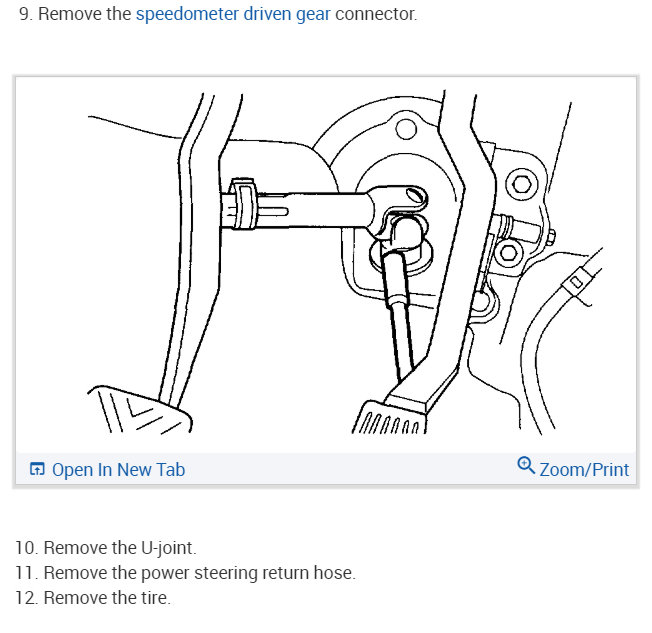

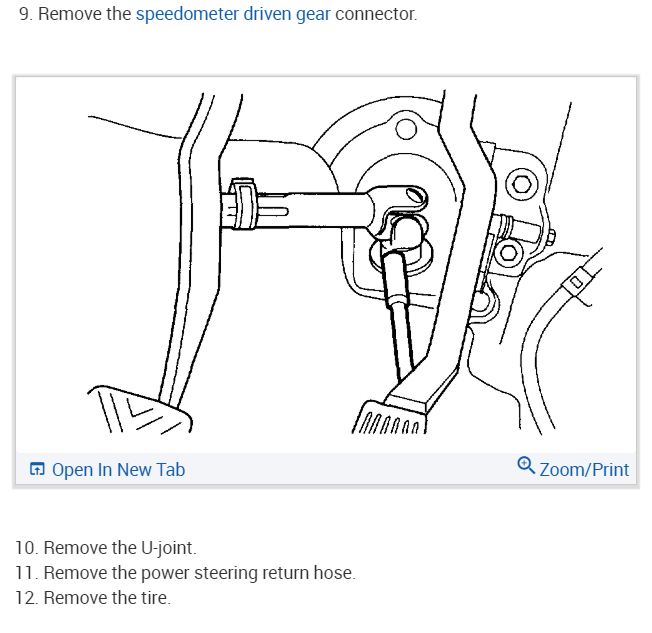

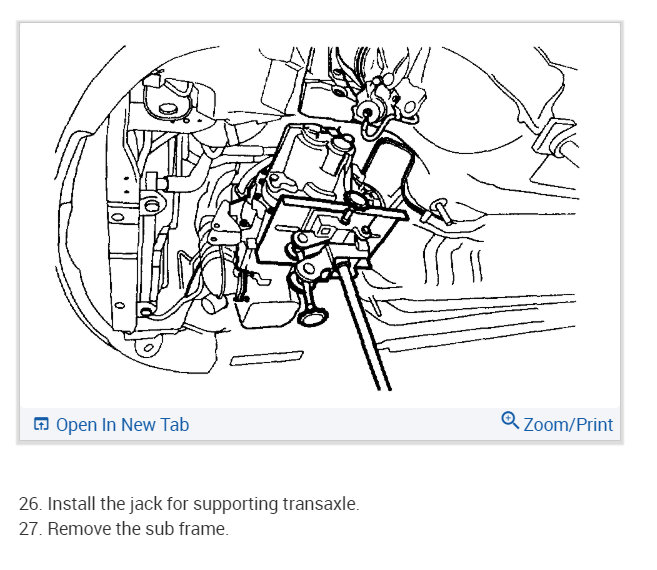

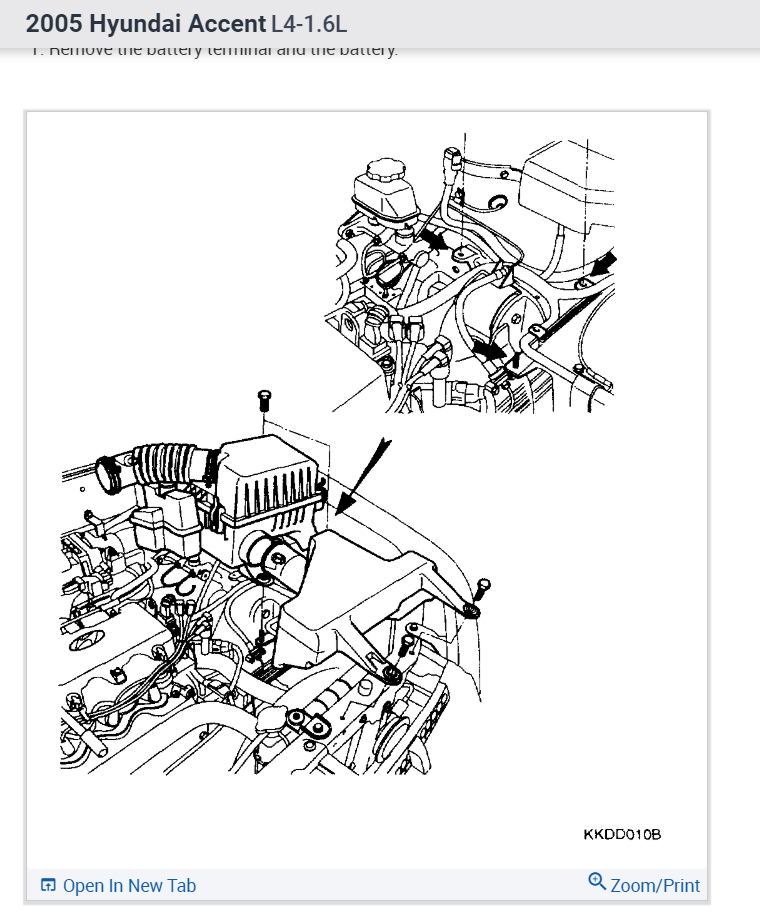

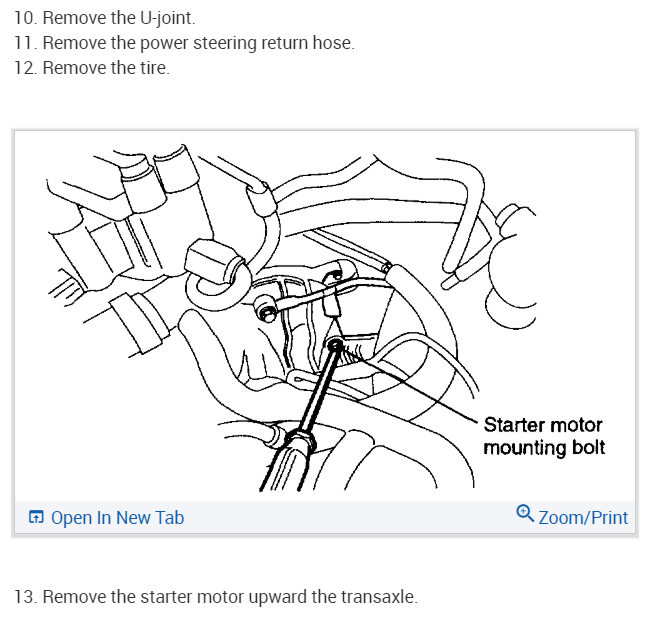

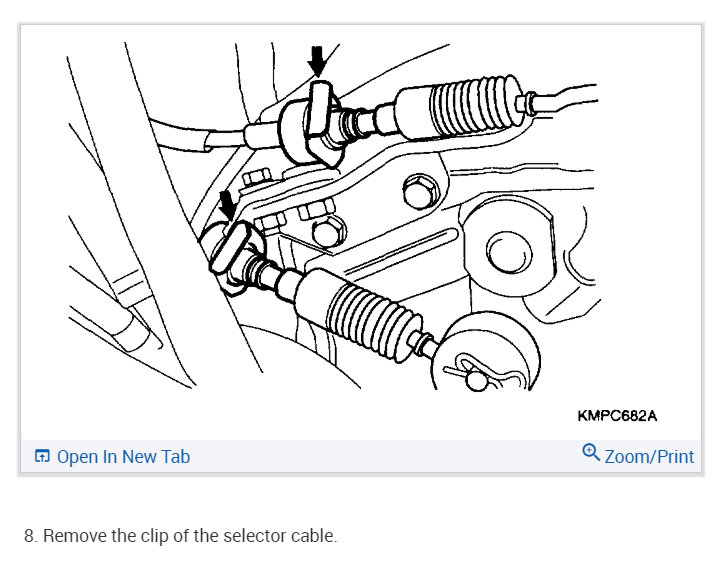

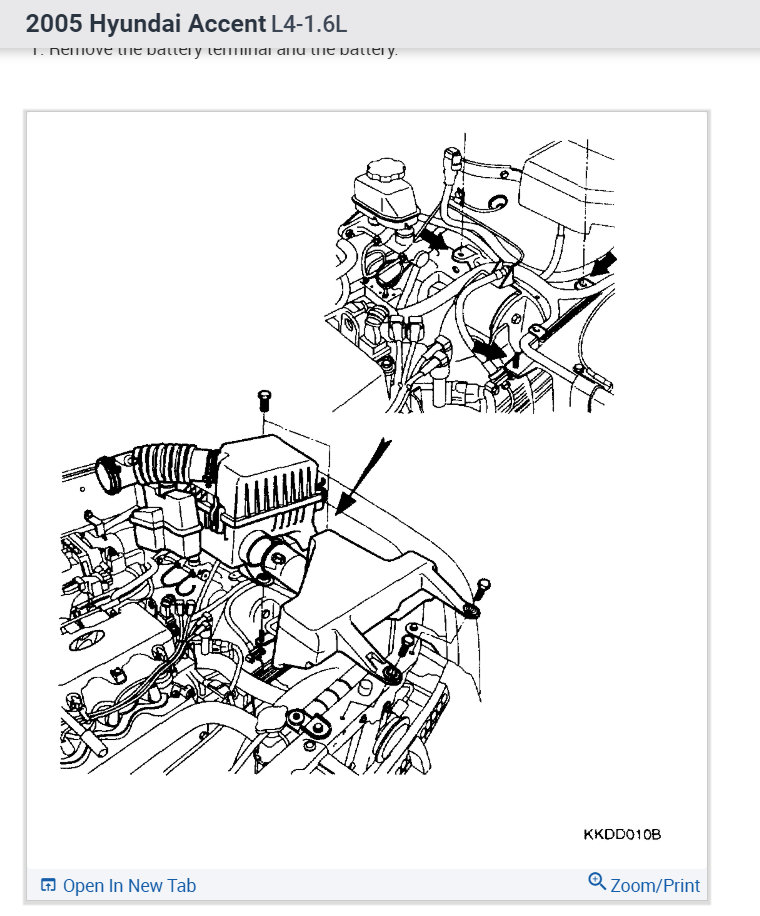

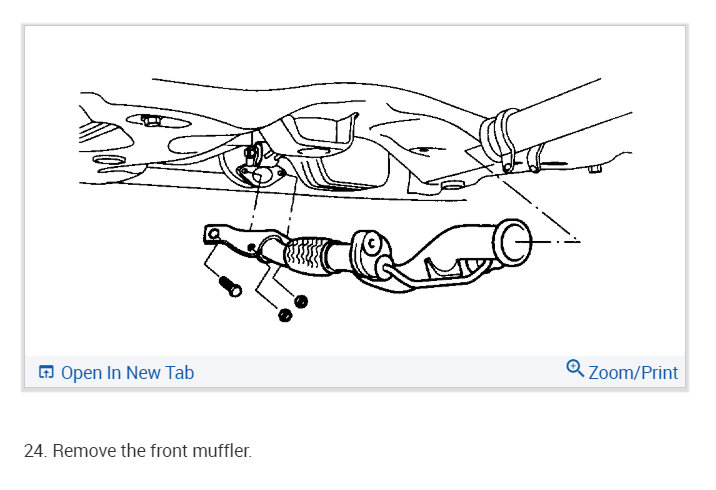

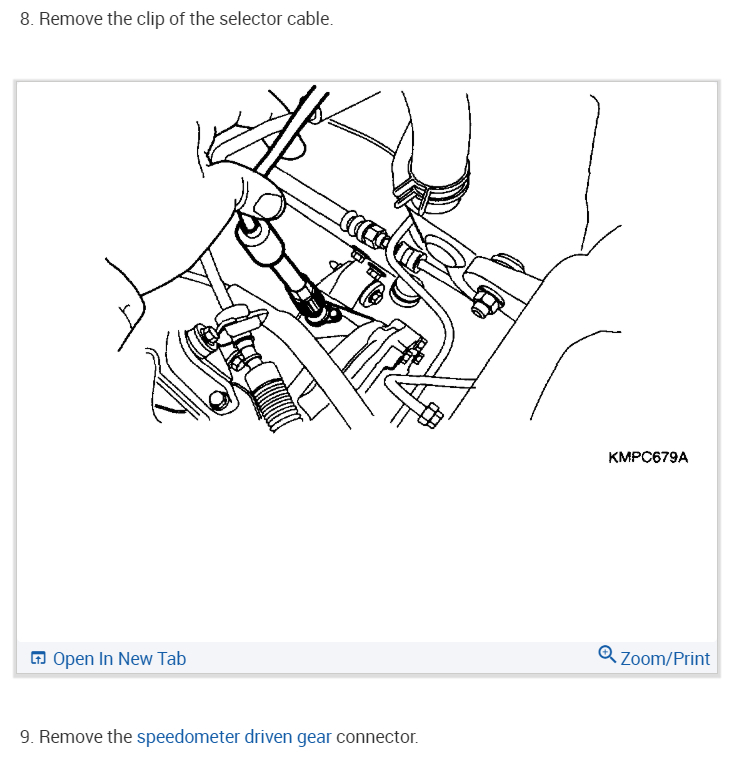

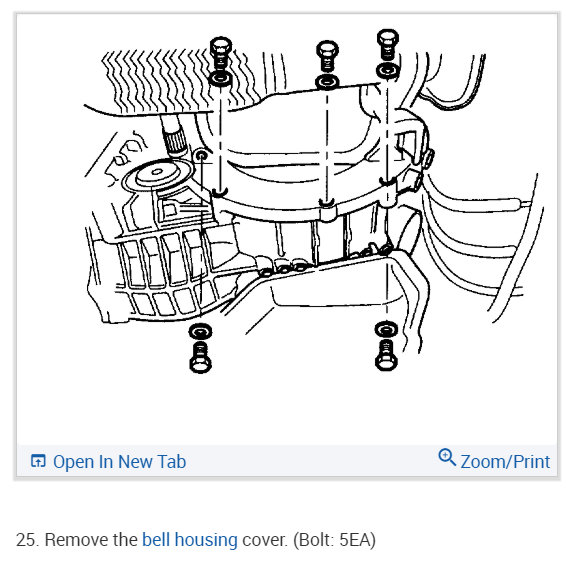

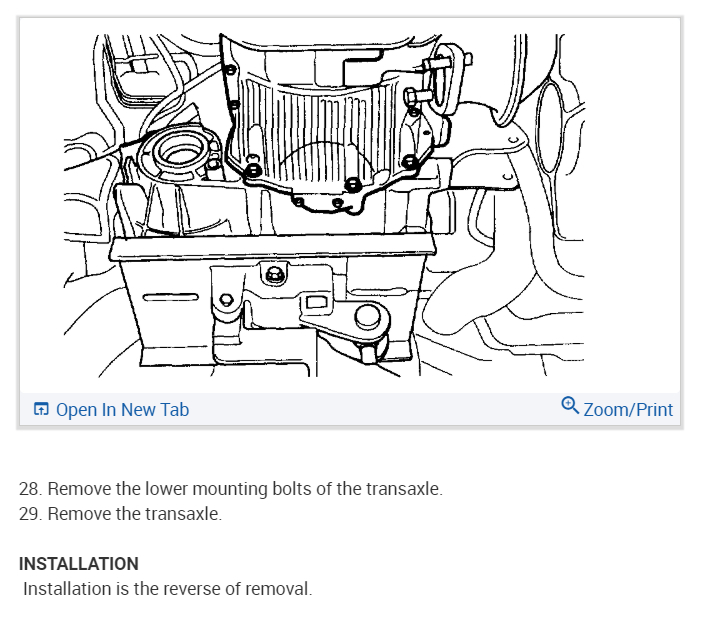

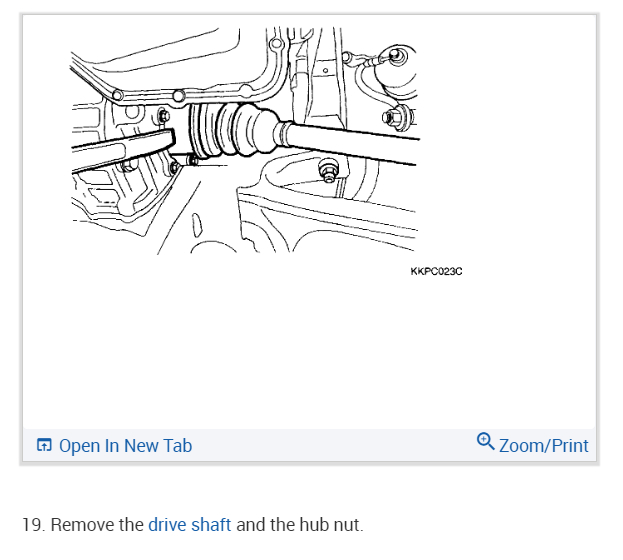

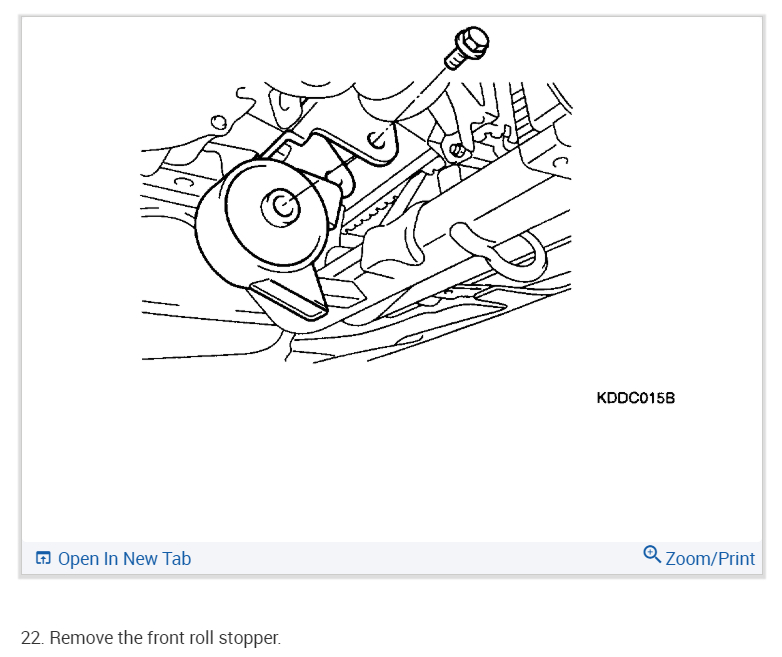

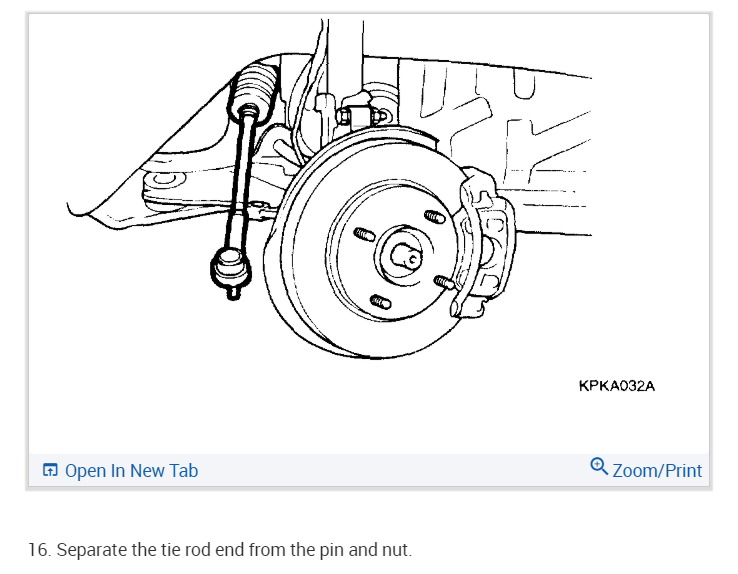

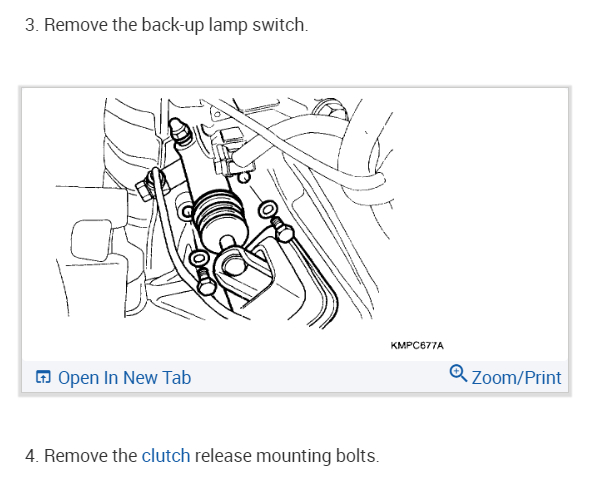

Check out the diagrams (below). Please let us know if you need anything else to get the problem fixed.
May 29, 2019 at 6:58 PM
