2004 VOLVO XC90
110,000 MILES • 5 CYL • AWD
CESARAGM
MEMBER
1 POST
FOLLOW
how to replace the p/s hose on a volvo xc90 2004
Aug 11, 2011 at 1:01 PM
Advertisement
JIS001
CERTIFIED EXPERT
3,412 POSTS

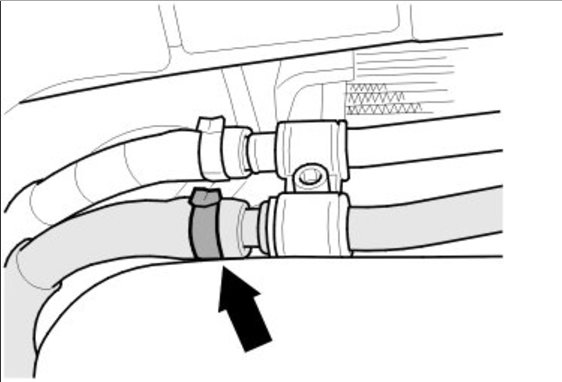

Which hose do you plan on replacing? The suction hose or high pressure hose?
Image (Click to enlarge)
Aug 12, 2011 at 4:34 AM
STRAILER
CERTIFIED EXPERT
53,854 POSTS
I would start by flashing the system so you don't get the nasty fluid in the new hose. Here is a guide to help you get the job done.
https://www.2carpros.com/articles/power-steering-fluid-flush
Here is a guide and video that will give you an idea on what to do to change the pump or hoses out.
https://youtu.be/BGBUv5r9fk0
and
https://www.2carpros.com/articles/how-to-replace-a-power-steering-pump
You might need to jack the car up to get underneath it safely.
https://www.2carpros.com/articles/jack-up-and-lift-your-car-safely

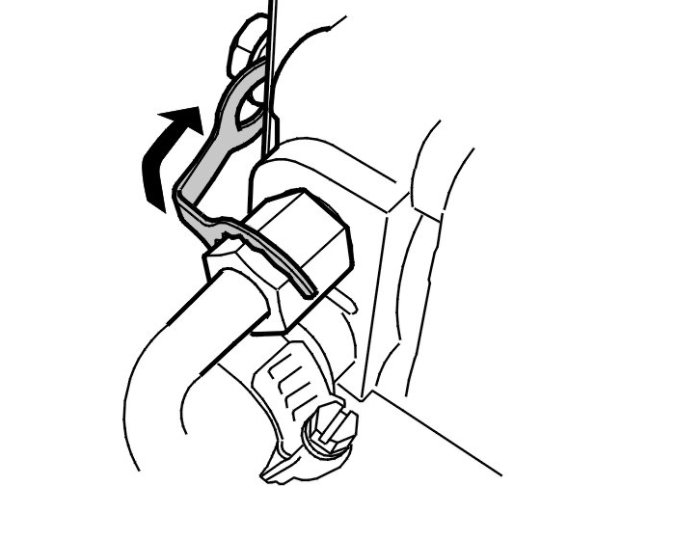

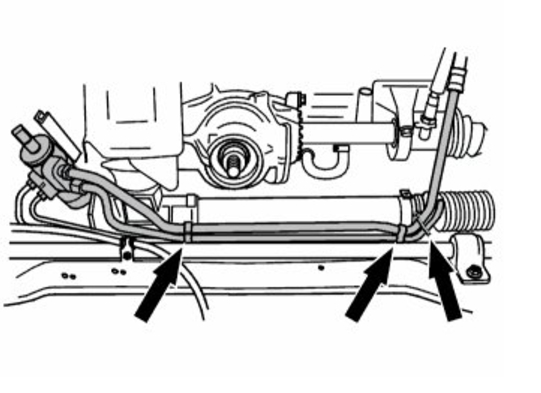

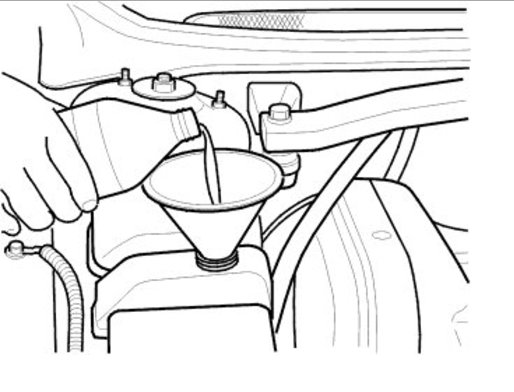

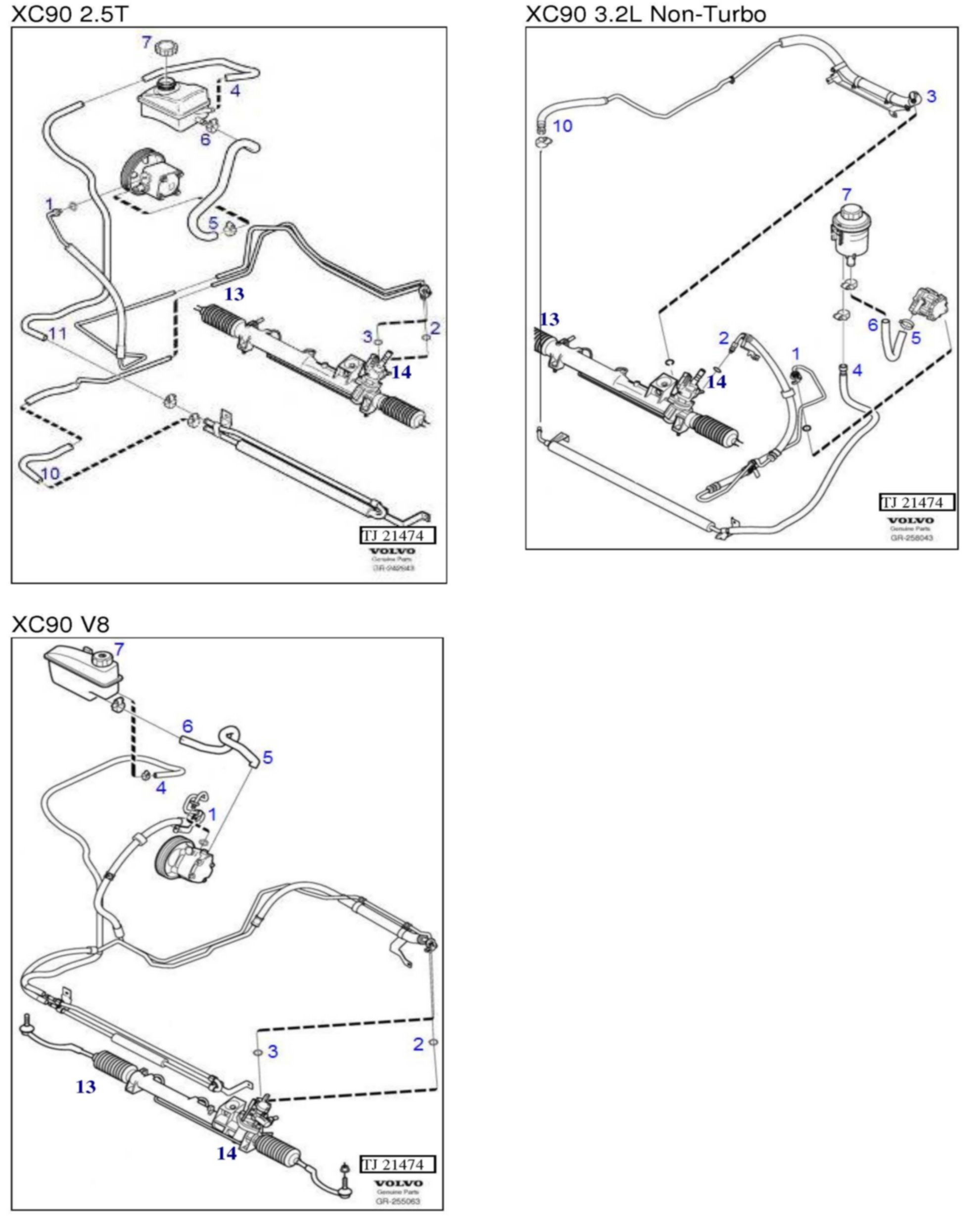

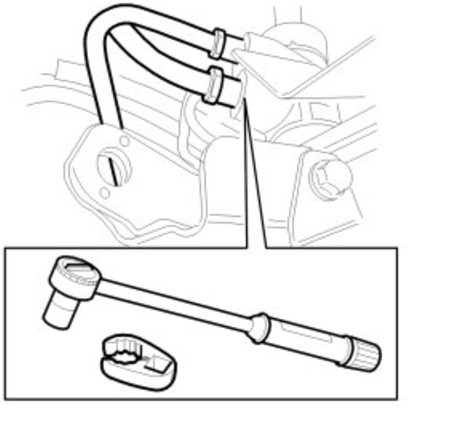

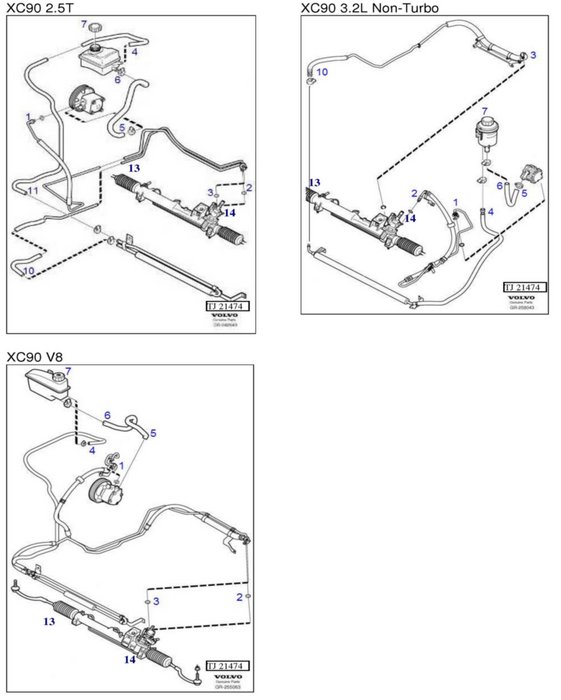

Here are some diagrams on how to the job on your car (below)
Please let us know if you need anything else to get the problem fixed.
Cheers, Ken
Images (Click to enlarge)
