2004 Saturn Ion IGNITION SWITCH WIRE HARNESS

2004 SATURN ION
2.0L • 4 CYL • 2WD • MANUAL
Avatar
MOBSTERS13
  • MEMBER
  • 1 POST
i need to know the color order on the wire harness.
Feb 8, 2015 at 10:09 AM
Advertisement
Avatar
SATURNTECH9
  • CERTIFIED EXPERT
  • 30,869 POSTS

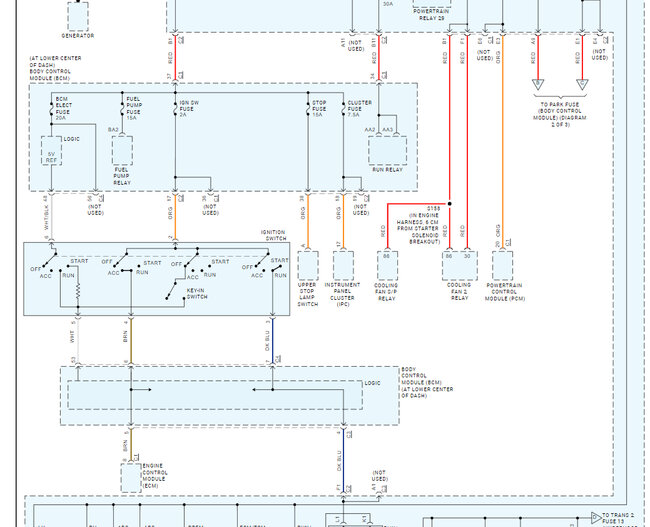

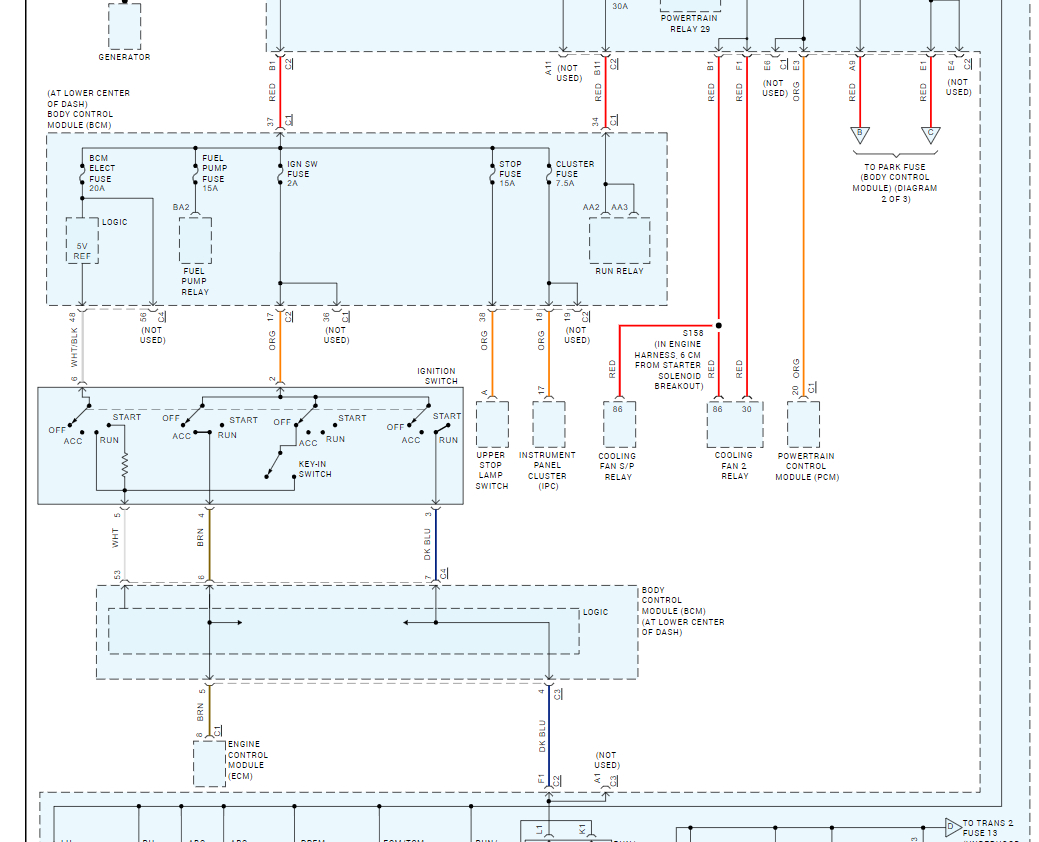

So you have the regular ion or the redline ion? Also you want the connector to the ignition switch connector pin number and wire color? Anyway here are the colors because it does not matter which model you have. Check out the images (below). Let us know if you need anything else.
Image (Click to enlarge)
Attached Media
Feb 8, 2015 at 5:53 PM
