Left Front Knuckle Replacement?

2004 HYUNDAI SANTA FE

145,000 MILES • 2.7L • 6 CYL • 4WD • AUTOMATIC

KLONKEY

MEMBER
2 POSTS
FOLLOW

I have a bad wheel bearing for my vehicle. Instead of dealing with the need for a press (which I don't have), I bought the entire front left knuckle. Are there any repair guides that can walk me through the removal or anything that I need to know before I do this? I'm normally okay at figuring things out, or finding stuff on YouTube, but this is not something I have been able to find.

May 25, 2023 at 11:55 AM

JACOBANDNICKOLAS

CERTIFIED EXPERT
110,175 POSTS

Hi,

The directions I have are for replacing the bearing. However, that requires the removal and replacement of the steering knuckle.

Take a look through the directions and let me know if you have questions.

Take care,

Joe

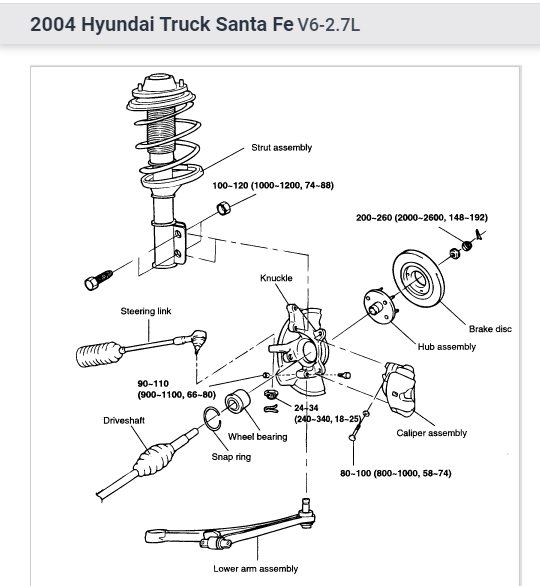

See pics below. Note: Pic 1 provides the torque specs for each part. Make sure to torque the axle nut to spec before putting weight on it.

Images (Click to enlarge)

May 25, 2023 at 8:56 PM
