my heater keeps blowing hot air

2004 SAAB 9-3
56,500 MILES
Avatar
ROY WARRINGHAM
  • MEMBER
  • 1 POST
The heater blows constant hot air even with cotrol knob turned to cold and the fan off.
Aug 24, 2012 at 9:24 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
Seems the air mixingg damper motor or its linkages is stuck in the heater position.
Images (Click to enlarge)
Attached Media
Attached Media
Aug 24, 2012 at 9:41 AM
Avatar
ROY WARRINGHAM
  • MEMBER
  • 1 POST
Thanks,how do i access the damper motor and linkage?
Aug 29, 2012 at 10:36 AM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

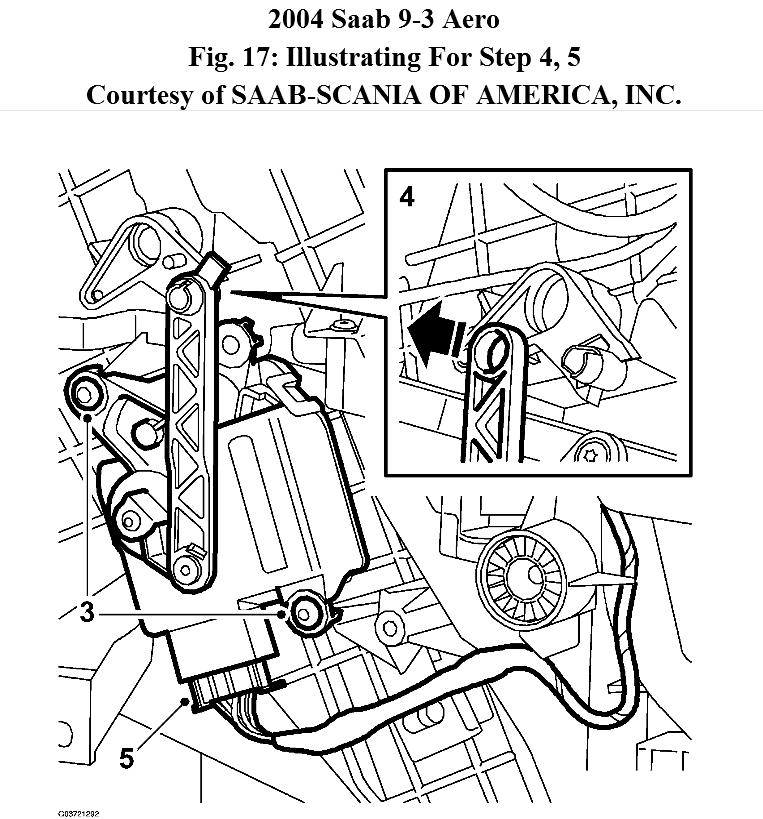

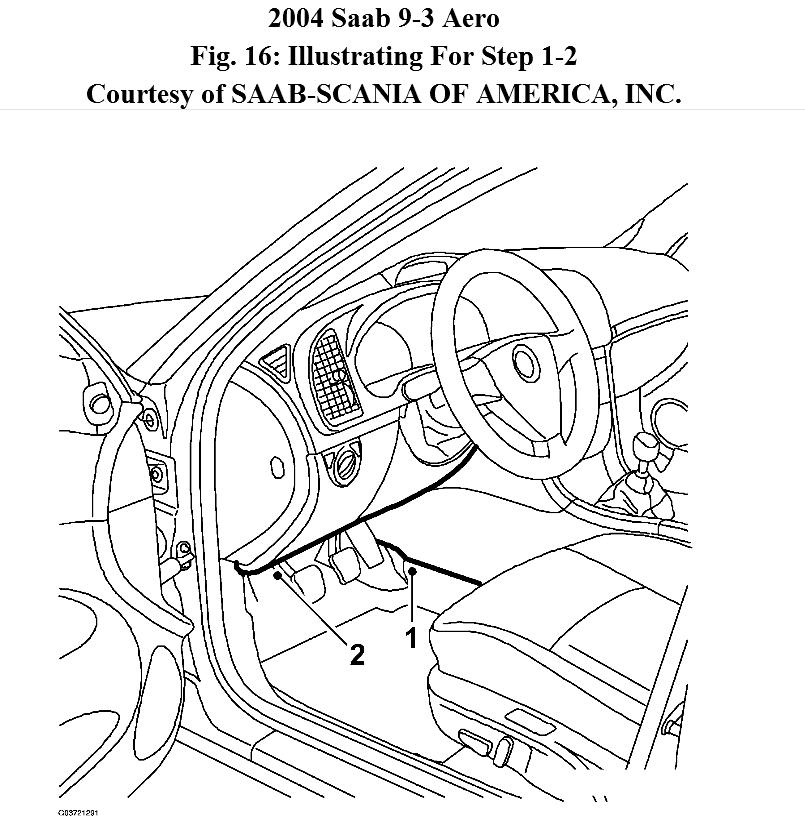

The diagrams are self explanatory. First diagram shows what to take off under dash at driver side and the next shows the damper and its linkages.
Aug 29, 2012 at 11:03 AM
