No spark at the plugs?

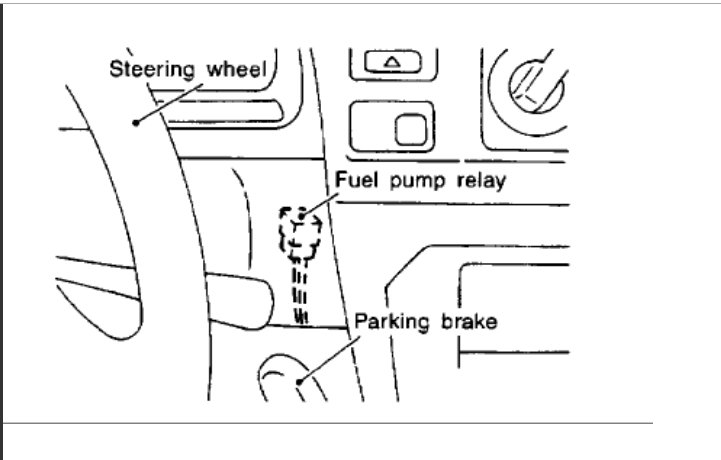

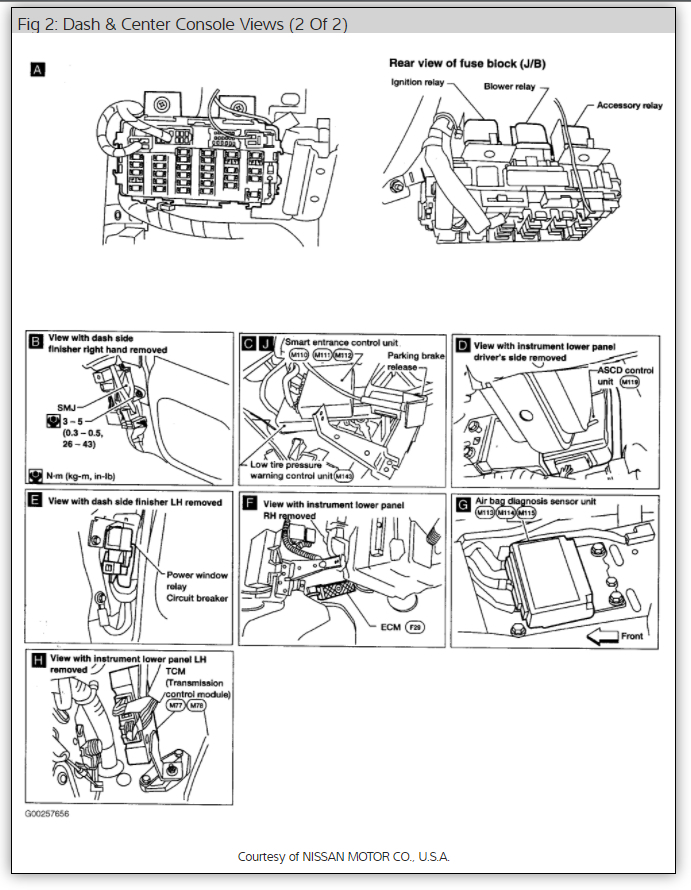

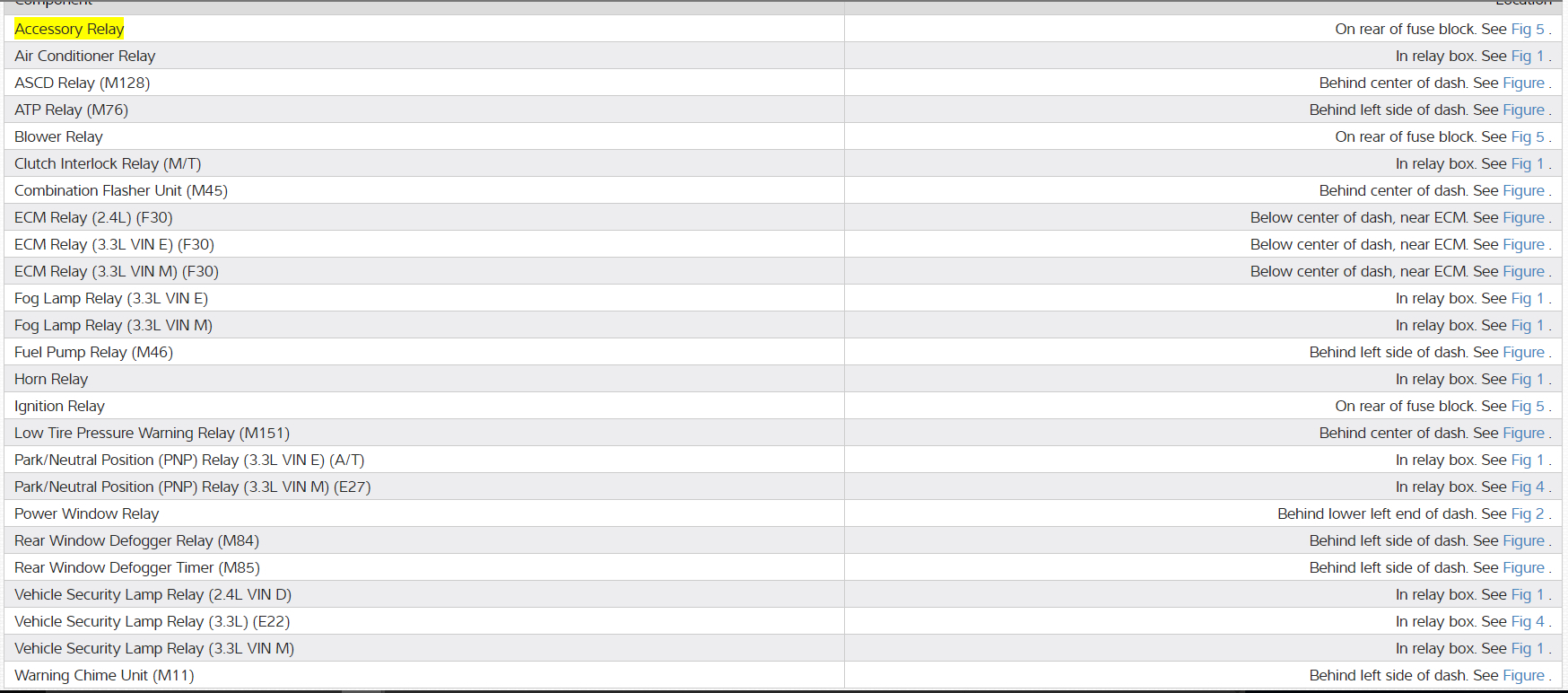

There is a ECM relay that goes out as well on the this car. Here is a guide and some diagrams to help you confirm the problem.

https://www.2carpros.com/articles/how-to-check-an-electrical-relay-and-wiring-control-circuit

Please let us know what happens so it will help others.

Cheers

checked the ignition coils there is 3 cables at them one has 12v and the other 2 are both nothing. charged the battery and used a booster pack with it all connections i tried are 12v but still nothing at the fuel pump or spark plugs

If vehicle is equipped wit immobilizer, have it checked. If the transponder is not communicating, the starter would be able to crank but engine would not fire up. If you have a spare key, use it to test.

If not equipped with immobilizer, recheck the crankshaft position sensor. Remove it and check the reluctor for damage. Test wire for continuity between the ignition coil and ECM.

I was thinking the immobilizer but not sure if anythin i can do to check it or if i would have to get someone out to do it, when you turn key in ignition the led of dash flashes then goes on steady

The light should go off. That means it is not responding to the immobilizer. A correct scan tool should be able to check it out. As I mentioned, if you have a spare key, try it.

I have solved the issue with the 2005 Nissan xtrail eng xt40 with no spark if any would like to know it was the ECM relay I installed a new one I am off and running.

I love this site.

Hi guys, out there i am having a problem with my vehicle. When cranking it she wants to take but does not then swings free . Got fuel imob light goes off wen key is on, new sensors .

check fuel pressure with gauge auto parts rent it. See link.
https://www.2carpros.com/articles/how-to-check-fuel-system-pressure-and-regulator
scan for codes and check crank sensor fuel pressure should be 51 psi.

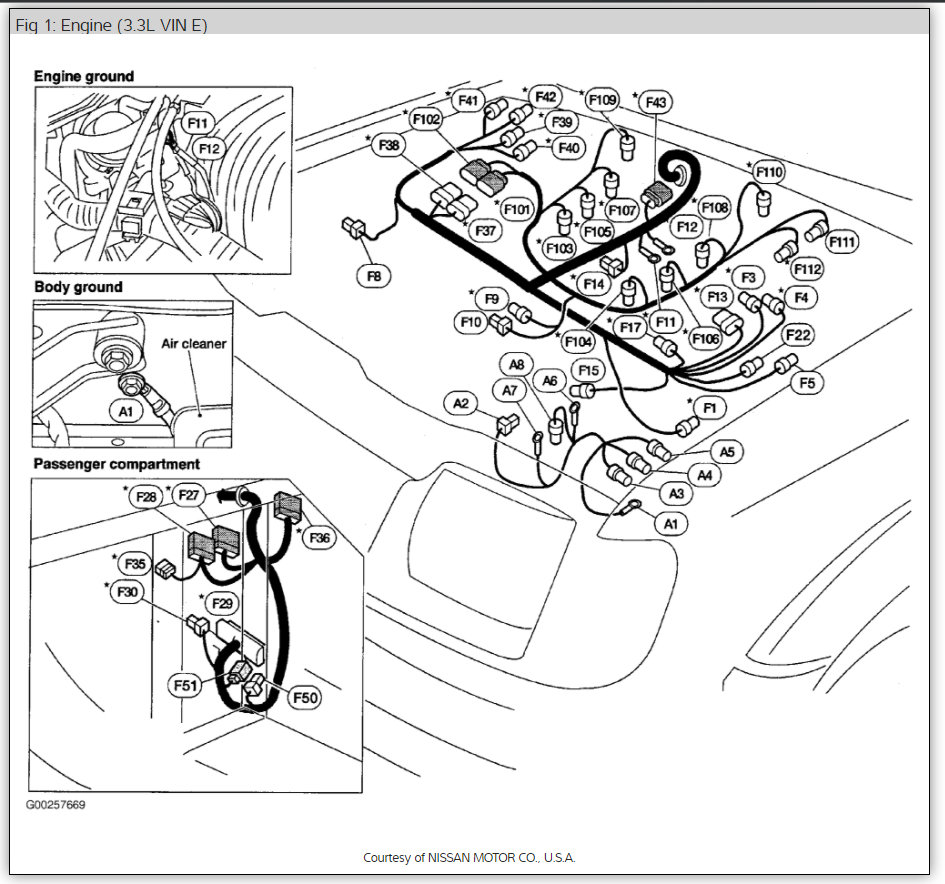

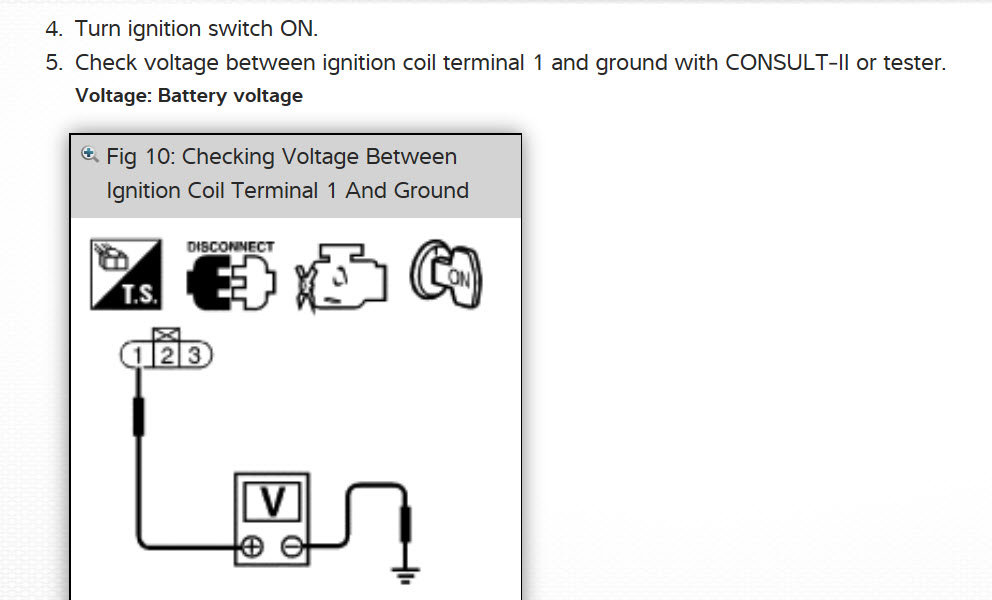

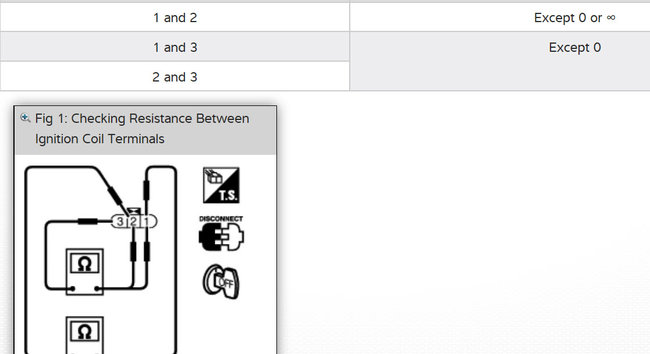

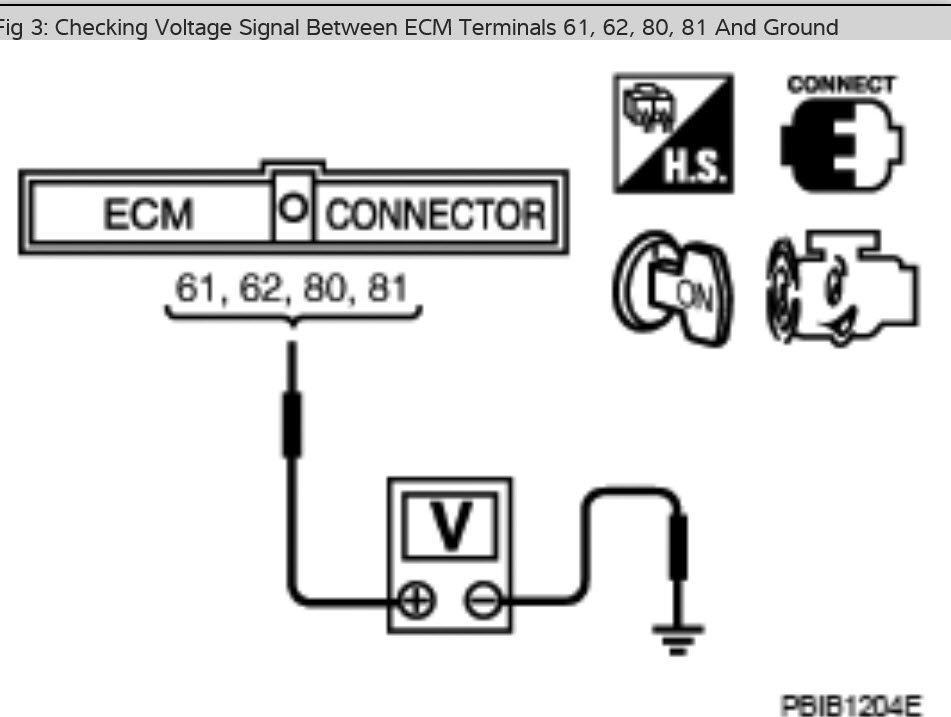

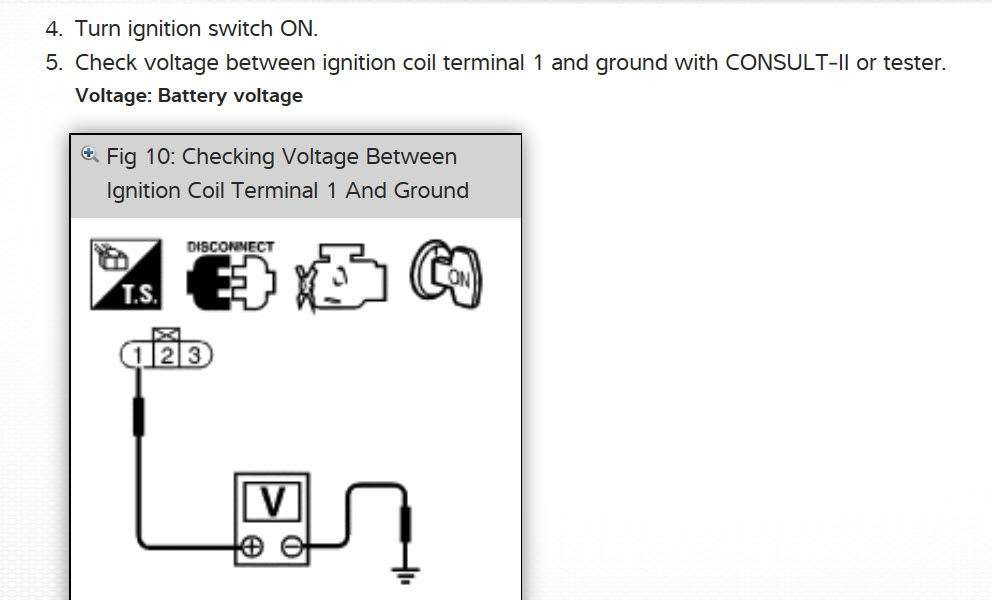

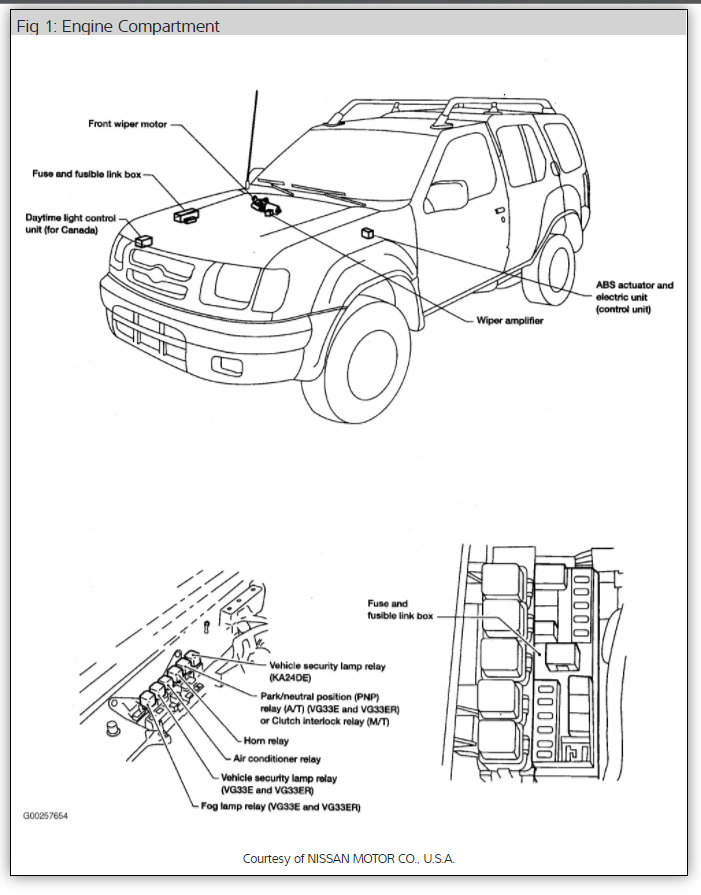

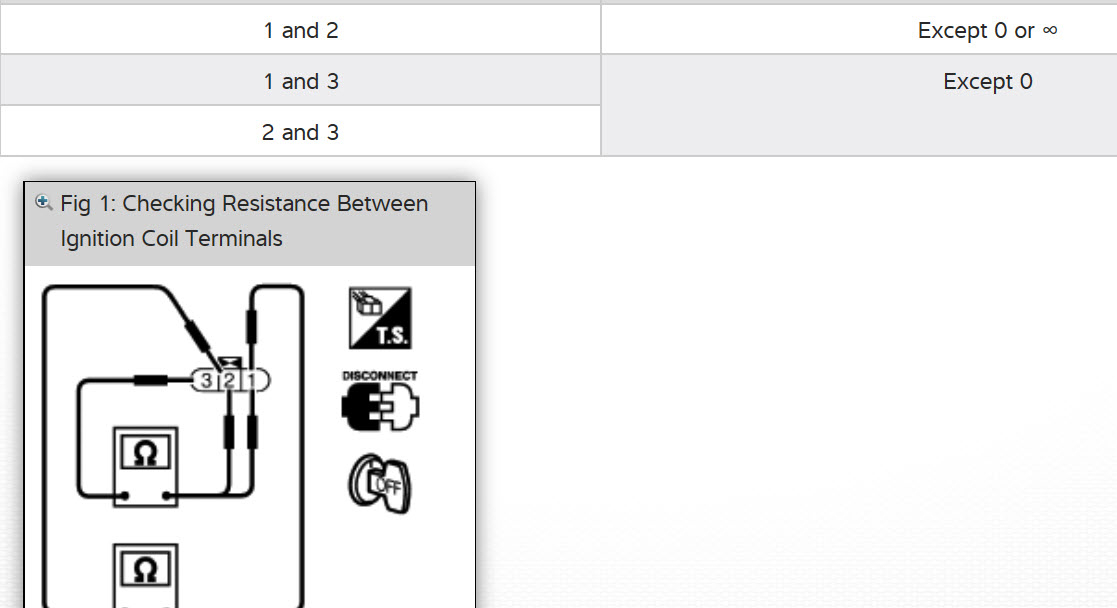

messed up on this one. see pictures for checking power from ECM and coils. also, check fuses under hood.

Did you check for trouble codes?
Check the crank position sensor.

there is no current coming to both the injectors and ignition coils. what could be the possible cause?

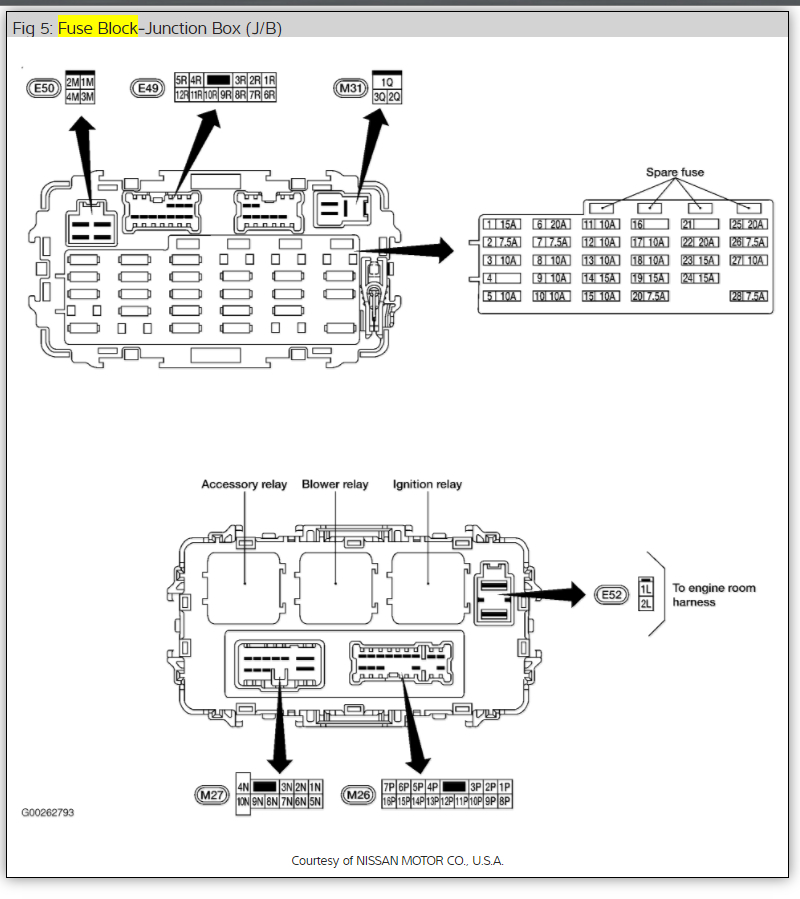

try resetting your security system if no manual check online. also check fuses under hood.
