Where is the door locking fuse?

2004 NISSAN X-TRAIL
70,000 MILES
Avatar
BILLNORFOLK
  • MEMBER
  • 4 POSTS
Where can i find the central locking fuse on a 2004 Nissan x trail 2.2 dci.Looked driver side under steering wheel fuse box no reference to C/L,also under bonnet battery side fuse box still no reference to C/L.Only door i can use is drivers door which opens with the key ,other doors have no power going to them. The drivers door opens mechanically with the key, the rest open electrically but have no power, so it is a fuse gone but cant find it. Just need to know where it is.
Jun 3, 2012 at 4:51 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
The fuses you what to check are #20, 5 and 28. Here is a guide to help you get the job done.

https://www.2carpros.com/articles/how-to-check-a-car-fuse

The problem is most likely a fault with the driver door lock switch or actuator, located inside door panel but check the fuses just in case.

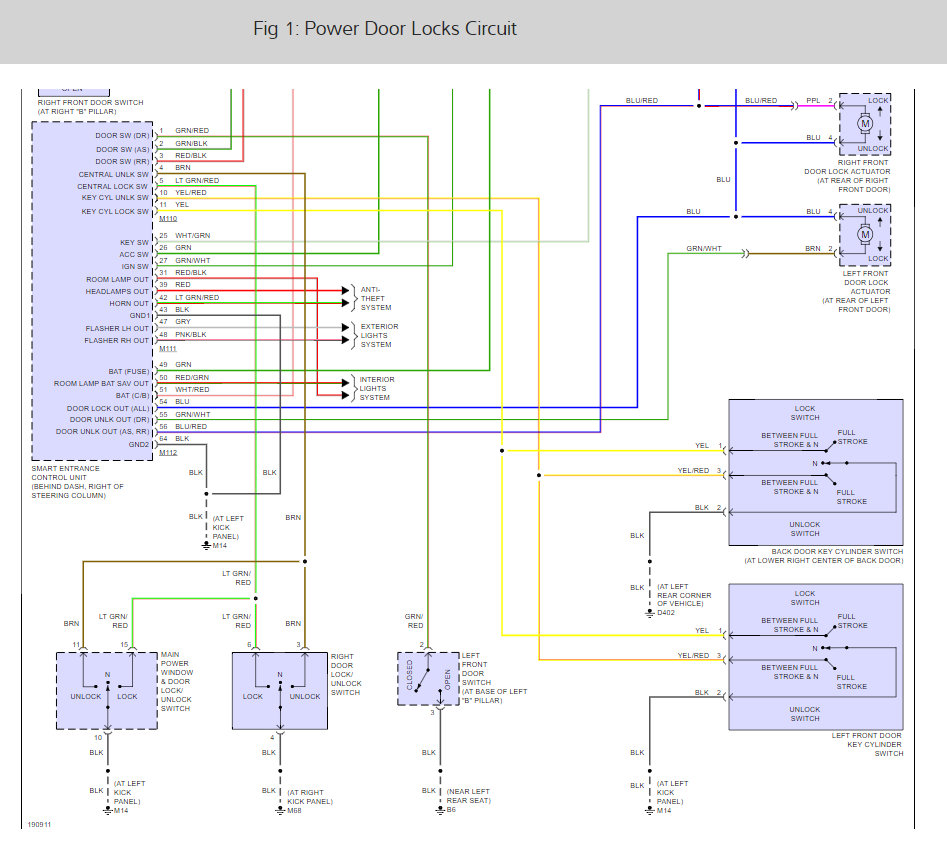

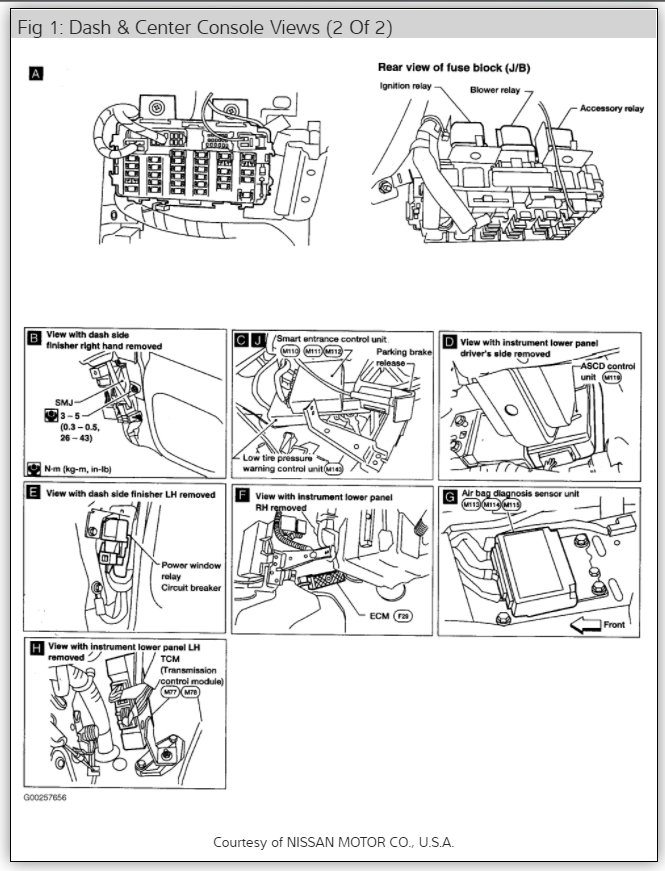

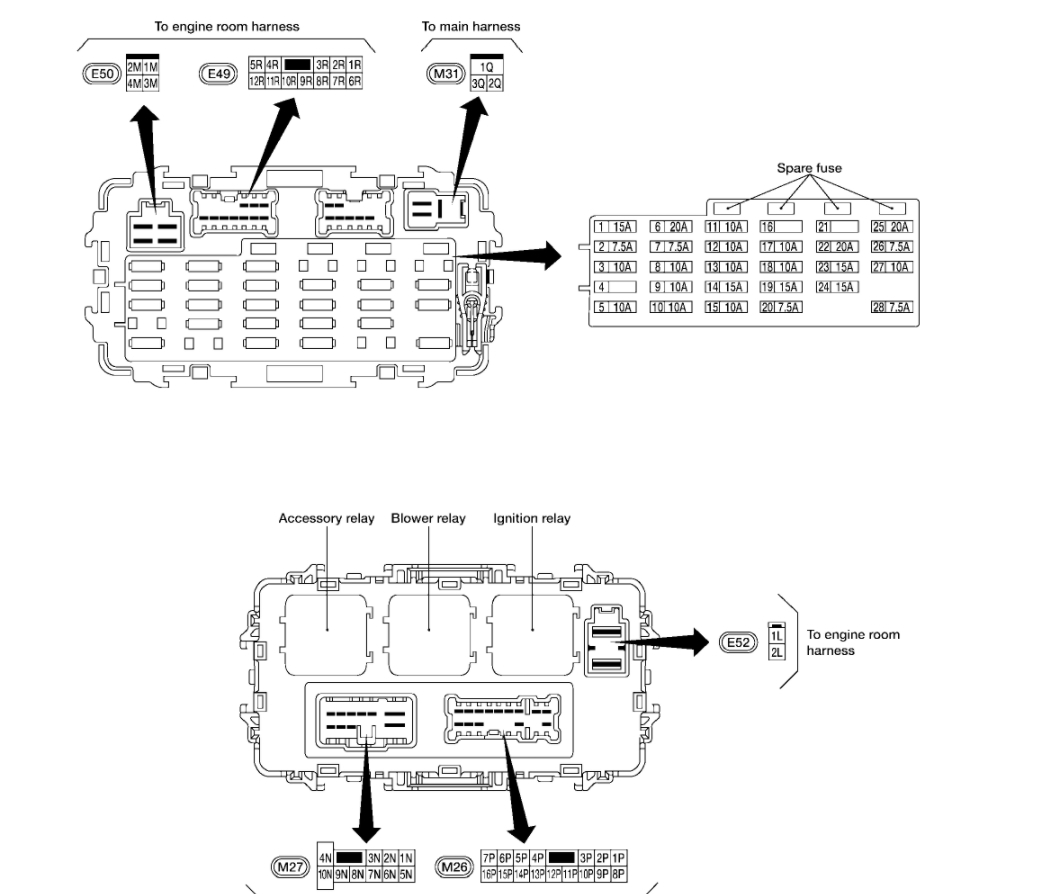

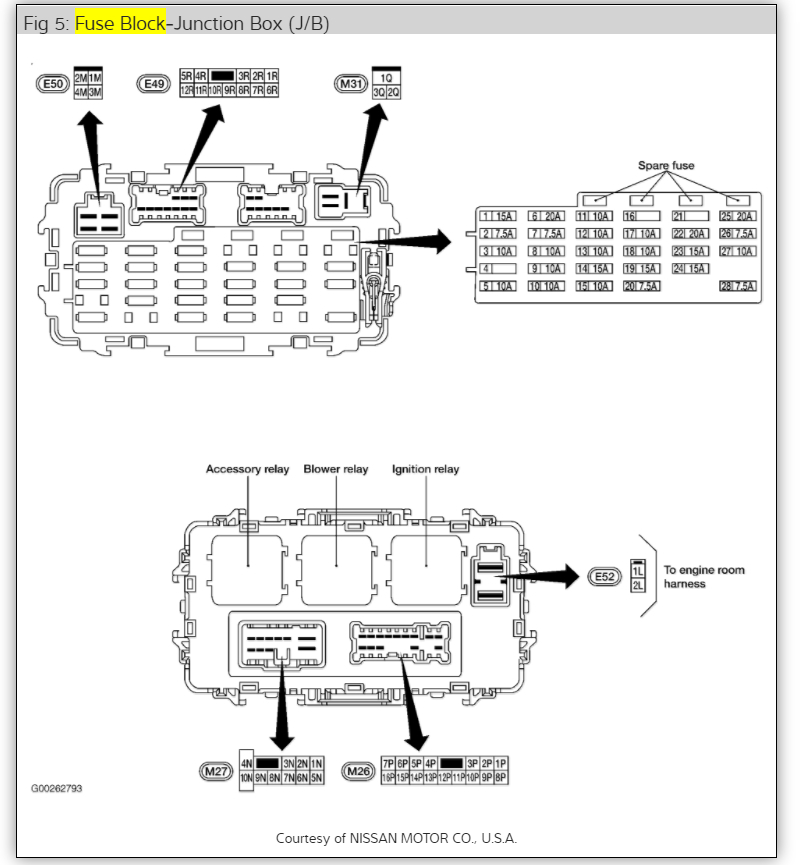

Here are some fuse panel and wiring diagrams for the system (below)

Please let us know what you find.

Cheers
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Attached Media
Jun 4, 2012 at 4:16 PM
Avatar
BILLNORFOLK
  • MEMBER
  • 4 POSTS
No other doors dont works,that is the problem,will check tomorrow .Wife getting fed up of climbing over gear leaver and hand brake to get into passenger seat.Still think its a fuse.
Jun 4, 2012 at 7:11 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS
You mean you are not able to unlock and open the passenger door nor other doors?
Even manually?
Jun 5, 2012 at 3:03 PM
Avatar
BILLNORFOLK
  • MEMBER
  • 4 POSTS
Correct only door i can open is drivers and only with key rest of the system includeing alarm is dead
Jun 5, 2012 at 8:02 PM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

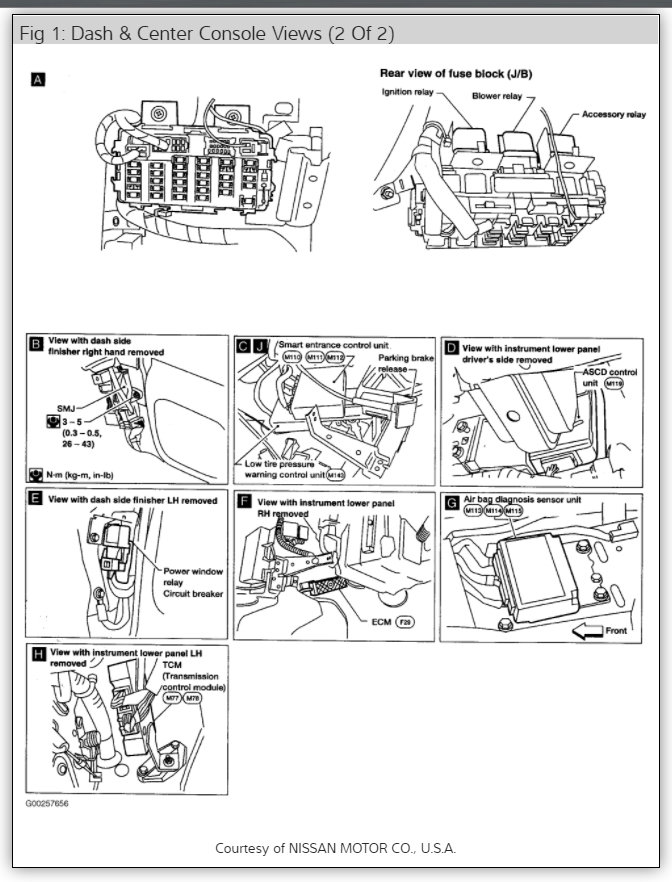

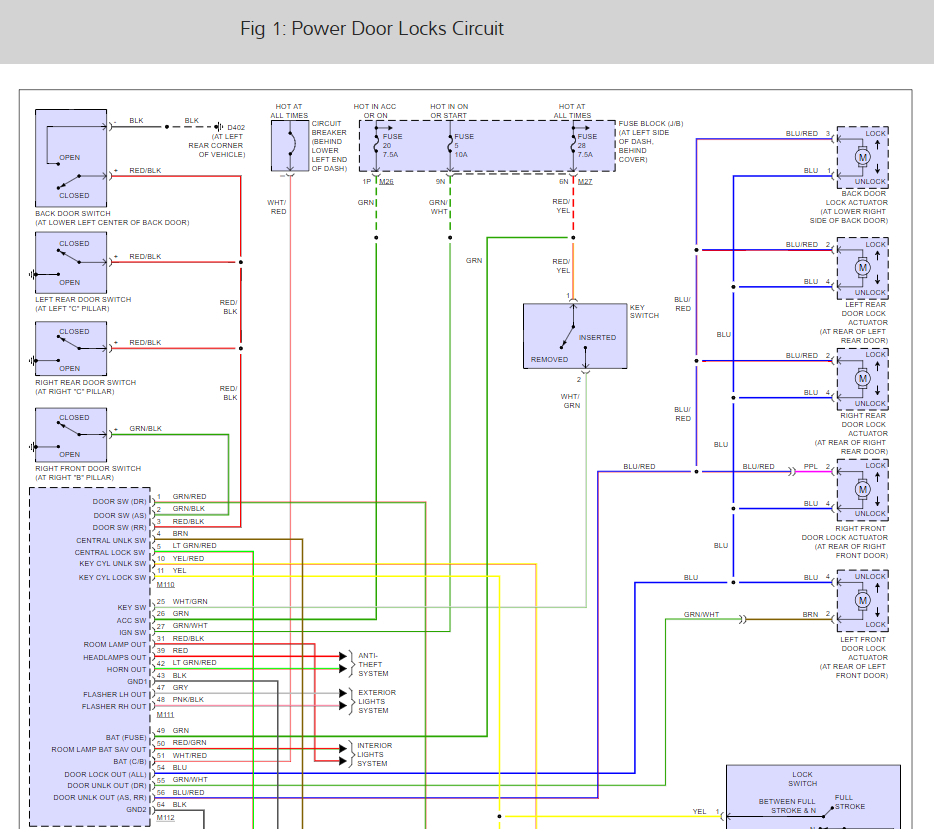

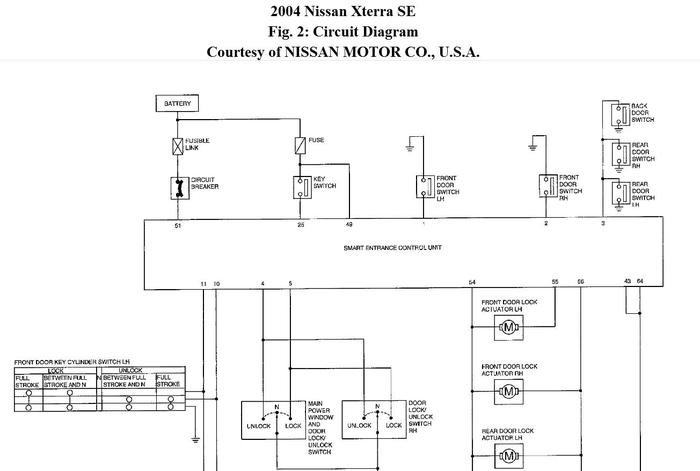

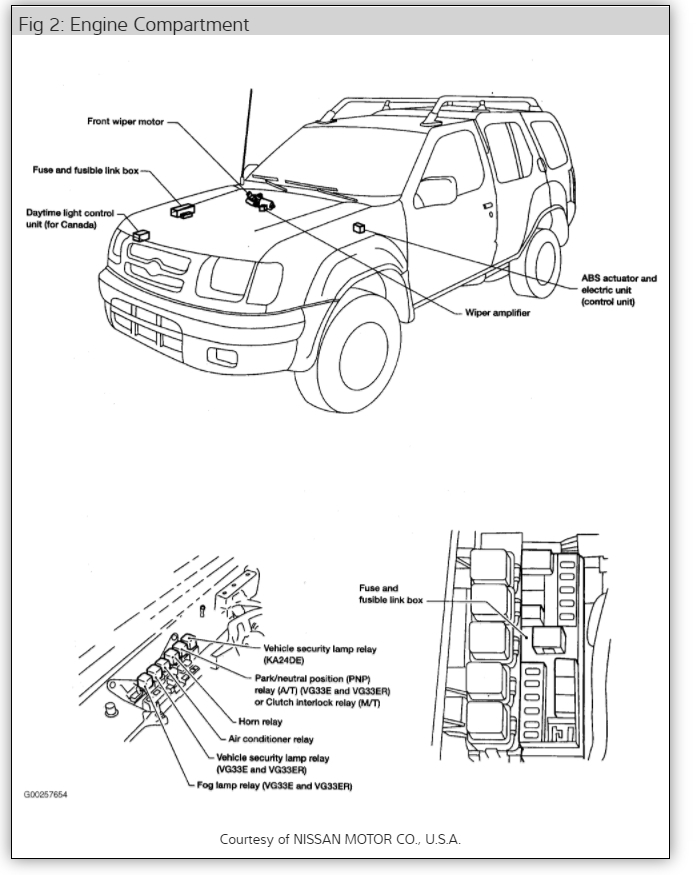

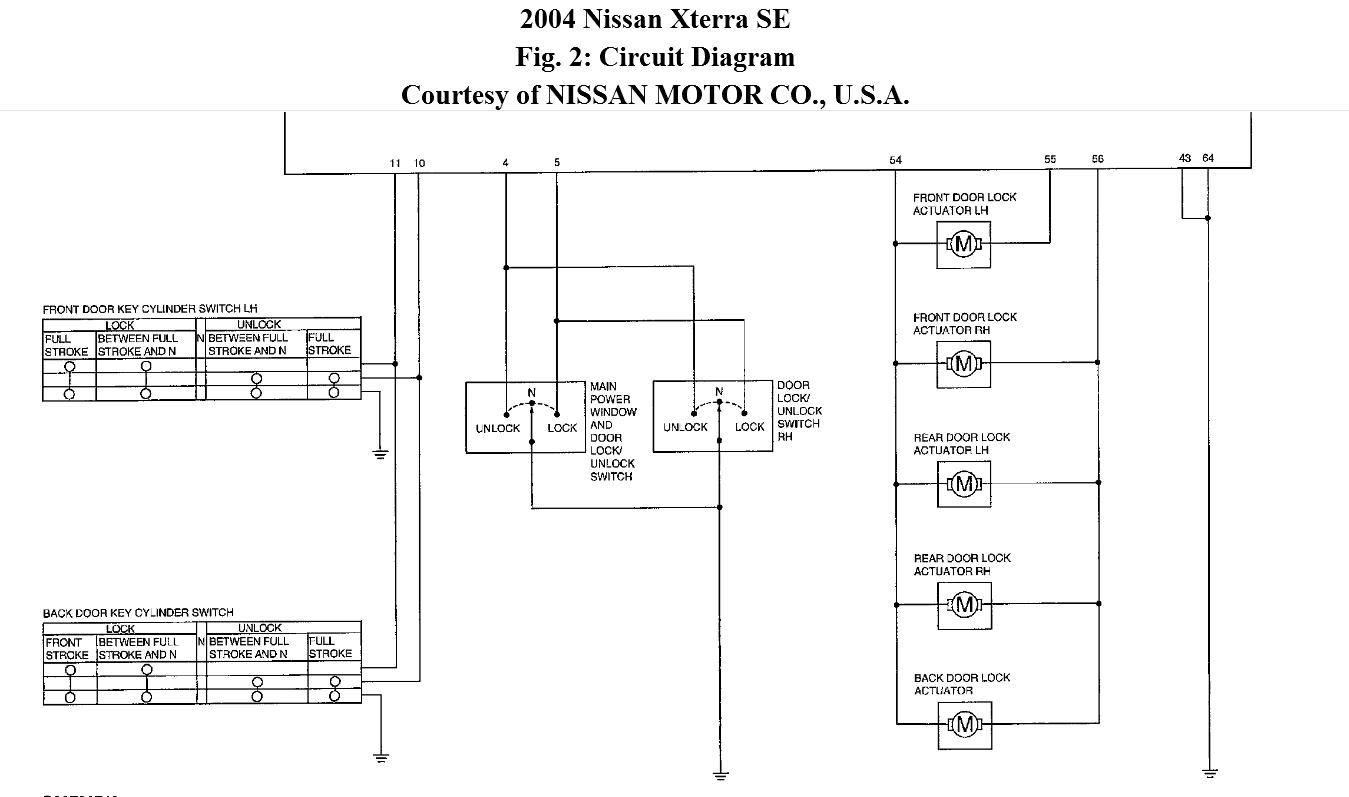

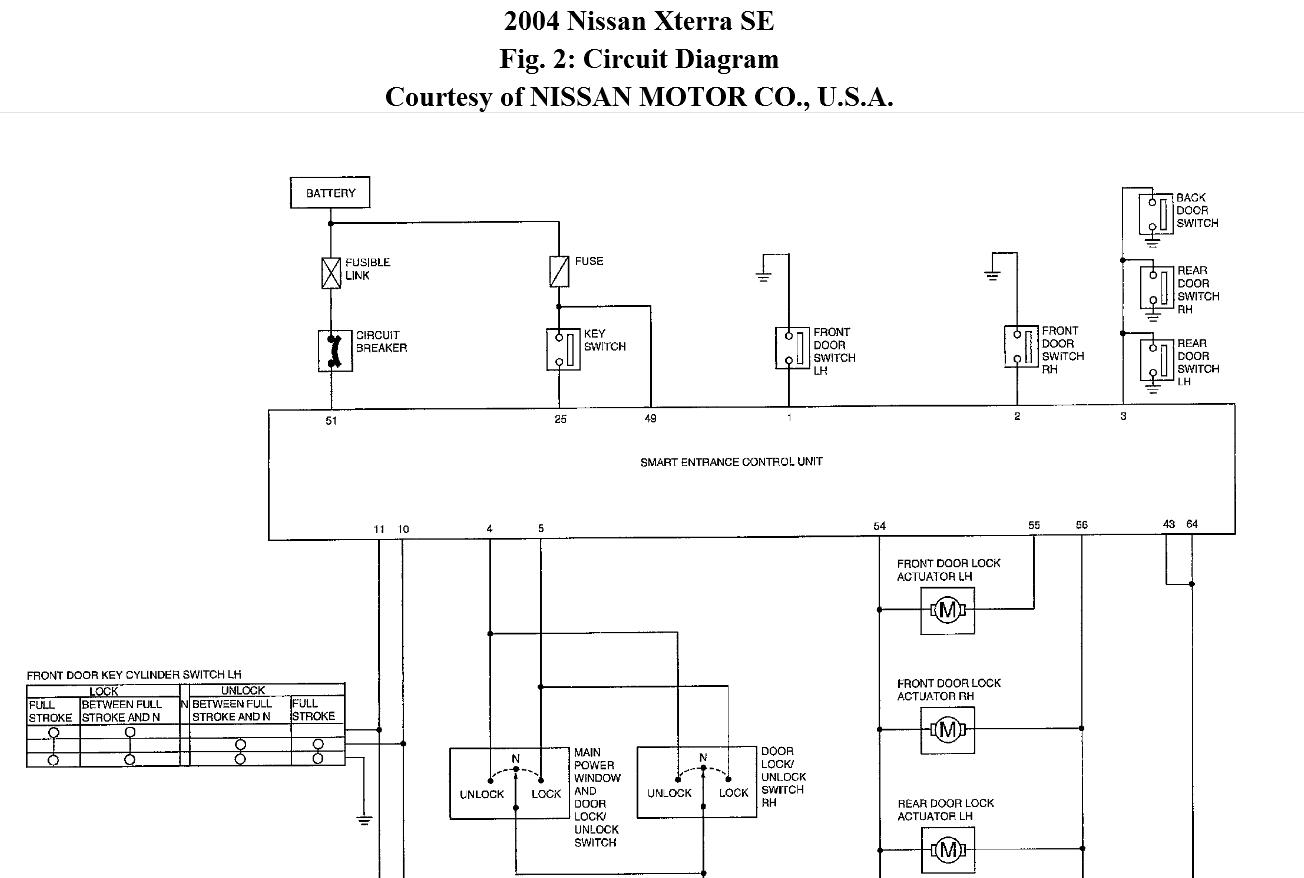

Attached are one for the Xterra which should be similar. It would give you an idea how it works. Most probably you have a faulty Body Control Module.

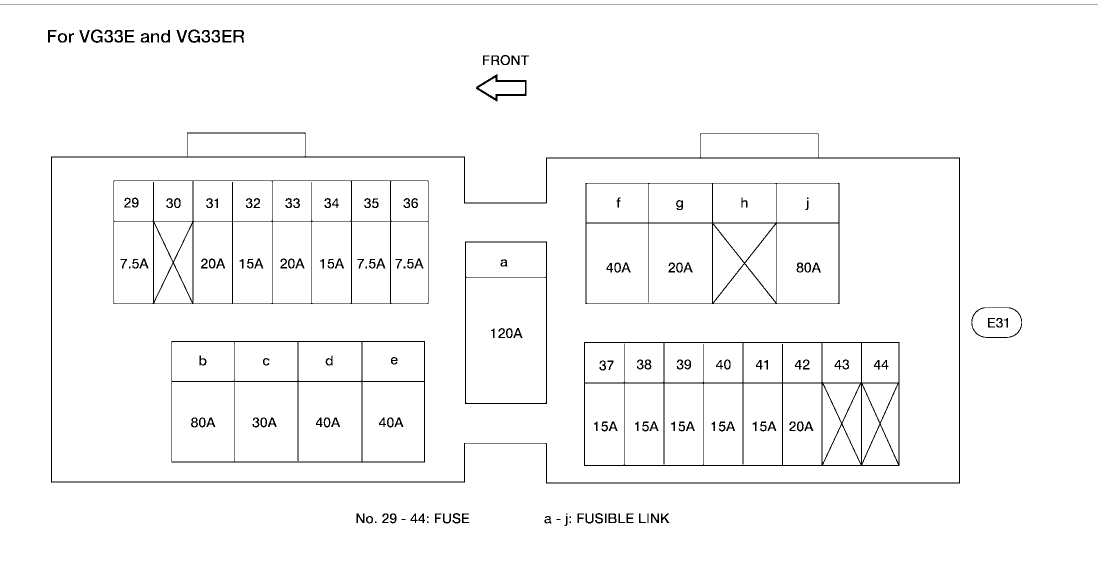

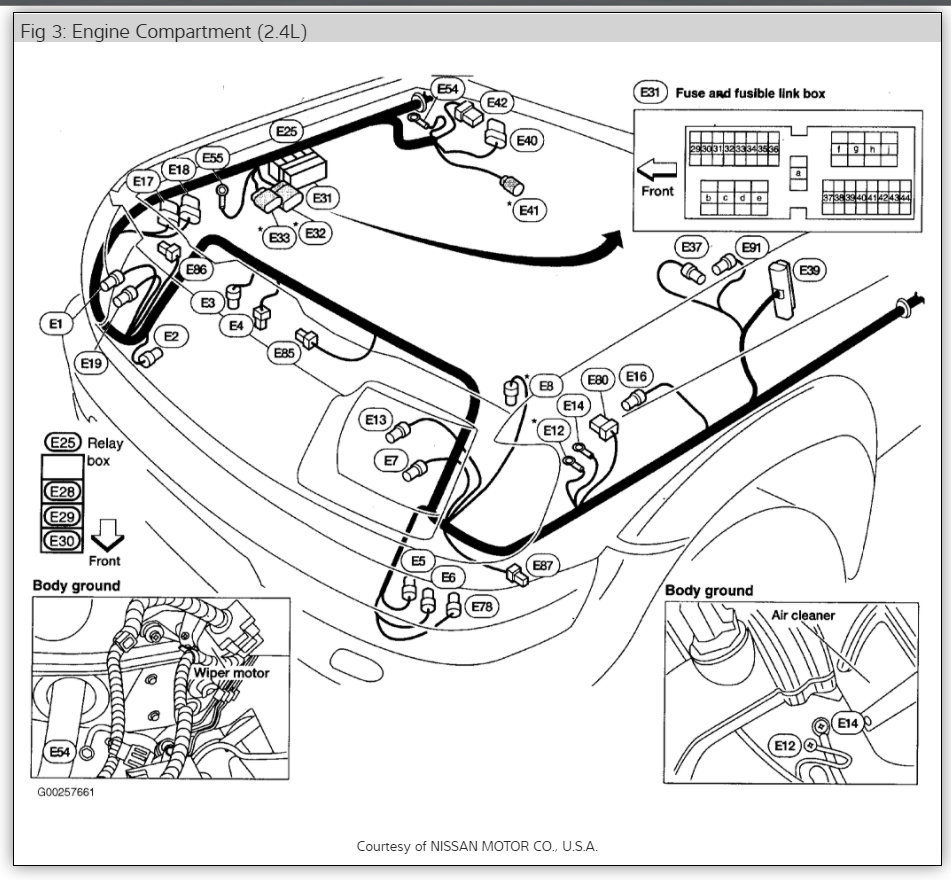

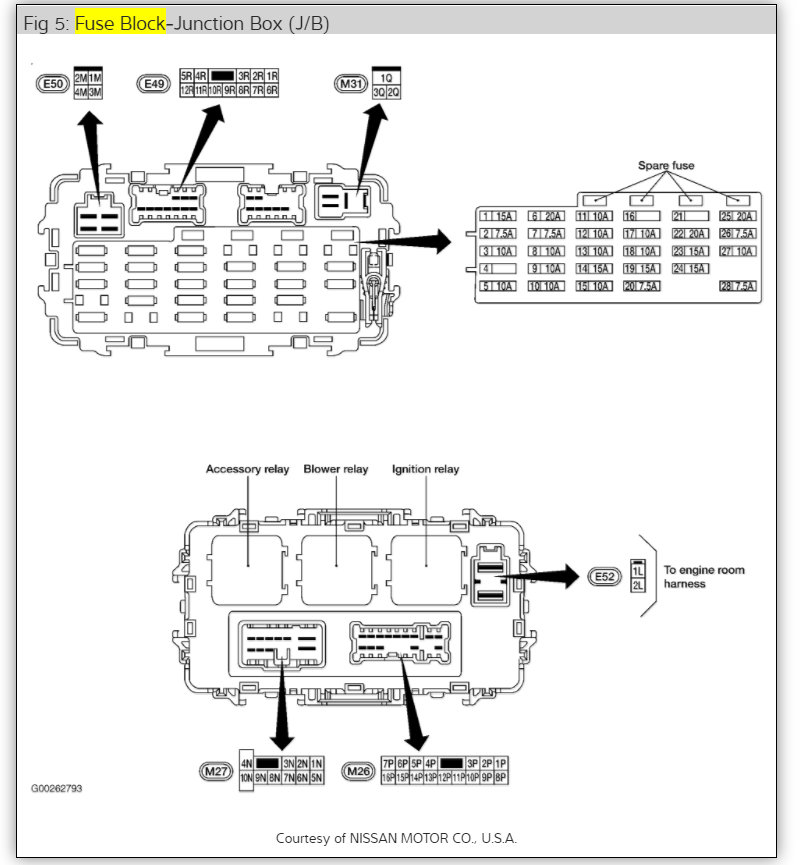

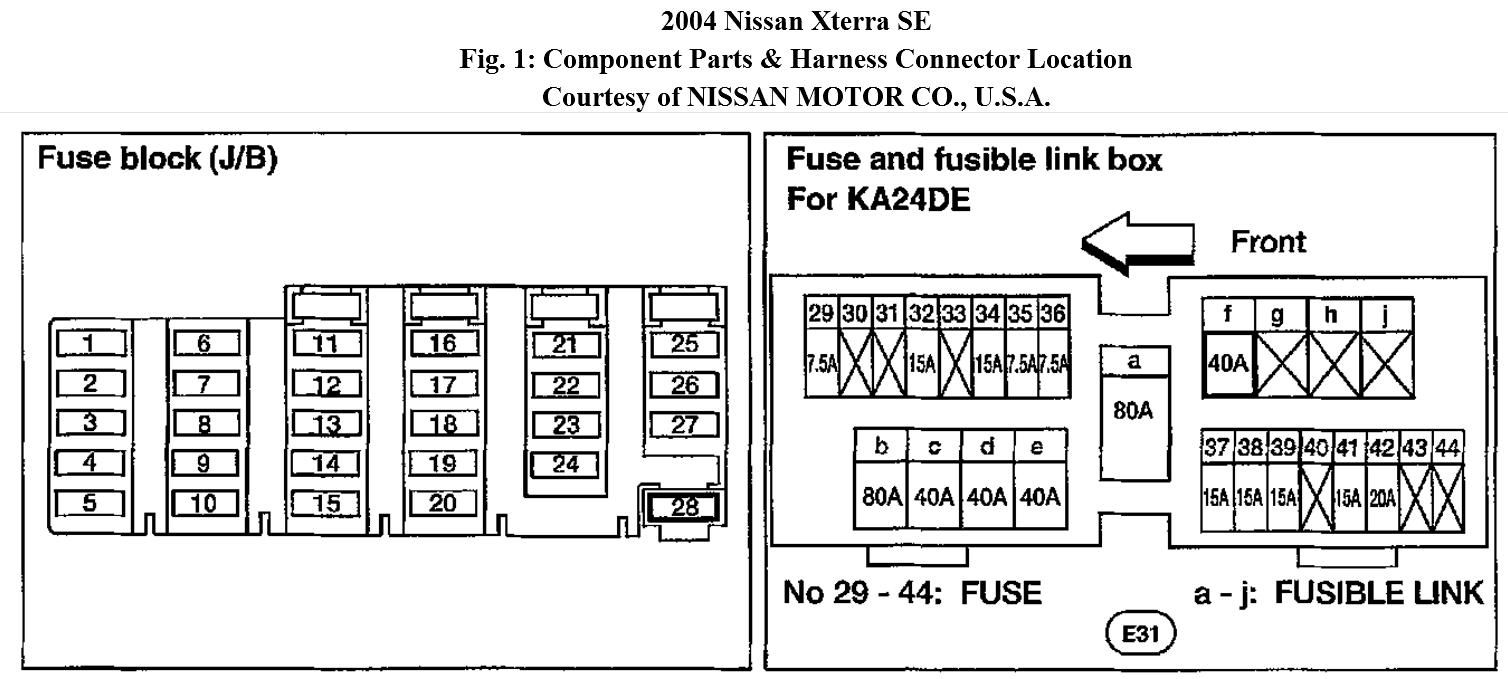

You ought to get a scan done to check for BCM codes. Power is supplied from underhood fusebox " J " and underdash fuse # 28.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Jun 6, 2012 at 1:53 PM
Avatar
BILLNORFOLK
  • MEMBER
  • 4 POSTS
Thank you the rain kept me from testing the fuses for a while but once I did fuse #28 was out so I replaced it and everything works! thanks 2carpros! Bill
Jun 6, 2012 at 2:22 PM
Avatar
ADRIANK
  • MEMBER
  • 1 POST
It is the top left 10amp fuse in the internal fuse box.
Hope that is helpful
Jul 7, 2013 at 1:30 AM
Avatar
G0LDIEMERV
  • MEMBER
  • 1 POST
Yes Adriank you are right this fuse also serves the interior lights and is so named (somewhat confusing) if your interior lights are not working when you open the door that is a giveaway. Fuses located above drivers footwell (well awkward) Hope this helps.
Apr 27, 2016 at 12:39 PM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Great addition to this thread! Please feel free to help out whenever you are on the site. :)

Cheers, Ken
Nov 20, 2017 at 11:45 AM
Avatar
[email protected]
  • MEMBER
  • 1 POST
I have lost the manual and when I got the car it did not have the panel indicating which fuses were what. My radio and CD player do not work. Can anyone advise me on which fuse this could possibly be related to?

Many thanks in advance.

Peter Alder
Jul 20, 2018 at 8:34 AM
Avatar
STRAILER
  • CERTIFIED EXPERT
  • 53,854 POSTS
Hi Peter, we can help, but you need to start your own question. Please post your new question here, you must be logged in.

https://www.2carpros.com/questions/new

Cheers, Ken
Jul 20, 2018 at 10:34 AM
