Where is the TPS located on a Nissan Sentra 04 1.8

2004 NISSAN SENTRA
104,000 MILES
Avatar
LLLORILL
  • MEMBER
  • 1 POST

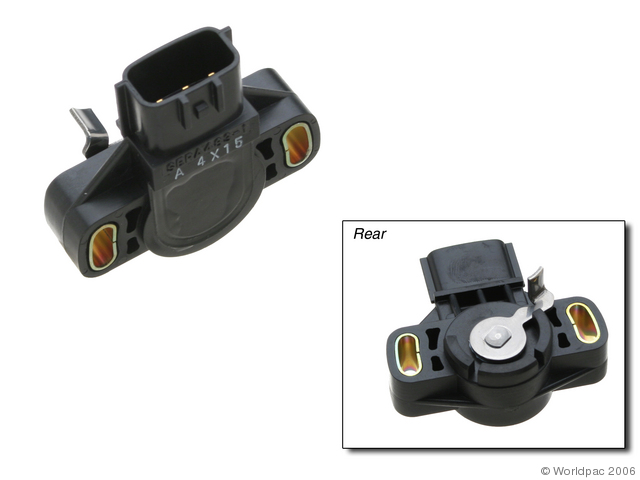

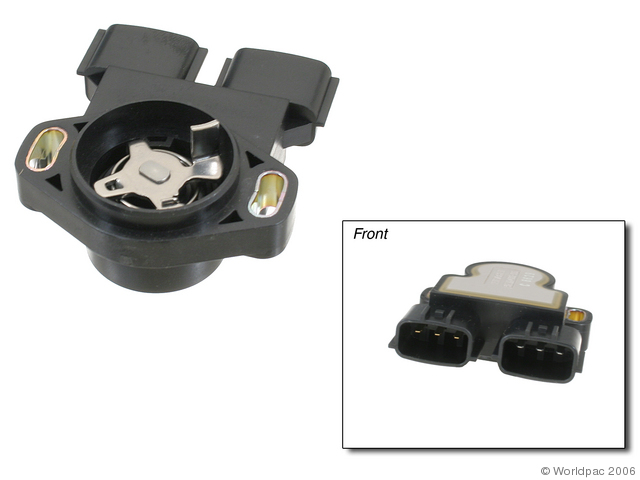

I think I found it on the left side of the engine but it only has 1 connector. According to my research it should have 2. It seems like it belongs to an earlier model, How is this possible?
Images (Click to enlarge)
Attached Media
Attached Media
Feb 7, 2012 at 2:47 AM
Advertisement
Avatar
JACOBANDNICKOLAS
  • CERTIFIED EXPERT
  • 110,175 POSTS

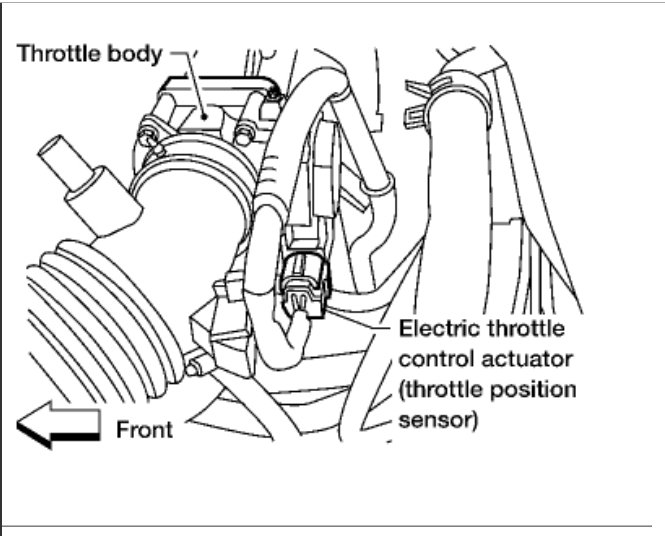

It should be on the throttle body if the car is cable driven. If it is drive by wire the TPS is inside the throttle actuator. Check out the diagrams (Below). Please let us know if you need anything else to get the problem fixed.

Cheers
Image (Click to enlarge)
Attached Media
Feb 7, 2012 at 3:28 AM
