Navigation system

2004 NISSAN QUEST
170,000 MILES
Avatar
GREENCHEVYMALIBU
  • MEMBER
  • 230 POSTS
It seems that the navigation DVD player that players the maps DVD isn't getting power. I push the eject button and nothing happens. When I try to put the road map DVD in nothing happens it doesn't taken the DVD. Is there a fuse or where does it draw its power?
Oct 14, 2012 at 4:21 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

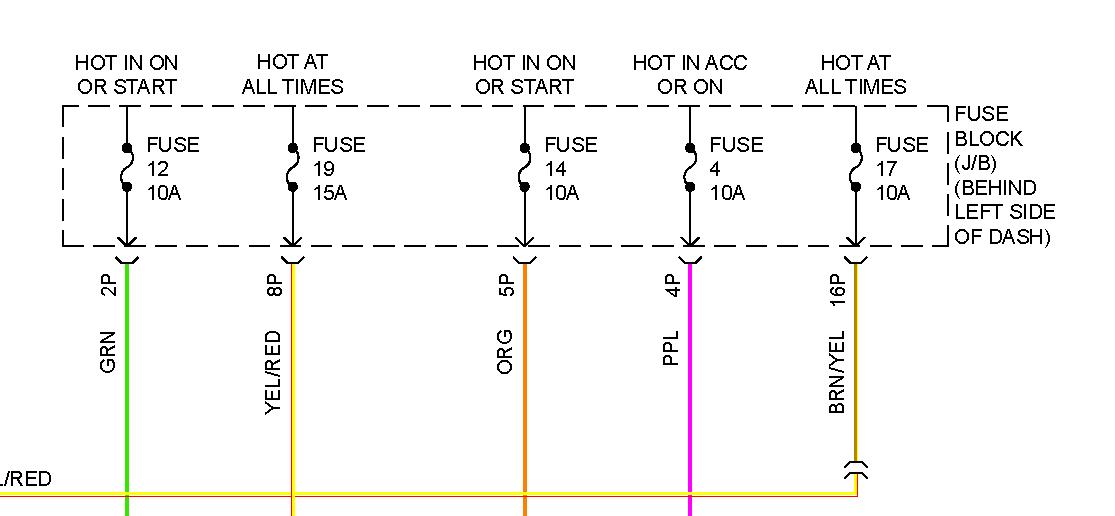

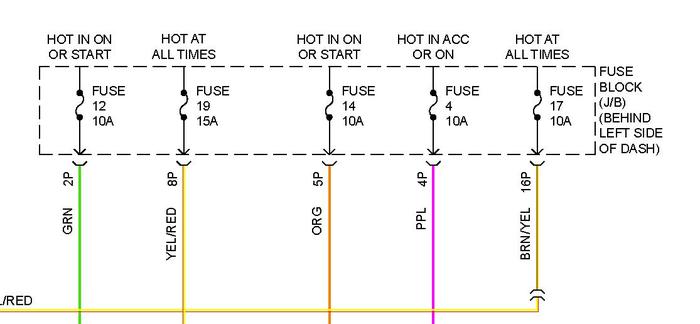

Diagram shows all the fuses related to the navigation unit.
Image (Click to enlarge)
Attached Media
Oct 14, 2012 at 4:27 PM
Avatar
GREENCHEVYMALIBU
  • MEMBER
  • 230 POSTS
Could u help me with the wire diagram. Where are these wires and the fuses?
Oct 14, 2012 at 7:56 PM
Advertisement
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

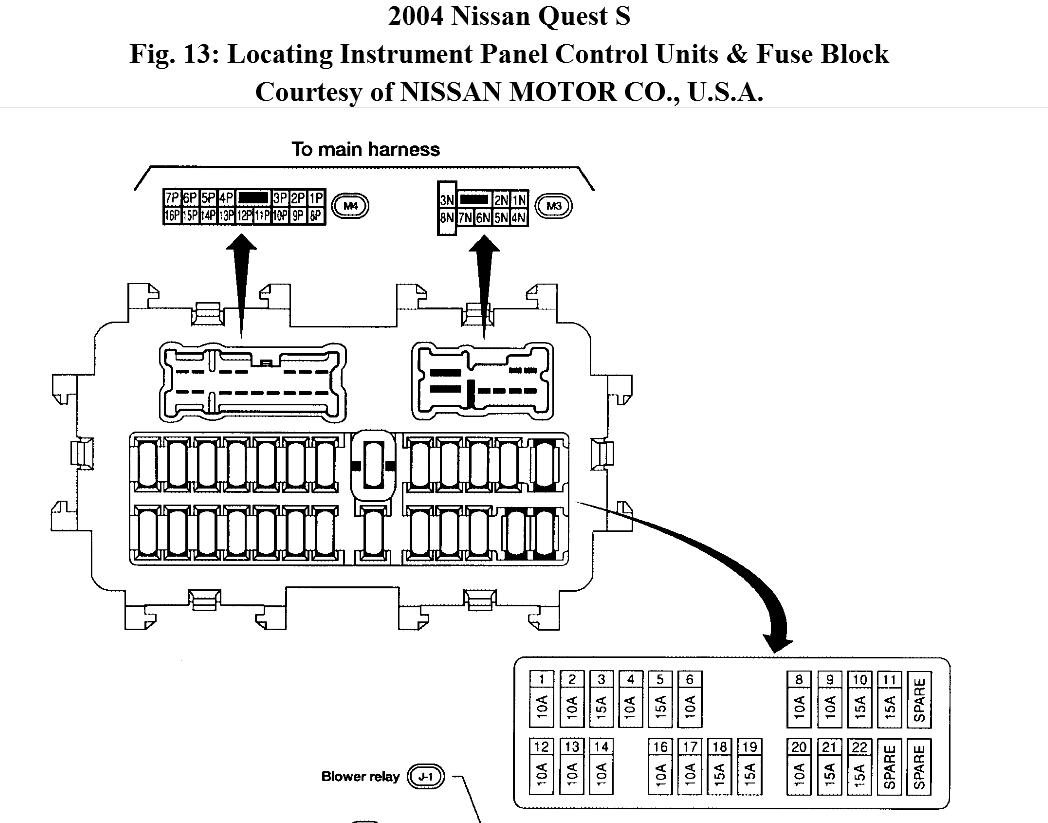

Fuses are in underdash fuse box. Refer to diagram for the fuse which are numbered accordingly.
Image (Click to enlarge)
Attached Media
Oct 14, 2012 at 8:02 PM
Avatar
GREENCHEVYMALIBU
  • MEMBER
  • 230 POSTS
All the fuses are good. The climate control works when u start the car the nissan logo is on the screen. But the navagating DVD machine doesn't take a cd.
Oct 19, 2012 at 8:05 PM
Avatar
KHLOW2008
  • CERTIFIED EXPERT
  • 41,814 POSTS

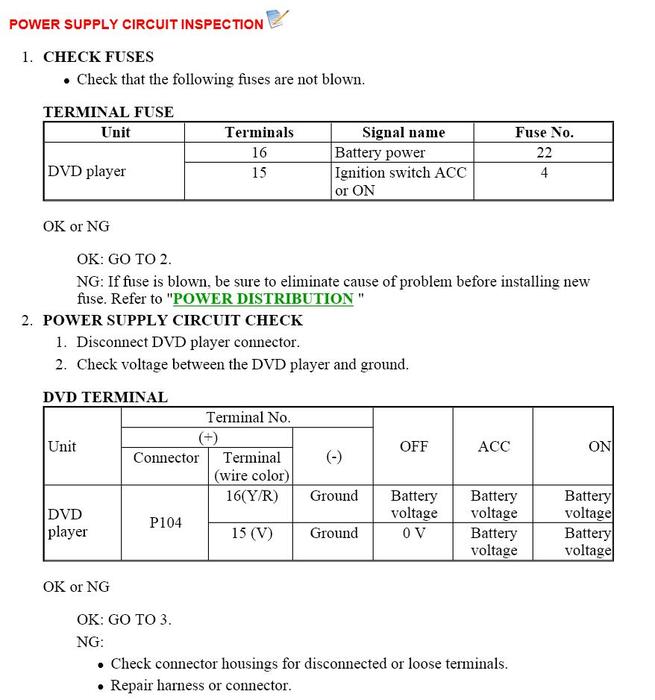

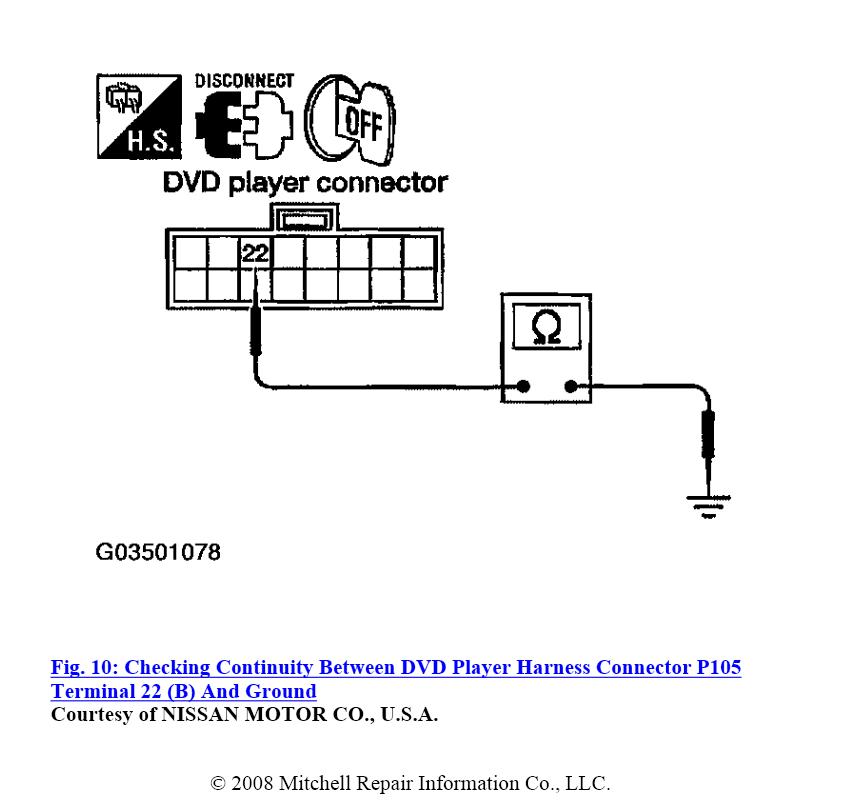

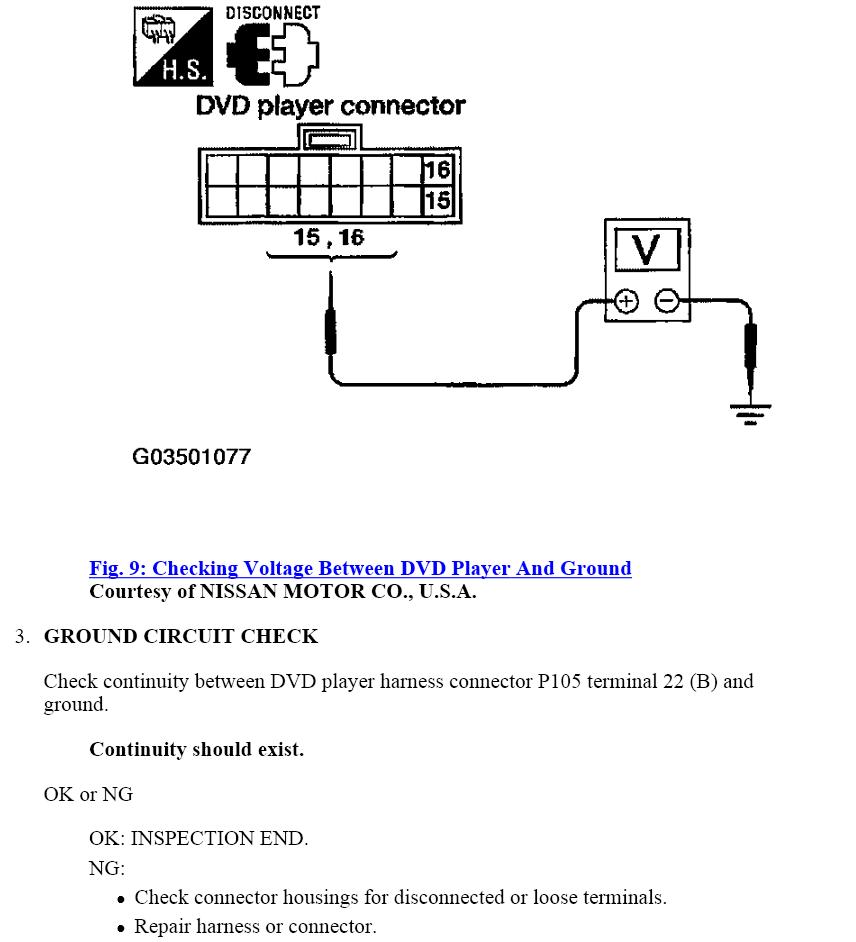

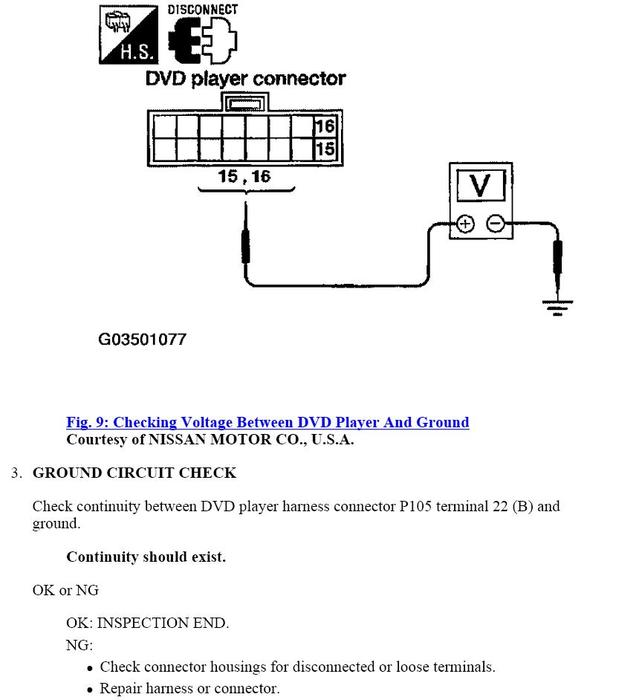

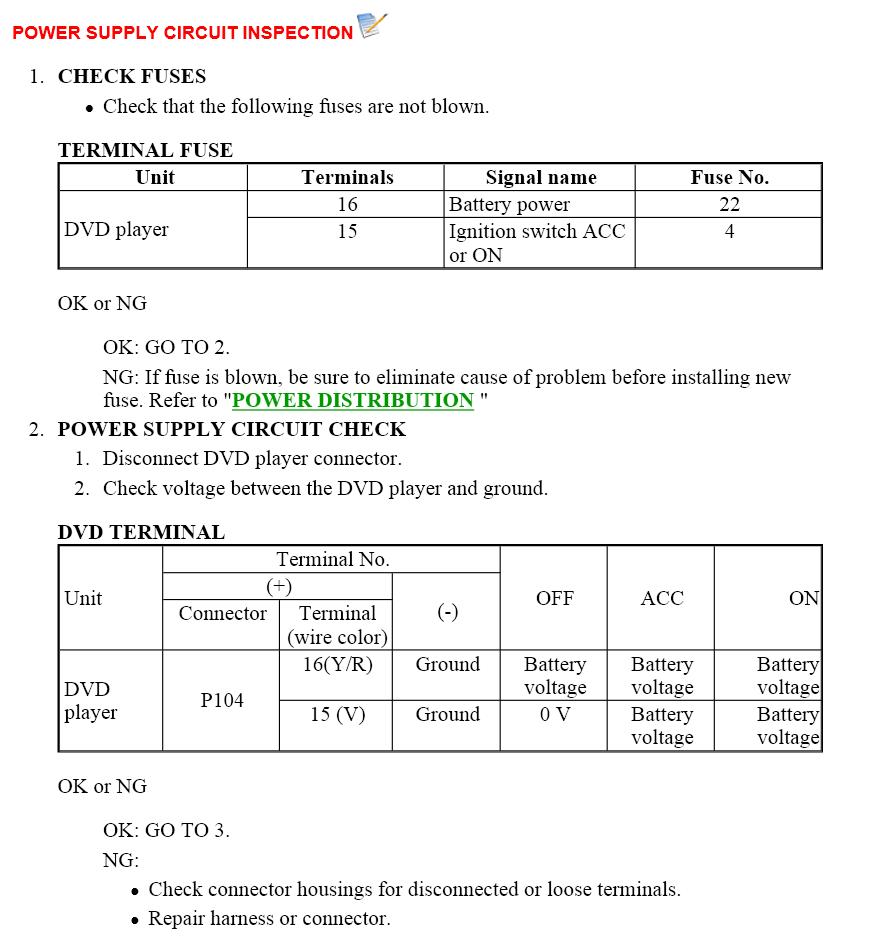

See if the following is of any help. If power and ground circuit are good, the unit has an internal fault.
Images (Click to enlarge)
Attached Media
Attached Media
Attached Media
Oct 20, 2012 at 12:48 PM
